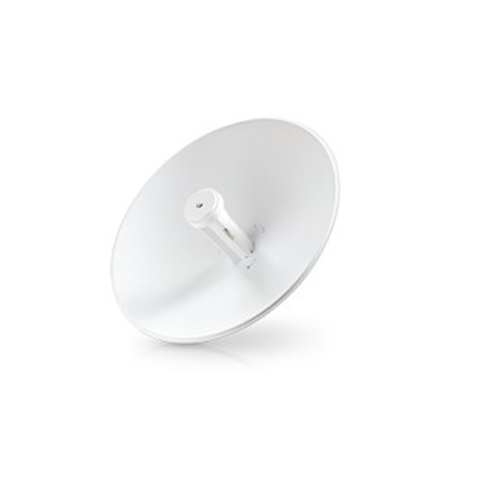

Ubiquiti UISP PBE-2AC-400, 2.4 GHz PowerBeam AC airMAX® ac Bridge with Dedicated Wi-Fi Management, 450+ Mbps Throughput
$235.62 inc GST
Manufacturer: Ubiquiti
Availability: BRS:9 ADL:2 SYD:5 MEL:8 WA:2
26 in stock
Ubiquiti airMAX PowerBeam 2AC 400
SKU: PBE-2AC-400
Description: 2.4 GHz WiFi antenna with a 450+ Mbps real TCP/IP throughput rate.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•2.4 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
•2.4 GHz, 25+ km link range
•450+ Mbps throughput
•Improved mounting
•Dedicated spectral analysis radio
Why Choose This?
The Ubiquiti UISP PBE-2AC-400 is a high-performance 2.4 GHz airMAX ac bridge designed for long-range point-to-point and point-to-multipoint wireless links, delivering 450+ Mbps real TCP/IP throughput for reliable connectivity over extended distances. Its dedicated Wi-Fi management radio simplifies setup and configuration via mobile devices, while advanced noise immunity and airMAX ac technology ensure superior performance in noisy environments. Ideal for ISPs, businesses, or remote sites needing cost-effective, rugged outdoor wireless bridging with up to 20+ km range.
Key Features
- 450+ Mbps Throughput – Delivers high-speed wireless performance for demanding PtP and PtMP applications.
- Dedicated Wi-Fi Management Radio – Enables easy setup and monitoring via UNMS app without disrupting the main link.
- 18 dBi High-Gain Directional Antenna – Provides focused beamwidth for long-range links up to 20+ km with improved noise immunity.
- airMAX ac Protocol – Utilizes TDMA for low latency, scalability, and efficient airtime management in dense networks.
- Rugged Outdoor Design – Withstands extreme weather including 200 km/h winds, -40°C to 70°C temperatures, and ±24 kV ESD protection.
Full Specifications
| Category | Details |
|---|---|
| Model | PBE-2AC-400 |
| Frequency Band | 2.4 GHz airMAX ac |
| Operating Frequency (MHz) Worldwide | 2412-2472 |
| Operating Frequency (MHz) USA | 2412-2462 |
| Management Radio (MHz) Worldwide | 5150-5250 |
| Management Radio (MHz) USA | U-NII-3: 5725-5850 |
| Gain | 18 dBi |
| Throughput | 450+ Mbps real TCP/IP |
| Channel Sizes PtP Mode | 10/20/40 MHz |
| Channel Sizes PtMP Mode | 10/20/40 MHz |
| Max. Output Power | 27 dBm |
| Networking Interface | (1) 10/100/1000 Ethernet Port (GbE RJ45) |
| Processor | MIPS 74Kc |
| Memory | 64 MB |

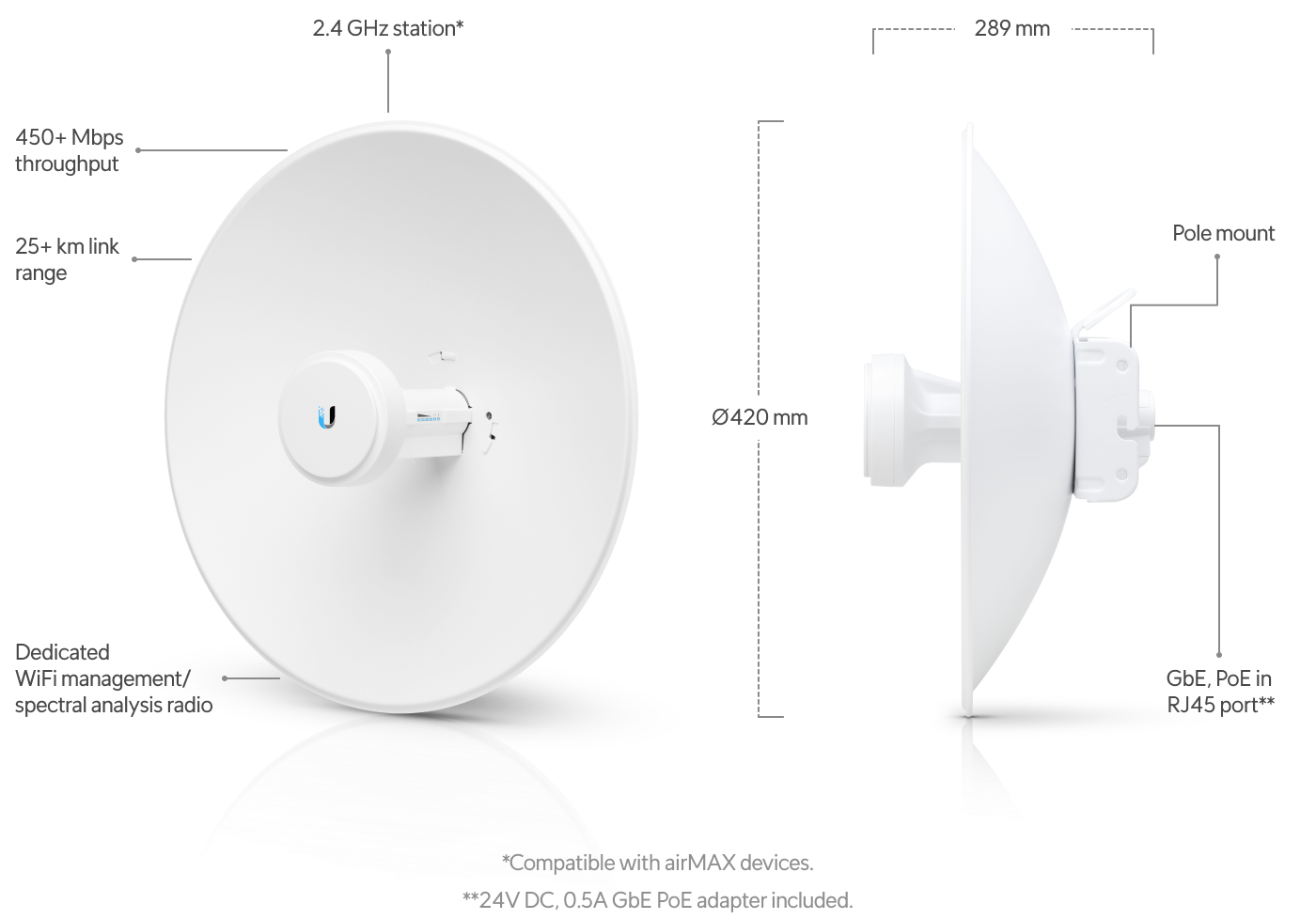

| Dimensions (with Radome) | 420 x 420 x 289 mm (16.5 x 16.5 x 11.4″) |
| Weight (Mount Included) | 1.8 kg (4 lb) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 7.5W |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 Return) |
| Supported Voltage Range | 20-27 VDC |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Enclosure Materials | Outdoor UV Stabilized Plastic, Powder-Coated SPCC |
| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 342.5 N @ 200 km/h (77 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air/Contact: ±24 kV |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC, RoHS, NDAA Compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum throughput of the PBE-2AC-400? It delivers 450+ Mbps real TCP/IP throughput using airMAX ac technology in optimal conditions.
- Q: Does it support long-range links? Yes, suitable for PtP/PtMP links up to 20+ km with its 18 dBi gain and directional antenna design.
- Q: How do I manage and configure the device? Use the dedicated Wi-Fi management radio with the UNMS mobile app or airOS 8 web interface via Ethernet.
- Q: Is it suitable for outdoor use in harsh environments? Yes, rated for -40 to 70°C, 200 km/h winds, IP-rated enclosure, and ±24 kV ESD protection.
- Q: What power method does it use? Passive PoE (24V, 0.5A adapter included) over Ethernet pairs 4,5+ and 7,8 return, with max 7.5W consumption.
| Weight | 3.8 kg |
|---|---|
| Dimensions | 510 × 500 × 140 mm |
| Product Create Date | 23/01/2018 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | PBE-2AC-400 |
| Opt Accessory | NHU-POE-24-12WG |
