Ubiquiti UISP Dish Mini, 5-7 GHz Compact Dish, 26 dBi Gain Radio Direct Connect, Compitable With Wave-MLO5, RP-5AC-Gen2, AF-5XHD
$309.40 inc GST
Manufacturer: Ubiquiti
Availability: BRS:2 ADL:1 SYD:1 MEL:1 WA:0
5 in stock

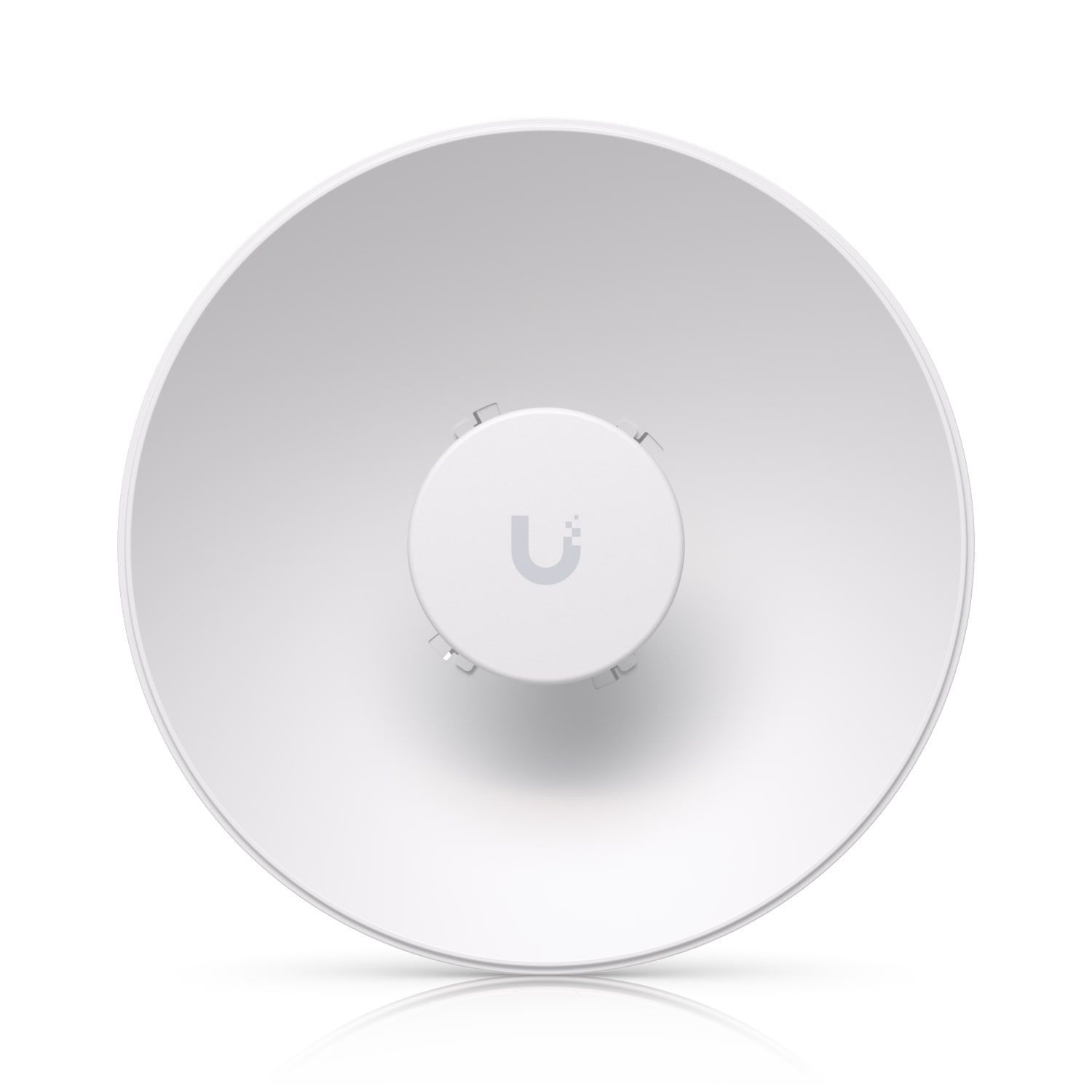

Ubiquiti UISP Dish Mini
SKU: UISP-Dish-Mini
Tech Specs: Click Here
Installation Guide: Click Here
Description:
5-7 GHz compact dish with 26 dBi gain and radio direct connect.
Compatibility: Wave-MLO5, RP-5AC-Gen2, AF-5XHD
Why Choose This?
The Ubiquiti UISP Dish Mini is a compact 5-7 GHz directional antenna delivering 26 dBi gain for high-performance point-to-point wireless links over extended distances. Its radio direct connect design integrates seamlessly with compatible Ubiquiti radios like Wave-MLO5, RP-5AC-Gen2, and AF-5XHD, enabling quick deployment of reliable, interference-resistant bridges in urban or rural environments. Built tough with IPX6 weatherproofing and 200 km/h wind survivability, it ensures durable, low-maintenance operation for WISPs and network professionals.
Key Features
- 26 dBi gain – Delivers focused signal for long-range PtP links up to 30+ km with high throughput.
- 5.15-6.875 GHz frequency range – Wide coverage across 5-7 GHz bands for flexible spectrum use and DFS compatibility.
- Radio direct connect with waveguide – Enables secure, low-loss mounting to Wave-MLO5, RP-5AC-Gen2, AF-5XHD for simplified installs.
- Narrow beamwidth (5.8-9° 3 dB) – Provides superior interference rejection in dense deployments.
- IPX6 weatherproofing and robust build – Withstands harsh weather, high winds up to 200 km/h for reliable outdoor performance.
Full Specifications
| Category | Details |
|---|---|
| Manufacturer | Ubiquiti |
| Model | UISP-Dish-Mini |
| Frequency Range | 5.15 to 6.875 GHz |
| Gain | 26 dBi |
| Azimuth Beamwidth | 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) |
| Elevation Beamwidth | 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) |
| Electrical Downtilt | 0° |
| Max. VSWR | 2:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 15 dB |

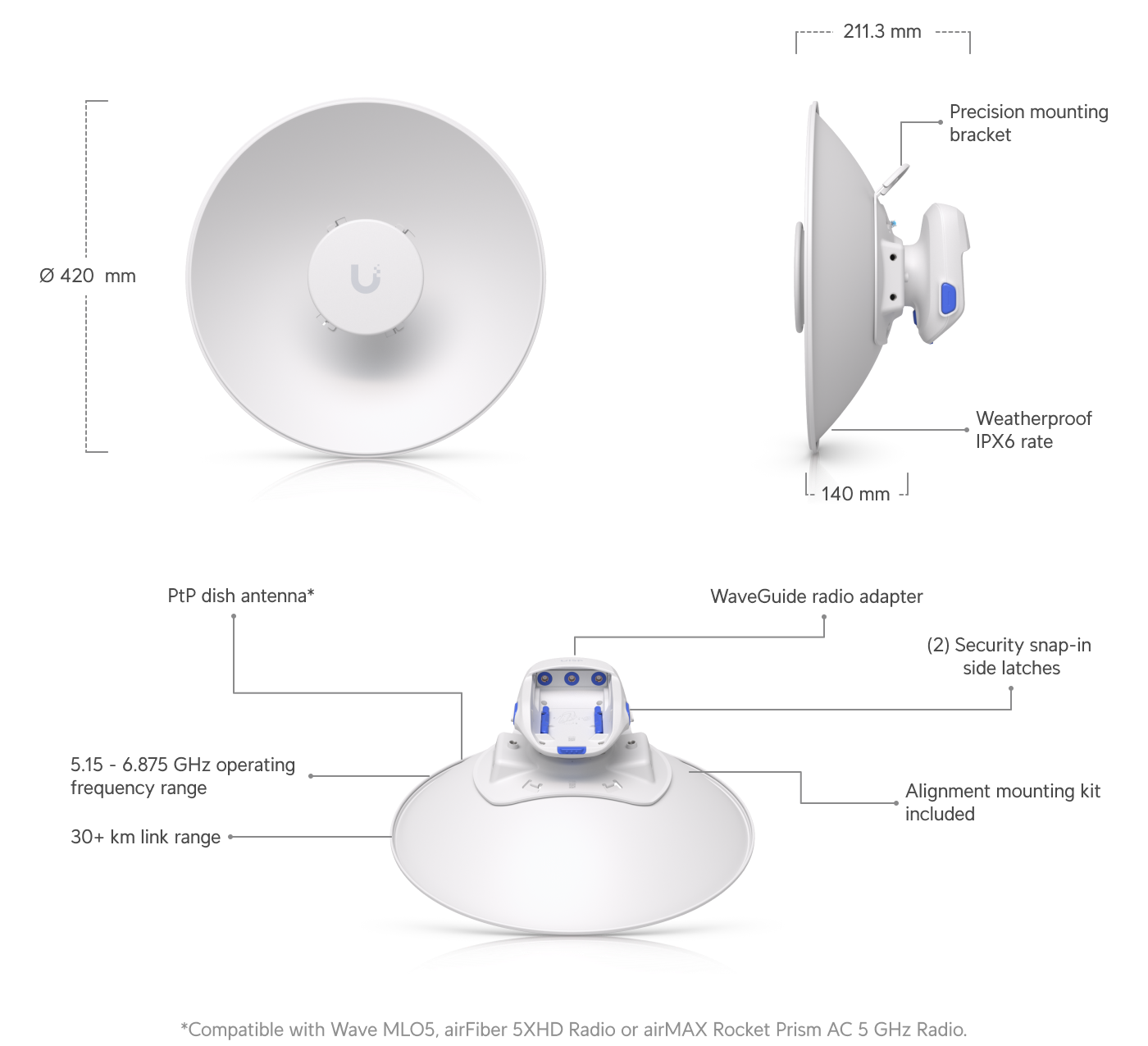

| Dimensions (Antenna Dish) | ⌀420 x 140 mm (⌀16.5 x 5.5″) |
| Dimensions (with Waveguide) | ⌀420 x 211.3 mm (⌀16.5 x 8.3″) |
| Weight (Antenna Dish) | 1.95 kg (4.3 lb) |
| Weight (Mount) | 1 kg (2.2 lb) |
| Weight (Waveguide) | 0.45 kg (1 lb) |
| Enclosure Material (Dish) | Powder-coated galvanized steel, UV-stabilized polycarbonate |
| Enclosure Material (Waveguide) | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Powder-coated galvanized steel, aluminum alloy |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 348 N at 200 km/h (78 lbf at 124 mph) |
| Mounting | Pole mount; Alignment mounting kit (included); ±20° elevation adjustment |
| Pole Mount Diameter | ⌀32–76 mm (⌀1.25–3″) |
| Weatherproofing | IPX6 |
| NDAA Compliant | Yes |
| Compatible Radios | Wave-MLO5, RP-5AC-Gen2, AF-5XHD |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What radios is the UISP Dish Mini compatible with? It features radio direct connect compatibility with Wave-MLO5, RP-5AC-Gen2, and AF-5XHD via the included waveguide adapter.
- Q: What is the operating frequency range? 5.15 to 6.875 GHz, supporting wide 5-7 GHz band operation including DFS channels where permitted.
- Q: Is it suitable for outdoor use in harsh weather? Yes, with IPX6 weatherproofing and wind survivability up to 200 km/h (124 mph).
- Q: What type of mounting does it support? Pole mounting for ⌀32–76 mm (1.25–3″) poles, with included alignment kit and ±20° elevation adjustment.
- Q: Does it comply with NDAA requirements? Yes, the UISP Dish Mini is NDAA compliant.
| Weight | 3.4 kg |
|---|---|
| Dimensions | 420 × 420 × 140 mm |
| Product Create Date | 12/06/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UISP-Dish-Mini |
