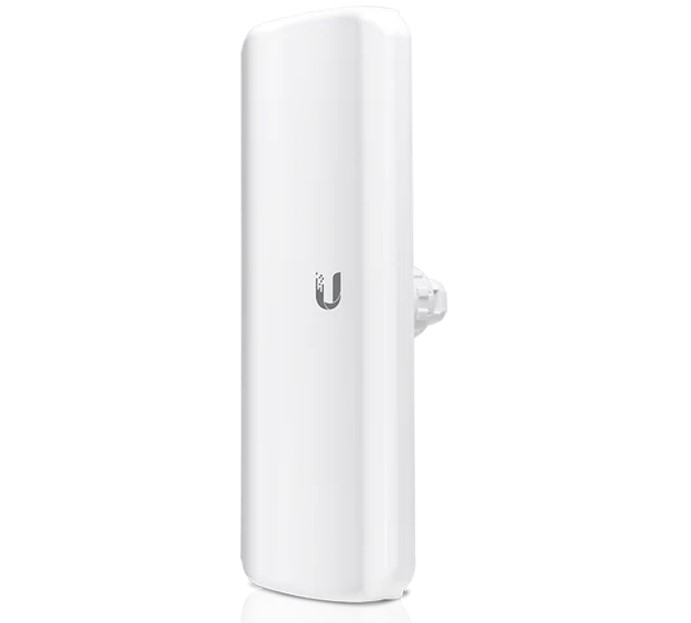

Ubiquiti LiteBeam AC All-in-one, 802.3AC AirMax Radio with 16dBi 90 deg 5GHz 802.11ac Antenna with GPS Sync and Management Radio
$197.54 inc GST
Manufacturer: Ubiquiti
Availability: BRS:2 ADL:2 SYD:2 MEL:16 WA:1
23 in stock
Ubiquiti LiteBeam AC 16dBi 90 deg 5GHz 802.11ac Antenna with GPS Sync and Management Radio
SKU: LAP-GPS
Description:
The Lite AP GPS features an integrated high-performance 90 degree sector antenna and GPS Sync for scale-able, cost-effective airMAX AC networks.Powerful and affordable 5 GHz sector access point. GPS synchronized units provide up to 450+ Mbps data throughput.
Tech Specs: Click Here
Features:
•Integrated 5 GHz antenna, 12+ km link range
•450+ Mbps throughput
•50+ client capacity
•Dedicated spectral analysis radio
• Integrated GPS sync
Why Choose This?
The Ubiquiti LAP-GPS (LiteAP GPS) is a powerful, affordable 5 GHz sector access point designed for high-performance PtMP networks, delivering up to 450+ Mbps real TCP/IP throughput with its integrated 17 dBi 90° antenna. GPS synchronization enables co-located units to operate without interference, improving frequency reuse and network stability for scalable WISP deployments over 12+ km ranges. Its lightweight design, dedicated management radio, and airMAX AC technology make it ideal for cost-effective, long-distance wireless broadband.
Key Features
- Integrated 17 dBi 90° sector antenna – Provides wide coverage for up to 50+ clients in PtMP setups with focused signal strength.
- GPS Sync support – Enables precise frame synchronization for interference-free co-location and better frequency reuse.
- Dedicated management radio – Allows easy Wi-Fi setup and configuration via mobile app without disrupting the main 5 GHz link.
- Up to 450+ Mbps throughput – High-capacity airMAX AC protocol with 2×2 MIMO for reliable long-range performance.
- Rugged outdoor design – Survives 200 km/h winds, -40 to 70°C temperatures, and ±24kV ESD for harsh environments.
Full Specifications
| Category | Details |
|---|---|
| Model | LAP-GPS |

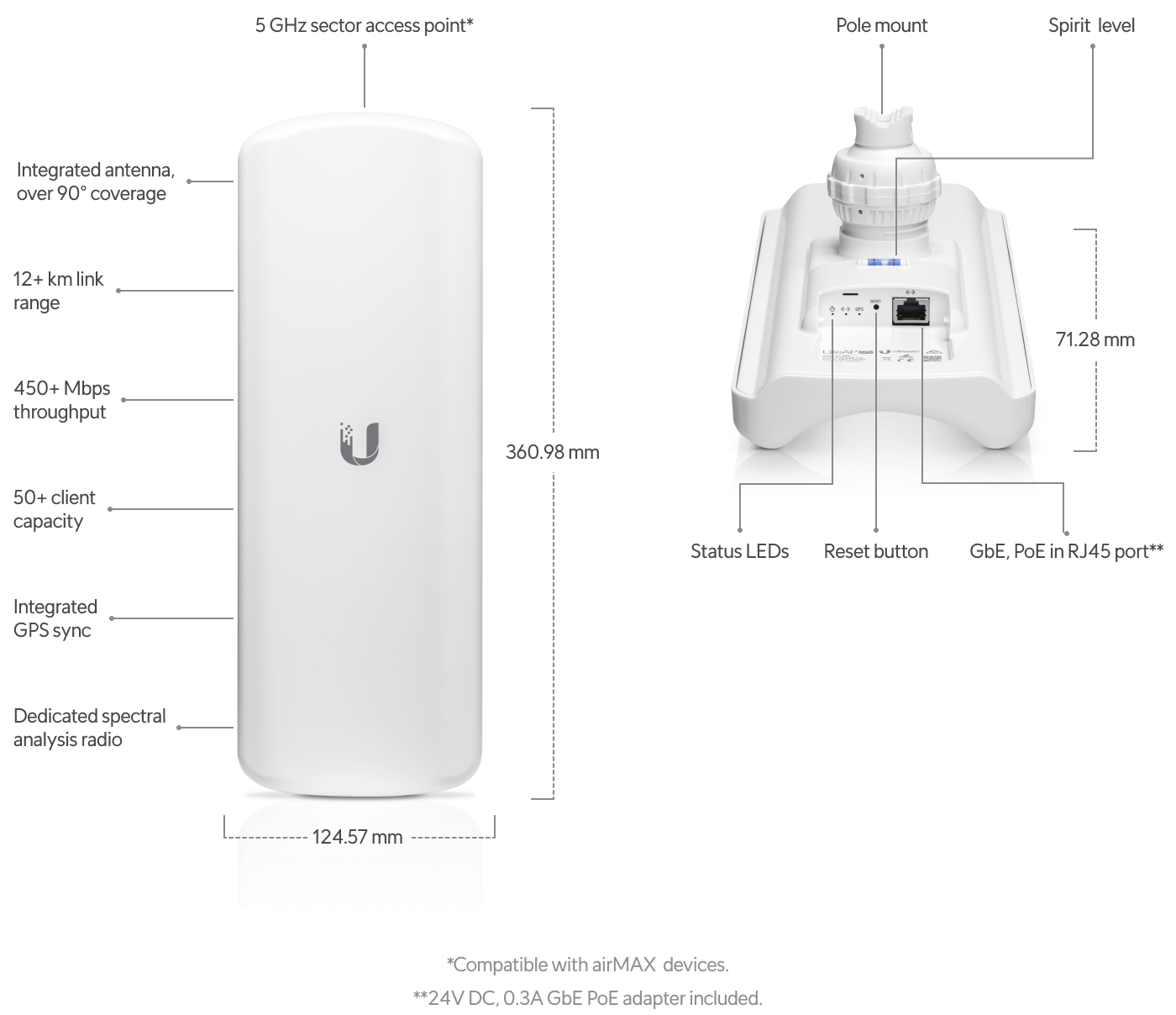

| Dimensions (Mount Not Included) | 360.98 x 124.57 x 71.28 mm (14.21 x 4.90 x 2.81″) |
| Weight (Mount Not Included) | 752 g (1.66 lb) |
| Mounting | Pole Mounting Kit (Included), Ball Joint Mount |
| Networking Interface | (1) 10/100/1000 GbE RJ45 Port |
| Processor | Atheros MIPS 74Kc, 533 MHz |
| Memory | DDR2 64 MB |
| Antenna Gain | 17 dBi (90° Beamwidth Sector) |
| Max. TX Power | 25 dBm |
| Max. Power Consumption | 7.1 W |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 Return) |
| Supported Voltage Range | 20-27 VDC |
| Operating Frequency (Worldwide) | 5150 – 5875 MHz |
| Operating Frequency (US) | U-NII-1: 5150-5250 MHz; U-NII-3: 5725-5850 MHz |
| Management Radio (Worldwide) | 2412 – 2472 MHz |
| Management Radio (US) | 2412 – 2462 MHz |
| Throughput | Up to 450+ Mbps Real TCP/IP (airMAX AC) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N at 200 km/h (17.3 lbf at 125 mph) |
| ESD/EMP Protection | ±24 kV Contact/Air |
| Shock and Vibration | ETSI300-019-1.4 |
| Certifications | FCC, IC, CE; NDAA Compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the beamwidth of the LAP-GPS antenna? 90° sector beamwidth for wide PtMP coverage, confirmed across official and technical sources.
- Q: Does GPS Sync require clear sky view? Yes, a clear view of the sky is needed for proper GPS operation and synchronization.
- Q: What is the maximum number of clients supported? Up to 50+ clients in PtMP mode, depending on network conditions and configuration.
- Q: Can it be co-located with other APs? Yes, GPS Sync allows multiple units on the same pole or nearby without interference when properly configured.
- Q: What firmware/OS does it use? airOS v8 with airMAX AC protocol support; update CPEs to compatible versions for best performance.
| Weight | 1.68 kg |
|---|---|
| Dimensions | 94 × 394 × 160 mm |
| Product Create Date | 11/02/2019 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | LAP-GPS |
