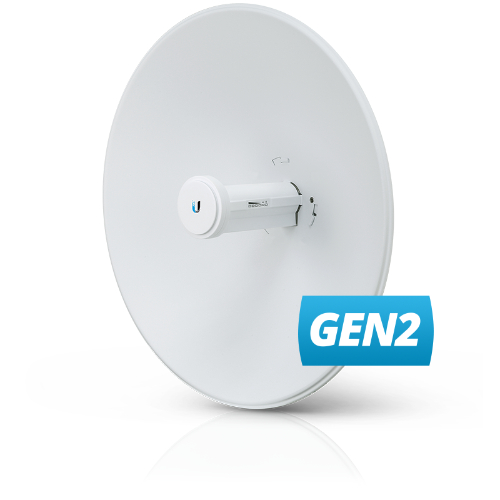

Ubiquiti Airmax PowerBeam 5AC-Gen2, 5 GHz Point-to-Point (PtP) Bridge, Integrated Dish Reflector, 450+ Mbps 5 GHz, 15+ km Range
$240.38 inc GST
Manufacturer: Ubiquiti
Availability: BRS:10 ADL:8 SYD:1 MEL:51 WA:8
78 in stock
Ubiquiti airMAX PowerBeam 5AC
SKU: PBE-5AC-Gen2
Description: High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector.
Using airMAX ac technology, the PBE-5AC-GEN2 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade.
Tech Specs: Click Here
Features:
• 5 GHz, 15+ km link range
• 450+ Mbps throughput
• Improved mounting
• Dedicated spectral analysis radio
• Dedicated WiFi management radio
Why Choose This?
The Ubiquiti airMAX PowerBeam 5AC-Gen2 (PBE-5AC-GEN2) is a high-performance 5 GHz point-to-point bridge designed for reliable long-distance wireless connectivity up to 15+ km. Featuring a 25 dBi integrated dish reflector and proprietary airMAX ac technology, it delivers 450+ Mbps real TCP/IP throughput while blocking noise with its tight beamwidth for superior performance in congested environments. Ideal for ISPs and enterprises needing cost-effective, carrier-class PtP links with easy Wi-Fi management.
Key Features
- 25 dBi Gain Integrated Dish – Provides focused RF energy for long-range PtP links up to 15+ km with excellent noise immunity.
- 450+ Mbps Throughput – Leverages airMAX ac technology for triple the performance of standard airMAX in high-density deployments.
- Dedicated Wi-Fi Management Radio – Enables quick setup and configuration via mobile app without disrupting the main link.
- Advanced RF Analytics & airView Spectrum Analysis – Real-time monitoring of noise, interference, and signal quality for optimal channel selection.
- Rugged Outdoor Design – Survives extreme weather with 200 km/h wind resistance, ±24 kV ESD protection, and -40 to 70°C operation.
Full Specifications
| Category | Details |
|---|---|

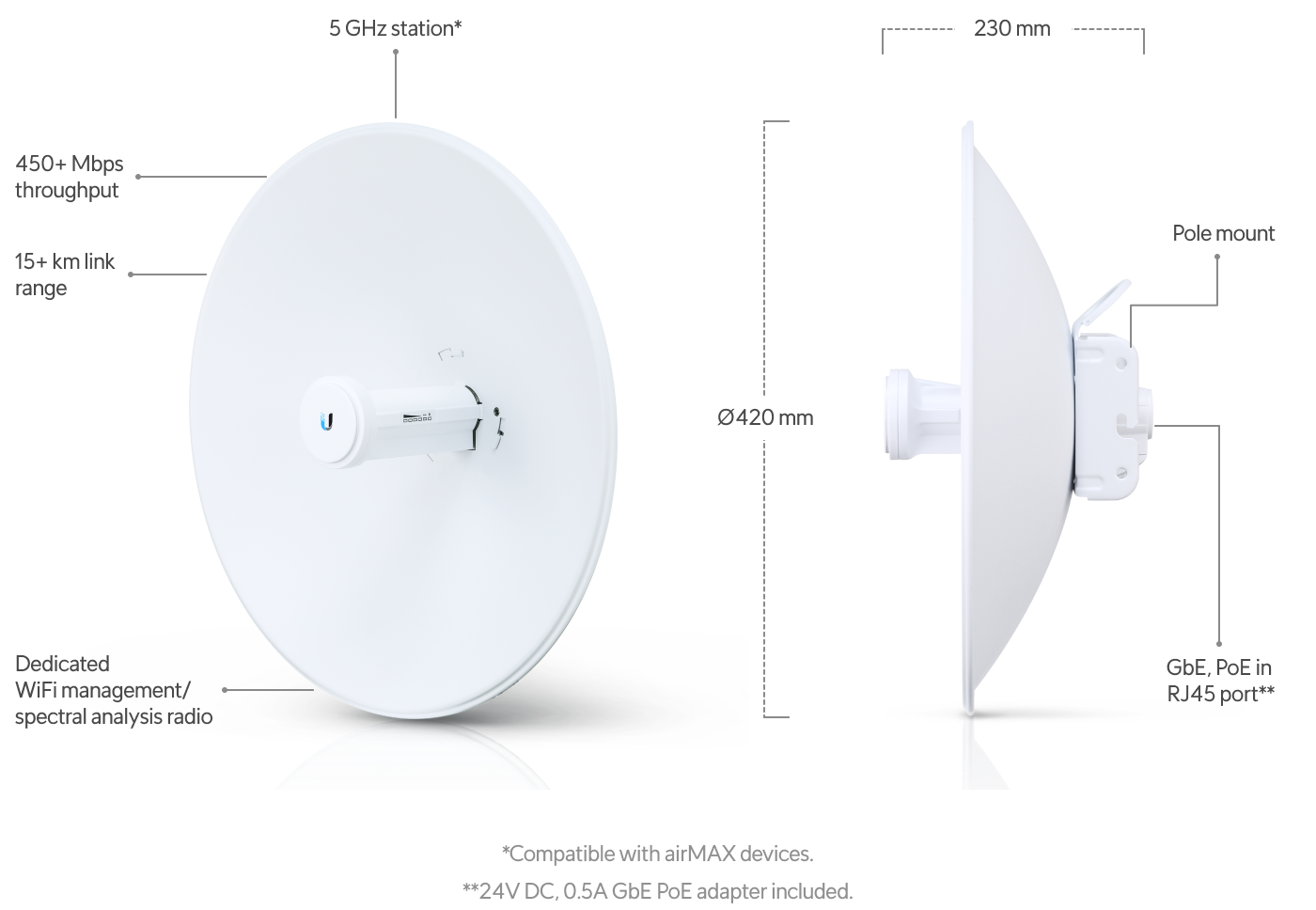

| Dimensions | 420 x 420 x 230 mm (16.54 x 16.54 x 9.06″) |
| Weight | 2.22 kg (4.89 lbs) |
| Antenna Gain | 25 dBi |
| Throughput | Up to 450+ Mbps real TCP/IP |
| Operating Frequency (Worldwide) | 5150 – 5875 MHz |
| Operating Frequency (USA) | U-NII-1: 5150-5250 / U-NII-2A: 5250-5350 / U-NII-2C: 5470-5725 / U-NII-3: 5725-5850 MHz |
| Management Radio (USA) | 2412 – 2462 MHz |
| Channel Sizes (PtP Mode) | 10/20/30/40/50/60/80 MHz |
| Channel Sizes (PtMP Mode) | 10/20/30/40 MHz |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor | MIPS 74Kc |
| Memory | 64 MB |
| Max. Power Consumption | 8.5W |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Supported Voltage | 20-26 VDC |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 380 N @ 200 km/h (85.4 lbf @ 125 mph) |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Enclosure | Outdoor UV Stabilized Plastic, Powder-Coated SPCC Dish Reflector |
| Mounting | Pole-Mounting Kit (Included) |
| Certifications | CE, FCC, IC, RoHS; NDAA Compliant: Yes |
| Max Output Power | 24 dBm |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum range of the PBE-5AC-GEN2? Up to 15+ km for point-to-point links with clear line-of-sight, depending on environmental conditions, channel width, and interference levels.
- Q: Does it support PoE power? Yes, it uses Passive PoE (Pairs 4,5+; 7,8 Return) with a included 24V, 0.5A Gigabit PoE adapter; supports 20-26 VDC.
- Q: How do I align the devices for optimal performance? Use the 4 signal strength LEDs and airOS interface for precise aiming; ensure clear line-of-sight and follow the pole-mount kit instructions for mechanical tilt adjustment.
- Q: Can it be used in PtMP mode? Yes, supports PtMP with channel sizes up to 40 MHz, though optimized for high-performance PtP bridging.
- Q: What management options are available? Dedicated 2.4 GHz Wi-Fi radio for easy setup via UNMS app or airOS web interface; includes advanced RF analytics and airView spectrum analysis.
| Weight | 3.7 kg |
|---|---|
| Dimensions | 504 × 144 × 484 mm |
| Product Create Date | 14/03/2017 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | PBE-5AC-GEN2 |
| Opt Accessory | NHU-POE-24-12WG, NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR |
