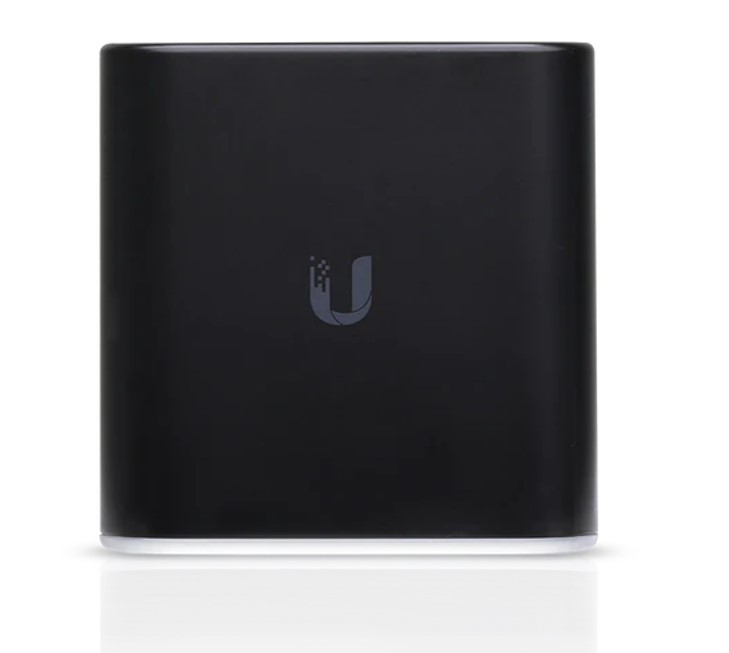

Ubiquiti airCube Wireless Dual-Band Wi-Fi Access Point, 802.11AC 2×2 Wireless, 4x Gigabit Ethernet, Super Antenna, Wide-area Coverage
$148.75 inc GST
Manufacturer: Ubiquiti
Availability: BRS:100 ADL:0 SYD:09 Jun MEL:2 WA:0
102 in stock
Ubiquiti airCube Home WiFi AP *International Version Only *
SKU: ACB-AC
Tech Specs: Click Here
Installation Guide: Click Here
Description: High-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.
Once installed, this Wi-Fi access point supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1167 Mbps. If that’s not enough, clients can plug Ethernet-enabled devices in to any of the four Gigabit Ethernet ports for a more reliable wired network connection. The airCube is powered by a 24V Passive PoE connection or plug in the included power adapter when PoE power is unavailable.
Features:
•802.11ac 2×2
•Integrated 24V PoE passthrough via included PSU
•UISP support for remote network management
Why Choose This?
The Ubiquiti airCube AC (ACB-AC) is a compact dual-band 802.11ac Wi-Fi access point designed for high-performance home or small business networks, delivering up to 866.7 Mbps on 5 GHz and 300 Mbps on 2.4 GHz with its innovative Super Antenna for wide-area coverage. It features four Gigabit Ethernet ports and 24V PoE passthrough, enabling seamless integration with airMAX CPE devices using a single power source. Managed via UISP for easy remote control, it offers reliable connectivity and versatile deployment options.
Key Features
- Dual-Band 802.11ac 2×2 MIMO – Provides fast speeds up to 866.7 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for smooth streaming and browsing.

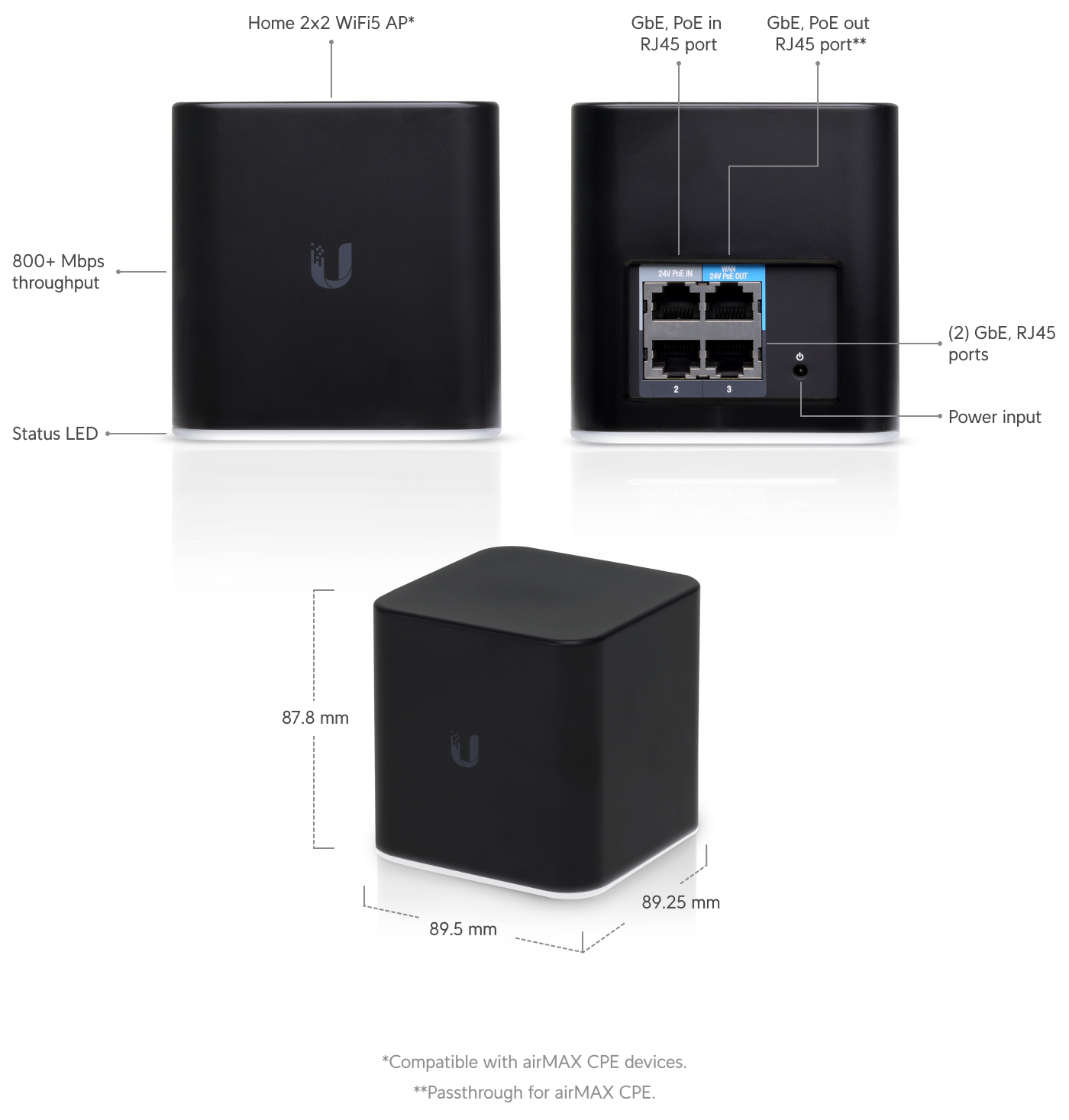

- 4x Gigabit Ethernet Ports – Ensures high-speed wired connections for multiple devices without bottlenecks.
- Super Antenna with 5 dBi Gain – Delivers extended wide-area coverage beyond standard Wi-Fi access points.
- 24V PoE Passthrough – Powers airMAX CPE devices conveniently from the WAN port, simplifying installations.
- UISP Management – Enables remote monitoring, configuration, and fast setup via mobile app for effortless network control.
Full Specifications
| Category | Details |
|---|---|
| Model | ACB-AC (airCube AC) |
| Dimensions | 87.8 x 89.5 x 89.25 mm (3.5 x 3.5 x 3.5″) |
| Weight | 280 g (9.9 oz) |
| Enclosure | Black Plastic |
| Networking Interface | (4) GbE RJ45 ports |
| Management Interface | Ethernet, WiFi (UISP, Web UI) |
| Wireless Standard | 802.11ac 2×2 MIMO, Dual-Band |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Antenna Gain | 4 dBi (2.4 GHz), 5 dBi (5 GHz) |
| Max. TX Power | 22 dBm |
| Max. Speeds | 300 Mbps (2.4 GHz), 866.7 Mbps (5 GHz) |
| Power Method | Micro-USB adapter (Included), 24V DC 0.83A PoE In on Port 1 |
| Supported Voltage | 22–27V DC |
| Max. Power Consumption | 8.5W |
| PoE Out | Controllable 24V PoE Out (4,5+;7,8-) on WAN Port |
| LED | Status |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Operating Humidity | 5 to 95% non-condensing |
| ESD/EMP Protection | ±24 kV Contact / Air |
| Certifications | CE, FCC, IC; NDAA Compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What power options does the airCube AC support? It supports the included Micro-USB adapter or 24V Passive PoE input on Ethernet Port 1 (22-27V DC), with max consumption of 8.5W.
- Q: Can it power other devices? Yes, it provides controllable 24V PoE passthrough on the WAN port to power compatible airMAX CPE devices.
- Q: How is it managed? Via UISP (formerly UNMS) for remote management using the mobile app or web interface, or standalone Web UI.
- Q: What are the Wi-Fi speeds and coverage? Up to 300 Mbps on 2.4 GHz and 866.7 Mbps on 5 GHz, with Super Antenna (4/5 dBi gain) for wide-area coverage.
- Q: Does it require a DHCP server for setup? Yes, as it defaults to bridge mode and needs DHCP; connect to a network with DHCP or use static IP for configuration.
| Weight | 0.28 kg |
|---|---|
| Dimensions | 89.5 × 89.25 × 87.8 mm |
| Product Create Date | 19/06/2017 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | ACB-AC |
| Opt Accessory | NHU-EXTWAR-UBNT-3YR, NHU-POE-24-24WG, NHU-EXTWAR-UBNT-5YR |
