TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch, Centralised Cloud, Omada SDN, Remote Management, QoS, IGMP Snooping, Fanless

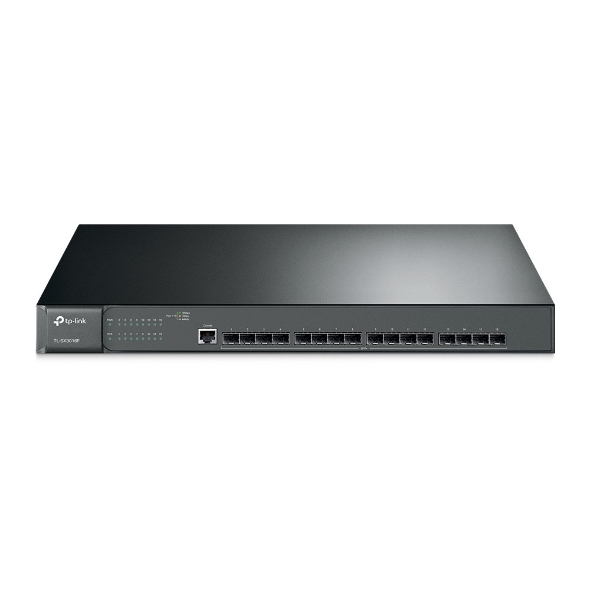

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

• 16× Full 10 Gbps SFP+ Slots – Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity
• Centralized Cloud Management – Integrates into Omada SDN for cloud access and remote management
• Abundant L2 and L2+ Features – Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more
• Robust Security Strategies – Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more
• Robust Hardware Design – Its fanless design ensures silent operation, while its durable metal casing and up to 45 ℃ operation temperature ensures reliability

General
Interface 8 10GE SFP+ Slots 16 10GE SFP+ Slots
Console 1 RJ45 Console Port, 1 Micro-USB Console Port
Flash 32 MB
DRAM 256 MB
Port Standard IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber)
IEEE 802.3ae: 10 Gigabit Ethernet over fiber

Performance
Switching Capacity 160 Gbps 320 Gbps
Packet Forwarding Rate 119.04 Mpps 238.08 Mpps
MAC Address Table 32K
Packet Buffer 16 Mbit 24 Mbit
Transmission Method Store and Forward
Number of IP Interfaces 16
Number of Static
Routers 48 (IPv4, IPv6)
Jumbo Frame 9 KB

Physical Environment
Dual Redundant
Power Supply – 2 Fixed AC Power Supply
Power Supply 100-240 V AC~50/60 Hz
Max Power
Consumption 15.46 W (220 V/50 Hz) 32.74 W (220 V/50 Hz)
Max Heat Dissipation 52.75 BTU/hr (220 V/50 Hz) 111.71 BTU/hr (220 V/50 Hz)
Standby Power
Consumption 5.91 W (110 V/60 Hz) 13.33 W (110 V/60 Hz)

Dimensions (W x D x H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Fan Quantity Fanless 1
Installation Rack Mountable

Why Choose This?

The TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch delivers lightning-fast 10G fiber connectivity with 16 full SFP+ ports and a non-blocking 320 Gbps switching capacity, perfect for high-bandwidth aggregation in enterprise networks. Integrated with Omada SDN, it offers centralized cloud-based remote management, robust L2+ features like static routing, advanced QoS, and IGMP Snooping for optimized performance and security. Its rack-mountable 1U design with efficient cooling ensures reliable deployment in SMBs and data centers seeking cost-effective 10G infrastructure.

Key Features

• 16× 10GE SFP+ Slots – Provides high-bandwidth, non-blocking 320 Gbps switching for seamless server and backbone connectivity.
• Omada SDN Integration – Enables centralized cloud management, zero-touch provisioning, and remote access via app or web for simplified network control.
• Abundant L2+ Features – Supports static routing, enterprise-level QoS with 8 queues, and IGMP/MLD Snooping to prioritize traffic and optimize multicast efficiently.
• Robust Security – Includes IP-MAC-Port Binding, ACLs, 802.1X authentication, and DoS defense to protect against unauthorized access and threats.
• Efficient & Reliable Design – 1U rack-mountable with 1 fan for cooling, low 32W max power consumption, and dual image support for high availability.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Is the TP-Link SX3016F fanless? No, it features 1 fan for cooling, with noise levels from 32.6 dBA min to 45.1 dBA max, suitable for equipment rooms.
• Q: Does it support Omada SDN cloud management? Yes, integrates with Omada SDN for centralized cloud access, remote management via Omada app, hardware/software controllers, and zero-touch provisioning.
• Q: What ports does it have? 16× 10G SFP+ slots for fiber/DAC connectivity, plus RJ45 and Micro-USB console ports; supports up to 4× 10GBASE-T SFP+ modules recommended.
• Q: Does it support static routing and IPv6? Yes, supports 48 IPv4/IPv6 static routes, full IPv6 features including dual stack, MLD snooping, and IPv6 ACLs.
• Q: What security features are included? IP-MAC-Port Binding (512 entries), 802.1X authentication, ACLs (MAC/IP/IPv6), DoS defense, port security, and storm control.
