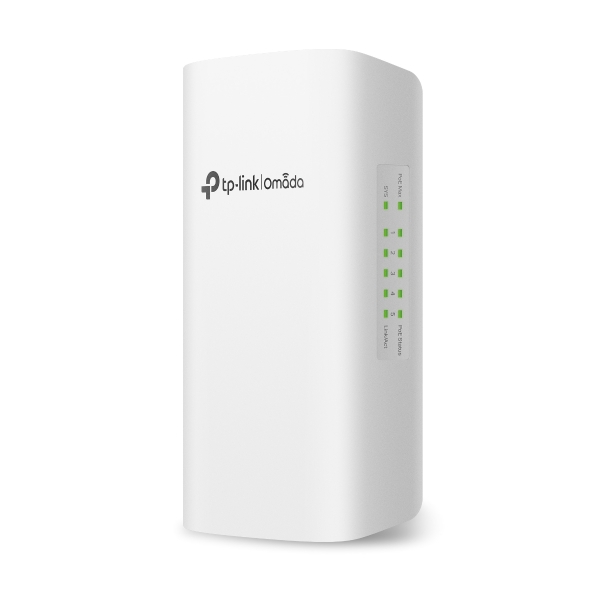

TP-Link SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1x PoE++ In, 4x PoE+ Out, Outdoor Weatherproof, Long Range 200M, Up To 64W POE Budget

TP-Link SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
• Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*
• 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
• Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.
• Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
• Centralised Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
• Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.

Warranty Period: 5-Year

Why Choose This?

The TP-Link SG2005P-PD Omada 5-Port Gigabit Smart Switch revolutionizes outdoor networking with its PoE passthrough capability, extending power and gigabit speeds up to 200 meters for surveillance cameras and access points. Its IP55/IP66 weatherproof enclosure withstands harsh conditions from -40°C to 60°C, while delivering up to 64W PoE budget across 4 PoE+ output ports when powered by PoE++. Seamlessly integrate with Omada SDN for centralized cloud management, static routing, ACL, QoS, and VLAN to optimize performance in demanding outdoor deployments.

Key Features

• Up to 200m PoE Distance – Doubles standard PoE transmission to 200m at full gigabit speeds, ideal for long-range IP cameras and APs.
• 1x PoE++ In, 4x PoE+ Out – Provides up to 64W total PoE budget (30W per port max), powered solely by PoE input.
• Outdoor Weatherproof IP55/IP66 – Dustproof, waterproof, UV-resistant with -40°C to 60°C operation and 4-6kV surge protection.
• Omada SDN Centralized Management – Cloud access, remote/multi-site control, batch config, and monitoring via app/controller.
• Advanced L2+ Features – Static routing, ACL, QoS, VLAN, IGMP/MLD snooping for secure, efficient traffic management.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Can the SG2005P-PD be powered by AC/DC adapter? No, it is PoE-powered only via the PoE++ In port (Port 5) from a 802.3af/at/bt PSE; no AC/DC input supported.
• Q: What is the maximum PoE distance and speed? Up to 200m PoE passthrough at full Gigabit speeds (1000 Mbps) without loss.
• Q: Is it suitable for outdoor use? Yes, IP55/IP66 rated, waterproof/dustproof/UV-resistant, operates -40°C to 60°C with surge protection.
• Q: How many devices can it power? Up to 4 PoE+ devices (30W max each), total budget up to 64W depending on input PoE standard; actual varies by environment.
• Q: Does it support Omada SDN management? Yes, full integration for centralized cloud/remote management, batch config, monitoring via Omada Controller or app.
