TP-Link POE380S Omada 10G PoE++ Injector PORT: 1× 10Gbps PoE Port, 1× 10Gbps Non-PoE Port, SPEC: 802.3bt/at/af Compliant, 90 W PoE Power, Data and Pow
$122.57 $118.89 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:0 SYD:0 MEL:08 Jun WA:15 Jun
Out of stock

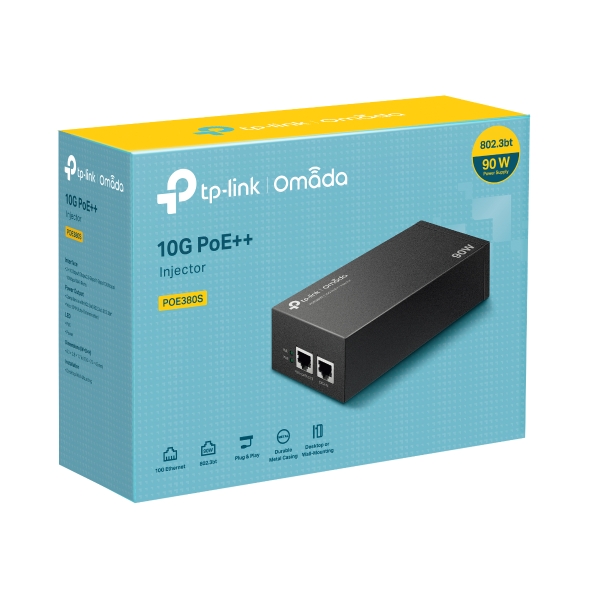

TP-Link POE380S Omada 10G PoE++ Injector
• 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
• Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
• Automatically determines and supplies the exact power to meet the device’s need
• Wall-mounting and desktop design accommodates most installation scenarios
• Plug Play installation, no configuration required
• Integrated power supply
• Durable metal casing
Warranty Period: 3-Year
Why Choose This?
The TP-Link POE380S Omada 10G PoE++ Injector delivers up to 90W of power over 10Gbps Ethernet cables, enabling seamless deployment of high-performance devices like PTZ cameras, access points, and LEDs in locations without power outlets. It combines blazing-fast multi-gigabit data transmission with IEEE 802.3bt/at/af compliant PoE, reducing cabling costs and simplifying installations through plug-and-play operation. With its durable metal casing and versatile wall-mount or desktop design, it ensures reliable, future-proof power and connectivity for demanding business networks.
Key Features
- 10Gbps Multi-Gig Ports – Supports 10/5/2.5/1Gbps speeds on both data-in and PoE-out ports for ultra-fast transmission without bottlenecks.
- 90W PoE++ Output – Complies with IEEE 802.3bt/at/af standards to power high-demand devices up to 100m away.
- Plug & Play Installation – No configuration needed; auto-detects and supplies exact power requirements for easy setup.
- Integrated Power Supply – AC input with auto-sensing algorithm eliminates external adapters and ensures efficiency.
- Durable Metal Casing – Wall-mountable or desktop design with robust build for reliable performance in various environments.
Full Specifications
| Category | Details |
|---|---|
| Model | POE380S |
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3bt |
| Data In Port | 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 |
| Power + Data Out Port | 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 (Max. 90 W) |
| AC Input | 100-240 V, 50/60 Hz, 1.6A |
| Max PoE Output Power | 90 W (802.3bt Type 4) |
| LED Indicators | Power / PoE |
| Network Media | 10BASE-T: UTP Cat 3/4/5 (max 100m); 100BASE-TX: UTP Cat 5/5e (max 100m); 1000BASE-T: UTP Cat 5/5e/6 (max 100m) |
| Dimensions (W x D x H) | 155 × 70 × 42 mm (6.1 × 2.8 × 1.7 in) |
| Basic Functions | Auto-Sensing PoE, Wall-mounting/Desktop, Plug & Play |
| Operating Temperature | 0°C~45°C (32°F~113°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10%~90% RH non-condensing |
| Certifications | FCC, CE, RoHS |
| Package Contents | POE380S, Power Cord, Installation Guide |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What PoE standards does the POE380S support? It complies with IEEE 802.3af/at/bt standards, providing up to 90W PoE++ power (802.3bt Type 4).
- Q: What is the maximum transmission distance? Up to 100m (328 ft) over compatible Ethernet cables like Cat5e or higher.
- Q: Is it compatible with passive PoE devices? No, it is incompatible with passive PoE and non-standard PoE devices; works only with 802.3af/at/bt PDs.
- Q: Does it require any configuration? No, it features plug-and-play operation with automatic power detection and no setup needed.
- Q: What devices is it ideal for? Perfect for powering 10G/multi-gig PTZ IP cameras, Omada access points, LEDs, and other high-power PDs without nearby outlets.
| Weight | 1.02 kg |
|---|---|
| Dimensions | 248 × 192 × 94 mm |
| Product Create Date | 11/01/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 36 |
| Manufacturer SKU | POE380S |
| Opt Accessory | NHTL-OC300, CSP-LIC-OCC-1YR, CSP-LIC-OCC-3YR, CSP-LIC-OCC-5YR |
