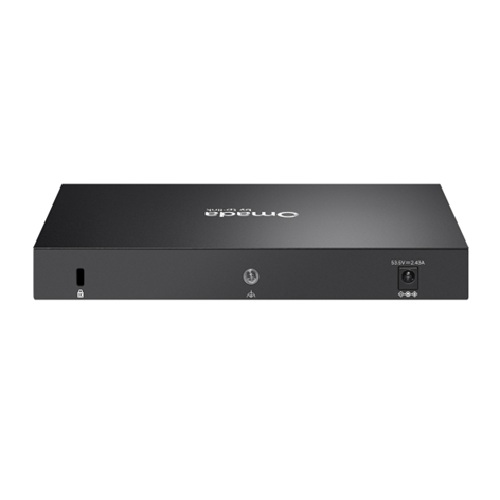

TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch

TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch

HARDWARE FEATURES

Interface
• 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
• 1× 10 Gbps SFP+ Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
•Fanless
Installation
• Desktop
• Wall Mount
Physical Security Lock
•√
Power Supply
•DC Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)
• Standard: 802.3af/at/bt PoE++ compliant
• PoE Ports: 4 Ports
• PoE Budget: 120W available for all PoE++ ports, 90W max per port
• Fast PoE Perpetual PoE
• PoE Auto Recovery‡
Dimensions ( W x D x H )
•8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection
•±6 kV

PERFORMANCE

Packet Buffer Memory
•640 KB
Jumbo Frame
•10 KB
Switching Capacity
•45 Gbps
Packet Forwarding Rate
•33.48 Mpps
MAC Address Table
•16K

SOFTWARE FEATURES

Quality of Service
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control△
L2 Features
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
L2 Multicast
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
Transmission Method
•Store-And-Forward

Warranty Period: 5-Year

Why Choose This?

The TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch delivers high-speed multi-gigabit connectivity for modern networks, powering Wi-Fi 7/6 access points, cameras, and devices with a 120W PoE++ budget and up to 90W per port. Its fanless design ensures silent operation, while plug-and-play simplicity combined with centralized Omada cloud management makes deployment and scaling effortless for small businesses and prosumers.

Key Features

• 5× 2.5Gbps RJ45 ports (4× PoE++) – Powers high-bandwidth devices like Wi-Fi APs and cameras over a single cable with up to 90W per port.
• 1× 10Gbps SFP+ slot – Provides ultra-fast fiber uplinks for low-latency backbone connections to servers or switches.
• 120W PoE budget – Supports flexible deployment of multiple PoE devices without additional injectors.
• Fanless metal design – Ensures silent, reliable operation in office or home environments with desktop/wall-mount options.
• Omada cloud management – Enables easy centralized control, Zero-Touch Provisioning, and free lifetime cloud access via app or web.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: What is the maximum PoE power per port? Up to 90W per PoE++ port (802.3bt), with a total budget of 120W; actual power varies based on lab tests and environmental factors.
• Q: Does it support cloud management? Yes, via Omada Cloud-Based Controller, Hardware/Software Controller, or Omada App for centralized management, Zero-Touch Provisioning, and free lifetime access with Omada Central Essentials.
• Q: Is it fanless and silent? Yes, fanless design ensures completely silent operation, ideal for desktop or office use.
• Q: What management features are available standalone? Web GUI for configuration, including VLAN, QoS, IGMP Snooping, loop prevention, port isolation; advanced features require Omada Controller.
• Q: Can it power Wi-Fi 7 access points? Yes, 2.5G ports and PoE++ support high-power Wi-Fi 7/6 APs, with 10G SFP+ for uplinks to NAS or servers.
