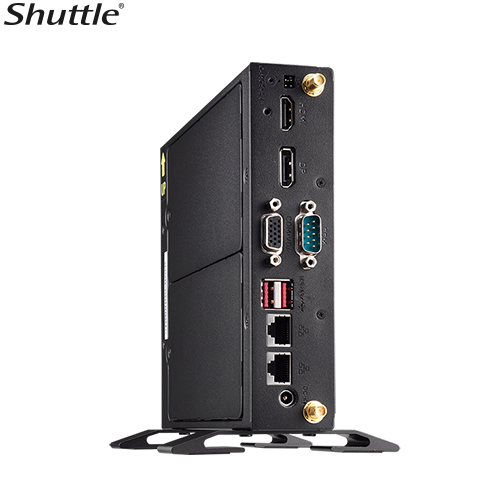

Shuttle DS20U V2 Slim Mini PC 1L Barebone – Intel Celeron 5205U, Fan-less, 2x LAN , RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W adapter

The DS20U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one tradi-tional D-Sub/VGA connector. The built-in Intel “Comet-Lake-U” processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5″ drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5″ bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Intel Celeron 5205U (1,9 GHz, 2 cores, 2 threads, 2 MB cache)
Intel UHD Graphics
Up to 64 GB of DDR4 memory
1× NVMe, 1× SATA 2.5″, card reader
1× HDMI 2.0b, 1× DisplayPort 1.2, 1× VGA
Two M.2 slots (1× M.2-2280, 1× M.2-2230)
2× RJ45 (2.5Gb 1Gb), WLAN-ready, 4G-ready
4× USB 3.2 Gen 1 (5 Gbit), 4× USB 2.0, 1× COM
Remote power-on connector, always-on jumper
Wall/VESA mount included
Optional DIN-Rail/19” mount

Who It’s For

Ideal for businesses and professionals needing a compact, reliable, fanless mini PC for industrial or commercial deployments such as digital signage, POS systems, kiosks, thin clients, and multimedia displays in offices, retail, or public spaces. Its slim 1.3L design, dual LAN, serial ports, and VESA mounting make it perfect for space-constrained or 24/7 environments where silence, low power use, and robust connectivity are essential.

Real-World Use Cases

• Deploy as a digital signage player in retail stores or corporate lobbies, driving two 4K displays simultaneously with HDMI and DisplayPort while running 24/7 without fan noise or maintenance.
• Power point-of-sale (POS) terminals in shops or restaurants, leveraging the RS232/RS422/RS485 COM port for legacy peripherals, dual Gigabit LAN for secure network separation, and SD card reader for quick data handling.
• Serve as a thin client or kiosk in educational or healthcare settings, supporting multiple monitors, low-power operation, and easy VESA mounting behind screens for a clean installation.
• Act as a silent office or multimedia workstation for video playback, light productivity, or embedded IoT applications, with optional WLAN/LTE for wireless flexibility and up to 64GB RAM for demanding tasks.

Key Advantages

• Fanless passive cooling ensures completely silent operation, zero dust buildup, and virtually maintenance-free 24/7 reliability up to 40°C, ideal for noise-sensitive or harsh environments.
• Exceptional connectivity with dual Intel Gigabit LAN for failover/load balancing, configurable RS232/422/485 COM port, and three simultaneous displays (HDMI 2.0a + DP 1.2 + VGA) for flexible multi-monitor setups.
• Compact 1.3L metal chassis with included VESA mount and easy-access bays allows quick upgrades of up to 64GB DDR4 RAM, 2.5″ drive, and M.2 NVMe SSD, plus optional LTE or WLAN modules.
• Energy-efficient 15W Celeron processor with external 65W adapter (supports 12V/19V) delivers ample 4K video performance while keeping power draw low (around 6W idle) and costs down.

Full Specifications

Practical Considerations

• Populate with your choice of DDR4 RAM (up to 64GB), 2.5″ SATA drive or SSD, and M.2 NVMe SSD; optional WLN-M1 WLAN or WWN03 LTE kit can be added for wireless needs.
• Use the always-on jumper or BIOS settings for automatic power-on after outages; remote power button cable (CXP01 accessory) is useful for hidden installations.
• Verify compatibility with higher-speed DDR4 modules if needed, and note that the VGA port can be swapped for a second COM port using the optional PCP11 adapter.

Frequently Asked Questions

• Q: Is the DS20U V2 suitable for continuous 24/7 operation? Yes, it is officially approved for nonstop use in temperatures up to 40°C thanks to its fanless design, making it reliable for signage, kiosks, and industrial applications.
• Q: Can it support dual 4K displays? Yes, the HDMI 2.0a and DisplayPort 1.2 outputs both support 4K@60Hz simultaneously, with VGA available as a third independent display for maximum flexibility.
• Q: How easy is it to upgrade storage and memory? Very straightforward—two screw-secured bottom covers provide direct access to the two SO-DIMM slots, 2.5″ bay, and M.2-2280 slot without tools beyond a screwdriver.
• Q: Does it include Wi-Fi or can it be added? Wi-Fi is not included but easily added via the M.2-2230 slot using Shuttle’s WLN-M or WLN-M1 WLAN kits with external antennas.
• Q: How does it compare to similar models? Compared to higher-end DS20U3/5/7 variants with Core i3/i5/i7 processors, the Celeron 5205U version offers lower power and cost for lighter workloads while retaining the same excellent connectivity and fanless chassis; it is more capable than older DS10U series in USB speeds and processor efficiency.
• Q: What is the warranty and local support? Shuttle typically offers a 2–3 year warranty on barebones (confirm with reseller at purchase). In Australia, local support and sales are available through authorised distributors such as Haste IT, I-Tech, and others listed on shuttle.eu; contact them for region-specific service and RMA processes.
