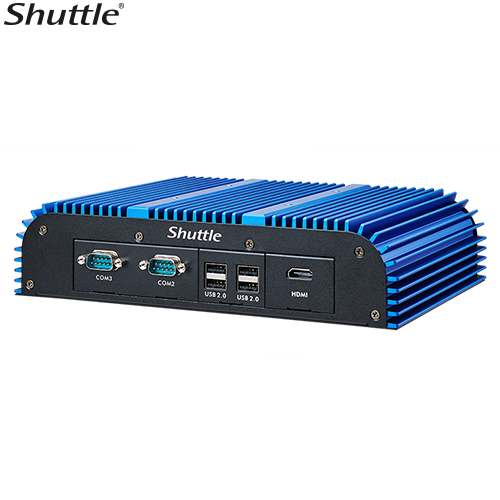

Shuttle BPCWL02 Embedded Box PC Barebone – Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter
$1,272.11 inc GST
Manufacturer: Shuttle
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock
Shuttle BPCWL02 Embedded Box PC Barebone – Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter
Processor
8th Gen. IntelÂŽ Whiskey Lake-U Processors
Memory
2 x 260 pin SO-DIMM up to 64GB Dual Channel DDR4 2666MHz
BIOS
AMI UEFI 64 Mbit
Graphics – Display Interface
2 x HDMI 1.4b: 4096 x 2160@30Hz – Supports three displays
Internal Storage
1 x M.2 2280 M key (PCIe NVMe / SATA)
Audio Codec
Realtek ALC662 2-channel
Ethernet
2 x IntelÂŽ Gigabit LAN
WLAN
Intel WiFI Module (802.11 a/b/g/n/ac) BT 5.0 (Option)
Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)
External antenna (Dipole) x2 (Option)
LAN
2 x RJ-45 (10/100/1000Mbps)
Serial Ports
1 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) 12V (with specific optional board)
USB
4 x USB3.2 Gen 1 (Type A)
4 x USB2.0
Audio
1 x Line-out
1 x Mic-in
Power Type
– 19V (without wide range board)
– With wide range board, MB support 9-36V DC-in
Adapter
19V/4.74A 90W external adapter
OS Support
Windows 10/11 Embedded 64bit
Linux 64bit
Mounting VESA Mount 75 x 75 mm
Ear Mount 256 x 100 mm
Din Rail
Dimension (WxHxD)
245 x 57 x 169mm
Weight 2.85 kg
| Weight | 2.5 kg |
|---|---|
| Dimensions | 190 × 165 × 43 mm |
| Product Create Date | 05/11/2020 |
| Web Link | Visit Manufacturer Page â |
|---|---|
| Manufacturer | Shuttle |
| Warranty | 36 |
| Manufacturer SKU | BPCWL02 |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
