Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505, 2xDDR4, 2.5″ HDD/SSD Bay, 2x Intel i211, 1x RS232, HDMI, 90W, VESA Mount

Shuttle DH32U XPC Slim, Pentium7505, Intel® DG1 Graphics, 4 x HDMI 2.0b, 2 COM, 2 LAN

Form Factor
Shuttle 1.3L Chassis

Processor
Intel Tiger lake-U Pentium 7505 15W

Memory
2 x 260 pin DDR4 SODIMM slots,32GB per DIMM (Max 64GB) Dual Channel DDR4 3200 Mhz

Video Output
HDMI 2.0b x 4 Quad Independence Video Output
4K/2K playback (Dual Channel Memory Recommended)
Support EDID Emulation Function(DH32UE series only)

Audio
Realtek ALC662/897/888S
2 Channel High Definition Audio

Ethernet
Intel i211x2 100Mb/s and 1Gb/s; Operation Supports Wake-On-LAN Function

Storage Interface
SATA 6.0Gb/s Interface

Onboard Connectors
1x SATA power connector
2x 4 pin fan connectors
1x Auto power on header
1x VGA
1x RS232
1x RS232/422/485
1x External 4 pin header (Power/Clear/CMOS/5V/GND

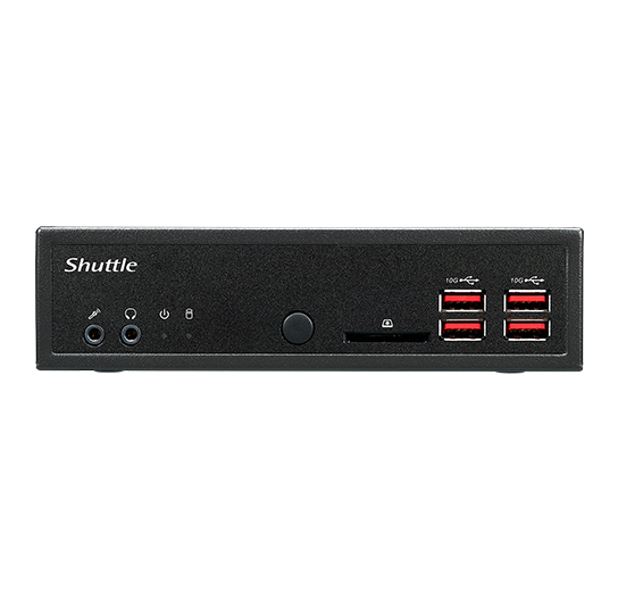

Front Panel
4x USB 3.2 Gen2 ports
1x Microphone-In
1x Earphone-Out
1x Power-On button
1x Power LED
1x HDD LED
1x SD Card reader

Back Panel
2x RJ45 Gigabit LAN port
4x HDMI port
4x USB 3.2 Gen1 ports
1x RS232
1x RS232/422/485
1x External power on/Clear CMOS header
1x Kensington lock
2x Wireless Antenna fixture
1x DC in

Drive Bays
1x 2.5″ HDD / SSD bay

Dimensions
190(L) x 165(W) x 43(H) mm

Power
90W Power Adapter
Input:100- 240V AC
Output: 19V 4.7A DC

Accessories
XPC DVD Driver
VESA mount

Expansiuon Slot
1x M.2 2280 Type M Key Socket
1x M.2 2230 Type E Key Socket

OS Support
Windows 10 64 bit O.S
Linux

Graphics
Intel Xe DG1 GPU

Who It’s For

Ideal for businesses and professionals needing a compact, reliable mini PC for multi-display setups in digital signage, control rooms, kiosks, surveillance, or light industrial environments. It suits users requiring 24/7 operation, dual LAN connectivity, and versatile I/O in space-constrained or wall-mounted installations.

Real-World Use Cases

• Digital signage and video walls: Drive four independent 4K displays at 60Hz for retail displays, corporate lobbies, or control room monitoring with stable, long-term operation.
• POS/kiosk systems: Compact VESA-mountable design with multiple COM ports and USB connectivity for seamless integration with peripherals in retail or hospitality settings.
• Surveillance and security: Dual Gigabit LAN and quad HDMI support enable efficient multi-camera feeds and network redundancy in monitoring stations.
• Light industrial or healthcare applications: Reliable performance in 0-50°C environments with Wake-on-LAN and always-on features for embedded or remote deployments.

Key Advantages

• Quad 4K HDMI output delivers exceptional multi-display flexibility for content creation, signage, or monitoring without additional hardware.
• Compact 1.3L chassis with included VESA mount and 24/7 certification enables easy installation in tight spaces while supporting continuous operation.
• Dual Intel i211 Gigabit LAN provides reliable, high-speed networking with Wake-on-LAN for remote management and redundancy.
• Energy-efficient 15W Pentium 7505 processor with up to 64GB DDR4-3200 and dual M.2 expansion balances performance, low power use, and future-proof storage/Wi-Fi options.

Full Specifications

Practical Considerations

• For ambient temperatures above 40°C, use SSDs rather than HDDs to ensure reliable 24/7 performance and longevity.
• The system is a barebone kit—memory, storage, and OS must be added separately; dual-channel RAM configuration is recommended for optimal graphics performance.
• COM port voltage settings (0/5/12V) and jumper configurations for RS232/422/485 should be verified via the quick guide before connecting peripherals.

Frequently Asked Questions

• Q: What processors are available in the DH32U series? The base DH32U uses the Pentium Gold 7505; optional models include Core i3-1115G4, i5-1135G7, or i7-1165G7 (some available on special order).
• Q: Can it support four 4K displays simultaneously? Yes, the four native HDMI 2.0b ports enable independent 4K@60Hz output on all displays (dual-channel memory recommended for best results).
• Q: Does it include Wi-Fi or Bluetooth? No, but it has an M.2 2230 E slot for optional WLAN/BT modules, with antenna mounts on the rear panel.
• Q: Is it suitable for continuous 24/7 operation? Yes, it is certified for 24/7 use with industrial-grade components and operates reliably up to 50°C when using SSDs.
• Q: How does it compare to similar models? Compared to older Shuttle slim models like the DH02U series, the DH32U offers newer Tiger Lake-U processors, quad HDMI vs. dual, dual LAN, more USB ports, and higher RAM/storage support in a similar compact form factor.
• Q: What is the warranty and local support? Shuttle typically offers a 2-3 year warranty depending on the region; check with local Australian resellers or distributors for support details, as official global support is available via Shuttle’s website.
