Ubiquiti Wave AP Gen2,60 GHz + 5 GHz Multipoint Base Station Featuring 90-degree Sectoral Coverage, 31-client Capacity, 2.7 Gbps Symmetrical Speed
$1,229.27 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:1 SYD:2 MEL:2 WA:1
6 in stock

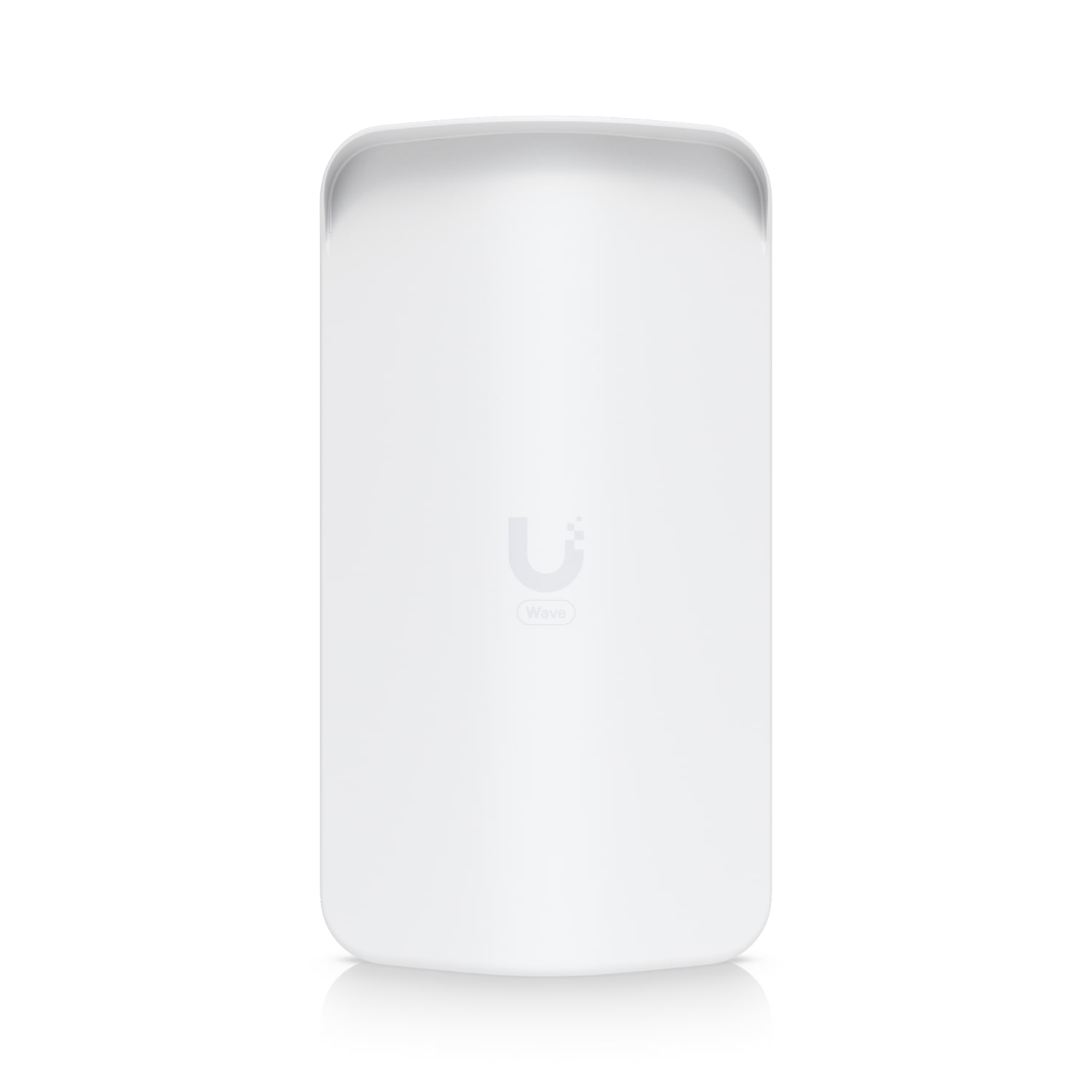

Ubiquiti Wave AP Gen2
SKU: Wave-AP-Gen2
Description: 60 GHz + 5 GHz multipoint base station featuring 90-degree sectoral coverage, 31-client capacity, 2.7 Gbps symmetrical speed, and antenna connectors for 5 GHz range extension.
Tech Specs: Click Here
Installation Guide: Click Here
Why Choose This?
The Ubiquiti Wave AP Gen2 is a high-performance 60 GHz + 5 GHz multipoint base station designed for outdoor PtMP deployments, delivering up to 5.4 Gbps total throughput and 2.7 Gbps symmetrical speeds to as many as 31 clients across a wide 90-degree sectoral coverage area.
Featuring a weatherproof IPX6 enclosure, integrated GPS, and backup WiFi 6 radio with antenna connectors for extended range, it ensures reliable connectivity even in harsh conditions, making it ideal for ISPs and enterprises needing robust, scalable wireless backhaul.
Key Features
- 90° Sectoral 60 GHz Coverage – Provides wide-area multipoint connectivity for up to 31 clients with high-capacity throughput.
- 5.4 Gbps Total Throughput – Achieves 2.7 Gbps symmetrical speeds, enabling gigabit-level performance for demanding applications.
- WiFi 6 Backup Radio – Ensures seamless failover and 5 GHz range extension via antenna connectors for uninterrupted service.
- IPX6 Weatherproof Design – Withstands extreme weather, high winds up to 200 km/h, and temperatures from -40°C to 60°C.
- Dual Gigabit Ports – 2.5 GbE RJ45 and 10G SFP+ interfaces support high-speed backhauling and flexible networking.

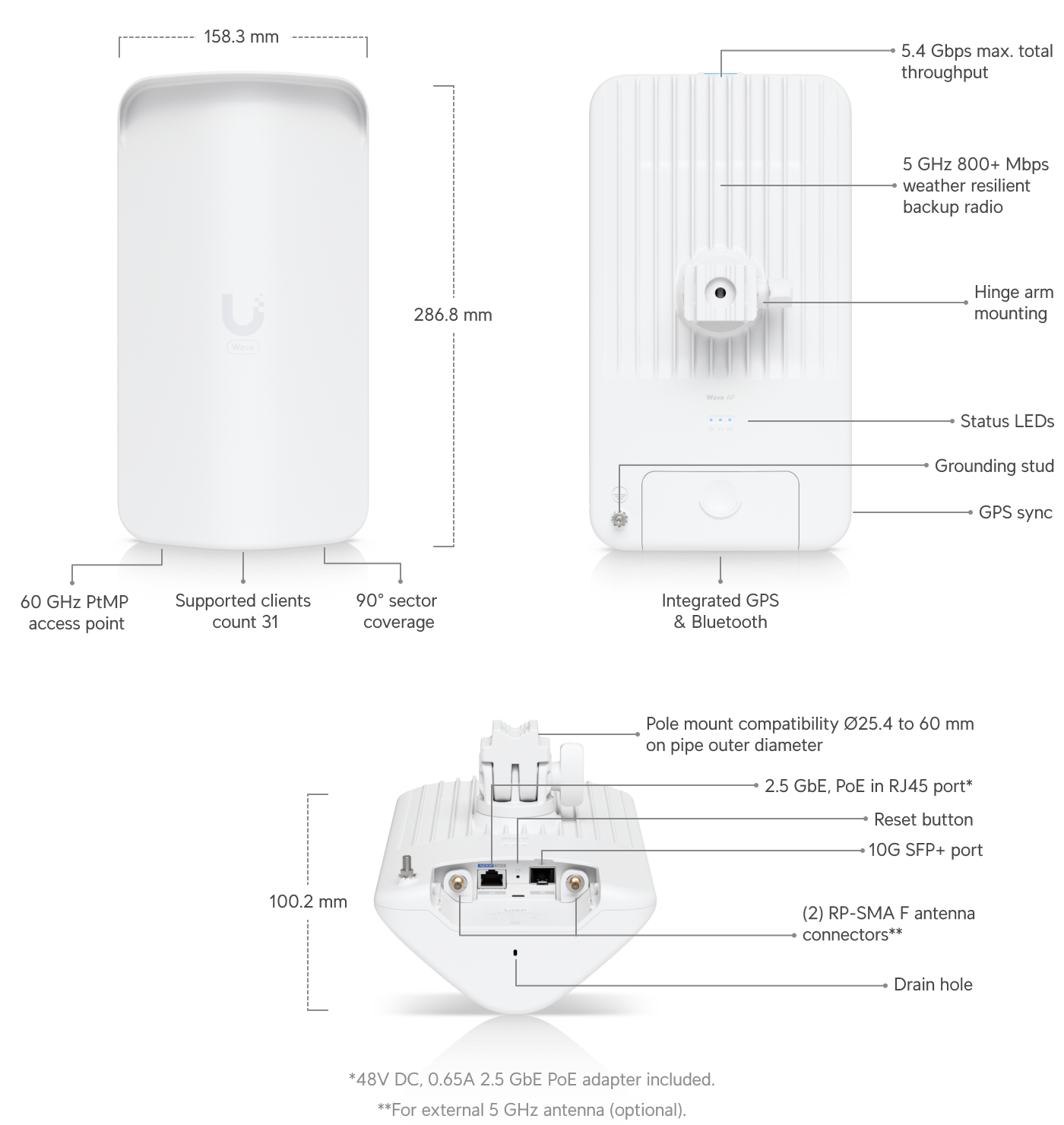

Full Specifications
| Category | Details |
|---|---|
| Dimensions | 158.3 x 286.8 x 100.2 mm (6.2 x 11.3 x 3.9″) |
| Weight | 1.5 kg (3.3 lb) |
| Enclosure Material | UV stabilized polycarbonate, aluminum alloy |
| Pole Mount Diameter | 25.4 to 60 mm (1 to 2.4″) |
| Wind Loading | 109.8 N at 200 km/h (25 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Quad-core ARM Cortex-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interfaces | (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port |
| Max. Power Consumption | 24W |
| Power Method | Passive PoE (44–54V DC or 22–27V DC) |
| Power Supply Included | 48V DC, 0.65A 2.5 GbE PoE adapter |
| GPS | Supported |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| 60 GHz Frequency | 57–71 GHz |
| 60 GHz Antenna Gain | 20 dBi (vertically linear) |
| 60 GHz Beamwidth | Azimuth 90° (3 dB), Elevation 7° (3 dB) |
| WiFi Standard (Backup) | 802.11ax (WiFi 6) |
| 5 GHz Antenna Gain | 13 dBi (dual-linear) |
| Total Throughput | 5.4 Gbps (2.7 Gbps symmetrical) |
| Max Clients | 31 |
| Max Range | 6 km (to Wave Pro/LR), 4 km (to Wave Nano), 0.9 km (to Wave Pico) |
| Encryption | WPA2-PSK (AES) |
| Certifications | FCC, IC, CE, NDAA Compliant |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What is the maximum number of clients supported? The Wave AP Gen2 supports up to 31 clients in PtMP mode with a total throughput of 5.4 Gbps.
- Q: What are the networking interfaces? It features one 2.5 GbE RJ45 port and one 10G SFP+ port for flexible high-speed connectivity.
- Q: Is the 5 GHz radio usable for client connections? The 5 GHz WiFi 6 radio serves as a backup to the primary 60 GHz link and supports antenna connectors for range extension, but primary PtMP is on 60 GHz with Wave client devices.
- Q: What is the maximum range? Up to 6 km when connecting to Wave Pro or Wave Long-Range, 4 km to Wave Nano, and 0.9 km to Wave Pico.
- Q: What power options are supported? Passive PoE with 44–54V DC (4-pair/2-pair) or 22–27V DC (2-pair), includes 48V 0.65A PoE adapter; max consumption 24W.
| Weight | 2.58 kg |
|---|---|
| Dimensions | 332 × 210 × 182 mm |
| Product Create Date | 06/08/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | Wave-AP-Gen2 |
| Opt Accessory | NHU-WAVE-AP-MICMOUNT |
