Name: Ubiquiti U7 Lite,Compact, Ceiling-mounted WiFi 7 AP, 4 Spatial Streams,2.5 GbE Uplink,115 m² Coverage,200+ Connected Devices,Power via POE
SKU: NHU-U7-LITE
Availability: InStock

Ubiquiti U7 Lite,Compact, Ceiling-mounted WiFi 7 AP, 4 Spatial Streams,2.5 GbE Uplink,115 m² Coverage,200+ Connected Devices,Power via POE

$207.06 inc GST

Manufacturer: Ubiquiti

Stock: BRS:20+ ADL:20+ SYD:20+ MEL:20+ PER:20+

20 in stock

SKU: NHU-U7-LITE Categories: Network - UniFi, WiFi

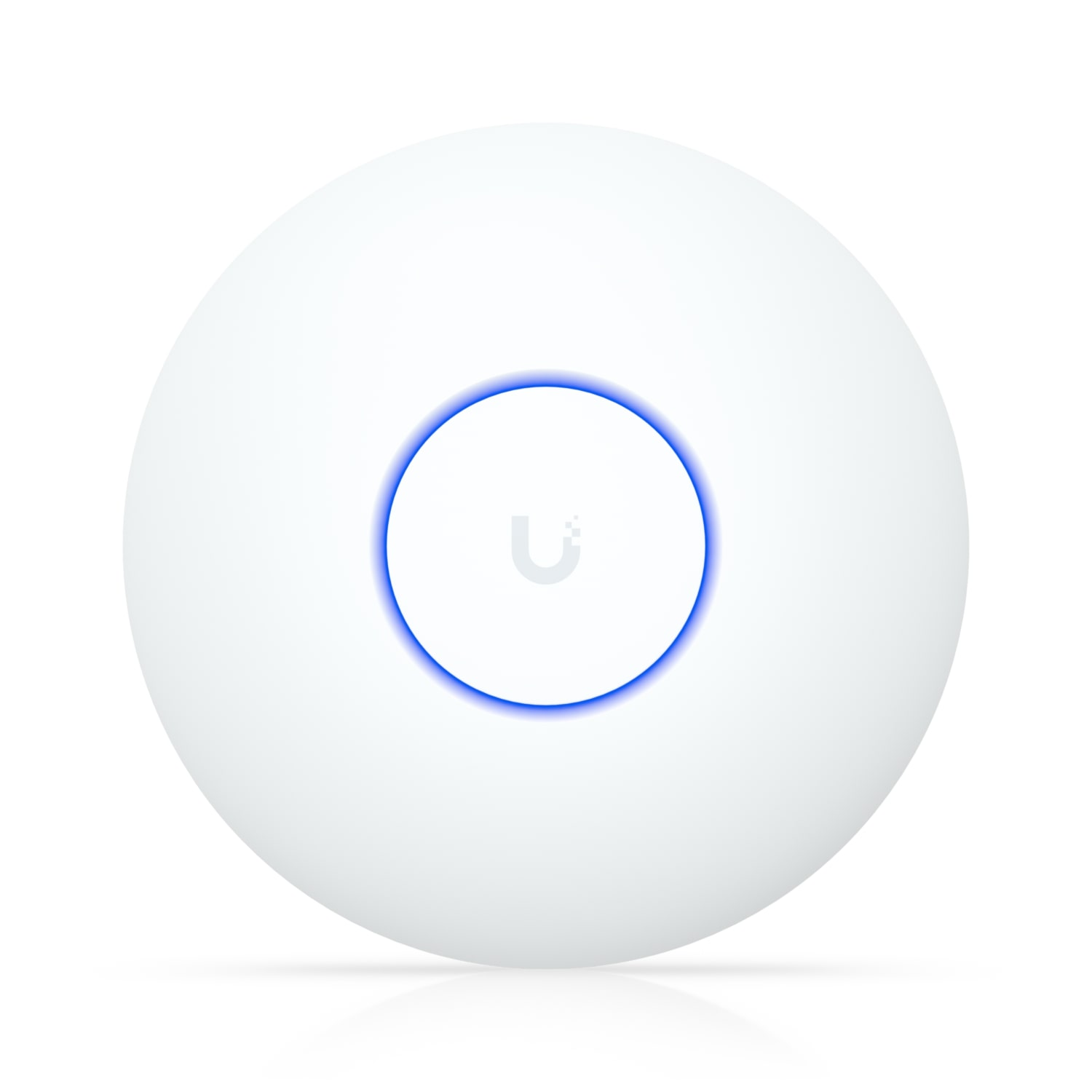

Ubiquiti U7 Lite

SKU: U7-Lite

Tech Specs: Click Here
Installation Guide: Click Here

Description: Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

Features:
•WiFi 7
•4 spatial streams
•115 m² (1,250 ft²) coverage
•200+ connected devices
•Powered using PoE
•2.5 GbE uplink

Why Choose This?

The Ubiquiti U7 Lite is a compact, ceiling-mounted WiFi 7 access point delivering blazing-fast dual-band performance with 4 spatial streams and a 2.5 GbE uplink, ideal for high-density environments like offices, schools, or homes. It covers up to 115 m² (1,250 ft²) and supports over 200 connected devices with efficient MU-MIMO and OFDMA, ensuring reliable connectivity powered simply via PoE. At an affordable price point, it upgrades networks to future-proof WiFi 7 technology without complexity.

Key Features

WiFi 7 (802.11be) with 4 spatial streams – Enables ultra-high throughput up to 4.3 Gbps on 5 GHz for seamless 4K streaming and gaming.

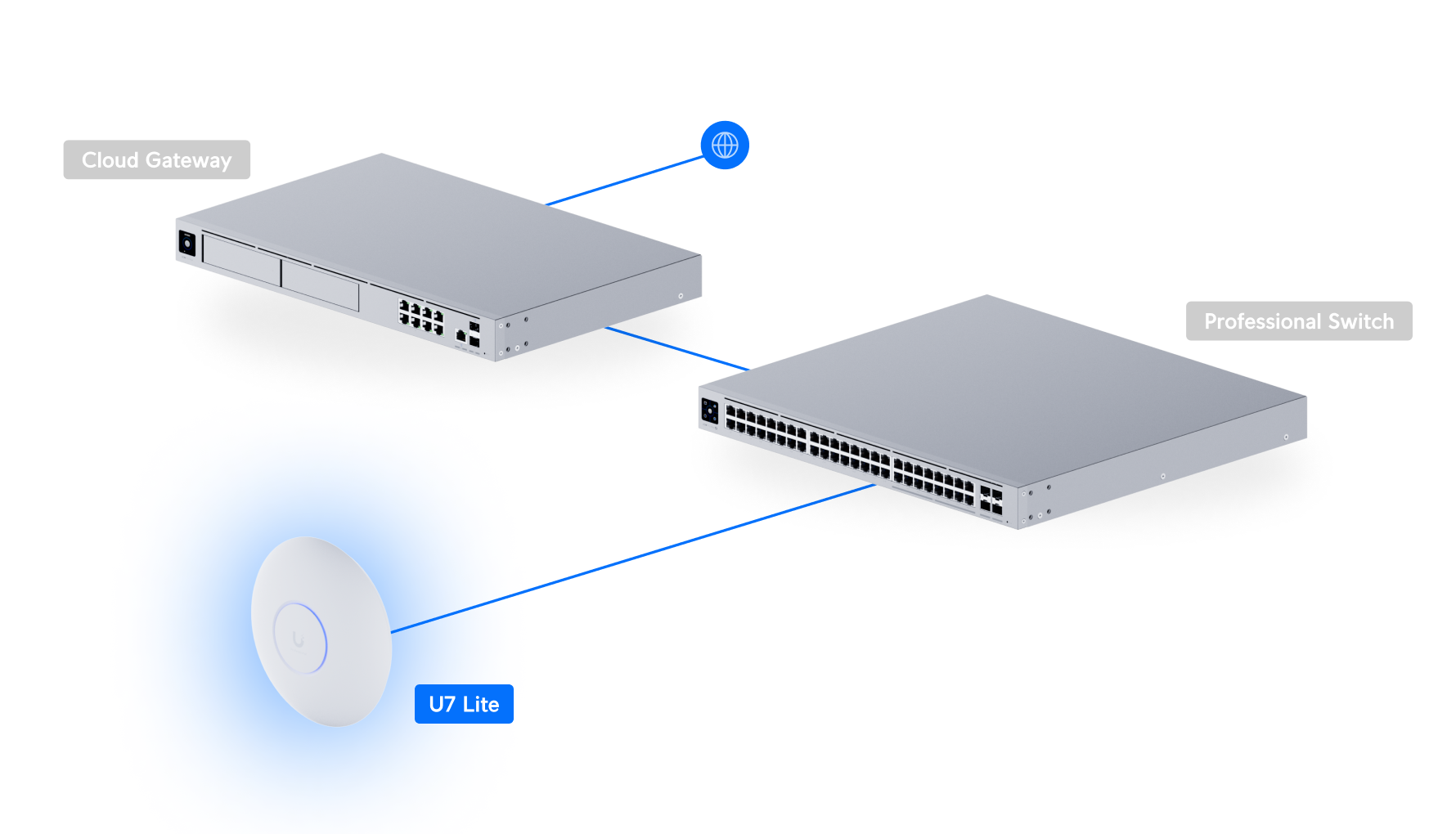

2.5 GbE PoE uplink – Provides gigabit-plus backhaul and easy power delivery over a single cable, simplifying installation.
115 m² (1,250 ft²) coverage area – Blankets medium-sized spaces with strong, reliable signal for optimal device connectivity.
Supports 200+ clients with MU-MIMO/OFDMA – Handles dense networks efficiently, reducing latency in busy environments.

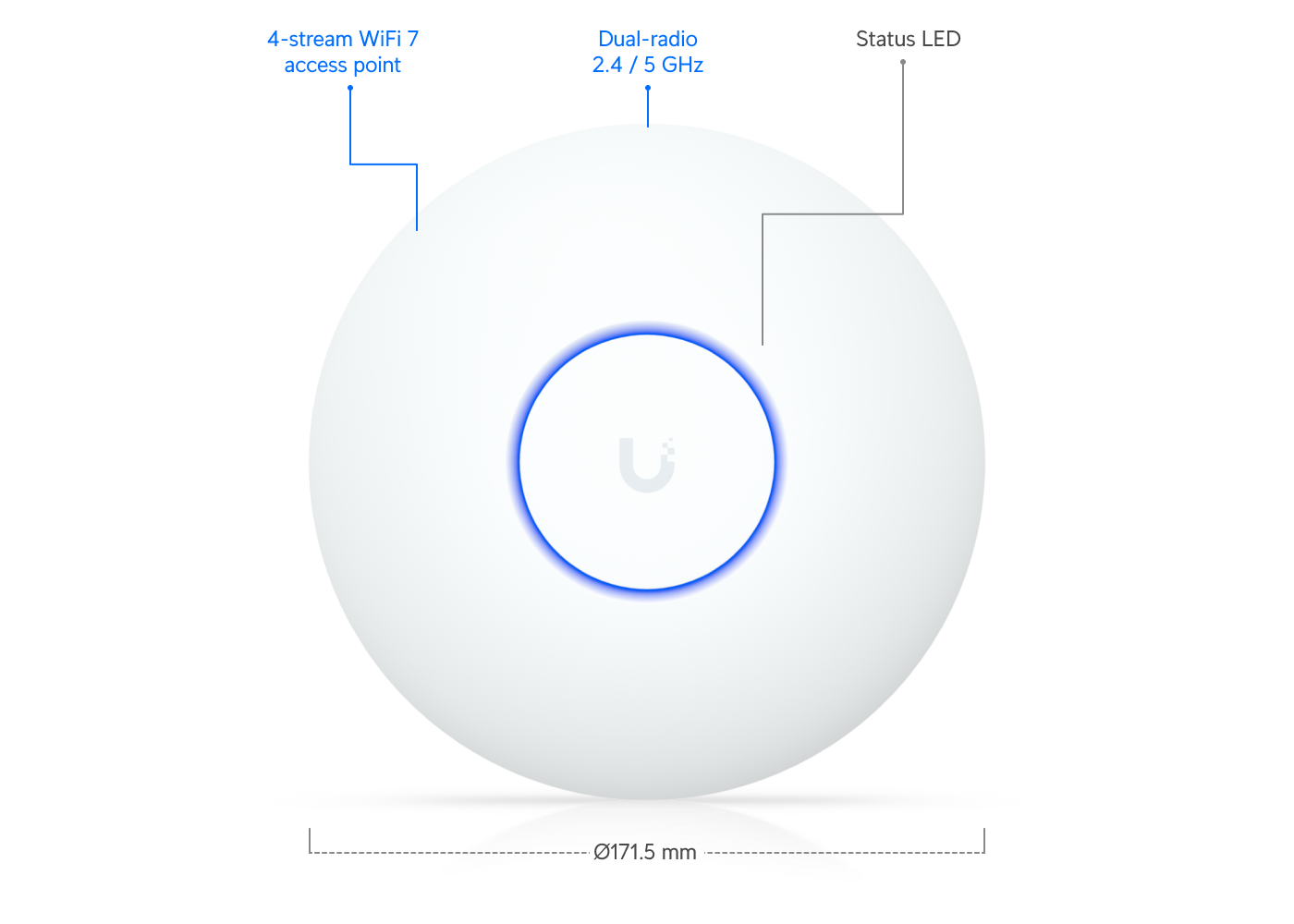

Compact ceiling/wall mount design – Sleek, low-profile form factor with included lite mount for discreet deployment.

Full Specifications

Category	Details
WiFi Standard	WiFi 7 (802.11be)
Spatial Streams	4
Coverage Area	115 m² (1,250 ft²)
Max. Client Count	200+

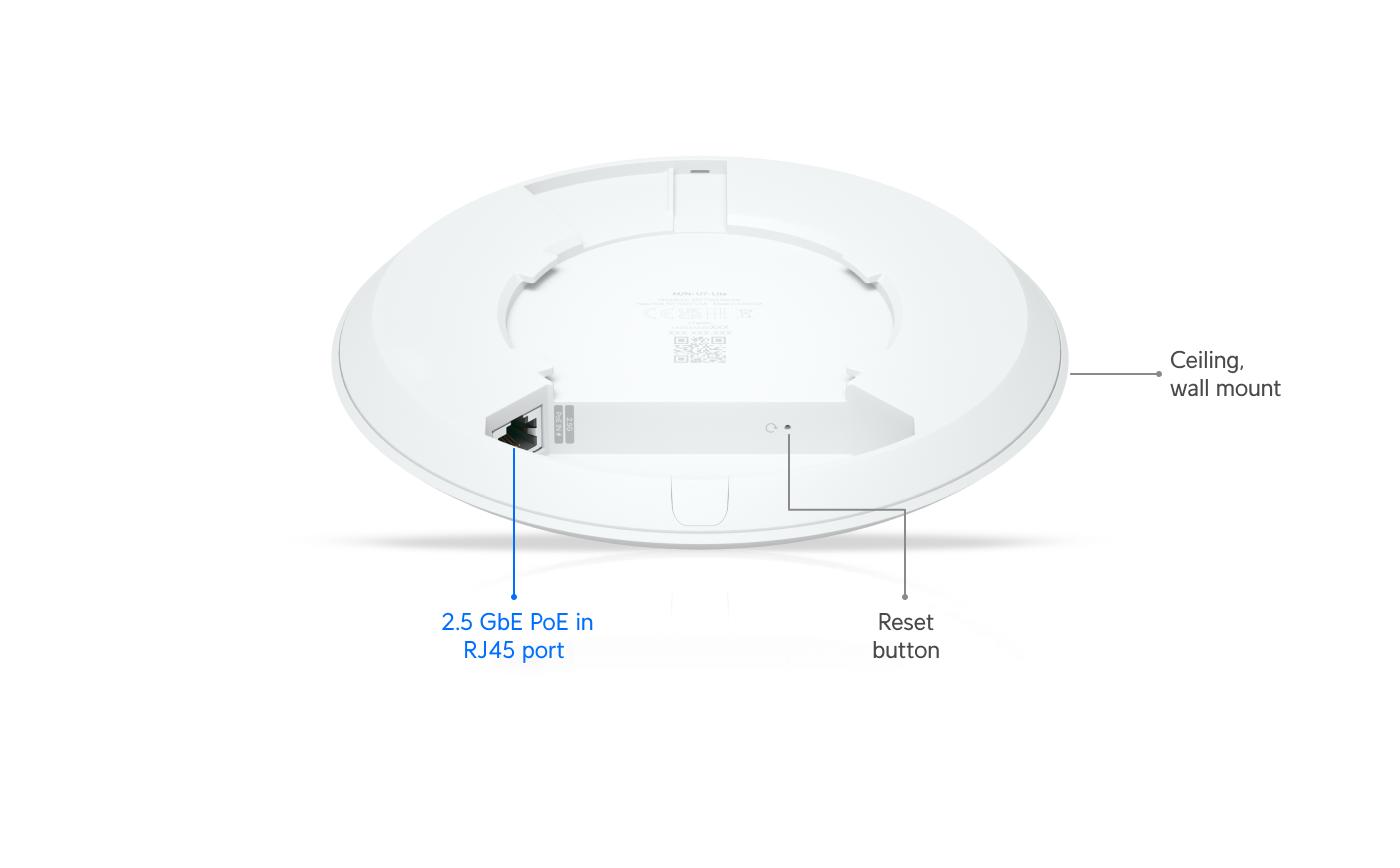

Uplink	2.5 GbE RJ45 port (1)
MIMO (5 GHz)	2 x 2 (DL/UL MU-MIMO)
MIMO (2.4 GHz)	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate (5 GHz)	4.3 Gbps (BW240)
Max. Data Rate (2.4 GHz)	688 Mbps (BW40)
Antenna Gain (5 GHz)	5 dBi
Antenna Gain (2.4 GHz)	4 dBi
Max. TX Power (5 GHz)	24 dBm
Max. TX Power (2.4 GHz)	23 dBm
Power Method	PoE (802.3af)
Max. Power Consumption	13W
Supported Voltage Range	42.5–57V DC

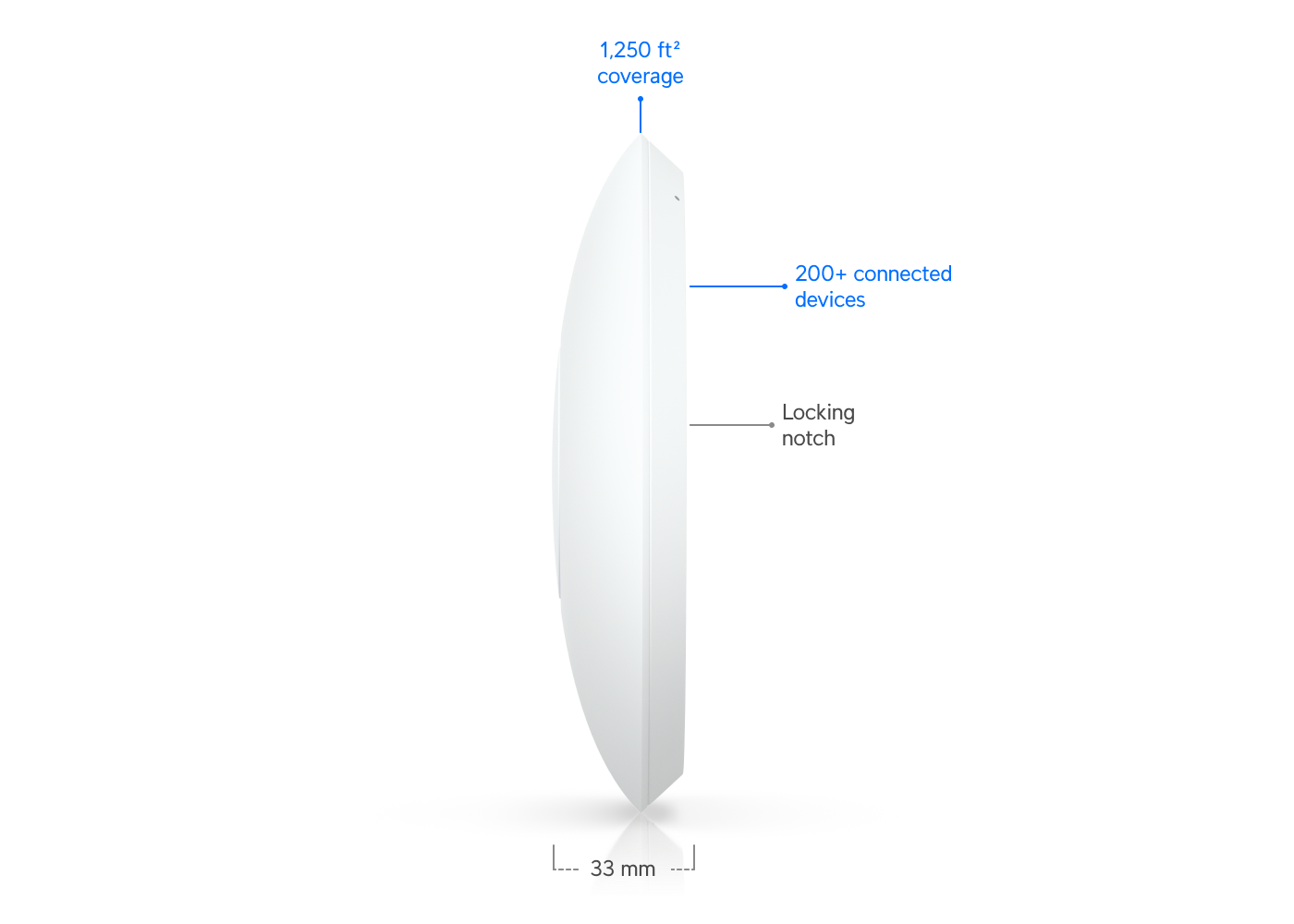

Dimensions	⌀171.5 x 33 mm (⌀6.8 x 1.3″)
Weight	313 g (11 oz)

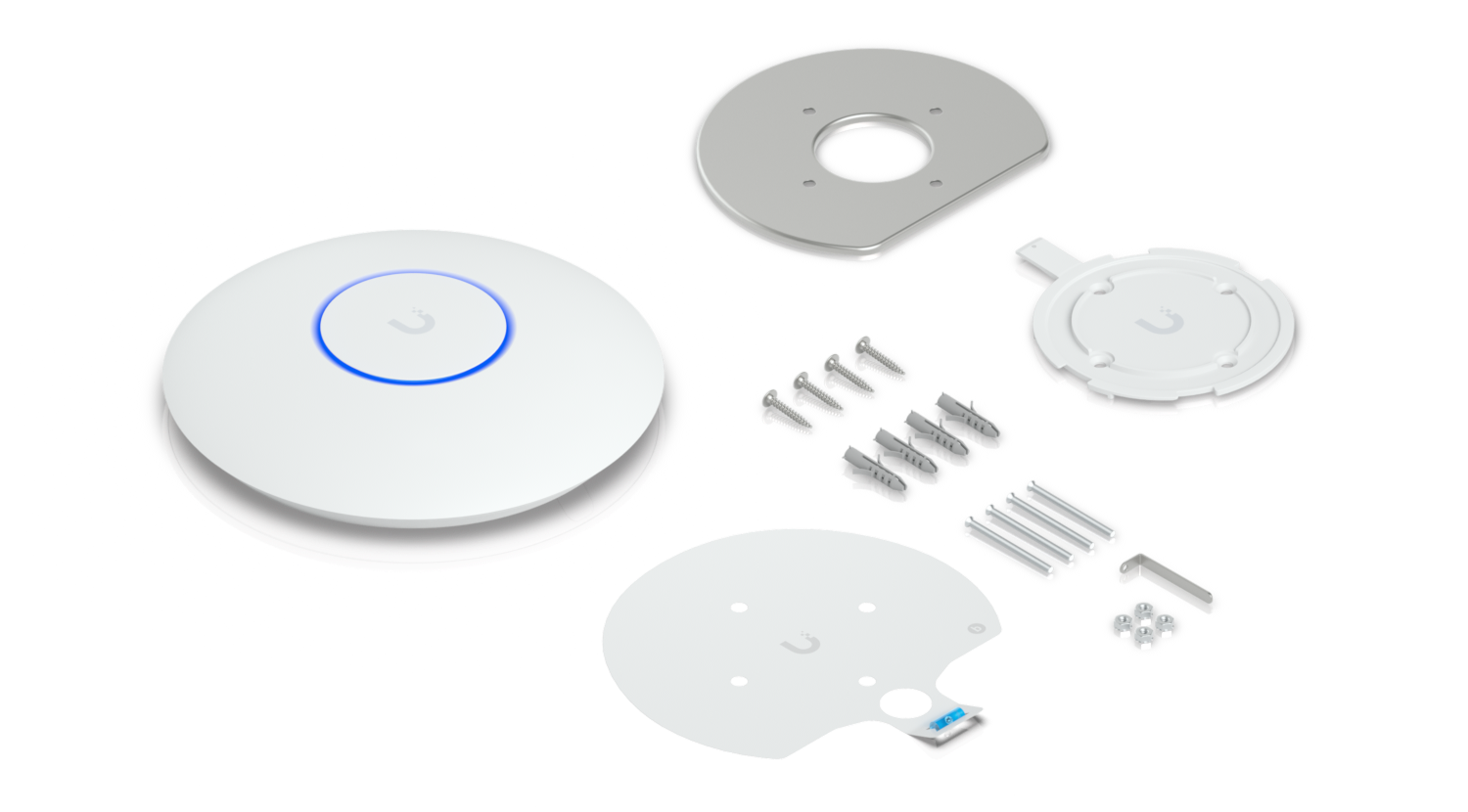

Mounting	Ceiling, Wall (Lite Mount Included)
Operating Temperature	-30 to 40° C (-22 to 104° F)
Certifications	CE, FCC, IC, SRRC, Anatel

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

Q: Does the U7 Lite support 6 GHz band? No, it is a dual-band WiFi 7 AP operating on 2.4 GHz and 5 GHz only.
Q: What PoE standard is required? It supports PoE via 802.3af on its 2.5 GbE port; max consumption is 13W.
Q: How many devices can it handle? Up to 200+ clients simultaneously, thanks to MU-MIMO and OFDMA.
Q: Is a PoE injector included? No, it must be powered via a PoE switch or separate injector (not included).
Q: What UniFi software version is needed? UniFi Network version 9.0.114 or later for full compatibility.

Weight	0.56 kg
Dimensions	192 × 190 × 54 mm
Product Create Date	04/03/2025

Web Link	Visit Manufacturer Page →
Manufacturer	Ubiquiti
Warranty	12
Manufacturer SKU	U7-Lite
Opt Accessory	NHU-USW-FLEX-2.5G-8-POE, NHU-USW-PRO-HD-24-POE, NHU-UACC-POE+-2.5G, NHU-U-POE+
