Ubiquiti Flex 2.5G PoE, 8-port 2.5 GbE PoE++ Switch,10 GbE RJ45/SFP+ Combination Uplink Port,Powered With PoE+++ PSU (Sold Separately )

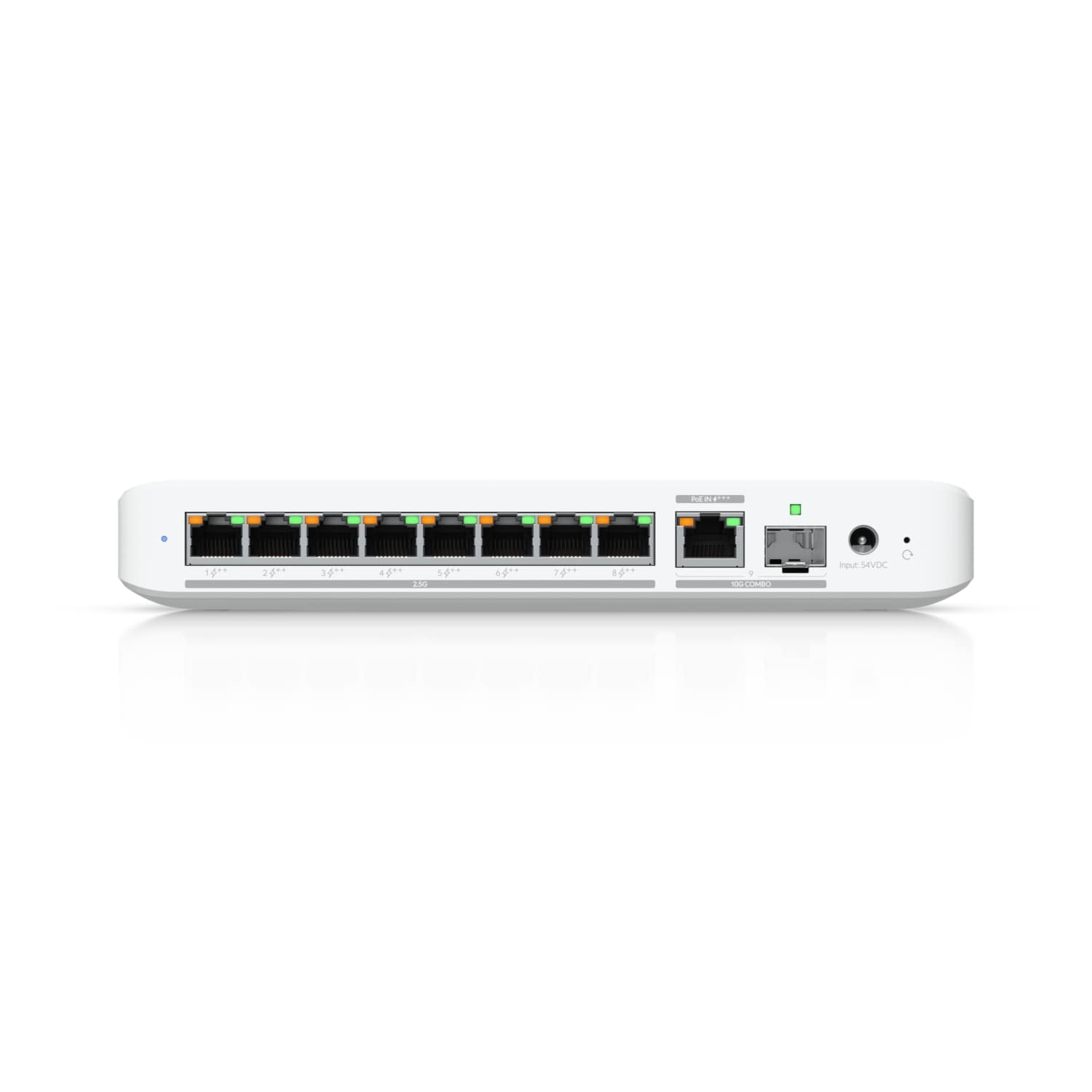

Ubiquiti Flex 2.5G PoE

SKU: USW-Flex-2.5G-8-PoE

Tech Specs: Click Here
Installation Guide: Click Here

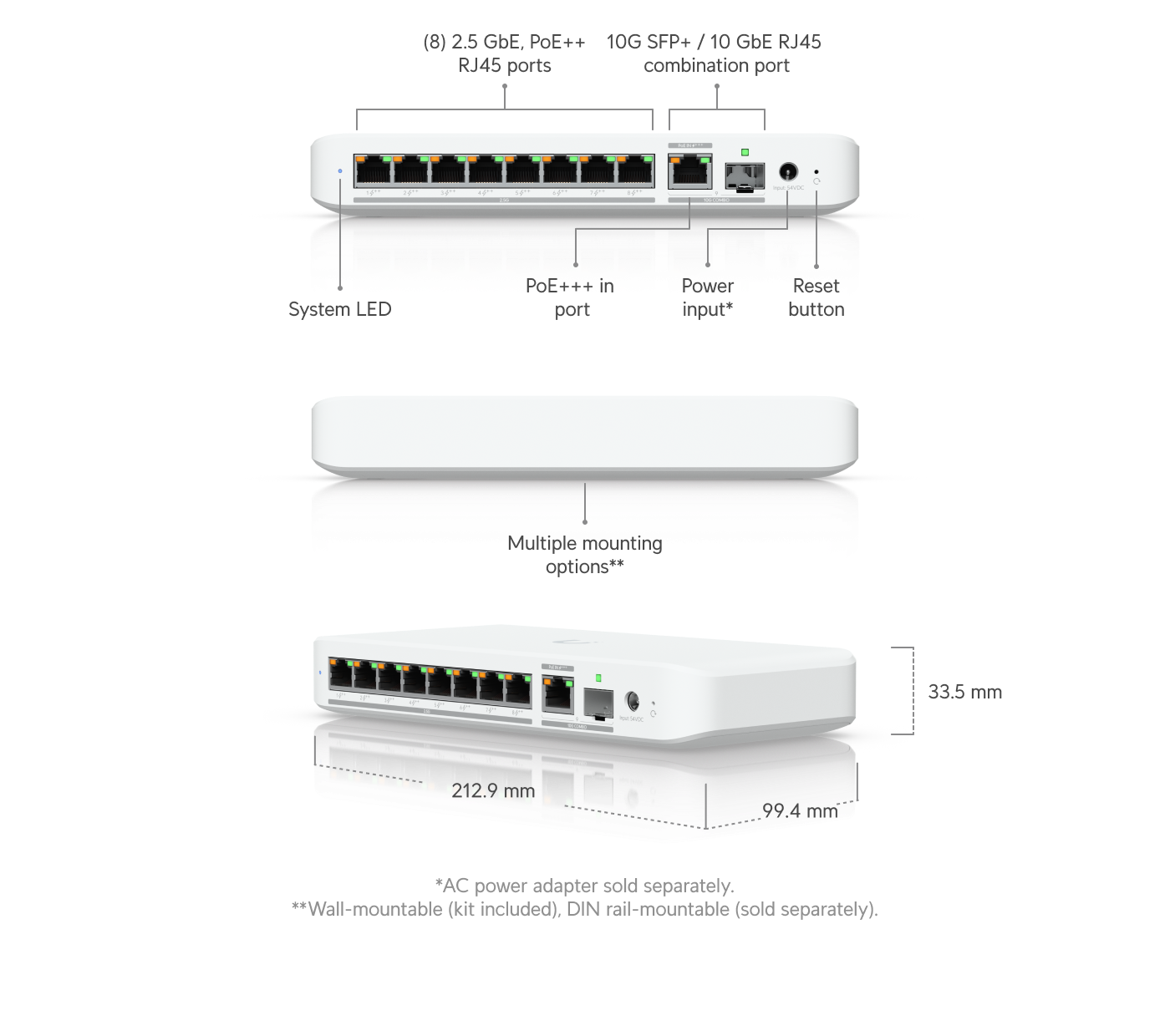

Description: Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.

Features:
•(8) 2.5 GbE PoE++ output ports
•(1) 10 GbE PoE+++ input port for power / SFP+ port combo
•— 57W PoE availability with PoE+++ input
•— 37W PoE availability with PoE++ input
•— 12W PoE availability with PoE+ input
•196W PoE availability with optional AC power adapter*
• 2 Power way
1) POE input POE+++ which they can use another switch or POE injector (Sold Separately) – NHU-UACC-POE+++-10G

2) PSU ADAPTER210W (Sold Separately ) – NHU-UACC-ADAPTER210W

Why Choose This?

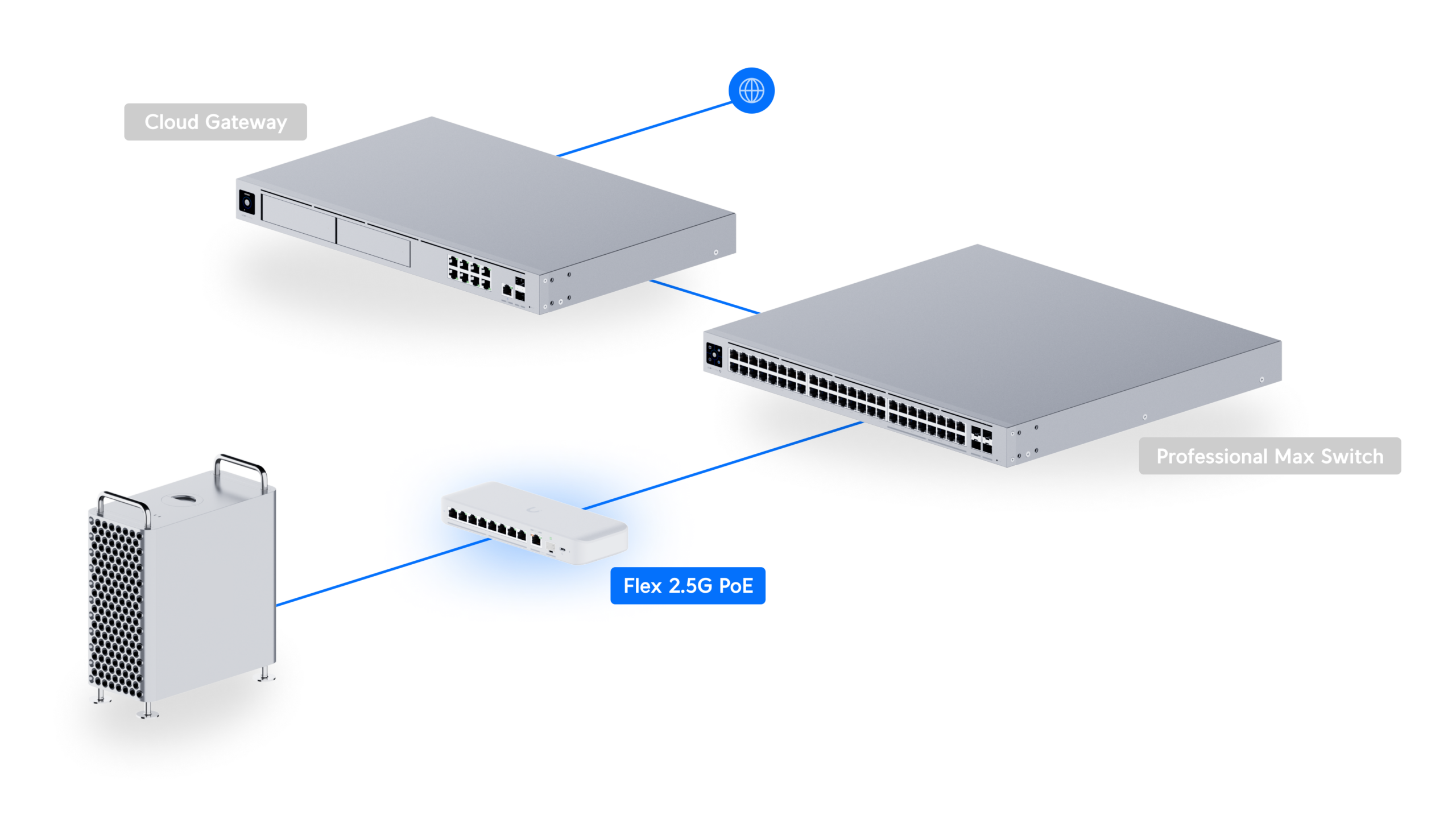

The Ubiquiti Flex 2.5G PoE (USW-Flex-2.5G-8-PoE) is a compact, versatile Layer 2 switch delivering eight 2.5 GbE PoE++ ports and a 10 GbE RJ45/SFP+ combo uplink, ideal for powering high-performance devices like WiFi 7 access points and 4K cameras in space-constrained environments. Its flexible mounting options—desktop, wall, DIN rail, or magnetic—combined with PoE+++ powering or optional AC adapter, ensure seamless deployment in homes, offices, or edge locations. With up to 196W PoE budget via external PSU, it future-proofs networks for multi-gigabit speeds without bulky hardware.

Key Features

• 8 x 2.5 GbE RJ45 PoE++ ports – Powers demanding devices up to 60W each for simplified cabling in surveillance or wireless setups.
• 10 GbE RJ45/SFP+ combo uplink (PoE+++ input) – Provides high-speed backbone connectivity and flexible powering options.
• Layer 2 switching with STP/RSTP, VLAN support (256), and storm control – Ensures reliable, secure traffic management in complex networks.
• Compact form factor with multiple mounts – Enables easy installation in tight spaces like walls, racks, or desks.
• UniFi Network management – Offers intuitive cloud-based control, monitoring, and firmware updates for effortless scalability.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Is the power supply included? No, the AC/DC adapter (recommended 210W for full 196W PoE budget) is sold separately; the switch can also be powered via PoE+++ on the uplink port.
• Q: What is the maximum PoE budget? Up to 196W with a 210W AC adapter, 76W with PoE+++ input, 46W with PoE++ input, or 16W with PoE+ input (actual availability varies by cable).
• Q: Does it support multi-gigabit speeds on all ports? Yes, all 8 RJ45 ports support 2.5G/1G/100M/10M; the uplink RJ45 supports 10G/5G/2.5G/1G/100M.
• Q: Can the 10 GbE port be used simultaneously with SFP+? No, it’s a combination port—RJ45 for power/data or SFP+ for data only (one active at a time).

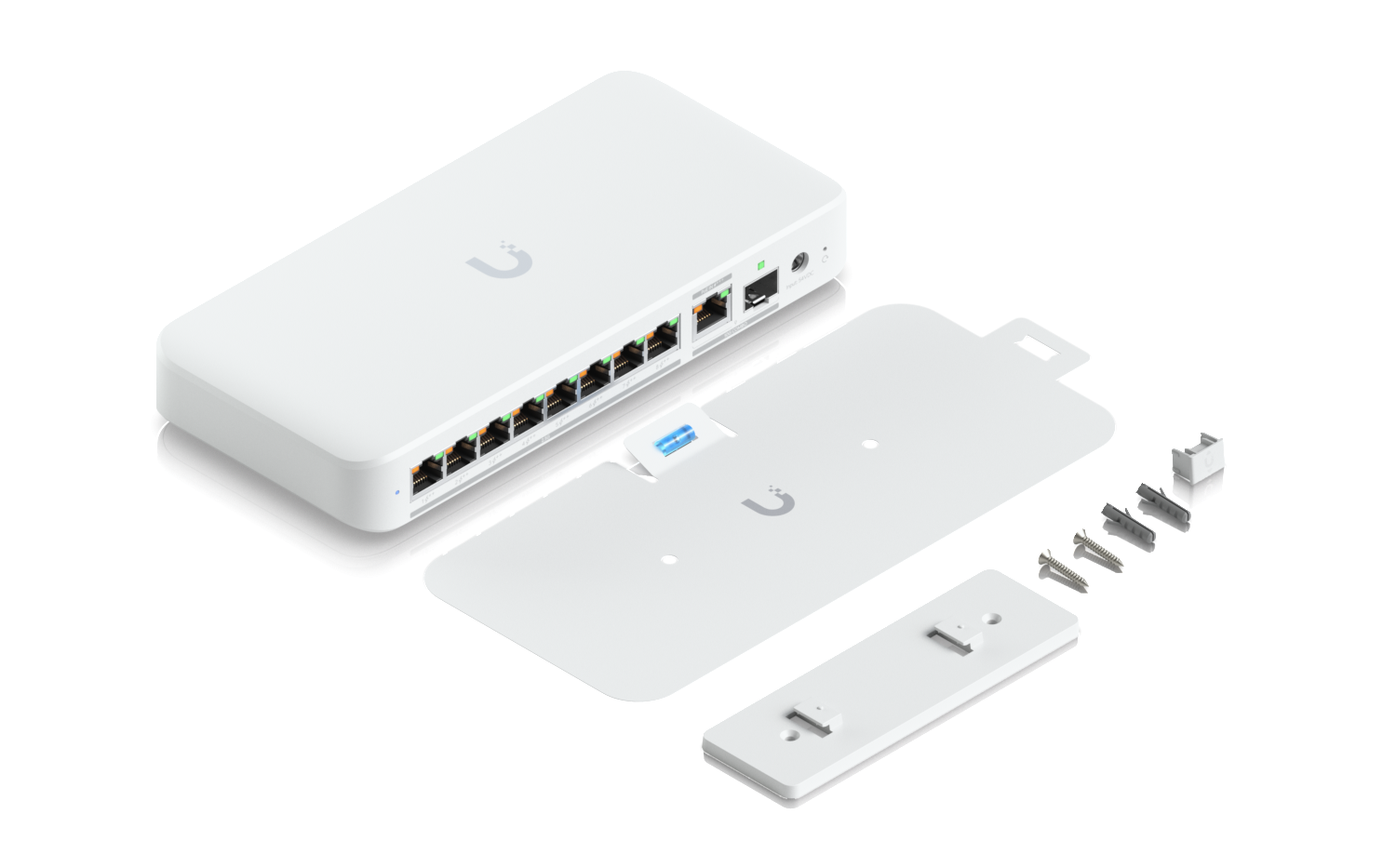

• Q: What mounting options are available? Supports compact desktop, wall-mount (kit included), DIN rail (sold separately), and magnetic mounting for flexible installations.
