Ubiquiti Pro Max 48, 48-port, Layer 3 Etherlighting Switch, 2.5 GbE, 16 GbE RJ45 Ports, 32 GbE RJ45 , 4 10G SFP+, Throughput 112 Gbps,

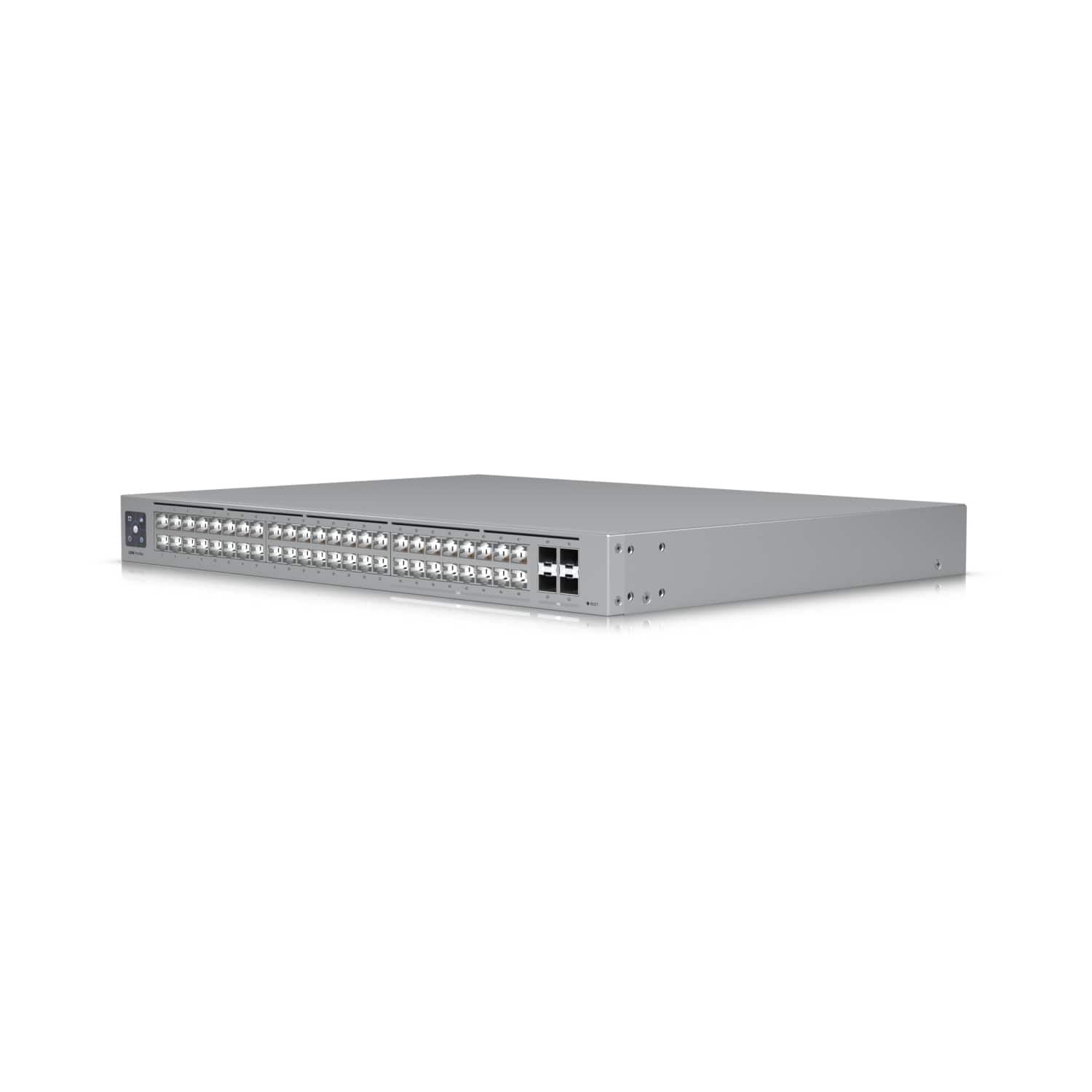

Ubiquiti Pro Max 48

SKU: USW-Pro-Max-48

Tech Specs: Click Here
Installation Guide: Click Here

Description: A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

Features:
•Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
•(16) 2.5 GbE RJ45 ports
•(32) GbE RJ45 ports
•(4) 10G SFP+ ports
•DC power backup ready
•Managed with UniFi Network 8.0.24 and later
•*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

Why Choose This?

The Ubiquiti Pro Max 48 (USW-Pro-Max-48) is a high-performance 48-port Layer 3 switch designed for demanding enterprise networks, delivering 112 Gbps non-blocking throughput with a mix of 32 GbE and 16 2.5 GbE RJ45 ports plus 4x 10G SFP+ uplinks. Its innovative Etherlighting™ technology illuminates ports to indicate location, speed, link status, and VLAN, simplifying troubleshooting and management in complex setups. With DC power backup support and UniFi Network integration, it ensures reliability and scalability for modern data centers and AV deployments.

Key Features

• 48 ports including 32 GbE RJ45 and 16 2.5 GbE RJ45 – Provides flexible high-speed connectivity for diverse devices and growing bandwidth needs.
• 4x 10G SFP+ ports – Enables ultra-fast uplinks to core switches or servers for seamless 10G aggregation.
• Etherlighting™ on all ports – Illuminates to show port status, speed, and VLAN for quick visual diagnostics.
• Layer 3 routing support – Facilitates inter-VLAN routing, static routes, and DHCP for efficient network segmentation.
• 1.3″ LCM touchscreen and DC power redundancy – Offers standalone management and failover power for uninterrupted operation.

Full Specifications

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

• Q: What speeds do the RJ45 ports support? 32 ports support 1 GbE (1G/100M/10M), and 16 ports support 2.5 GbE (2.5G/1G/100M/10M).
• Q: Does it support Layer 3 features? Yes, includes inter-VLAN routing, static routing, DHCP server/relay for local networks.
• Q: What is Etherlighting™? Illuminated ports indicating location, speed/link status, and native VLAN/network.
• Q: Is PoE supported on this model? No, this is the non-PoE version; see USW-Pro-Max-48-PoE for PoE capabilities.
• Q: What redundancy options are available? Supports DC power backup via USP RPS DC input for failover power.
