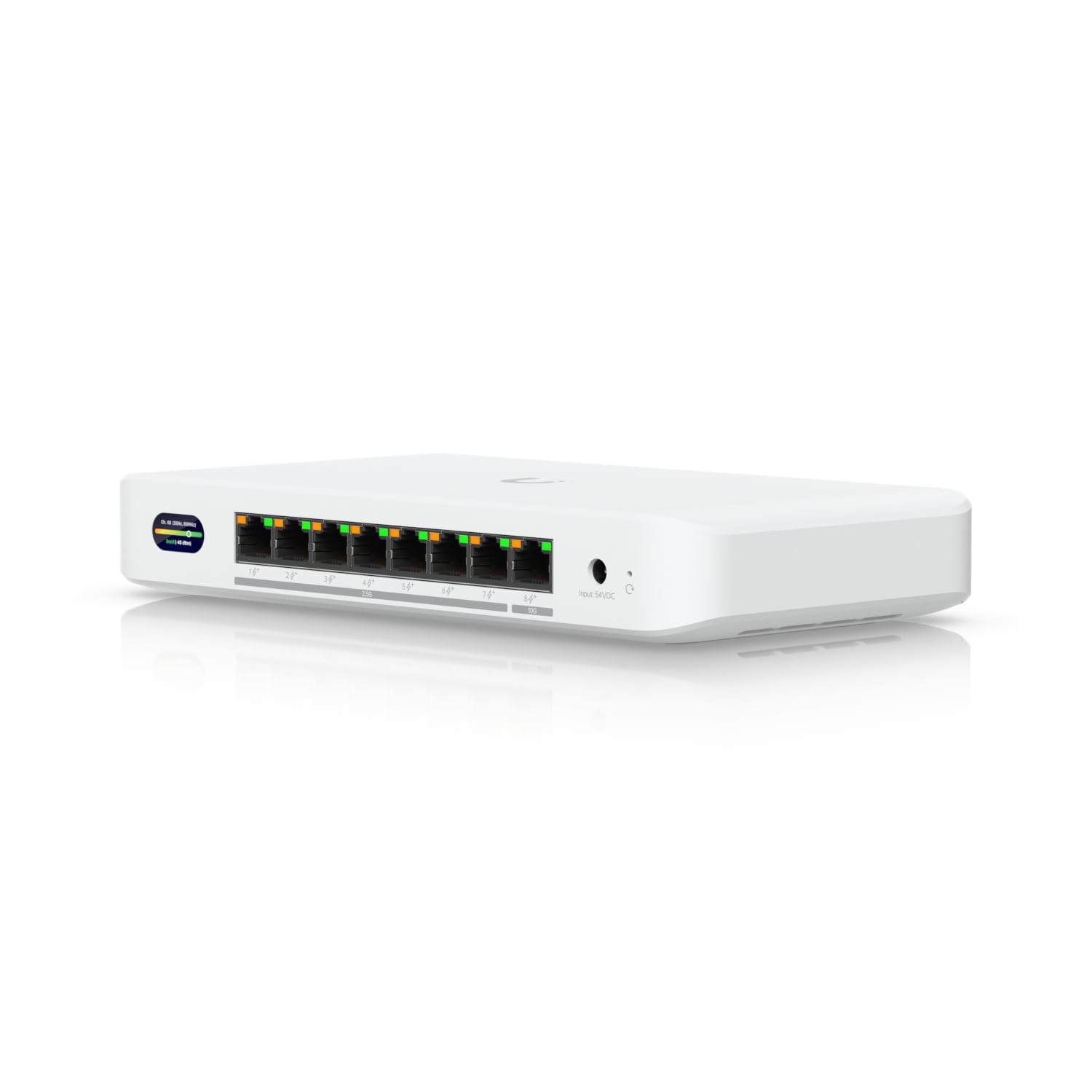

Ubiquiti Device Bridge Switch, Compact PoE+ Switch* (1) 10 GbE Port, (7) 2.5 GbE Ports, 6 GHz, WiFi 7 Integration, Seamless, High-Capacity,UniFi WiFi.

Why Choose This?

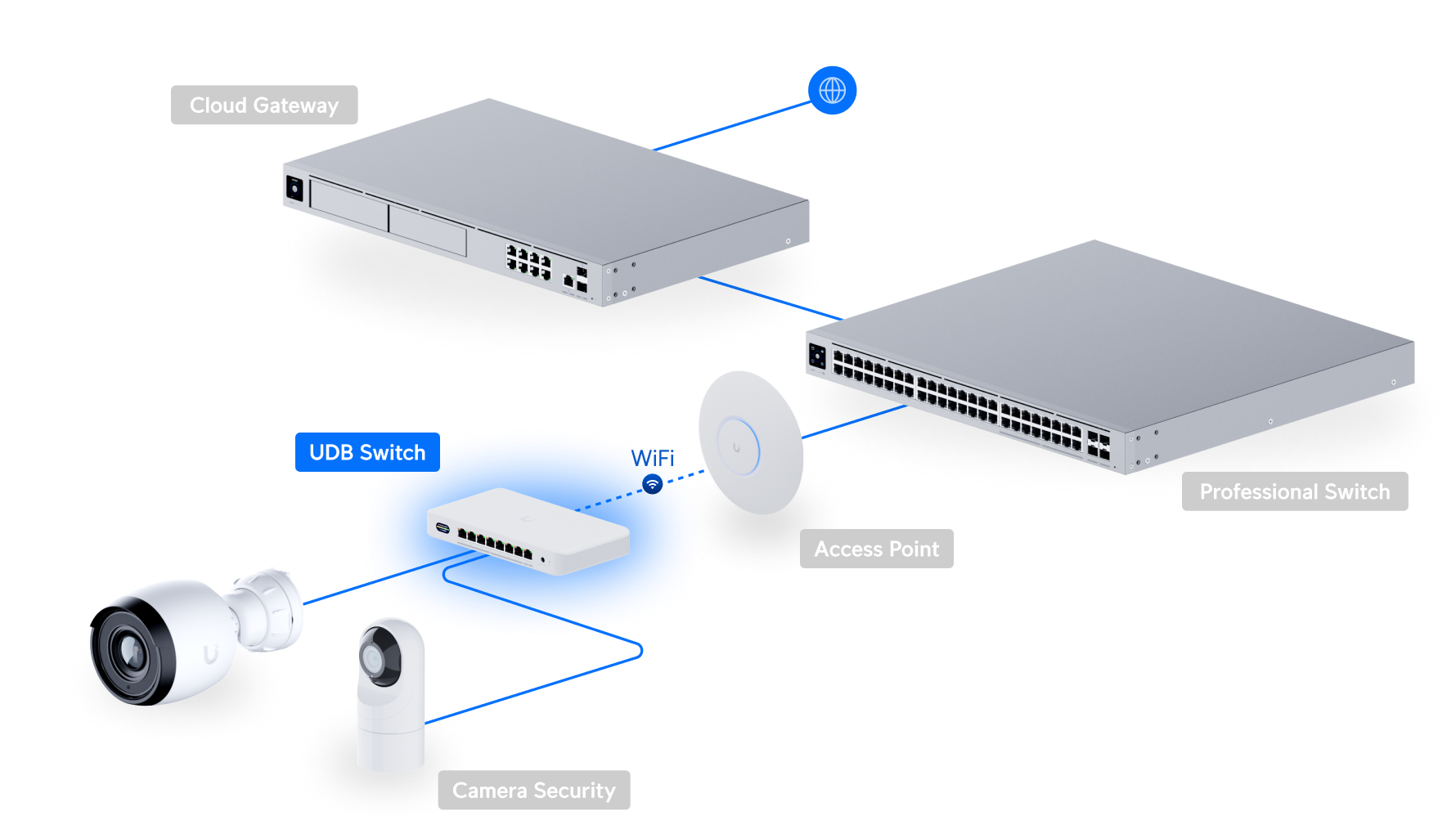

The Ubiquiti Device Bridge Switch (UDB-Switch) revolutionizes network deployment by combining a compact 8-port PoE+ switch with seamless WiFi 7 bridging, enabling high-capacity wireless uplinks to UniFi access points without needing wired backhaul. Ideal for remote locations or cable-free setups, it delivers multi-gigabit speeds via (1) 10 GbE and (7) 2.5 GbE ports, powering devices with up to 185W PoE budget using the optional adapter. This versatile hub ensures reliable, high-performance connectivity for offices, homes, or outdoor extensions.

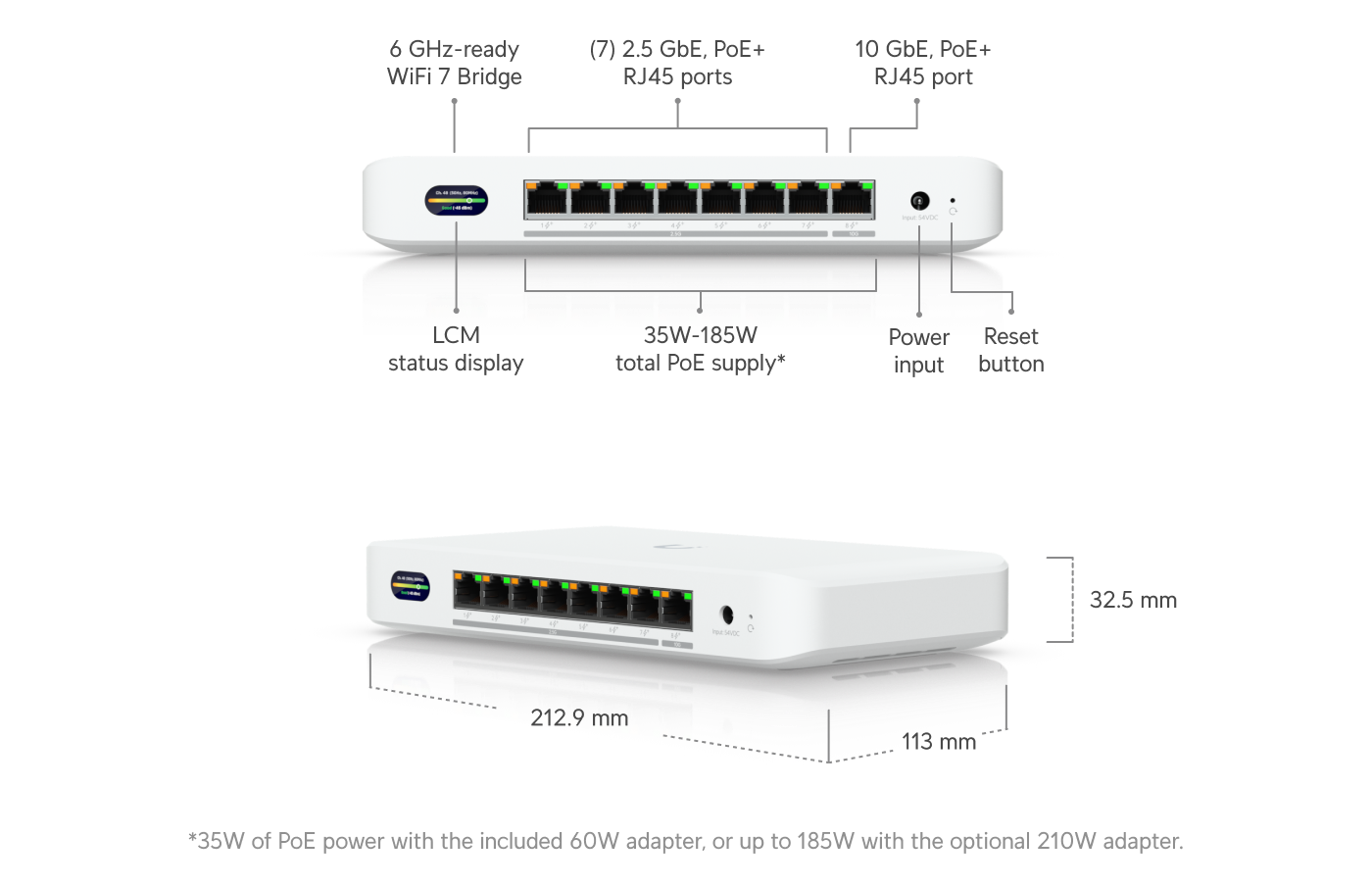

Key Features

• WiFi 7 Bridging (6 GHz-ready) – Provides seamless, high-capacity wireless uplink to UniFi WiFi 7 APs with Multi-Link Operation (MLO) support for stable, automatic connectivity.
• (1) 10 GbE PoE+ + (7) 2.5 GbE PoE+ Ports – Delivers multi-gigabit wired performance and power to up to 8 devices, eliminating bottlenecks.
• Up to 185W Total PoE Budget – Powers PoE+ devices extensively (35W with included 60W adapter, 185W with optional 210W adapter) for flexible deployments.
• LCM Status Display – Offers real-time monitoring of signal strength, PoE usage, and device status for easy troubleshooting.
• Compact Desktop/Wall Mount Design – Space-saving form factor with internal antennas and NDAA compliance for versatile, secure installations.

Full Specifications

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

• Q: What is the purpose of the WiFi 7 bridging? It enables automatic wireless uplink to UniFi WiFi 7 access points via 6 GHz or 5 GHz bands with MLO support, eliminating the need for wired uplinks in remote or hard-to-cable locations.
• Q: How much PoE power does it provide? Up to 35W total with the included 60W adapter or 185W with the optional 210W adapter across 8 PoE+ ports (30W max per port).
• Q: What ports are available? One 10 GbE RJ45 PoE+ port and seven 2.5 GbE RJ45 PoE+ ports, all supporting IEEE 802.3at.
• Q: Is it compatible with UniFi Network? Yes, requires UniFi Network application version 10.0.156 or later for full management via Ethernet or WiFi.
• Q: Can it be used as a standard wired switch? Yes, it functions as a full Layer 2 PoE+ switch with 60 Gbps switching capacity even without wireless bridging.
