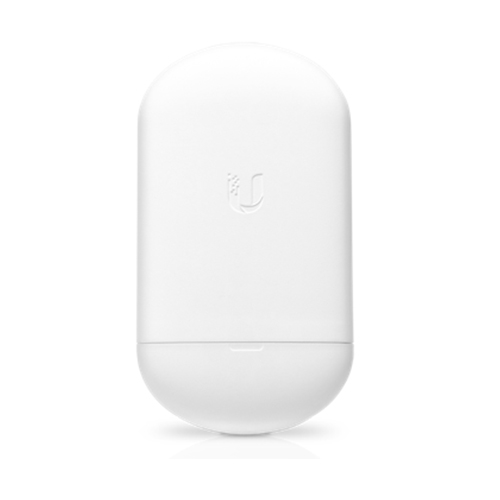

Ubiquiti NanoStationAC – 5GHz airMax AC Radio – Single Pack, 10+ km Link Range, 450+ Mbps Throughput, Dedicated Spectral Analysis Radio
$102.34 inc GST
Manufacturer: Ubiquiti
Availability: BRS:116 ADL:33 SYD:32 MEL:878 WA:125
1184 in stock
Ubiquiti airMAX NanoStation 5AC Loco
SKU: Loco5AC
Description: Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.
Tech Specs: Click Here
Features:
•5 GHz, 10+ km link range
•450+ Mbps throughput
•Dedicated spectral analysis radio
Why Choose This?
The Ubiquiti NanoStation 5AC Loco (Loco5AC) is a compact, high-performance 5 GHz airMAX AC radio designed for long-range PtP and PtMP links up to 10+ km with 450+ Mbps throughput. Its dedicated management Wi-Fi radio and spectral analysis capabilities via airView optimize spectrum usage and minimize interference for reliable connectivity. Ideal for WISPs, businesses, and remote installations, it offers UISP-ready management in a rugged, easy-to-deploy form factor.
Key Features
- 5 GHz airMAX AC technology – Delivers up to 450+ Mbps real TCP/IP throughput for high-speed wireless bridging.
- 13 dBi integrated antenna – Enables 10+ km link range with 45° beamwidth for focused, long-distance performance.
- Dedicated spectral analysis radio – Provides airView for real-time RF scanning, noise identification, and optimal channel selection.
- UISP-ready with Gigabit Ethernet – Simplifies remote management and supports high-bandwidth applications.
- Rugged outdoor design – UV-stabilized enclosure withstands -40 to 70°C temperatures for reliable deployment.
Full Specifications
| Category | Details |
|---|---|

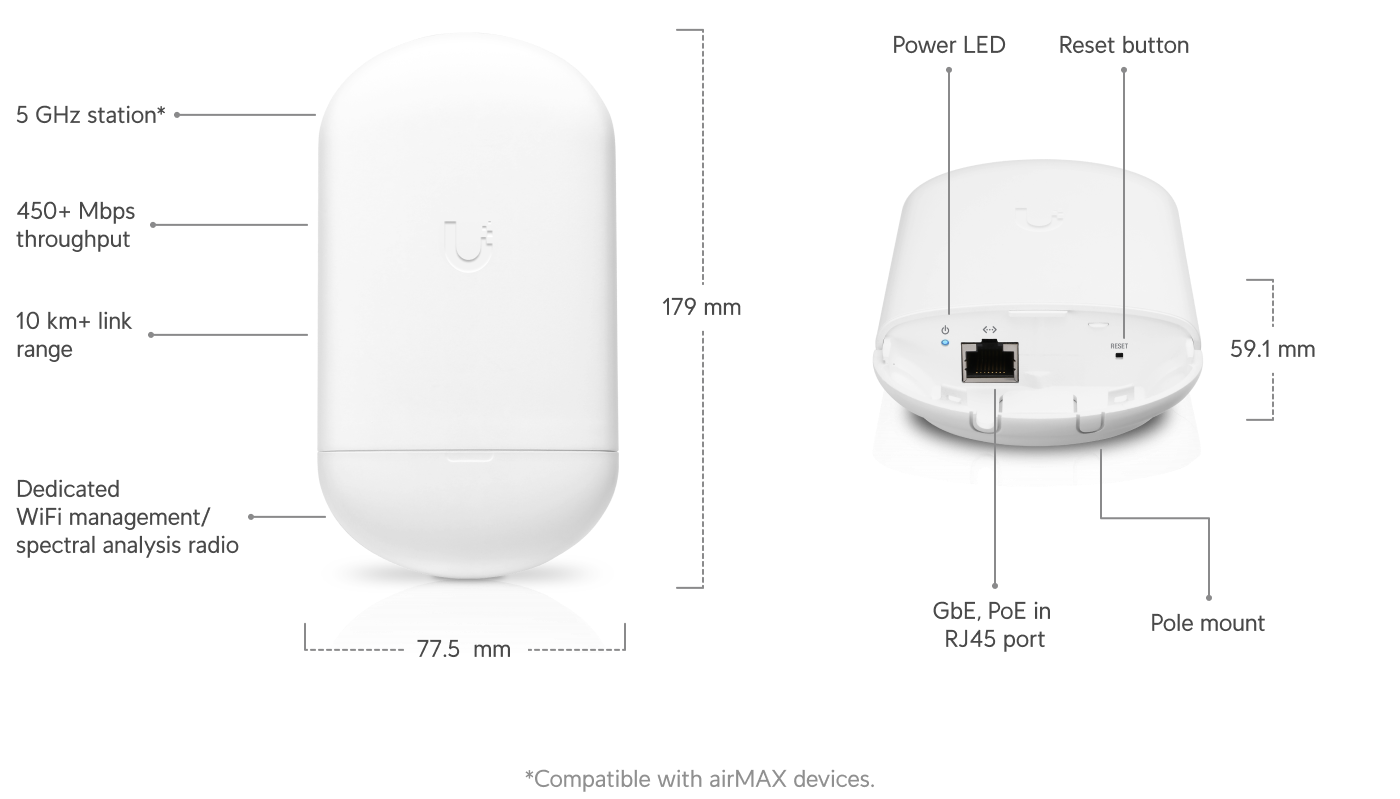

| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33″) |
| Weight | 180 g (6.35 oz) |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Networking Interface | (1) 10/100/1000 Mbps Ethernet Port |
| Processor | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Antenna Gain | 13 dBi |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Operating Frequency (Worldwide) | 5150 – 5875 MHz |
| Operating Frequency (USA) | U-NII-1: 5150-5250 / U-NII-2A: 5250-5350 / U-NII-2C: 5470-5725 / U-NII-3: 5725-5850 MHz |
| Management Radio (Worldwide) | 2412 – 2472 MHz (25 dBm) |
| Power Supply | 24V, 0.3A Gigabit PoE (Not Included) |
| Max. Power Consumption | 7W |
| Power Method | Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC, NDAA Compliant |
| ESD/EMP Protection | ±24kV Contact/Air |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Does the Loco5AC include a PoE injector? No, it requires a separate 24V, 0.3A Gigabit PoE adapter (e.g., POE-24-12W-G); powered via Passive PoE.
- Q: What is the maximum range? Up to 10+ km in ideal conditions for PtP links, depending on environment, alignment, and interference.
- Q: How do I access the configuration interface? Connect via Ethernet or management Wi-Fi, go to setup.ubnt.com (default: ubnt/ubnt), or use UISP app via Bluetooth.
- Q: What is the dedicated spectral analysis radio? It enables airView spectrum analyzer for real-time 5 GHz noise monitoring without disrupting the link.
- Q: Can it be used indoors? Yes, though optimized for outdoor use; versatile mounting supports indoor/outdoor deployments.
| Weight | 0.35 kg |
|---|---|
| Dimensions | 200 × 115 × 56 mm |
| Product Create Date | 24/10/2017 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | Loco5AC |
| Opt Accessory | NHU-POE-24-7W |
