Ubiquiti LTU Instant (5-pack), 5 GHz LTU Client Functions In A Point-to-multipoint (PtMP) Environment – 5 PACK,
$248.71 inc GST
Manufacturer: Ubiquiti
Availability: BRS:1 ADL:6 SYD:0 MEL:1 WA:1
9 in stock

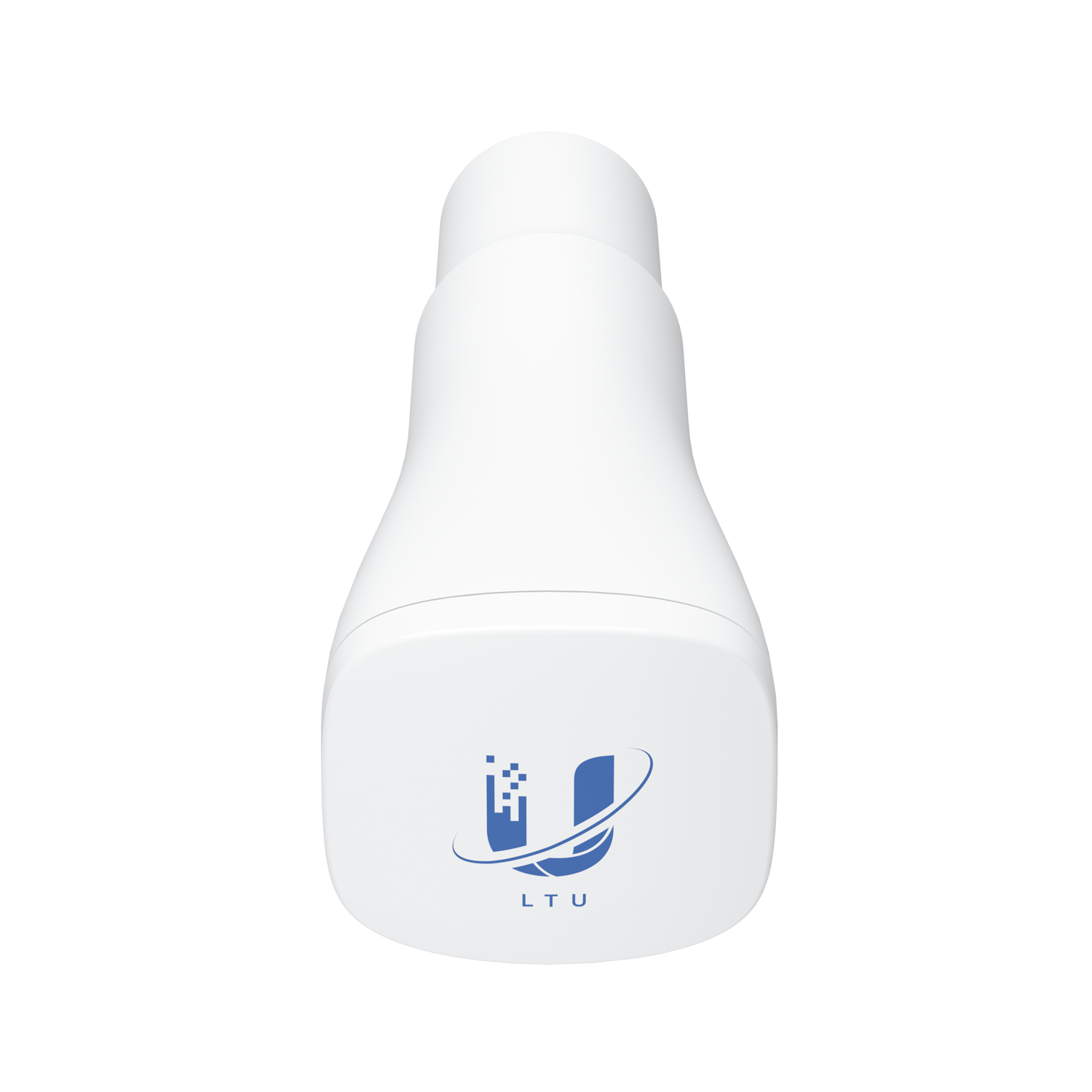

Ubiquiti LTU Instant (5-pack)
SKU: LTU-Instant-5
Description: 5 GHz LTU client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•900+ Mbps throughput*
•22 dBi high-gain antenna with InnerFeed® technology
•Easily integrates with LBE 5AC Gen 2 deployments
•Includes (5) feeds and (5) PoE adapters
*FW version 2.3.0 and later.
Why Choose This?
The Ubiquiti LTU Instant (5-pack) delivers high-performance 5 GHz wireless connectivity for point-to-multipoint (PtMP) networks, pairing seamlessly with LTU Rocket base stations to achieve 900+ Mbps throughput. This cost-effective 5-pack offers plug-and-play integration with existing LiteBeam 5AC Gen 2 antennas via InnerFeed technology, simplifying upgrades without hardware replacement. With robust weatherproofing, Bluetooth management, and advanced auto-adjustments, it ensures reliable, long-range links in demanding outdoor environments.
Key Features
- 900+ Mbps throughput – Enables ultra-fast PtMP client connections for high-bandwidth applications.
- 22 dBi high-gain antenna – Provides extended range and strong signal focus in PtMP setups.
- Bluetooth & WEB UI management – Simplifies setup and monitoring via UISP app or browser.
- Auto distance/power adjustment – Optimizes performance automatically for reliable links.
- IPX6 weatherproofing – Ensures durability in harsh outdoor conditions from -40°C to 60°C.
Full Specifications
| Category | Details |
|---|---|
| Product Type | 5 GHz LTU Client (PtMP CPE), 5-Pack (LTU-Instant-5) |
| Dimensions (Feed) | 201.5 x 64.2 x 56.2 mm (7.9 x 2.5 x 2.2″) |
| Dimensions (Antenna) | 358 x 271.9 x 288.5 mm (14.1 x 10.7 x 11.4″) |
| Weight (Feed) | 215 g (7.6 oz) |
| Weight (Antenna) | 890 g (2 lb) |
| Weight (Antenna with Mount) | 1.1 kg (2.4 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Wind Loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 😎 |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported Voltage Range | 22—27V DC |
| Max. Power Consumption | 9W |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE; NDAA Compliant |
| Operating Frequency | 5.15 to 5.95 GHz (region dependent) |
| Max. TX Power | 22 dBm (per chain) |
| Antenna Gain | 22 dBi |
| Channel Bandwidth | 10/20/30/40/50/60/80/100 MHz (FW 2.3.0+) |
| Maximum Throughput | 900+ Mbps (FW 2.3.0+) |
| Encryption | WPA2-PSK (AES) |
| Uplink/Downlink Ratio | 25/75, 33/67, 50/50 |
| Modes | PtMP CPE, PtP (FW 1.5.1+) |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Is the LTU Instant compatible with airMAX or airFiber products? No, LTU uses a proprietary protocol incompatible with airMAX (802.11) or airFiber devices; requires LTU ecosystem like LTU Rocket base station.
- Q: What base station does it pair with? Designed for PtMP with LTU Rocket as base station; also supports PtP mode (firmware 1.5.1+).
- Q: Does it support licensed frequencies like 4.9 GHz or 6 GHz in the US? Capable but not FCC-approved for licensed bands; operates in unlicensed 5 GHz spectrum.
- Q: Can it integrate with existing antennas? Yes, plug-and-play conversion module for LiteBeam 5AC Gen 2 antennas using InnerFeed technology.
- Q: What management options are available? Bluetooth via UISP app for easy setup, plus WEB UI; supports SNMP, SSH, and utilities like airView and speed test.
| Weight | 1.29 kg |
|---|---|
| Dimensions | 201.5 × 64.2 × 56.2 mm |
| Product Create Date | 15/08/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | LTU-Instant-5 |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
Related products
-
Network - UISP
Ubiquiti PowerBeam 5 AC 500 27dBi 5GHz 802.11ac 2×2 MIMO Antenna, 25+ km Link Range,450+ Mbps Throughput
$311.78 inc GST
11 in stock
Add to cartUbiquiti AC PowerBeam PBE-5AC-500 with Radome SKU: PBE-5AC-500 Description: 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate. Using Ubiquiti airMAX ac technology Ubiquiti have boosted the preformance with the PBE-5AC-500 which supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be …
-
Network - UISP

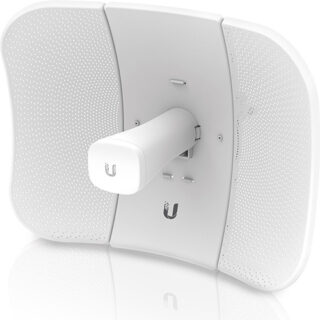

Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station, 450+ Mbps Throughput, 23dBi Gain Antenna, 15+ Km Range,Inludes PoE Injector
