Ubiquiti Dream Router 7, UDR7, 10G Cloud Gateway, Integrated WiFi 7, PoE Switch, MicroSD Storage,Full UniFi Application Support
$611.66 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:3 MEL:185 WA:0
188 in stock

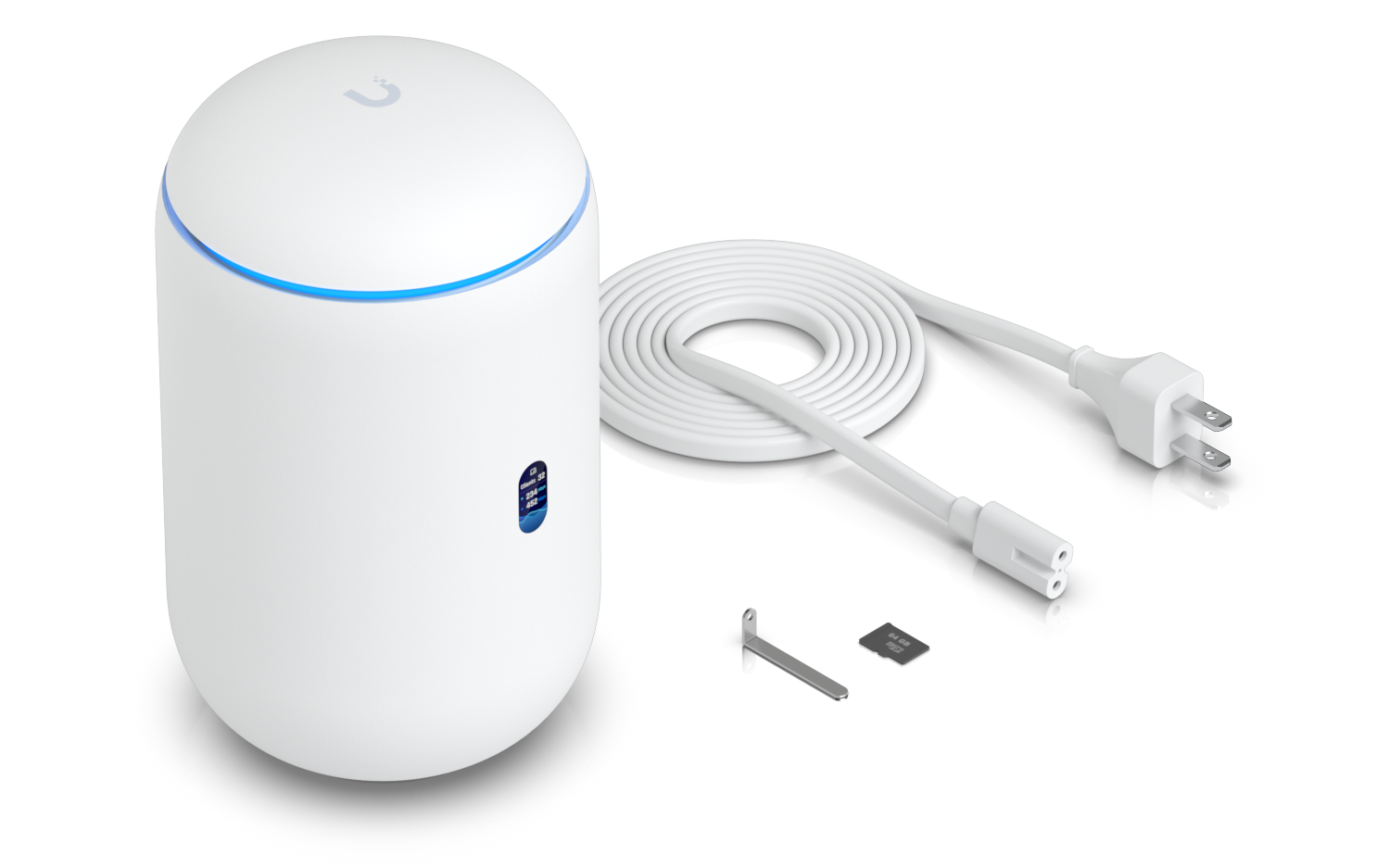

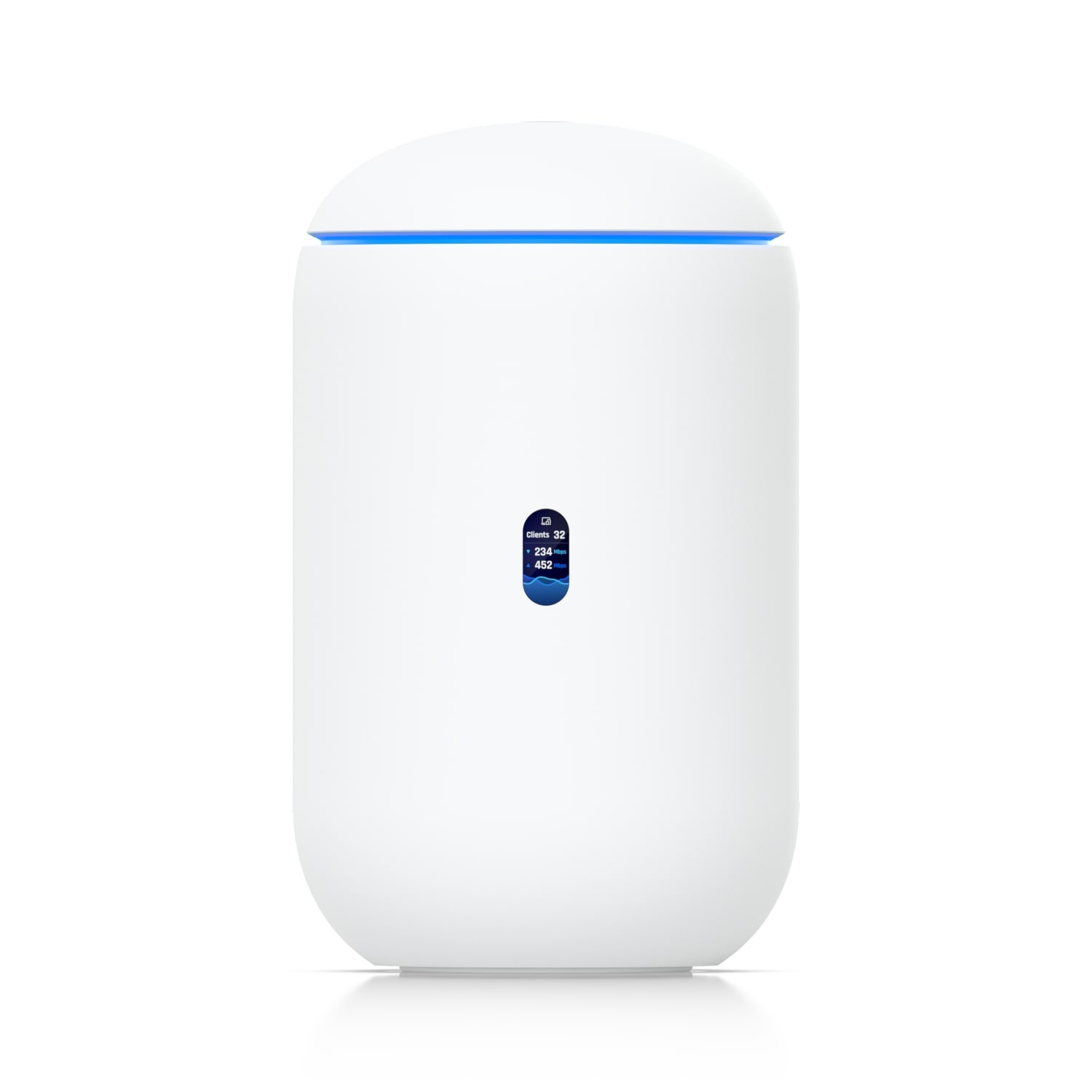

Ubiquiti Dream Router 7
SKU: UDR7
Description:
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•Integrated 6-stream WiFi 7 AP with 6 GHz support
•Includes full UniFi application suite for device management
•Manages 30+ UniFi devices and 300+ clients
•Integrated 4-port switch with (1) PoE port
•(1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port
•64 GB microSD storage pre-installed (upgradable)
Why Choose This?
The Ubiquiti Dream Router 7 (UDR7) is a compact desktop 10G cloud gateway that integrates high-performance WiFi 7, a PoE switch, and microSD storage for seamless home or small business networking. It runs the full UniFi application suite, managing 30+ devices and 300+ users while delivering 2.3 Gbps IDS/IPS throughput for robust security and multi-gigabit speeds. Perfect for users needing future-proof connectivity with coverage up to 160 m² (1,750 ft²) and support for multiple cameras via built-in NVR.
Key Features
- Integrated 6-Stream WiFi 7 – Delivers multi-gigabit speeds (5.7 Gbps on 6 GHz) with tri-band support for ultra-low latency and high device density.
- 10G Cloud Gateway with Multi-WAN – Supports up to 4 WAN ports including 10G SFP+ for high-speed internet failover and load balancing.

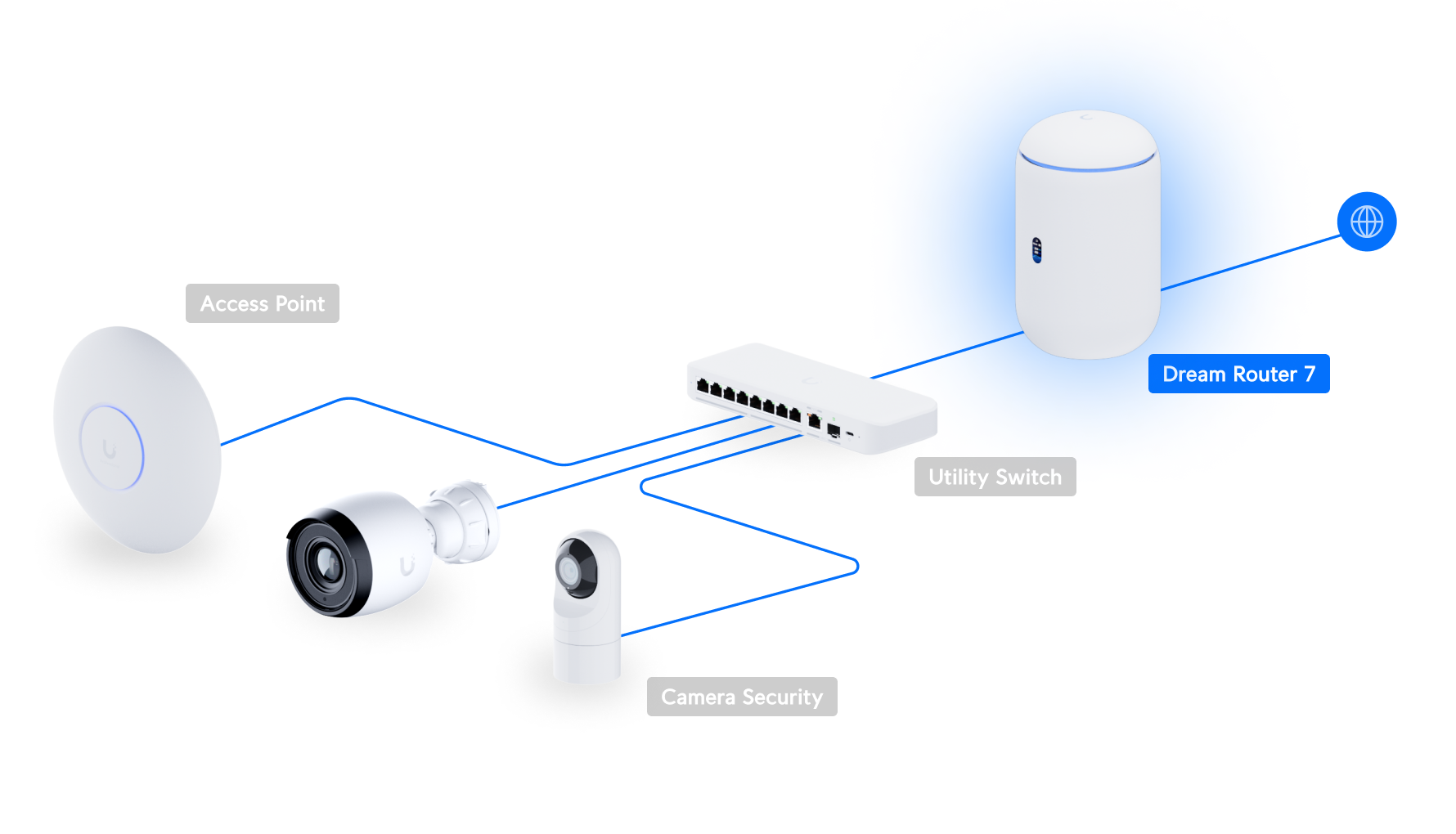

- Built-in PoE Switch (15.4W budget) – Powers compatible UniFi devices like cameras or APs directly, simplifying deployment.
- Pre-installed 64GB microSD NVR Storage – Enables local recording for up to 5 HD, 2 2K, or 1 4K cameras without extra hardware.
- Full UniFi Suite Support – Manages Network, Protect, Access, Talk, and Connect apps for 30+ devices and 300+ simultaneous users.
Full Specifications
| Category | Details |
|---|---|
| Form Factor | Compact desktop |

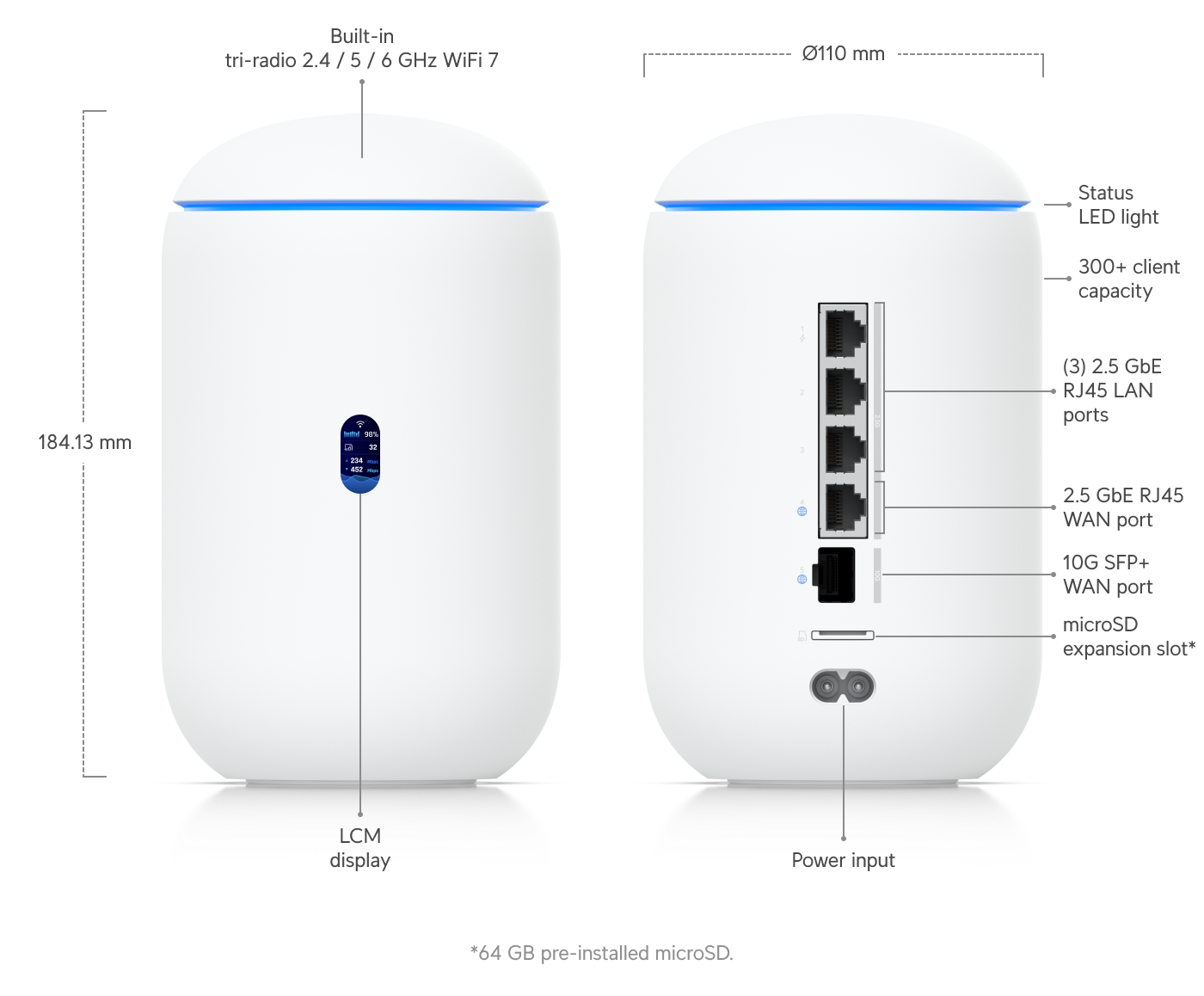

| Dimensions | ⌀110 x 184.1 mm (⌀4.3 x 7.3″) |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory | 3 GB |
| NVR Storage | Pre-installed 64GB microSD |
| Expansion Slot | MicroSD Card |
| Default WAN Ports | (1) 10G SFP+, (1) 2.5 GbE RJ45 |
| LAN Ports | 4 x 2.5 GbE RJ45 (1 PoE, 2.5G/1G/100M/10M) |
| PoE Budget | 15.4W (802.3af) |
| IDS/IPS Throughput | 2.3 Gbps |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 7) |
| WiFi Throughput | 6 GHz: 5.7 Gbps, 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps |
| MIMO | 2 x 2 (DL/UL MU-MIMO) on all bands |
| Antenna Gain | 6 GHz: 6 dBi, 5 GHz: 7 dBi, 2.4 GHz: 5 dBi |
| Max TX Power | 6 GHz: 24 dBm, 5 GHz: 26 dBm, 2.4 GHz: 23 dBm |
| Coverage Area | 160 m² (1,750 ft²) |
| Managed Devices | 30+ UniFi devices, 300+ users |
| Managed Cameras | (5) HD, (2) 2K, (1) 4K |
| Power Supply | AC/DC, Internal, 50W |
| Max Power Consumption | 26W (excluding PoE) |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What is the PoE capability of the UDR7? It has one 2.5 GbE PoE port with a 15.4W budget (802.3af), suitable for powering small UniFi cameras or access points.
- Q: How many devices can the Dream Router 7 manage? It supports 30+ UniFi devices and 300+ simultaneous users, with full UniFi app suite including Network, Protect, and more.
- Q: Does it support WiFi 7 and what are the speeds? Yes, 6-stream tri-band WiFi 7 with up to 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz using 2×2 MU-MIMO.
- Q: What storage is included for NVR? Pre-installed 64GB microSD card for UniFi Protect, supporting up to 5 HD, 2 2K, or 1 4K camera streams.
- Q: Can it handle 10G internet connections? Yes, via the 10G SFP+ WAN port, with 2.3 Gbps IDS/IPS throughput and multi-WAN support for up to 4 WAN ports.
| Weight | 1.74 kg |
|---|---|
| Dimensions | 285 × 155 × 160 mm |
| Product Create Date | 27/02/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UDR7 |
| Opt Accessory | NHU-UCG-MAX, NHU-USW-PRO-HD-24-POE, NHU-UICARE-UDR7-AU-D, NHU-UI-CYBERSECURE-1Y-D |
