Ubiquiti Cloud Gateway Max, Compact 2.5G With 30+ UniFi device/300+ Client Support, 1.5 Gbps IPS Routing, 512GB NVMe SSD Included
$591.43 inc GST
Manufacturer: Ubiquiti
Availability: BRS:281 ADL:13 SYD:18 MEL:360 WA:61
733 in stock

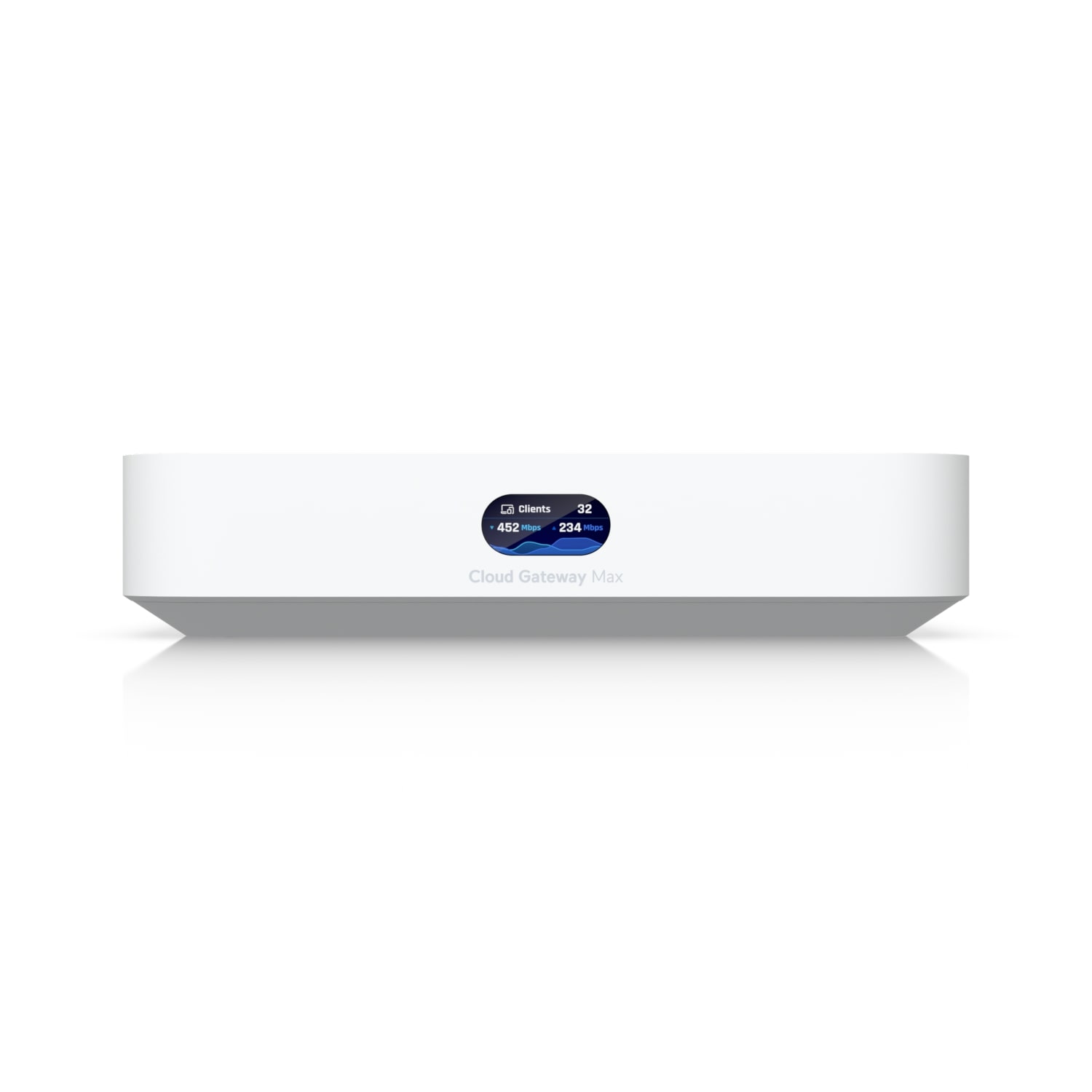

Ubiquiti Cloud Gateway Max
SKU: UCG-Max
Tech Specs: Click Here
Installation Guide: Click Here
Description:
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.
Features:
•Includes full UniFi application suite for device management
•Manages 30+ UniFi devices and 300+ clients
•1.5 Gbps routing with IDS/IPS
•Multi-WAN load balancing
•512 GB NVMe SSD storage for NVR
•0.96″ LCM status display

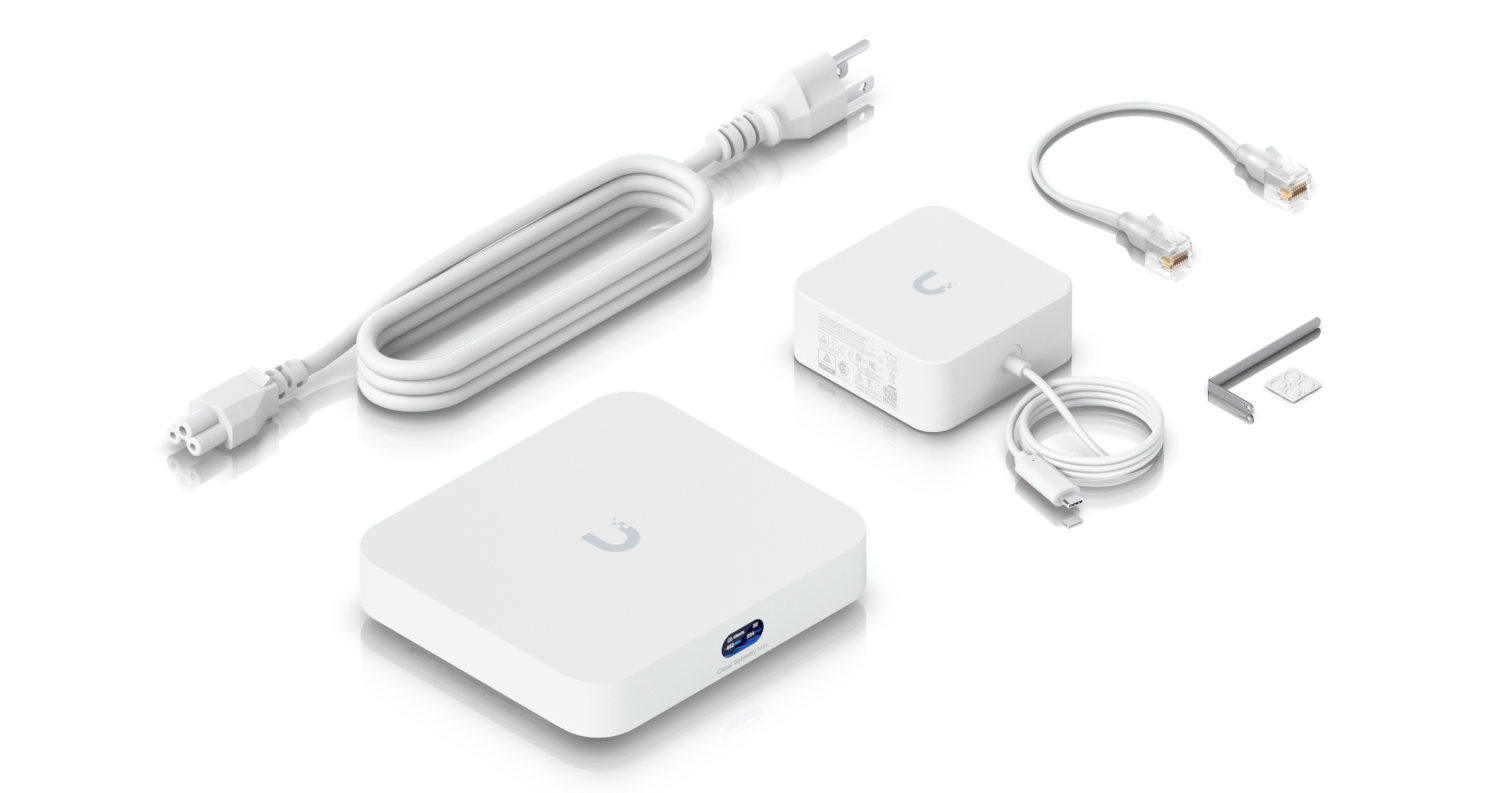

•USB-C powered (adapter included)
• Includes 2 Year Warranty – As part of the current promotion running from March to June 2024, all Ubiquiti items purchased during this period will come with a standard 2-year extended warranty.
Why Choose This?
The Ubiquiti Cloud Gateway Max (UCG-Max) is a compact 2.5G desktop gateway that delivers the full UniFi application suite, managing 30+ UniFi devices and 300+ simultaneous clients with ease. It offers high-performance 2.3 Gbps IDS/IPS throughput, multi-WAN load balancing, and selectable NVMe SSD storage up to 2 TB for seamless NVR functionality. Ideal for small-to-medium networks, it provides advanced security, SD-WAN, and robust networking in a low-power, desk-friendly form factor.
Key Features
- Full UniFi Suite Support – Runs Network, Protect, Access, Talk, and Connect apps for comprehensive management of devices, cameras, and users.
- 2.3 Gbps IDS/IPS Throughput – Delivers high-speed intrusion prevention and detection with 55,000+ signatures via CyberSecure.

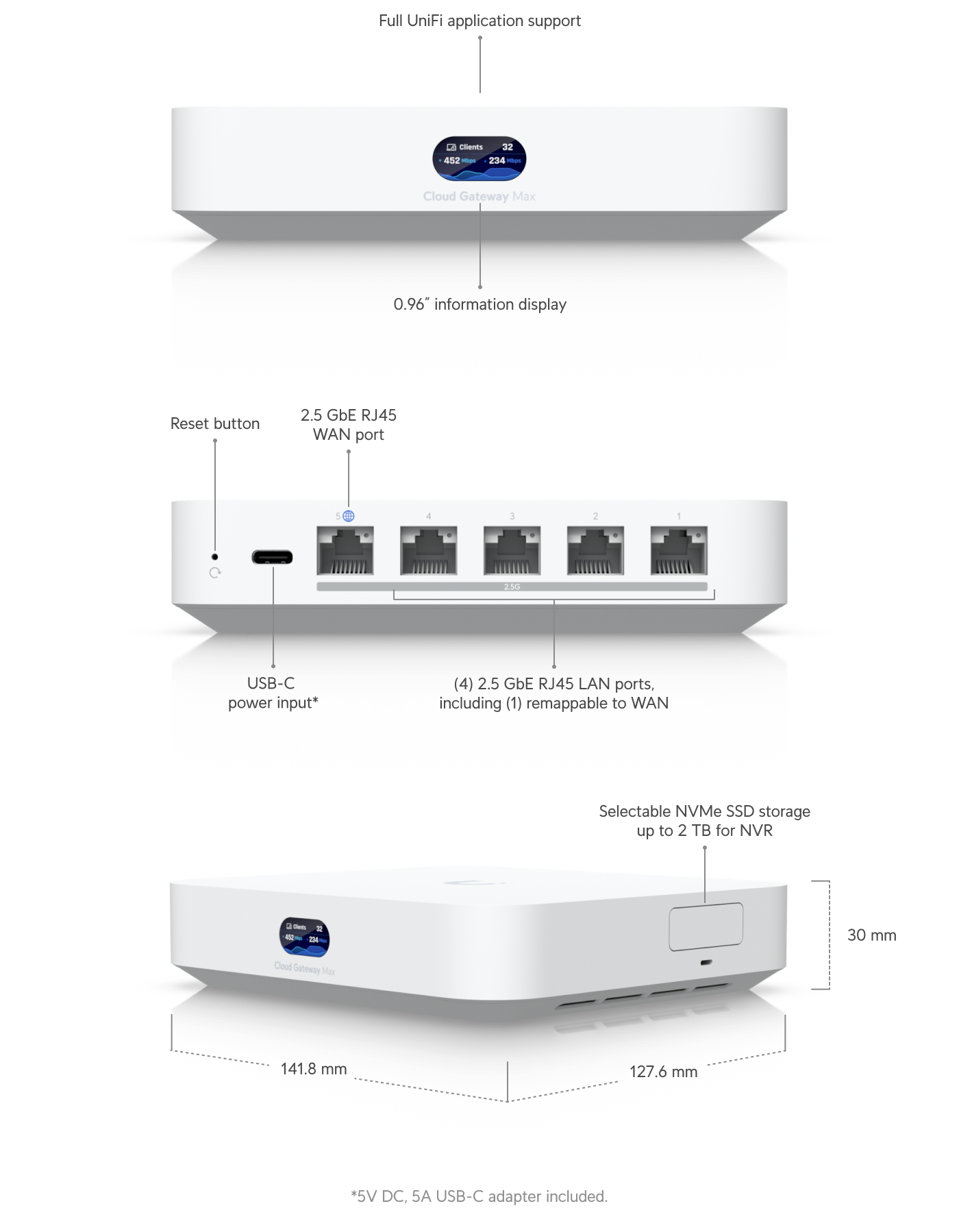

- Integrated 2.5G Connectivity – Five 2.5 GbE RJ45 ports (1 WAN default, up to 4 WAN) for future-proof multi-gigabit networking.
- Selectable NVMe SSD Storage – Up to 2 TB for NVR, supporting 15 HD, 8 2K, or 5 4K cameras without external hardware.
- Advanced Security & SD-WAN – Stateful firewall, content filtering, license-free SD-WAN, and multiple VPN options including WireGuard and Teleport.
Full Specifications
| Category | Details |
|---|---|
| Model | UCG-Max |
| Form Factor | Compact desktop |
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″) |
| Weight (with SSD) | 519 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory | 3 GB |
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| Ports | 2.5 GbE RJ45 x 5 (2.5G/1G/100M/10M); Default WAN: (1) 2.5 GbE RJ45; Max WAN: 4 |
| IDS/IPS Throughput | 2.3 Gbps |
| Managed UniFi Devices | 30+ |
| Simultaneous Users | 300+ |
| Managed Cameras | (15) HD, (8) 2K, (5) 4K |
| Managed Access Hubs | 50 |
| UniFi Applications | Network ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓ |
| Power Method | USB Type-C (5V DC / 5A) |
| Max Power Consumption | 16.1W |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| LCM Display | 0.96″ status display |
| Certifications | CE, FCC, IC, NDAA Compliant |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What storage options are available for the UCG-Max? Selectable NVMe SSD options include no storage, 512 GB, 1 TB, or 2 TB, supporting up to 15 HD, 8 2K, or 5 4K cameras for NVR.
- Q: How many devices and clients can it manage? Supports 30+ UniFi devices, 50 access hubs, and 300+ simultaneous connected users.
- Q: What is the IDS/IPS performance? Rated at 2.3 Gbps throughput with 55,000+ signatures available via CyberSecure subscription.
- Q: Does it support multi-WAN? Yes, up to 4 WAN ports with load balancing, failover, and SLA monitoring; default 1x 2.5 GbE WAN.
- Q: What power supply does it use? USB Type-C (5V DC / 5A) with included adapter; max consumption 16.1W.
| Weight | 1.1 kg |
|---|---|
| Dimensions | 224 × 184 × 78 mm |
| Product Create Date | 18/07/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UCG-Max |
| Opt Accessory | NHU-UMR-INDUSTRIAL, NHU-USW-PRO-HD-24-POE, NHU-USW-WAN, NHU-USW-WAN-RJ45, NHU-UACC-SSD-TRAY, NHU-UICARE-UCG-MAX-D, NHU-UACC-UTS, NHU-UI-CYBERSECURE-1Y-D |
