Ubiquiti WAN Switch, 10G SFP+ WAN Switch Linking Two Shadow Mode High Availability UniFi Gateways To Single ISP
$520.03 inc GST
Manufacturer: Ubiquiti
Availability: BRS:5 ADL:7 SYD:18 MEL:54 WA:8
92 in stock

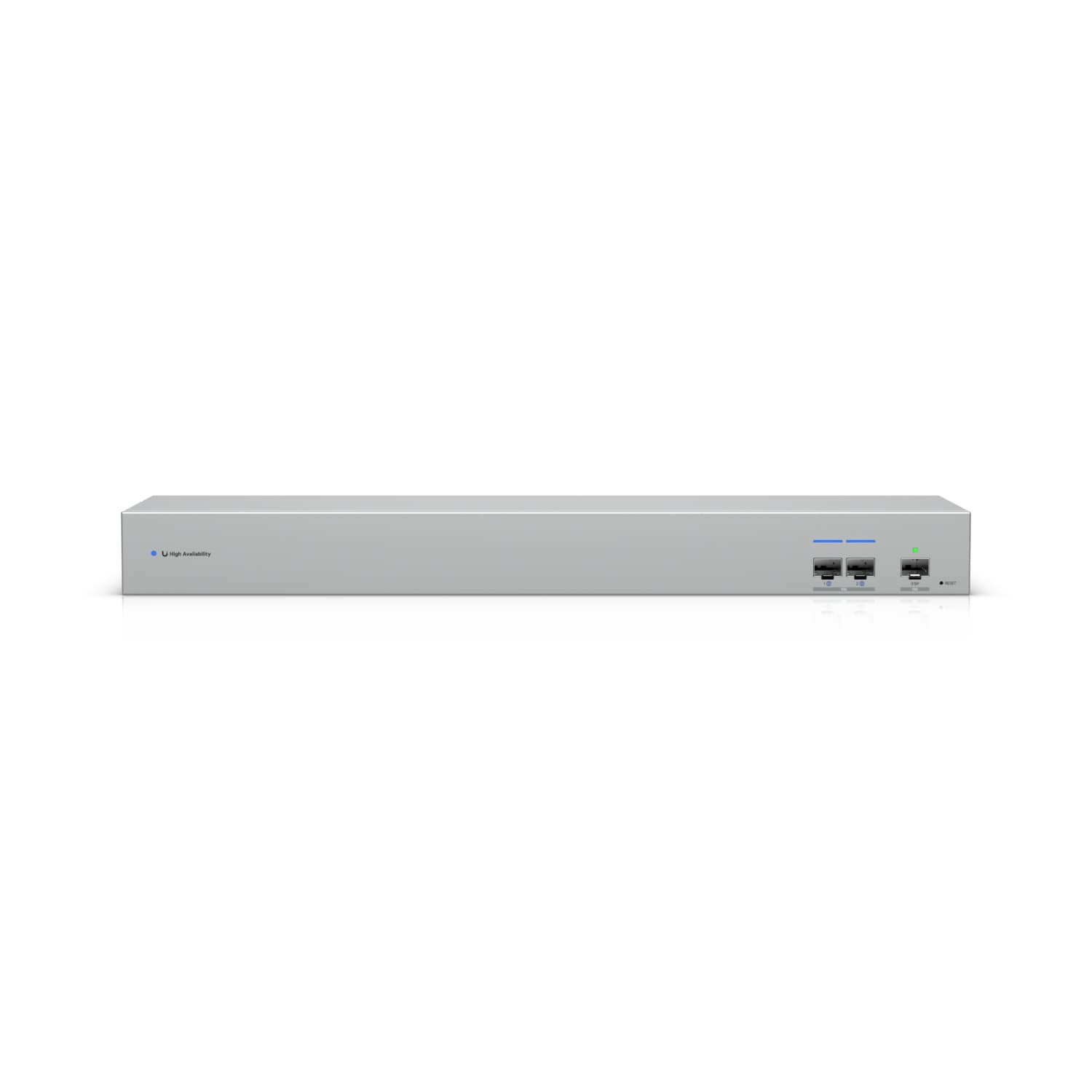

Ubiquiti WAN Switch
SKU: USW-WAN
Tech Specs: Click Here
Installation Guide: Click Here
Description:
10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Features:
•Combine with Shadow Mode High Availability to ensure uninterrupted connectivity
•(1) 10G SFP+ ISP uplink and (2) 10G SFP+ downlink ports
•(2) AC inputs for power redundancy
•(1) GbE port for management with UniFi Network
•*Use an additional USW-WAN switch for ISP failover deployments.
Why Choose This?

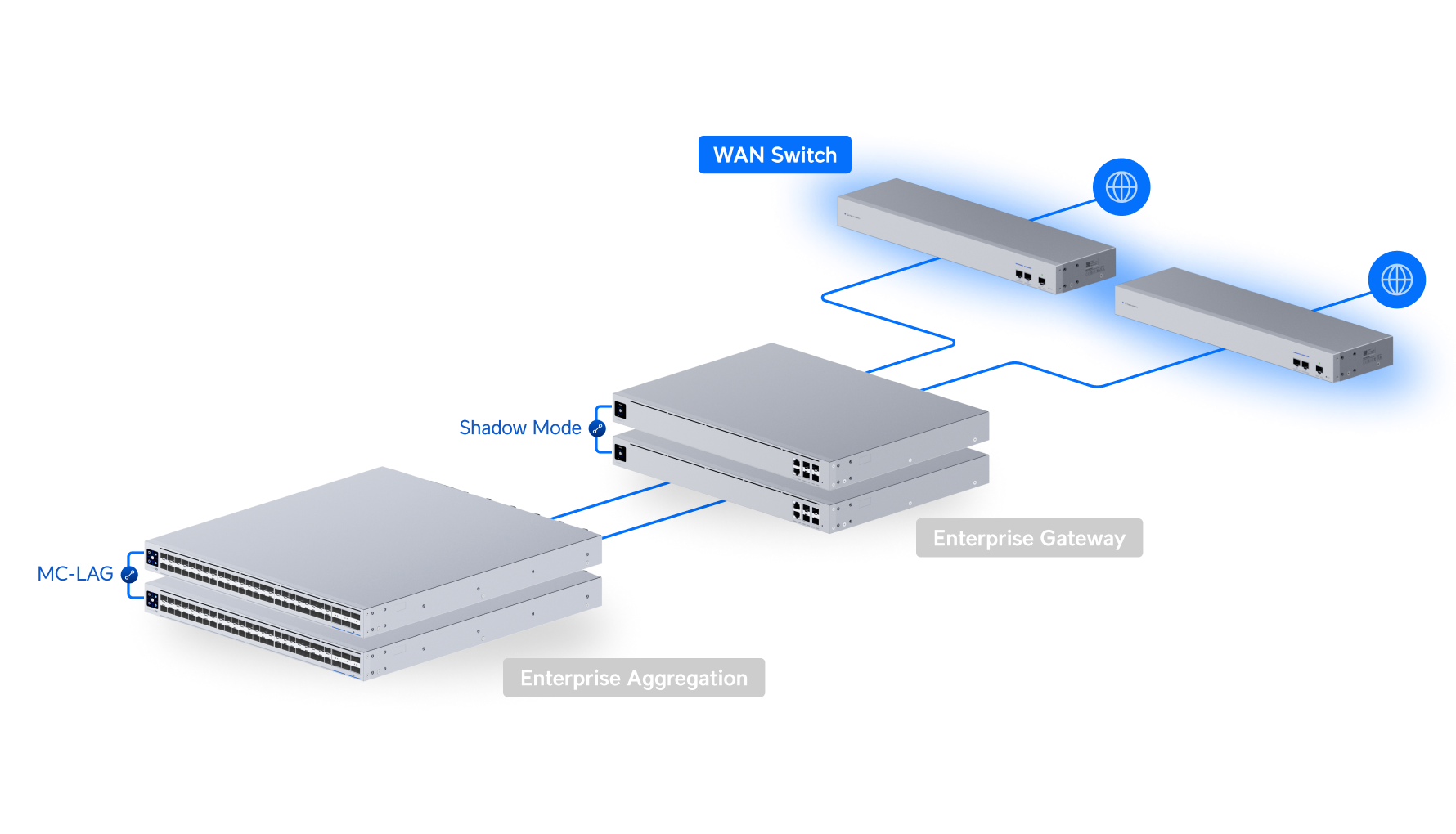

The Ubiquiti USW-WAN is a specialized 10G SFP+ WAN Switch designed to link two UniFi Gateways in Shadow Mode High Availability to a single ISP, ensuring seamless failover and uninterrupted connectivity for mission-critical networks. Featuring dual AC power inputs for built-in redundancy and high-performance 10G switching, it eliminates single points of failure when paired with MC-LAG. Ideal for enterprise deployments requiring maximum uptime, it delivers reliable WAN aggregation without compromising speed or availability.
Key Features

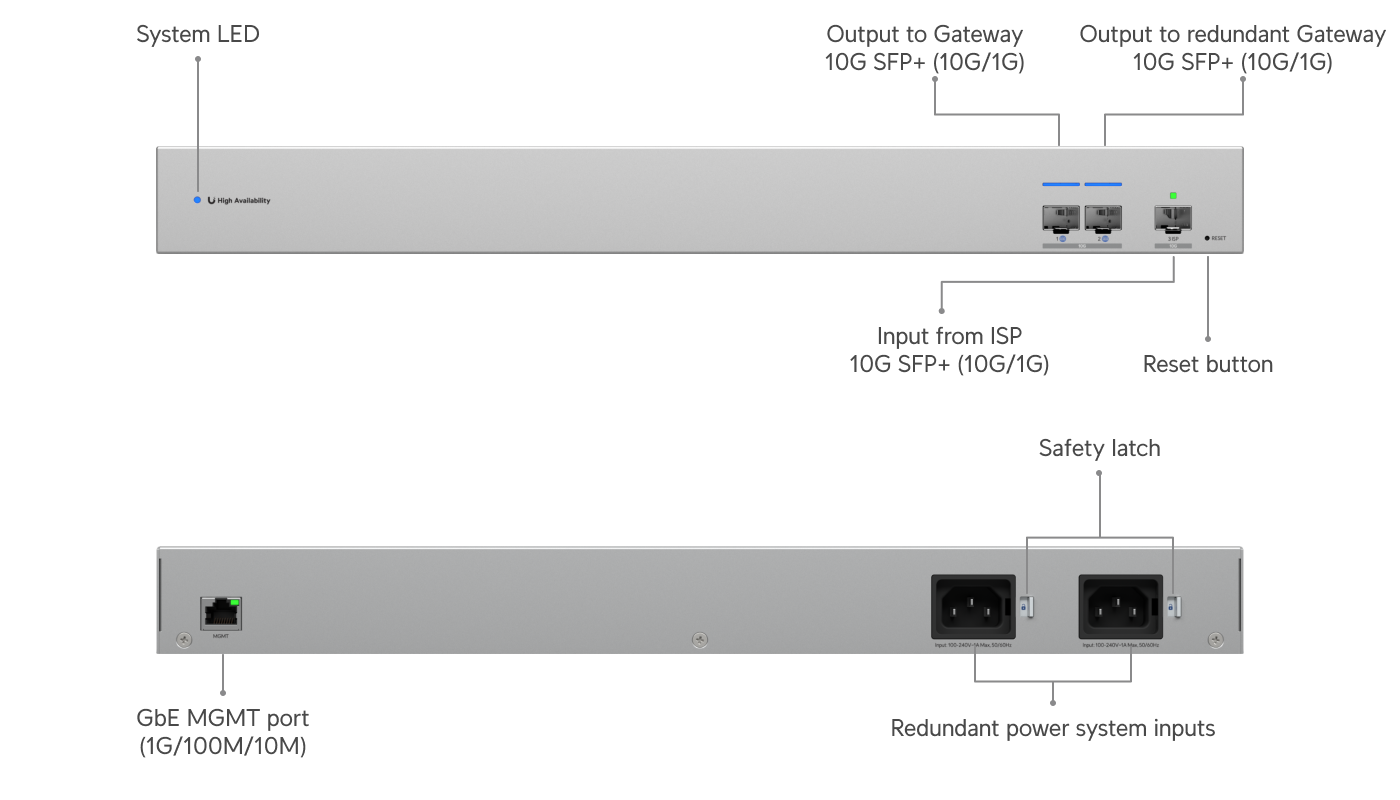

- 3x 10G SFP+ ports (1 ISP uplink, 2 downlinks) – Enables high-speed connectivity between ISP and dual HA gateways
- Dual AC power inputs – Provides power redundancy to keep the network online even if one power source fails
- Shadow Mode HA support – Seamlessly links two UniFi Gateways for automatic failover and zero downtime

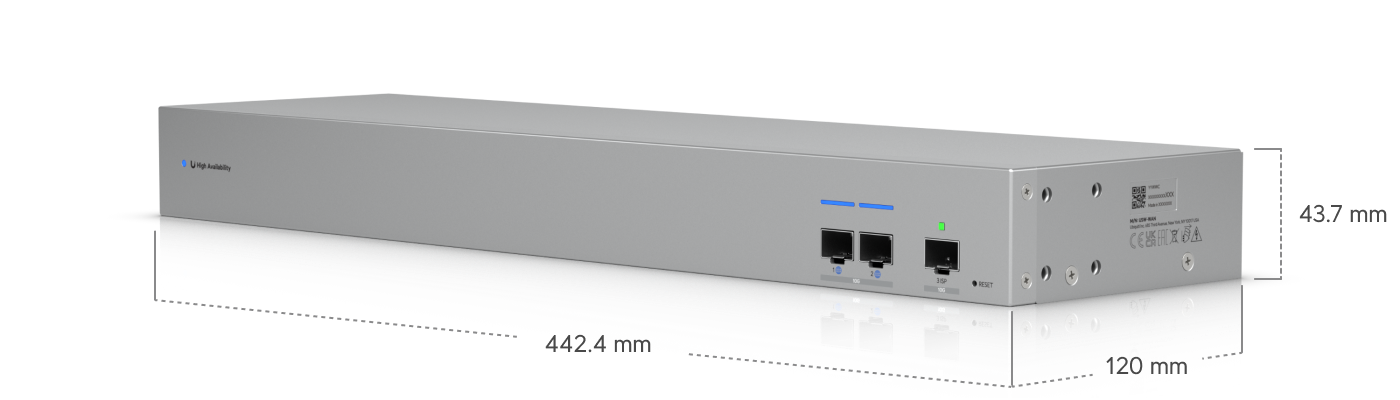

- 1U rack-mount design – Fits efficiently in standard data center racks with compact 442.4 x 120 x 43.7 mm footprint
- UniFi Network management (v9.1.119+) – Centralized monitoring, configuration, and MC-LAG integration for simplified operations
Full Specifications
| Category | Details |
|---|---|
| Networking Interfaces | 1 GbE RJ45 port (1G/100M/10M); 3x 10G SFP+ ports (10G/1G) |
| Managed By | UniFi Network application (Version 9.1.119 and later) |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Services | Power redundancy via (2) AC inputs |
| Rackmount Form Factor | Rack mount (1U) |
| Dimensions | 442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7″) |
| Weight | Without mounting brackets: 2.2 kg (4.85 lb); With mounting brackets: 2.3 kg (5.1 lb) |
| Enclosure Material | SGCC steel |
| Max. Power Consumption | 13W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Supply | (2) AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| ESD Protection | Air: ±16kV, Contact: ±22kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing |
| LEDs | Ethernet, SFP+, System |
| Certifications | CE, FCC, IC, Anatel: 03715-25-08356; NDAA Compliant |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What is the primary purpose of the USW-WAN? It links two UniFi Gateways in Shadow Mode High Availability to a single ISP via 10G SFP+ ports for redundant, high-speed WAN connectivity.
- Q: Does it support power redundancy? Yes, it features dual independent AC inputs for built-in power redundancy, ensuring operation if one power circuit fails.
- Q: What UniFi software version is required? UniFi Network application version 9.1.119 or later for full management and configuration.
- Q: Can it handle multiple ISPs? Designed for one ISP per switch; use an additional USW-WAN for deployments with multiple ISPs.

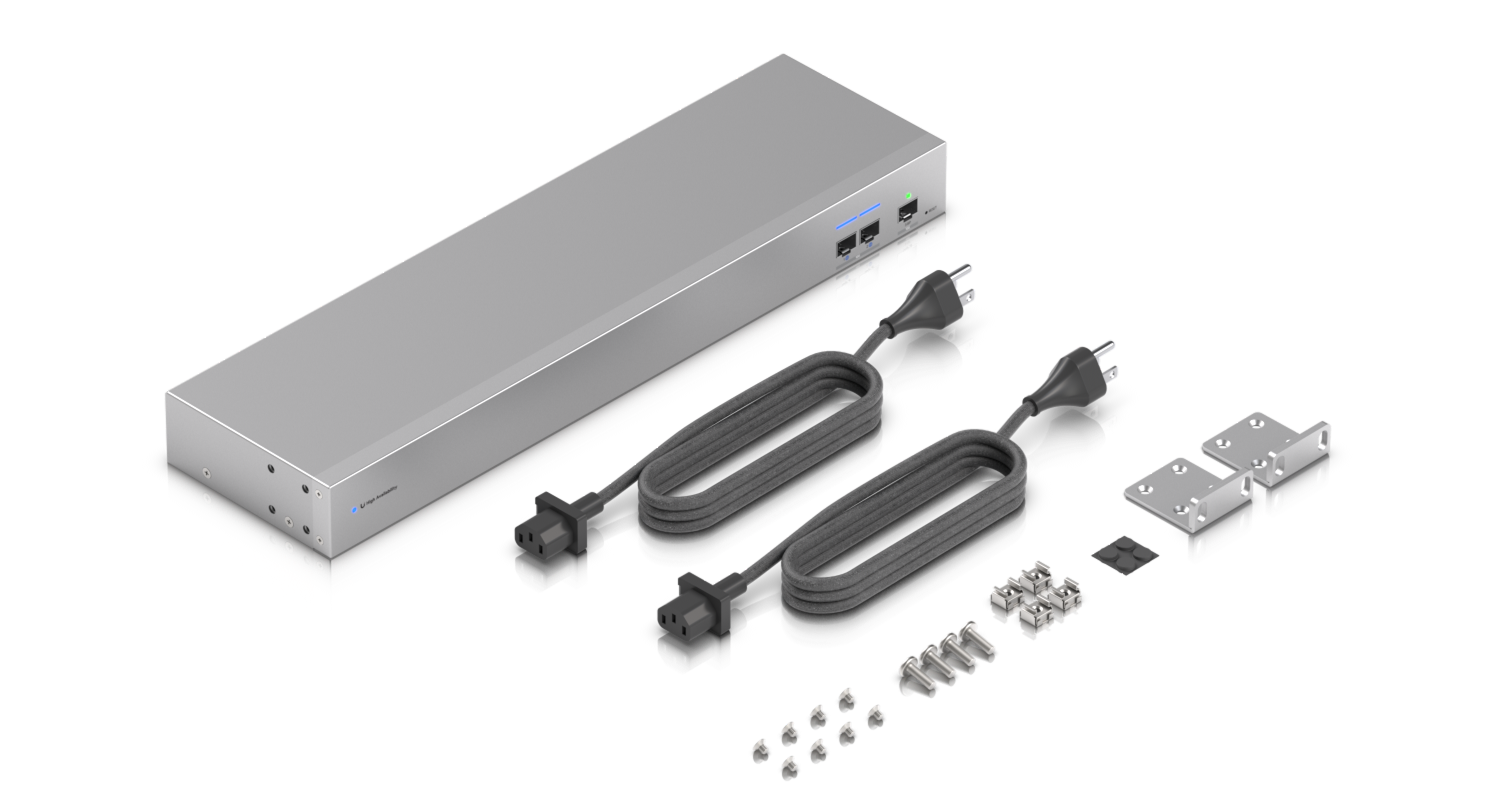

- Q: Is it suitable for rack installation? Yes, it’s a 1U rack-mountable switch with included mounting brackets, measuring 442.4 x 120 x 43.7 mm.
| Weight | 3.32 kg |
|---|---|
| Dimensions | 540 × 248 × 108 mm |
| Product Create Date | 29/04/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | USW-WAN |
| Opt Accessory | NHU-USW-PRO-HD-24-POE, NHU-UICARE-USW-WAN-D |
