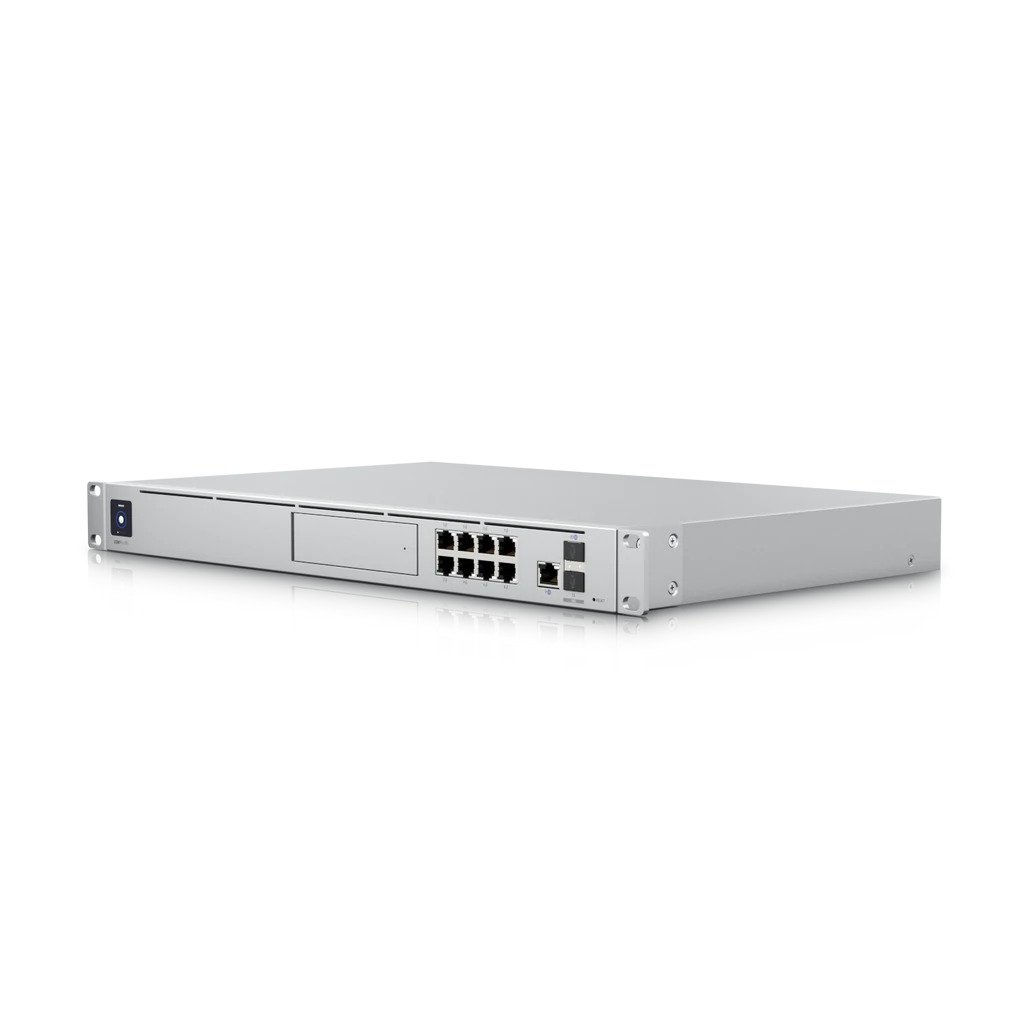

Ubiquiti Dream Machine Special Edition, Enterprise-grade, UniFi OS Console, All-In-One Unifi Solution, 8x GbE PoE RJ45 Ports, 3.5″ HDD Bay
$1,110.27 inc GST
Manufacturer: Ubiquiti
Availability: BRS:283 ADL:70 SYD:17 Jun MEL:319 WA:25
697 in stock
Ubiquiti Dream Machine Special Edition
SKU: UDM-SE
Description: Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated PoE switch.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•Includes full UniFi application suite for device management
•3.5+ Gbps routing
•Integrated 8-port PoE/PoE+ switch
•(1) 10G SFP+, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
•(1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports
•1.3″ touchscreen
•128 GB SSD 3.5″ HDD bay
Why Choose This?
The Ubiquiti Dream Machine Special Edition (UDM-SE) is an enterprise-grade all-in-one UniFi OS console that combines a high-performance security gateway, integrated PoE switch, and NVR for seamless network management and surveillance. With 3.5 Gbps IPS routing, support for 100+ UniFi devices and 1,000+ clients, dual high-speed WAN options, and a 180W PoE budget, it empowers businesses to scale efficiently while protecting assets with advanced security features like intrusion prevention and zone-based firewalls.
Key Features
- 10G Cloud Gateway with 3.5 Gbps IDS/IPS throughput – Delivers enterprise-level routing and threat protection for high-demand networks.
- Integrated 8-port GbE PoE switch (6x PoE, 2x PoE+) with 180W budget – Powers UniFi devices like access points and cameras directly, reducing cabling needs.
- Dual WAN (10G SFP+ and 2.5 GbE RJ45) – Ensures redundancy and high-speed internet failover for reliable connectivity.
- UniFi OS with full app suite (Network, Protect, Access, Talk, Connect) – Centralized management of devices, cameras (up to 14x 2K), and VoIP from one interface.
- 128 GB SSD + 3.5″ HDD bay for NVR – Enables efficient video storage and fast OS performance for UniFi Protect surveillance.
Full Specifications
| Category | Details |
|---|---|
| Processor | Quad-core ARM Cortex-A57 at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-board Storage | 16 GB eMMC + 128 GB SSD (integrated) |
| NVR Storage | (1) 3.5″ HDD bay (1TB+ CMR surveillance-grade, 7200 RPM recommended; no max size) |
| Form Factor | Rack mount (1U) |
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) |
| Weight | 4.95 – 5 kg (10.9 lb) |
| Enclosure Materials | Aluminium CNC, SGCC steel |
| LAN Ports | 8x GbE RJ45 (1G/100M/10M); (6) PoE, (2) PoE+ |
| WAN Ports (Default) | (1) 10G SFP+, (1) 2.5 GbE RJ45 |
| SFP+ Ports | 2x 10G SFP+ (10G/1G) |
| PoE Budget | 180W total; PoE: 15.4W/port (44-57V), PoE+: 30W/port (50-57V) |
| IDS/IPS Throughput | 3.5 Gbps (measured with iPerf3) |
| Max WAN Ports | 8 |
| Managed Devices | 100+ UniFi devices, 1,000+ clients |
| UniFi Apps | Network, Protect, Access, Talk, Connect |
| Power Supply | Internal AC/DC, 240W; 100-240V AC, 4.4A Max., 50/60 Hz |
| Max Power Consumption | 50W (excluding PoE) |
| Redundancy | USP-RPS DC input (52V, 3.94A), Shadow Mode (VRRP) |
| Display | 1.3″ touchscreen LCM |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What type of HDD is compatible with the 3.5″ bay? 1TB+ CMR 3.5″ surveillance-grade HDD (e.g., WD Purple), 7200 RPM recommended; no maximum capacity limit.
- Q: How many cameras can the UDM-SE support? Up to 24 HD, 14 2K, or 8 4K cameras via UniFi Protect with HDD installed.
- Q: What is the PoE configuration? 6 ports PoE (15.4W max), 2 ports PoE+ (30W max), total 180W budget.
- Q: Does it support redundancy? Yes, via Shadow Mode (VRRP) for failover and USP-RPS DC input for power backup.
- Q: What WAN options are available? Dual default WAN: 1x 10G SFP+ and 1x 2.5 GbE RJ45; configurable up to 8 WAN ports.
| Weight | 5.7 kg |
|---|---|
| Dimensions | 520 × 125 × 410 mm |
| Product Create Date | 16/03/2022 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UDM-SE |
| Opt Accessory | NHU-U-RACK-6U-TL, NHU-UMR-INDUSTRIAL, NHU-USW-PRO-HD-24-POE, NHU-UACC-HDD-E-16TB, NHU-USW-WAN, NHU-USW-WAN-RJ45, NHU-UICARE-UDM-SE-AU-D, NHU-UACC-HDD-E-8TB, NHU-UACC-HDD-E-24TB, NHU-UI-CYBERSECURE-1Y-D |
