✅ Available online – ships fast!

Ubiquiti Cloud Gateway Ultra, Multi-WAN, (4) GbE RJ45 ports, (1) 1/2.5 GbE RJ45 ports, USB Type C, 5V DC/3A, 100–240V AC, Max 6.2W

Name: Ubiquiti Cloud Gateway Ultra, Multi-WAN, (4) GbE RJ45 ports, (1) 1/2.5 GbE RJ45 ports, USB Type C, 5V DC/3A, 100–240V AC, Max 6.2W
SKU: NHU-UCG-ULTRA
Availability: InStock

$224.91 inc GST

Manufacturer: Ubiquiti

Availability: BRS:630 ADL:85 SYD:201 MEL:1263 WA:270

2449 in stock

SKU: NHU-UCG-ULTRA Categories: Console / Gateway, Network - UniFi

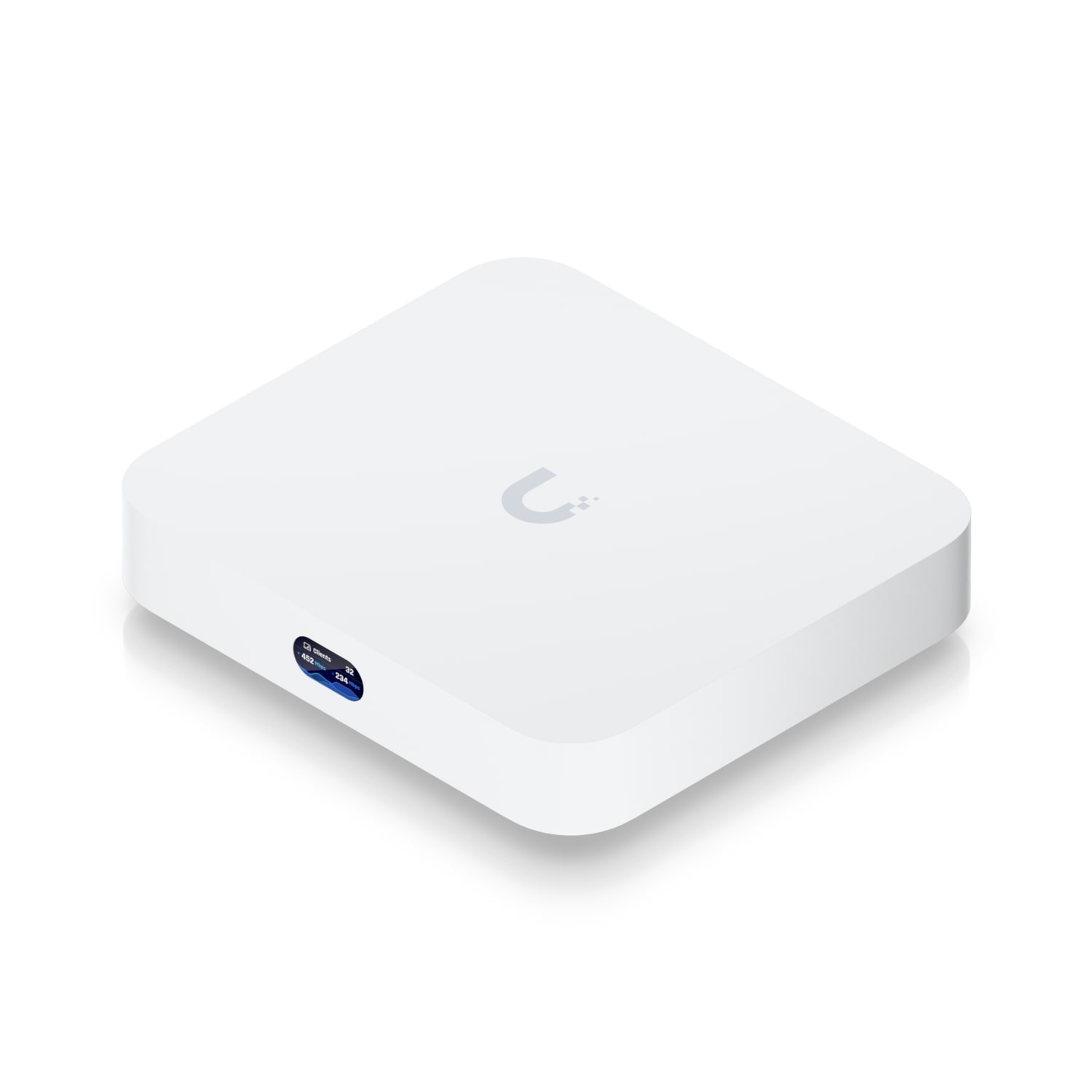

Ubiquiti Cloud Gateway Ultra

SKU: UCG-Ultra

Tech Specs: Click Here
Installation Guide: Click Here

Description: Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.

Features:
•Runs UniFi Network for full-stack network management
•Manages 30+ UniFi Network devices and 300+ clients
•1 Gbps routing with IDS/IPS
•Multi-WAN load balancing
•0.96″ LCM status display
•Power method: USB type C (5V DC/3A) (adapter included)
•IDS/IPS throughput: 1 Gbps
•Supported voltage range: 100–240V AC
•Max. power consumption: 6.2W

Why Choose This?

The Ubiquiti Cloud Gateway Ultra (UCG-Ultra) is a compact, powerful gateway designed for small to medium networks, running the full UniFi Network application to manage 30+ devices and 300+ clients effortlessly. It delivers 1 Gbps IDS/IPS throughput with multi-WAN load balancing for reliable connectivity and failover, plus advanced security features like signature-based IPS/IDS and ad blocking in a desktop-friendly form factor powered by USB-C.

Key Features

Multi-WAN Load Balancing – Ensures redundant internet connections with failover and policy-based routing for uninterrupted service.
1 Gbps IDS/IPS Throughput – Provides high-performance intrusion prevention and detection to secure your network effectively.
Compact Desktop Design – Space-saving form factor with 0.96″ LCM status display for easy monitoring and management.
Supports 30+ UniFi Devices / 300+ Clients – Ideal for small-to-medium deployments with full-stack UniFi Network management.
Advanced VPN Support – Includes WireGuard, OpenVPN, IPsec, and zero-config Teleport for secure remote access.

Full Specifications

Category	Details
Manufacturer	Ubiquiti
Model	UCG-Ultra
Form Factor	Compact desktop

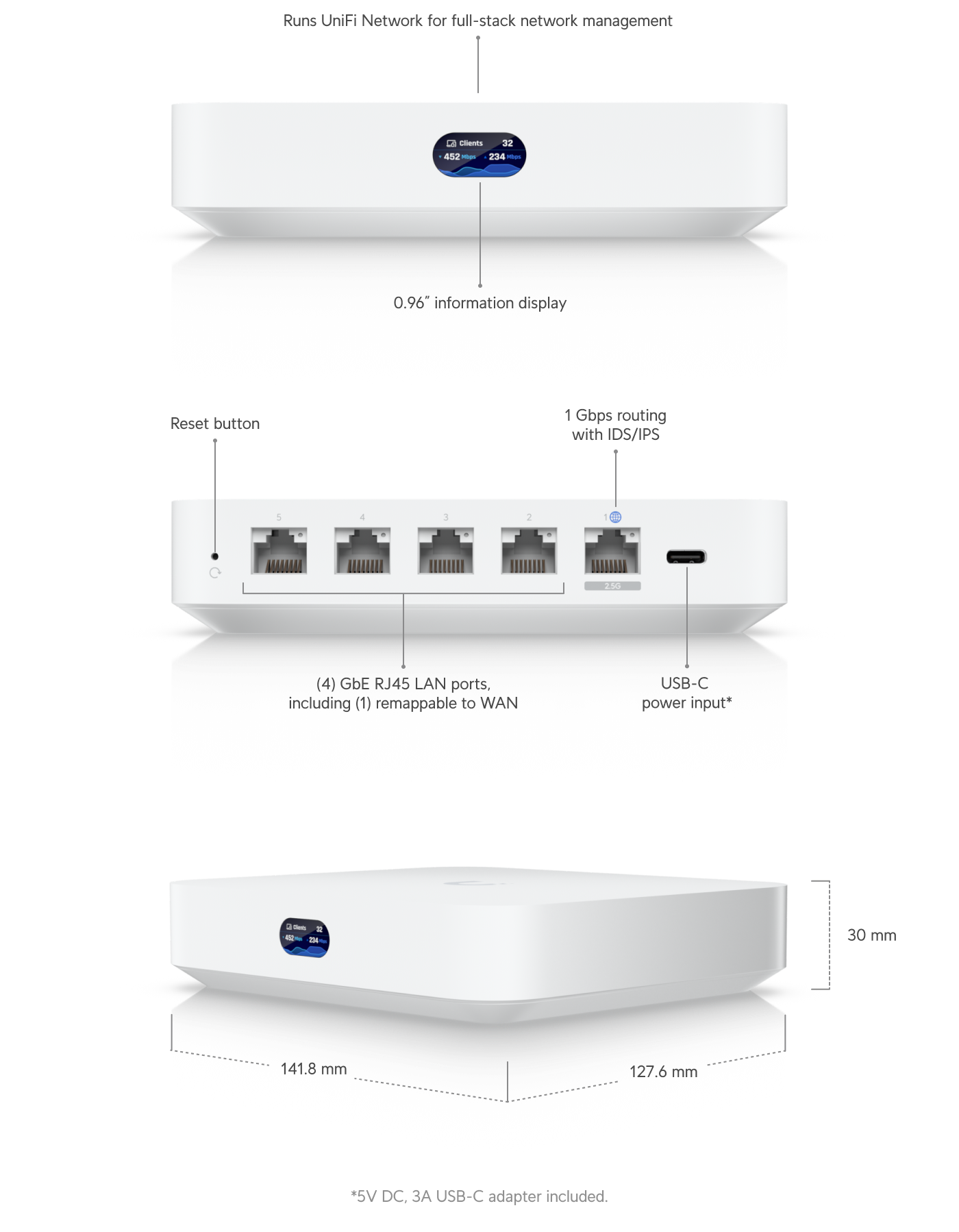

Dimensions	141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)
Weight	520 g (1.1 lb)
Enclosure Material	Polycarbonate
Processor	Quad-core ARM Cortex-A53 at 1.5 GHz
System Memory (RAM)	3 GB DDR4
On-board Storage	16 GB eMMC
Managed UniFi Devices	30+
Simultaneous Users Connected	300+
LAN Ports	(4) GbE RJ45 ports (1G/100M/10M)
WAN Ports	(1) 2.5 GbE RJ45 port (2.5G/1G/100M/10M); Max WAN: 4
IDS/IPS Throughput	1 Gbps
MAC Address Table Size	2,000
Max. Power Consumption	6.2W
Power Method	USB Type C (5V DC/3A)

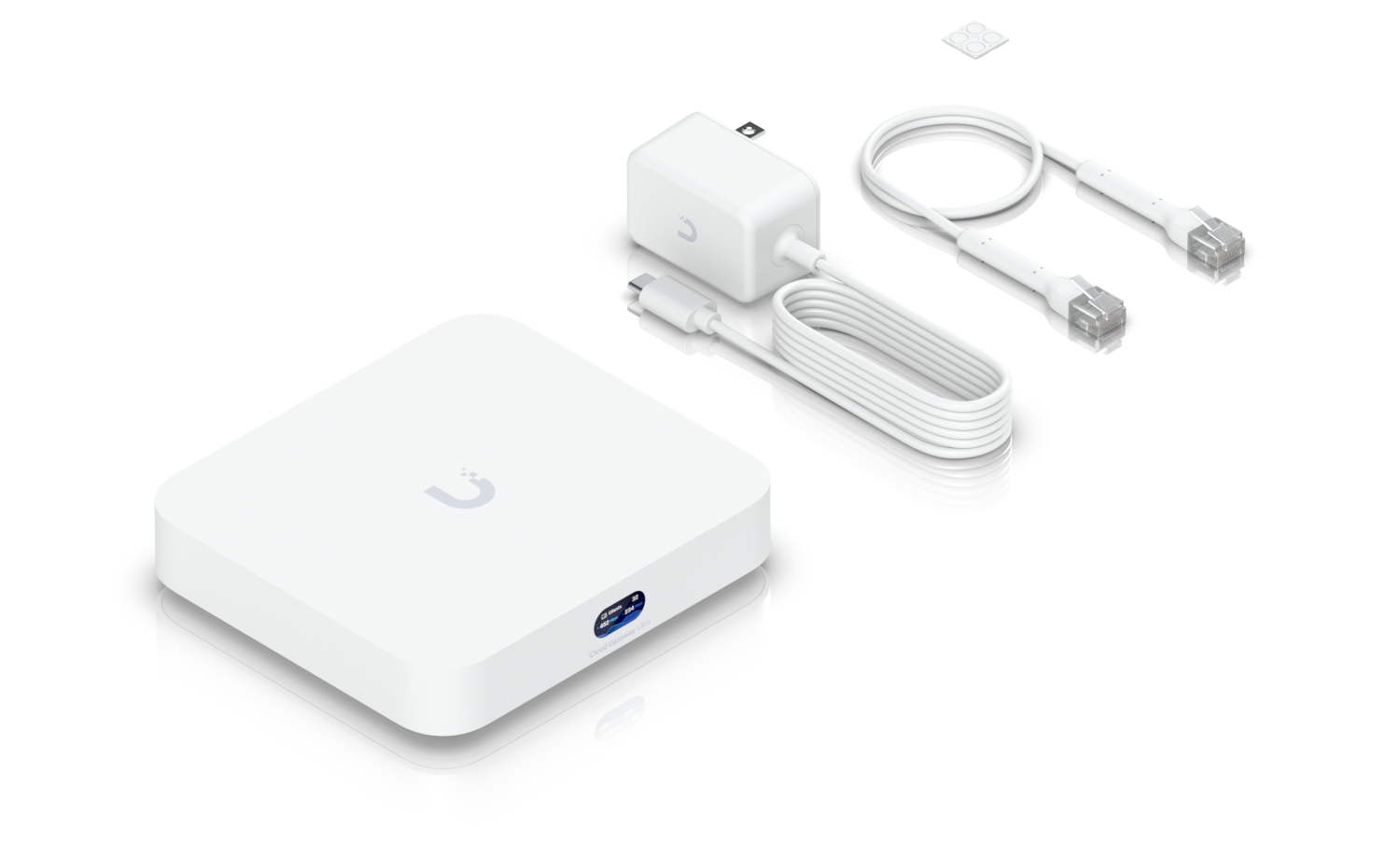

Power Supply	USB Type C (5V DC/3A) Adapter included
Supported Voltage Range	100–240V AC
Heat Dissipation	21 BTU/hr
LCM Display	0.96″ status display
Management Interfaces	Ethernet, Bluetooth
Button	(1) Factory reset
Operating Temperature	-10 to 40° C (14 to 104° F)
Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

Q: What is the maximum IPS/IDS throughput? 1 Gbps, enabling robust threat detection without compromising performance.
Q: How many WAN ports does it support? Up to 4 WAN ports with the default being one 2.5 GbE RJ45 port, supporting load balancing and failover.
Q: What power source does it use? USB Type C powered at 5V DC/3A, with adapter included; max consumption 6.2W.
Q: Can it run the full UniFi Network application? Yes, it runs UniFi Network for full-stack management of 30+ devices and 300+ clients.
Q: What VPN protocols are supported? WireGuard, OpenVPN, L2TP, IPsec site-to-site, plus Teleport and Identity one-click VPN.

Weight	0.84 kg
Dimensions	174 × 162 × 78 mm
Product Create Date	22/02/2024

Web Link	Visit Manufacturer Page →
Manufacturer	Ubiquiti
Warranty	12
Manufacturer SKU	UCG-Ultra
Opt Accessory	NHU-UMR-INDUSTRIAL, NHU-USW-PRO-HD-24-POE, NHU-USW-WAN, NHU-USW-WAN-RJ45, NHU-UICARE-UCG-ULTRA-D, NHU-UACC-UTS, NHU-UI-CYBERSECURE-1Y-D

Dropship Delivery Info

This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
