Ubiquiti Cloud Gateway Fiber,UCG-Fiber, Desktop 10G Cloud Gateway,Integrated PoE Switch,Selectable NVR Storage,Full UniFi Application Support
$609.28 inc GST
Manufacturer: Ubiquiti
Availability: BRS:219 ADL:43 SYD:71 MEL:21 WA:107
461 in stock

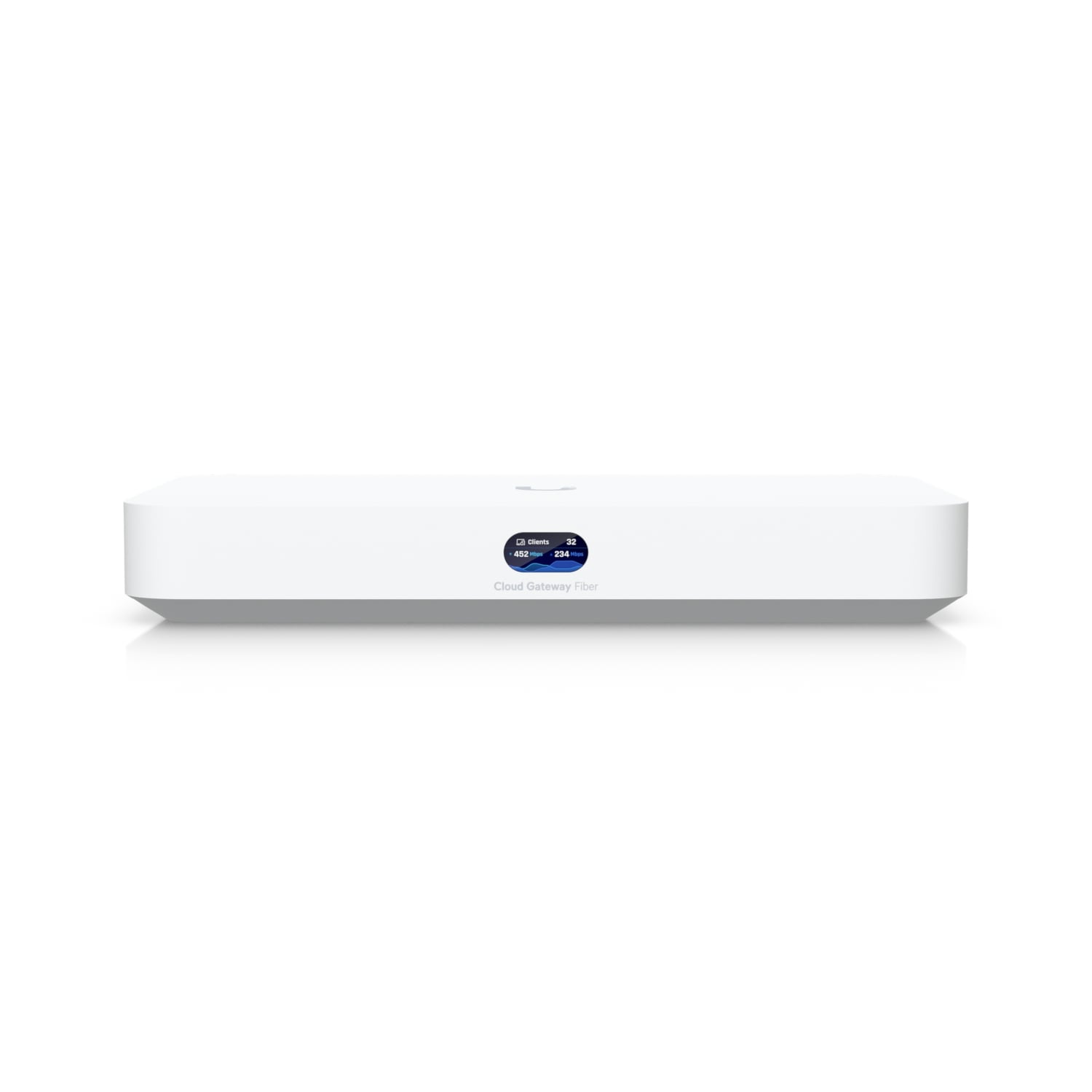

Ubiquiti Cloud Gateway Fiber
SKU: UCG-Fiber
Description:
Desktop 10G Cloud Gateway with integrated PoE switch, selectable NVR storage, and full UniFi application support.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•Includes full UniFi application suite for device management
•Manages 50+ UniFi devices and 500+ clients
•5 Gbps routing with IDS/IPS
•(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
•(1) 10G SFP+ LAN port
•Integrated 4-port switch with (1) PoE+ port
•NVMe SSD storage slot*
•*NVMe SSD not included. Third-party SSD installation requires tray accessory.
Why Choose This?
The Ubiquiti Cloud Gateway Fiber (UCG-Fiber) is a compact desktop 10G gateway that delivers high-performance routing with 5 Gbps IDS/IPS throughput, integrated PoE switch, and full UniFi application suite support for managing 50+ devices and 500+ users. Ideal for demanding home or small business networks, it offers multi-WAN load balancing, selectable NVMe NVR storage up to 2 TB, and seamless 10G connectivity via SFP+ and RJ45 ports. Choose it for future-proof networking with advanced security and easy management via Bluetooth or Ethernet.
Key Features
- 10G Connectivity – Dual 10G WAN (SFP+ & RJ45) and 10G SFP+ LAN for ultra-fast fiber and copper speeds.
- Integrated PoE Switch – 4x 2.5 GbE ports with one 802.3at PoE+ (30W budget) to power devices like APs.
- Selectable NVR Storage – Optional NVMe M.2 SSD up to 2 TB (tray sold separately) for UniFi Protect cameras.
- High IDS/IPS Throughput – 5 Gbps with full security suite including firewall, DPI, and ad blocking.
- Full UniFi Suite – Supports Network, Protect, Access, Talk, Connect for 50+ devices and 500+ clients.
Full Specifications
| Category | Details |
|---|---|
| Model | UCG-Fiber |
| Processor | Quad-core ARM Cortex-A73 @ 2.2 GHz |
| System Memory | 3 GB RAM |
| Storage | Selectable NVMe M.2 SSD up to 2 TB (tray required, sold separately) |

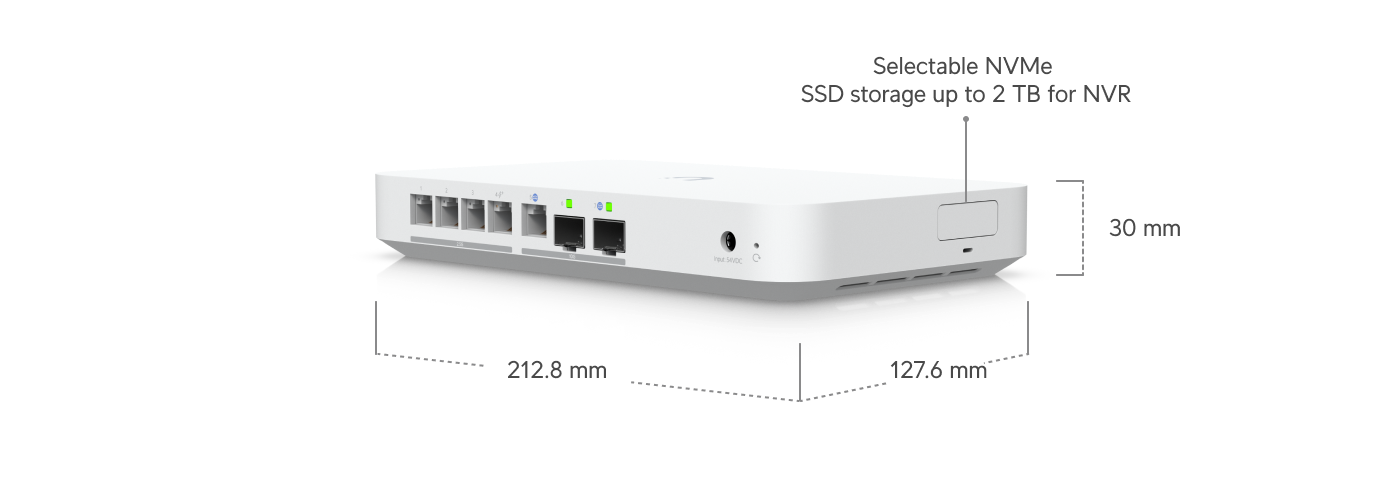

| Dimensions (W x D x H) | 212.8 x 127.6 x 30 mm (8.3 x 5 x 1.2″) |
| Weight | Without SSD: 675 g (1.5 lb); With SSD: 734 g (1.6 lb) |
| Enclosure Material | Polycarbonate, desktop form factor |

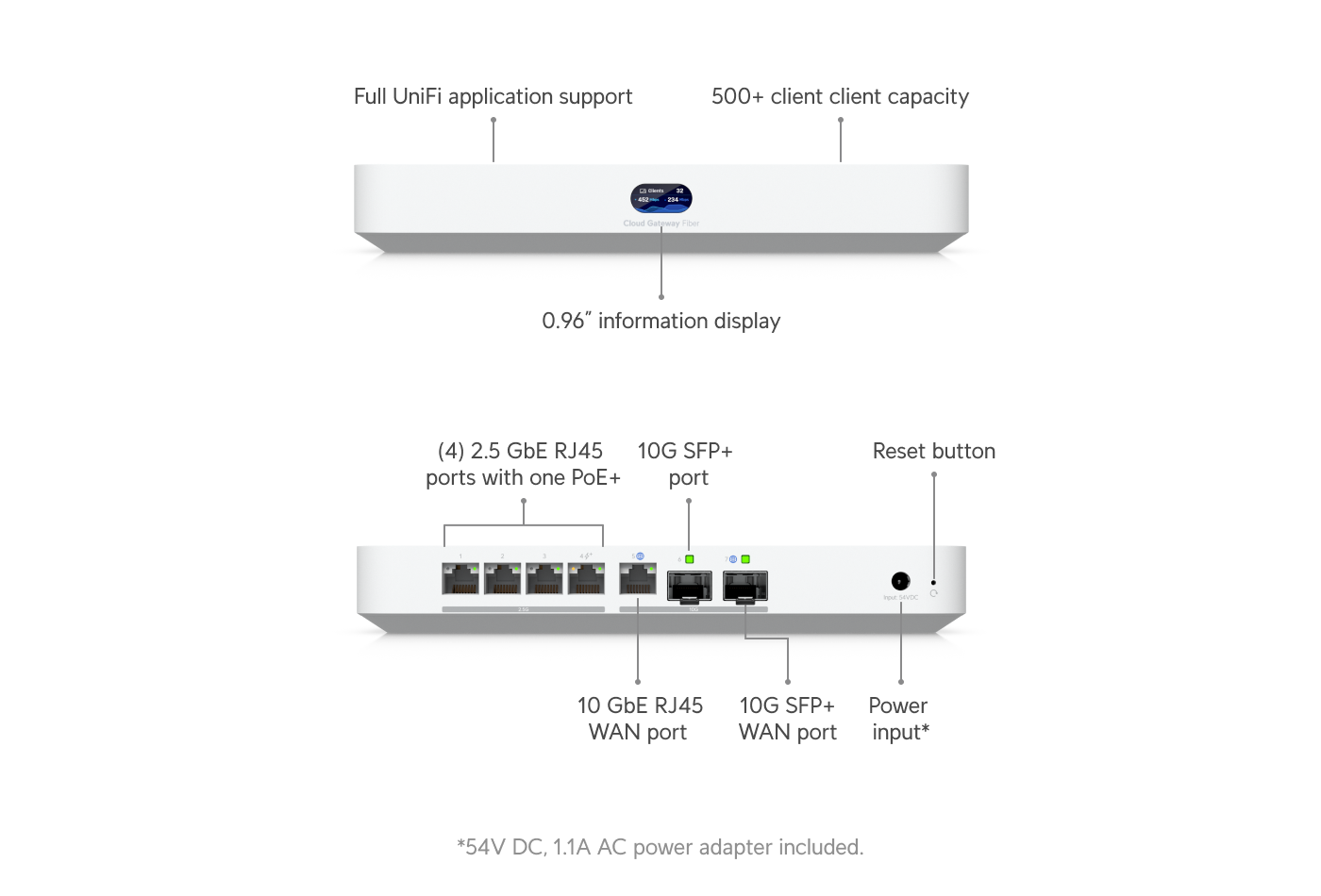

| WAN Ports | (1) 10 GbE RJ45, (1) 10G SFP+ |
| LAN Ports | (1) 10G SFP+, (4) 2.5 GbE RJ45 (1x with 802.3at PoE+) |
| PoE Output | 802.3at PoE+ on one 2.5 GbE port, 30W budget |
| IDS/IPS Throughput | 5 Gbps |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD, (8) 2K, (5) 4K |
| Simultaneous Users | 500+ |
| UniFi Applications | Network, Protect, Access, Talk, Connect |
| Display | 0.96″ LCM status display |
| Management | Ethernet, Bluetooth |
| Power Method | DC jack (54V DC / 1.1A adapter included) |
| Max Power Consumption | 29.4W (excluding PoE) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC; NDAA compliant |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Does the UCG-Fiber have built-in Wi-Fi? No, it is a wired gateway; pair it with separate UniFi access points for wireless coverage.
- Q: What storage options are available for NVR? Selectable NVMe M.2 SSD up to 2 TB using the optional UACC-SSD-Tray (sold separately).
- Q: Can it handle multi-gig internet speeds? Yes, dual 10G WAN ports (RJ45 and SFP+) support up to 5 Gbps with IDS/IPS enabled.
- Q: How many PoE devices can it power? One 802.3at PoE+ port on the 2.5 GbE switch with a 30W budget.
- Q: What UniFi apps does it support? Full suite: Network, Protect (with NVR), Access, Talk, and Connect for comprehensive management.
| Weight | 1.5 kg |
|---|---|
| Dimensions | 240 × 220 × 80 mm |
| Product Create Date | 27/02/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UCG-Fiber |
| Opt Accessory | NHU-UMR-INDUSTRIAL, NHU-USW-PRO-HD-24-POE, NHU-USW-WAN, NHU-USW-WAN-RJ45, NHU-UICARE-UCG-FIBER-AU-D, NHU-UACC-SSD-TRAY, NHU-UACC-UTS, NHU-UI-CYBERSECURE-1Y-D |
