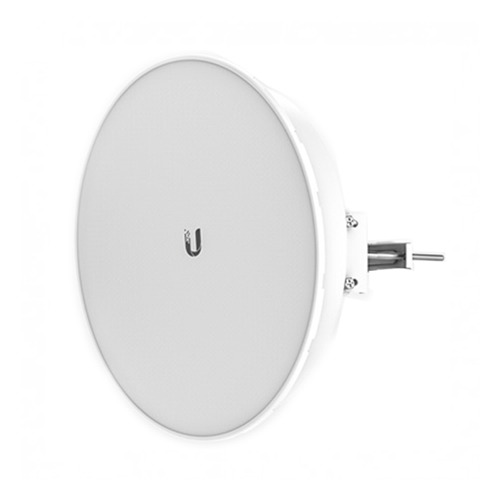

Ubiquiti Airmax PowerBeam 5AC-Gen2, 5 GHz Point-to-Point (PtP) Bridge, Integrated Dish Reflector and ISO Sheild, 450+ Mbps throughput
$260.61 inc GST
Manufacturer: Ubiquiti
Availability: BRS:5 ADL:2 SYD:5 MEL:37 WA:2
51 in stock
Ubiquiti airMAX PowerBeam 5AC ISO
SKU: PBE-5AC-ISO-Gen2
Description: Ubiquiti’s airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Tech Specs: Click Here
Features:
•5 GHz, 15+ km link range
•450+ Mbps throughput
•Isolation antenna design rejects RF noise
•Dedicated spectral analysis radio
•Dedicated WiFi management radio
•Note. This product should be purchased in pairs in order to form links.
Why Choose This?
The Ubiquiti airMAX PowerBeam 5AC-ISO-Gen2 is a high-performance 5 GHz PtP bridge designed for long-range wireless connectivity, delivering over 450 Mbps real TCP/IP throughput with its integrated 25 dBi dish reflector. Its breakthrough ISO Shield with metal-plated interior and RF isolator provides superior noise immunity, making it ideal for co-location deployments where interference is a concern. Enhanced surge protection and rugged outdoor construction ensure reliable operation in harsh environments.
Key Features
- 450+ Mbps throughput – Delivers high-speed wireless bridging for demanding PtP links up to 25+ km.
- ISO Shield technology – Metal-plated RF isolation enhances noise immunity in dense deployments.
- 25 dBi integrated dish – Provides focused, long-range signal with easy pole mounting.
- airMAX ac protocol – Supports PtP/PtMP modes with advanced TDMA for low latency and scalability.
- Enhanced surge protection – ±24 kV ESD/EMP protection safeguards against electrical surges.
Full Specifications
| Category | Details |
|---|---|
| Model | PBE-5AC-ISO-Gen2 |
| Throughput | Up to 450+ Mbps real TCP/IP |
| Antenna Gain | 25 dBi (Dish Reflector) |

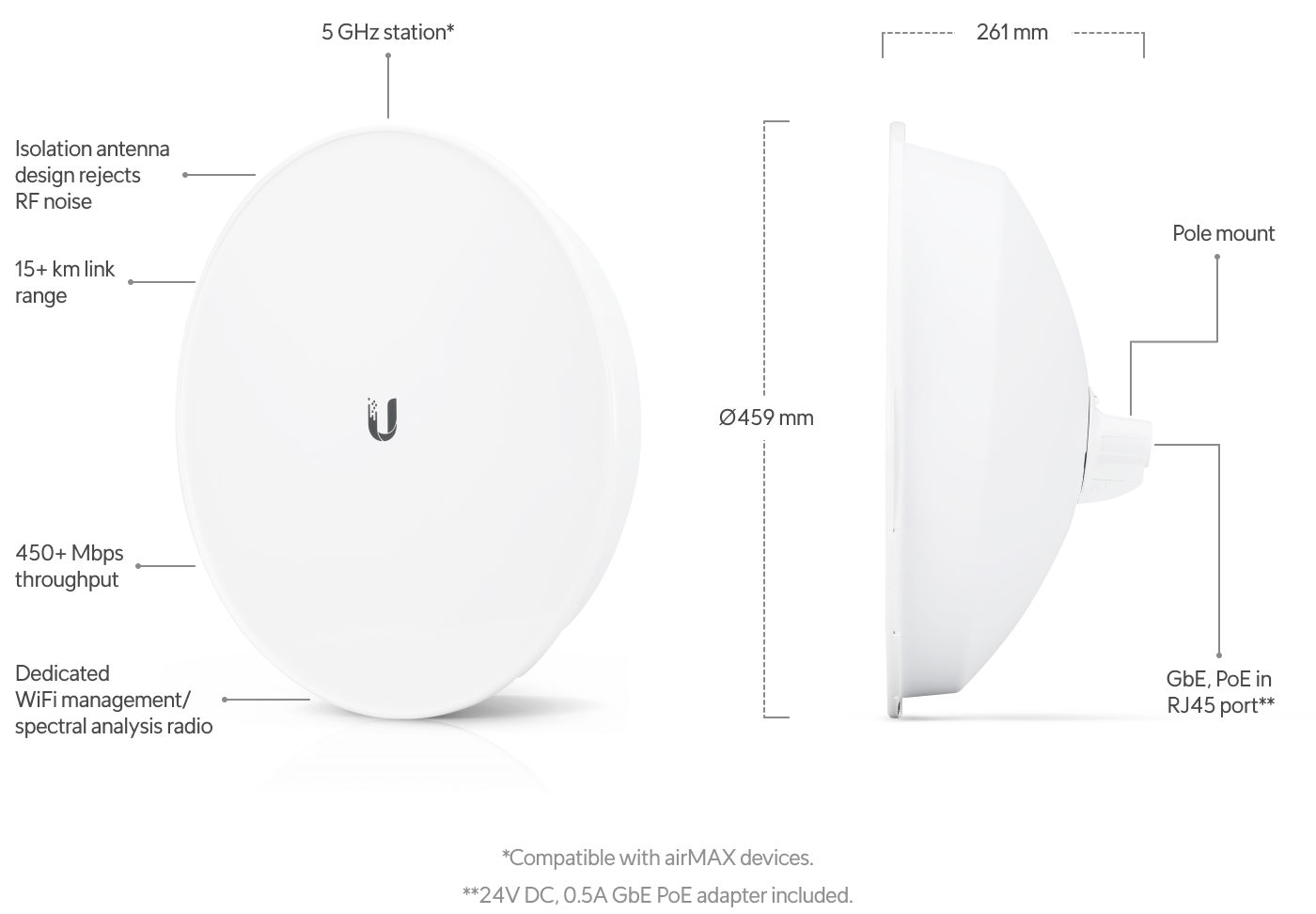

| Dimensions (with Radome) | 459 x 459 x 261 mm (18.07 x 18.07 x 10.28″) |
| Weight (Mount Included) | 3.22 kg (7.10 lbs) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor | MIPS 74Kc |
| Memory | 64 MB |
| Max. Power Consumption | 8.5 W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 Return) |
| Supported Voltage Range | 20-26 VDC |
| Operating Frequency (Worldwide) | 5150 – 5875 MHz |
| Operating Frequency (US) | U-NII-1: 5150-5250, U-NII-2A: 5250-5350, U-NII-2C: 5470-5725, U-NII-3: 5725-5850 MHz |
| Management Radio (US) | 2412 – 2462 MHz |
| Channel Widths (PtP) | 10/20/30/40/50/60/80 MHz |
| Channel Widths (PtMP) | 10/20/30/40 MHz |
| Max. Output Power | 24 dBm |
| Wind Loading | 559 N @ 200 km/h (125.7 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ESD/EMP Protection | Air/Contact: ±24 kV |
| Enclosure | Outdoor UV Stabilized Plastic, Powder-Coated SPCC |
| Mounting | Pole-Mounting Kit (Included) |
| Certifications | CE, FCC, IC, RoHS |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum throughput of the PBE-5AC-ISO-Gen2? Up to 450+ Mbps real TCP/IP throughput in optimal conditions using airMAX ac protocol.
- Q: Does it support both PtP and PtMP modes? Yes, PtP with channel widths up to 80 MHz and PtMP up to 40 MHz.
- Q: What power method does it use? Passive PoE (pairs 4,5+; 7,8 return) with included 24V, 0.5A Gigabit PoE adapter; supports 20-26 VDC.
- Q: Is it suitable for noisy environments? Yes, the ISO Shield with integrated RF isolator provides breakthrough noise immunity for co-location.
- Q: What is the antenna gain and range? 25 dBi gain with dish reflector, suitable for PtP links up to 25+ km depending on conditions.
| Weight | 4.496 kg |
|---|---|
| Dimensions | 645 × 488 × 116 mm |
| Product Create Date | 23/01/2018 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | PBE-5AC-ISO-Gen2 |
| Opt Accessory | NHU-POE-24-12WG |
