Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station, 450+ Mbps Throughput, 26dBi Gain Antenna, 25+ Km Range,Inludes PoE Injector
$204.68 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:12 Jul WA:0
Out of stock

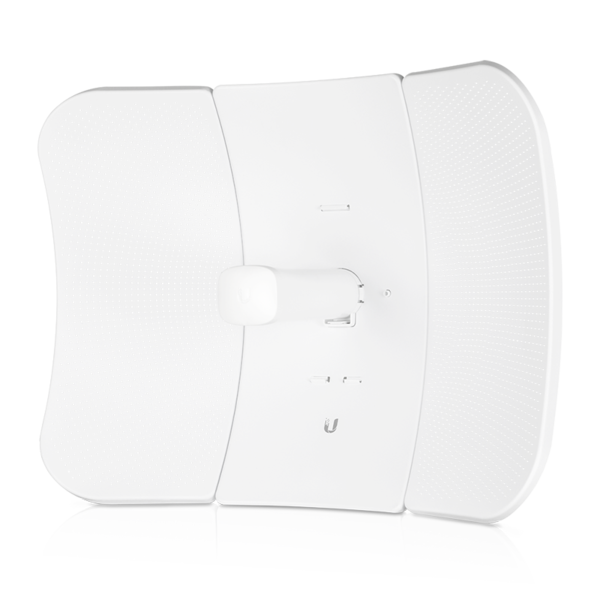

Ubiquiti airMAX LiteBeam 5AC Long-Range
SKU: LBE-5AC-LR
Description:
An affordable airMAX AC CPE designed for long-distance links.
The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.
Tech Specs: Click Here
Features:
•5 GHz, 25+ km link range
•450+ Mbps throughput
•Easy to assemble
• AirOS 8
• UISP mobile app for Android and IOS
Why Choose This?
The Ubiquiti airMAX LiteBeam 5AC Long-Range Station (LBE-5AC-LR) is an affordable 5 GHz CPE engineered for reliable long-distance point-to-point and point-to-multipoint links up to 25+ km with 450+ Mbps throughput. Featuring a high-gain 26 dBi antenna and robust airMAX AC technology, it delivers superior noise immunity and performance in demanding outdoor environments. Its easy assembly, included PoE injector, and wind-resistant design make it ideal for ISPs and enterprises seeking cost-effective, high-speed wireless bridging.
Key Features
- 26 dBi high-gain directional antenna – enables long-range links over 25 km with focused signal for better noise rejection
- 450+ Mbps throughput – supports high-capacity PtP/PtMP deployments using airMAX AC protocol
- Flexible channel widths up to 80 MHz – maximizes spectrum efficiency in PtP mode for optimal bandwidth
- Passive PoE with included 24V Gigabit injector – simplifies outdoor installation with low 7W max consumption
- Rugged weatherproof design – withstands 200 km/h winds and -40 to 70°C temperatures for reliable all-weather operation
Full Specifications
| Category | Details |
|---|---|

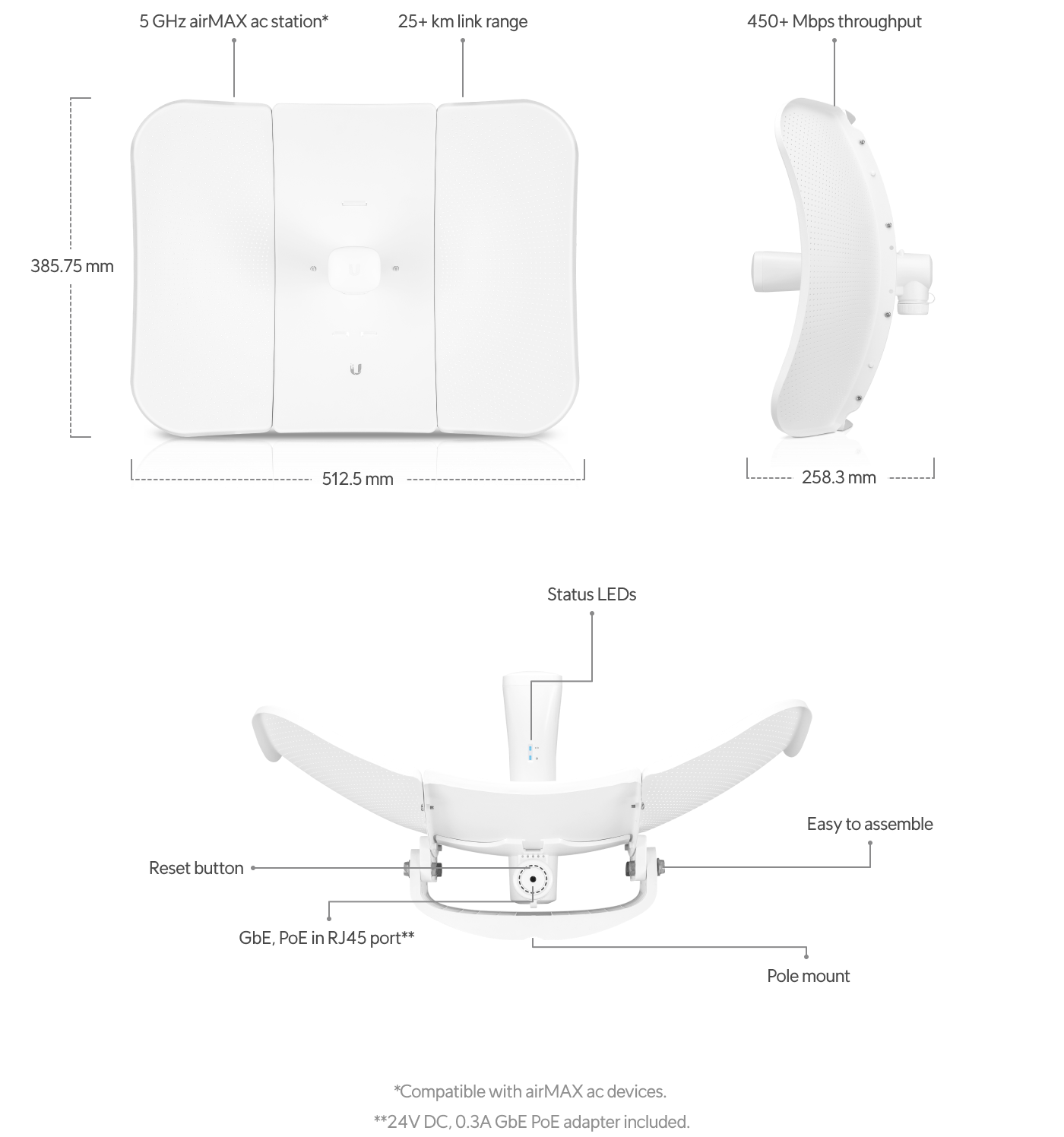

| Dimensions | 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17″) |
| Weight (without mount) | 1.360 kg (2.998 lb) |
| Weight (with mount) | 1.735 kg (3.825 lb) |
| Enclosure Material | Reflector: Aluminum / Plastic: PC |
| Mounting | Pole-Mounting Kit (Included); Elevation adjustment, azimuth by pole rotation |
| Antenna Gain | 26 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port (GbE RJ45) |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 7W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ± 10% (20-27V DC) |
| Processor | MIPS 74Kc |
| Memory | 64 MB DDR2 |
| LEDs | Power, Ethernet |
| Channel Sizes (PtP) | 10/20/30/40/50/60/80 MHz |
| Channel Sizes (PtMP) | 10/20/30/40 MHz |
| Operating Frequency (Worldwide) | 5150 – 5875 MHz |
| Management Radio (US/CA) | 2412 – 2462 MHz |
| Max. Output Power | 25 dBm |
| Wind Loading | 550 N @ 200 km/h (123.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ±24 kV Contact / Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC; NDAA Compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum range of the LBE-5AC-LR? Up to 25+ km for PtP links under ideal conditions with clear line-of-sight, 26 dBi gain, and appropriate channel configuration.
- Q: Does it include a PoE injector? Yes, it includes a 24V, 0.3A Gigabit PoE adapter for passive PoE power delivery.
- Q: What throughput can it achieve? 450+ Mbps real TCP/IP throughput in optimal PtP setups using airMAX AC protocol and wide channels.
- Q: Is it suitable for outdoor use in harsh weather? Yes, rated for winds up to 200 km/h survivability, -40 to 70°C temperatures, and IP-rated enclosure with aluminum reflector.
- Q: How do I reset the device if there’s a configuration issue? Press and hold the reset button for 10+ seconds while powered on to restore factory defaults; default login is ubnt/ubnt.
| Weight | 2.46 kg |
|---|---|
| Dimensions | 414 × 246 × 154 mm |
| Product Create Date | 11/12/2020 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | LBE-5AC-LR |
