Name: TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver, Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @
SKU: NWTL-SM9110-SR4
Availability: InStock

TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver, Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @

~~$133.28~~ $129.28 inc GST

Manufacturer: TP-LINK

Stock: BRS:2 ADL:2 SYD:7 MEL:10 PER:2

20 in stock

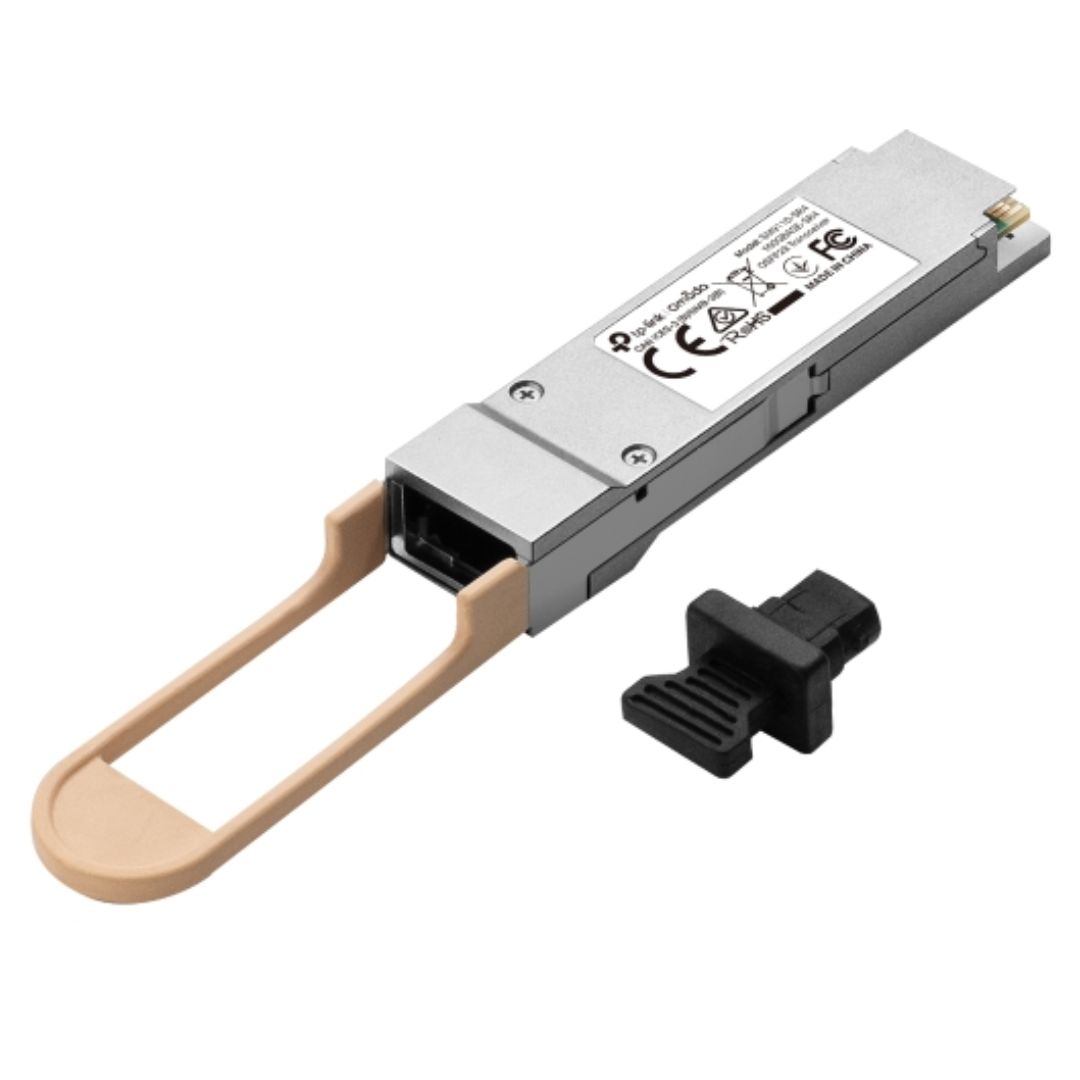

TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver
• 100GBASE-SR4 multi-mode QSFP28 Transceiver
• Supports Digital Diagnostic Monitoring (DDM)
• Up to 100 m transmission distance
• Hot-Pluggable with maximum flexibility
• Wide operating temperature
• Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)

Warranty Period: 3-Year

Why Choose This?

Upgrade your enterprise network to ultra-high-speed 100G Ethernet with the TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver, delivering dual-rate performance of 103.125Gbps and 41.2Gbps over multimode fiber up to 100m on OM4. This hot-pluggable module supports Digital Diagnostic Monitoring (DDM) for real-time diagnostics, ensuring reliable connectivity in data centers and high-bandwidth environments. Its wide operating temperature range and seamless compatibility with Omada QSFP28 ports make it ideal for flexible, future-proof deployments.

Key Features

100GBASE-SR4 QSFP28 – Provides 100Gbps short-range multimode transmission for high-performance data center interconnects.
Dual-rate support (103.125Gbps/41.2Gbps) – Backward compatible with 40G networks, maximizing versatility and investment protection.
Digital Diagnostic Monitoring (DDM) – Enables real-time monitoring of key parameters like temperature, power, and voltage for proactive maintenance.
Hot-pluggable design – Allows seamless installation and replacement without network downtime.
Wide operating temperature (0–70°C) – Ensures reliable operation in demanding enterprise environments.

Full Specifications

Category	Details
Form Factor	QSFP28
Data Rate	Dual Rate: 103.125 Gbps (4×25.78Gbps) and 41.2 Gbps (4×10.3Gbps)
Wavelength	850 nm
Fiber Type	MMF (Multimode Fiber), 50/125 μm core size
Connector	MTP/MPO-12
Max. Transmission Distance	70m (OM3)/100m (OM4) @ 103.125Gbps; 100m (OM3)/150m (OM4) @ 41.2Gbps
Transmitter Type	VCSEL 850 nm
Receiver Type	PIN
Transmitter Power	-8.4 ~ 2.4 dBm @103.125Gbps; -7.6 ~ 2.4 dBm @41.2Gbps
Receiver Sensitivity	<-10.3 dBm @103.125Gbps; <-9.5 dBm @41.2Gbps
Receiver Overload	>2.4 dBm (both rates)
Extinction Ratio	>2 dB @103.125Gbps; >3 dB @41.2Gbps
Power Supply	3.3 V
Max Power Consumption	1.8 W @100Gbps; 1.54 W @40Gbps
Optical Budget	>1.9 dBm (both rates)
Standards and Protocols	IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
DDM Support	Yes
Hot Swappable	Yes
Dimensions (W x D x H)	124 x 18.35 x 11.7 mm (4.88 x 0.72 x 0.46 in)
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~85% RH non-condensing
Regulatory Compliance	CE, FCC, RoHS

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

Q: What speeds does the SM9110-SR4 support? It supports dual rates: 103.125Gbps (100GBASE-SR4) and 41.2Gbps (40GBASE-SR4) over 4 parallel lanes.
Q: What is the maximum transmission distance? Up to 100m on OM4 MMF at 100Gbps and 150m on OM4 at 40Gbps; 70m on OM3 at 100Gbps.
Q: Is it compatible with 40G QSFP+ ports? Yes, it auto-negotiates to 40Gbps in TP-Link 40G QSFP+ slots without configuration; may require EEPROM setting (byte 98=00) for non-TP-Link devices.
Q: Does it support Digital Diagnostics? Yes, DDM provides real-time monitoring of temperature, voltage, laser bias, Tx/Rx power via I2C interface.
Q: What fiber and connector does it use? Multimode fiber (50/125μm MMF) with MTP/MPO-12 connector; parallel optics for SR4 application.

Weight	0.08 kg
Dimensions	186 × 78 × 28 mm
Product Create Date	01/11/2024

Web Link	Visit Manufacturer Page →
Manufacturer	TP-LINK
Warranty	36
Manufacturer SKU	SM9110-SR4
