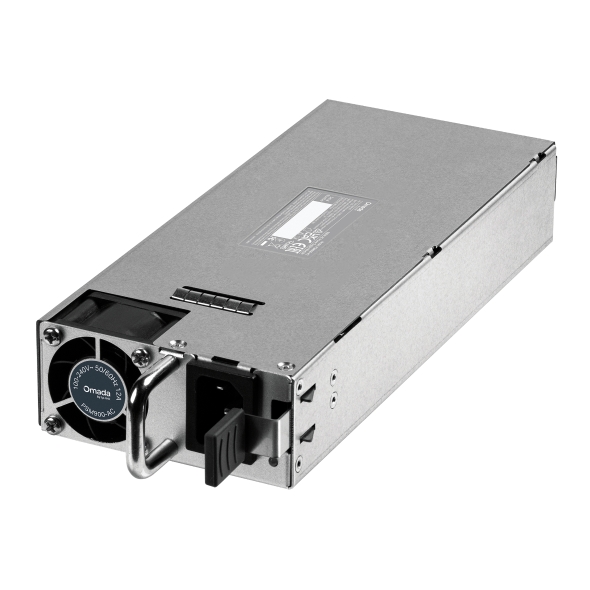

TP-Link PSM900-AC Omada 900W AC Power Supply Module, Up to 900 watts output power, Steel Case with FAN
$773.50 $750.30 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock
TP-Link PSM900-AC AC Power Supply Module
• Up to 900 (PSM900-AC) watts output power
• Hot swappable
• 53.5 V DC output voltage
• Output over-voltage/under-voltage/short circuit/over-current protection
• Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
Warranty Period: 3-Year
Why Choose This?
The TP-Link PSM900-AC Omada 900W AC Power Supply Module delivers reliable high-capacity power conversion up to 900W at 53.5V DC, ensuring uninterrupted operation for demanding Omada switches. Its fully hot-swappable design and redundant power support allow seamless installation or replacement without downtime, while robust protections safeguard against over-voltage, under-voltage, short circuits, over-current, and overheating. Built with a durable steel case and integrated fan for optimal cooling, it’s the ideal choice for enterprise-grade network reliability.
Key Features
- Up to 900W output power – Powers high-density PoE switches for extensive device connectivity without power shortages.
- Hot swappable – Enables replacement without system interruption, maximizing uptime in critical environments.
- 53.5V DC output – Precise voltage delivery optimized for TP-Link Omada and Omada Pro switches.
- Comprehensive protections – Guards against over-voltage, under-voltage, short circuit, over-current, and overheating for enhanced safety.
- Steel case with FAN – Provides durable construction and efficient cooling for reliable long-term performance.
Full Specifications
| Category | Details |
|---|---|
| Model | PSM900-AC |
| Power Input (Low Voltage) | 100-120V ~ 50/60Hz 12A |
| Power Input (Other Locations) | 120-240V ~ 50/60Hz 10A |
| DC Output Voltage | 53.5V DC |
| Output Current | 16.5A (Max) |
| Max Power Output | 900W |
| Surge Protection | ±6 kV |
| Dimensions (W x D x H) | 259.5 × 95.8 × 40.1 mm (10.2 × 3.8 × 1.6 in) |
| Operating Temperature | 0°C–45°C (32°F–113°F) |
| Storage Temperature | -40°C–70°C (-40°F–158°F) |
| Operating Humidity | 10%–90% RH, Non-condensing |
| Storage Humidity | 5%–90% RH, Non-condensing |
| Protections | Over-voltage, Under-voltage, Short circuit, Over-current, Overheating |
| LED Indicators | Multi-function: Green (normal), Flashing Green (powered but not supplying), Yellow Flashing (alarm), Red (fault) |
| Hot Swappable | Yes |
| Redundant Power Supply | Yes (1+1) |
| Compatibility | SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y |
| Casing | Steel case with FAN |
| Max Altitude | 3000 m |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum output power and voltage of the PSM900-AC? Up to 900W at 53.5V DC with 16.5A maximum current.
- Q: Is the PSM900-AC hot-swappable? Yes, it supports fully hot-swappable installation and removal without interrupting switch operation.
- Q: Which switches is the PSM900-AC compatible with? Compatible with TP-Link Omada switches including SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.
- Q: What protections does the PSM900-AC offer? Includes output over-voltage, under-voltage, short circuit, over-current, and overheating protection.
- Q: What are the LED indicators for? Multi-function LED: Steady green (normal supplying power), flashing green (powered not supplying), flashing yellow (alarm like high temp/fan issue), steady red (serious fault).
| Weight | 1.15 kg |
|---|---|
| Dimensions | 250 × 400 × 80 mm |
| Product Create Date | 01/08/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 36 |
| Manufacturer SKU | PSM900-AC |
