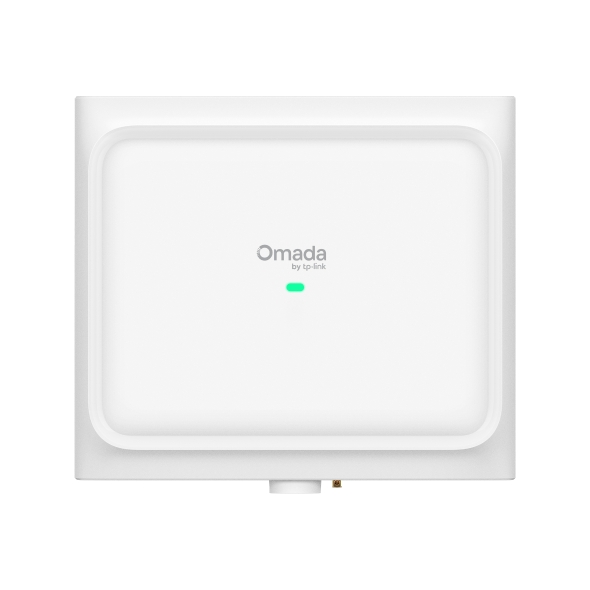

TP-Link EAP772-Outdoor Omada Tri-Band Omnidirectional BE9300 Indoor/Outdoor Wi-Fi 7 Access Point,1×2.5G RJ45 Port 688Mbps at 2.4 GHz + 2880 Mbps at 5
$464.10 $450.18 inc GST
Manufacturer: TP-LINK
Availability: BRS:3 ADL:2 SYD:5 MEL:2 WA:2
14 in stock
TP-Link EAP772-Outdoor Omada Tri-Band Omnidirectional BE9300 Indoor/Outdoor Wi-Fi 7 Access Point
• Tri-Band Six-Stream Outdoor Wi-Fi 7: Up to 9.3 Gbps.†
• 6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses.△
• True Tri-Band Omnidirectional Coverage: 300m2 (3,200ft2) recommended coverage*
• Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarised antennas.
• Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
• Advanced Features: Centralised management, mesh, and seamless roaming.§
Warranty Period: 3-Year
Why Choose This?
The TP-Link EAP772-Outdoor Omada Tri-Band BE9300 Indoor/Outdoor Wi-Fi 7 Access Point delivers blazing-fast tri-band speeds up to 9.3 Gbps (688 Mbps at 2.4 GHz + 2880 Mbps at 5 GHz + 5760 Mbps at 6 GHz), unlocking the cleaner 6 GHz band outdoors via AFC technology for interference-free coverage up to 300m² (3,200 ft²). Its IP68-rated weatherproof enclosure withstands submersion in 1.5m of water and extreme temperatures from -30°C to 70°C, making it ideal for business parks, hotels, farms, and yards. With a 2.5G PoE+ port, Omada SDN centralized management, and features like MLO and seamless roaming, it ensures reliable, high-capacity connectivity for 380+ devices.
Key Features
- Tri-Band Wi-Fi 7 (BE9300) – Up to 9.3 Gbps aggregate speed with 6 GHz unlocked by AFC for low-interference outdoor performance.
- Omnidirectional Coverage – 300m² (3,200 ft²) recommended range with internal antennas (2.4 GHz: 2×4 dBi dual-polarized, 5/6 GHz: 2×6 dBi) for broad signal distribution.
- IP68 Weatherproof – Dustproof and submersible up to 1.5m for 1 hour, operates in -30–70°C for harsh environments.
- 2.5G PoE+ Port – High-bandwidth wired backhaul supports 802.3at PoE, max 23W consumption for easy deployment.
- Omada SDN Integration – Centralized cloud management, mesh support, seamless 802.11k/v/r roaming, and 380+ client capacity.
Full Specifications
| Category | Details |
|---|---|
| Product Type | Tri-Band Omnidirectional Indoor/Outdoor Wi-Fi 7 Access Point (BE9300 EU) |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Wireless Speeds | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz); Total: 9335 Mbps |
| Spatial Streams | 2×2 MU-MIMO on all bands (6 spatial streams total) |
| Bandwidth | 2.4 GHz: 20/40 MHz; 5 GHz: 20-240 MHz; 6 GHz: 20-320 MHz |
| Antennas | 2.4 GHz: 2×4 dBi (dual-polarized omnidirectional); 5 GHz: 2×6 dBi; 6 GHz: 2×6 dBi |
| Coverage | 300 m² (3,200 ft²) recommended omnidirectional |
| Max Clients | 380+ |
| Ethernet Ports | 1× 2.5 Gbps RJ45 (802.3at PoE+) |
| Power Supply | 802.3at PoE+; Max consumption: 23W |
| Dimensions (W×D×H) | 230 × 207.5 × 69.7 mm (9.1 × 8.2 × 2.8 in) |
| Weight | 1.41 kg (main unit) |
| Enclosure | IP68-rated weatherproof (dustproof, submersible 1.5m/1hr) |
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) |
| Key Features | MLO, 4K-QAM, OFDMA, Beamforming, Band Steering, Mesh, Seamless Roaming (802.11k/v/r) |
| Management | Omada SDN (Cloud/Hardware/Software Controller), Omada App |
| Additional | GNSS (GPS/Galileo/GLONASS/BeiDou), BLE 5.2, AFC for 6 GHz outdoor |
| Certifications | CE, FCC, RoHS |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is AFC and why is it needed for 6 GHz? AFC (Automated Frequency Coordination) enables safe 6 GHz outdoor use by coordinating with databases to avoid interference with licensed services; required in US/Canada for standard power operation on EAP772-Outdoor.
- Q: Is the AP suitable for full outdoor exposure? Yes, IP68-rated enclosure is dustproof and submersible up to 1.5m for 1 hour, with -30–70°C tolerance for harsh weather.
- Q: What speeds can I expect? Up to 9.3 Gbps aggregate (EU): 688 Mbps (2.4 GHz), 2882 Mbps (5 GHz), 5765 Mbps (6 GHz); requires Wi-Fi 7 clients and optimal conditions.
- Q: How is it powered and mounted? 802.3at PoE+ via 2.5G port (23W max); includes wall/pole mounting kits for easy installation.
- Q: Does it support mesh and roaming? Yes, Omada Mesh and seamless roaming (802.11k/v/r) via Omada controllers; supports 380+ clients with centralized management.
| Weight | 2 kg |
|---|---|
| Dimensions | 330 × 250 × 110 mm |
| Product Create Date | 19/05/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 36 |
| Manufacturer SKU | EAP772-Outdoor |
