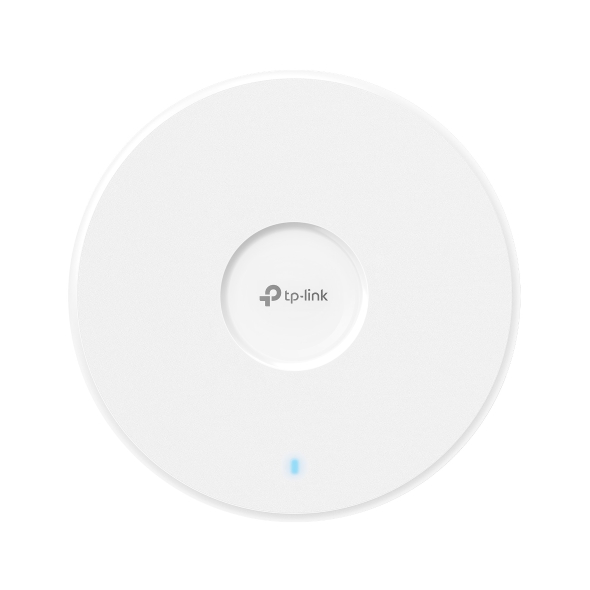

TP-Link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point (WIFI7) 5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
$391.51 $379.76 inc GST
Manufacturer: TP-LINK
Availability: BRS:2 ADL:2 SYD:43 MEL:26 WA:4
77 in stock
TP-Link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
• BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).†
• A clear 6 GHz band brings cleaner and wider band resources.‡
• 1× 2.5G Port unlocks the full potential of Wi-Fi 7.
• 320 MHz bandwidth enables many more simultaneous transmissions.‡
• Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
• Advanced Functions: Centralized management, mesh, and AI roaming.△
*** Wi-Fi 7 EAP models have NO power adapter shipped in the box.
Warranty Period: 5-Year
Why Choose This?
The TP-Link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point delivers blazing-fast speeds up to 9.2 Gbps across 6 GHz, 5 GHz, and 2.4 GHz bands, perfect for high-density business environments like offices, hotels, and schools. Its ultra-thin design enables seamless ceiling or wall mounting, while Wi-Fi 7 innovations like Multi-Link Operation (MLO) and 320 MHz bandwidth ensure lower latency, higher capacity, and smoother connectivity for hundreds of devices. Integrated with Omada SDN for centralized cloud management, it boosts network security with WPA3 and supports effortless scalability.
Key Features
- BE9300 Tri-Band Wi-Fi 7 – Provides aggregate speeds of 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz) for ultra-high throughput and future-proof performance.
- Multi-Link Operation (MLO) – Enables simultaneous data transmission across multiple bands for reduced latency and reliable connections in dense environments.
- 320 MHz Bandwidth on 6 GHz – Doubles channel width for more simultaneous streams, maximizing efficiency and speed.
- 1× 2.5GbE Port with 802.3at PoE – Delivers multi-gigabit wired backhaul and flexible power options without extra adapters.
- Omada SDN Centralized Management – Offers cloud access, Mesh support, seamless roaming, and advanced security like WPA3 for effortless network control.
Full Specifications
| Category | Details |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Frequency Bands | 6 GHz, 5 GHz, 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz) |
| Bandwidth | Up to 320 MHz (6 GHz), 160 MHz (5 GHz) |
| Wireless Functions | MLO, 4K-QAM, MU-MIMO, OFDMA, Beamforming, BSS Coloring, Seamless Roaming (802.11k/v/r), Mesh |
| Maximum SSIDs | 24 (8 per band) |
| Concurrent Clients | 380+ |
| Coverage | 140 m² (1500 ft²) |
| Interface | 1× 2.5 Gigabit Ethernet Port |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Max Power Consumption | 25.44 W (PoE); 22.57 W (DC) |
| Antennas | 2.4 GHz: 2×4.0 dBi; 5 GHz: 2×5.0 dBi; 6 GHz: 2×5.0 dBi |
| Dimensions (W×D×H) | 220 × 220 × 32.5 mm (8.7 × 8.7 × 1.3 in) |
| Mounting | Ceiling/Wall (kits included) |
| Transmission Power | <25 dBm (2.4/5 GHz); <23 dBm (6 GHz) |
| Wireless Security | WPA/WPA2/WPA3-Enterprise/Personal, Rogue AP Detection, MAC Filter (4000), VLAN, Captive Portal |
| Management | Omada SDN Controller (Cloud/Hardware/Software), Omada App, Web GUI, SNMP |
| Operating Temperature | 0–40°C (32–104°F) |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Does the EAP772 support PoE for power and installation? Yes, it supports 802.3at PoE for both power and data over a single Ethernet cable, simplifying deployment; a 12V/2.5A DC adapter is also compatible.
- Q: What is the maximum number of clients it can handle? Up to 380+ concurrent clients, though actual capacity depends on environment and traffic.
- Q: Is a separate controller required for full features? Advanced features like Mesh, Seamless Roaming, and Cloud Access require an Omada SDN Controller (hardware, software, or cloud-based); standalone mode via web/App is available for basic use.
- Q: Does it support Wi-Fi 7 features like MLO? Yes, Multi-Link Operation (MLO) allows simultaneous multi-band use for lower latency, but clients must also support Wi-Fi 7.
- Q: What mounting options are included? Ceiling and wall mounting kits are included for flexible, ultra-thin installation (32.5 mm height).
| Weight | 0.74 kg |
|---|---|
| Dimensions | 280 × 259 × 91 mm |
| Product Create Date | 15/05/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | EAP772 |
