Shuttle NC40U Slim Mini PC, 1L Barebone – Celeron 7305, HDMI, DP, VGA, RJ45, LAN, 2xDDR4, 2.5″ HDD/SSD, VESA mount

Shuttle’s latest XPC nano NC40U series houses the performance hybrid architecture of Intel® 12th Gen Alder Lake-U platform, capable of multitasking and parallelism, and with Intel® Iris® Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85L palm size design, it can accommodate one 2.5″ hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os as USB 3.2 Gen2, USB 3.2 Gen1, and Intel® Gigabit Lan, supporting triple display by the HDMI, DisplayPort, and Type-C that increase the functionality to adapt to various business computing to suit digital signage, Kiosk, edge computing, and video conference.

FORM FACTOR
Shuttle 0.85L Form Factor

PROCESSOR
Intel® 12th Gen Celeron 7305 15W CPU

MEMORY
2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR4, up to 3200Mhz

VIDEO OUTPUT
Intel® Iris Xe Graphics

AUDIO
C-Media CM6542

ETHERNET
Built in Intel I219 support 10/100/1000Mbs

STORAGE INTERFACE
Support SATA 6.0Gb/s bandwidth

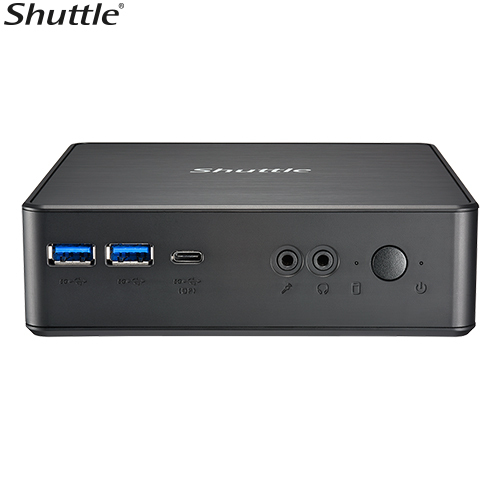

FRONT PANEL
(1) Power button
(1) Power LED
(1) HDD LED
(2) USB 3.2 Gen 1 Type A
(1)USB 3.2 Gen 1 Type C (w/DP)

BACK PANEL
(1) HDMI
(1) DisplayPort
(2) USB 3.2 gen1
(2) USB 3.2 gen2
(1) RJ45
(1) DC-in Jack
(1) Kensington Lock

DRIVE BAYS
2.5″ 15mm SATA HDD / SSD

DIMENSIONS
142(L) x 142(W) x 42(H) mm

POWER
65 Watts (19V/3.42A)

ACCESSORIES
Quick guide
DVD driver
VESA mount
Foot Stand
Adapter and power cord
screw pack

EXPANSION SLOT
M.2 2230 E key
M.2 2280 M key(w/PCIe Gen3 x 4, SATA 6 Gb/s)
M.2 2280 M key(w/PCIe Gen4 x 4)

OS SUPPORT
Windows 11
Linux

OPERATING TEMPERATURE
0℃~50℃

Who It’s For

Ideal for businesses and professionals needing a compact, reliable mini PC for digital signage, kiosks, edge computing, video conferencing, or light office workloads. The Shuttle NC40U suits space-constrained environments like retail displays, reception areas, or industrial setups where 24/7 stability and multi-monitor support are essential.

Real-World Use Cases

• Deploy as a digital signage player in retail stores, driving triple 4K displays with smooth multimedia playback and remote management.
• Power interactive kiosks or point-of-sale terminals with its rich USB ports, LAN connectivity, and support for RAID storage for reliable data handling.
• Run video conferencing setups in small offices or meeting rooms, leveraging Iris Xe graphics and multiple display outputs for hybrid work.
• Serve as an edge computing node in industrial or IoT environments, handling lightweight AI tasks and data processing with efficient 12th Gen Intel performance.

Key Advantages

• Ultra-compact 0.85L design with VESA mount enables flexible installation in tight spaces without sacrificing expandability.
• Triple-display support up to 4K@60Hz via HDMI, DisplayPort, and USB-C delivers versatile multi-monitor productivity or signage solutions.
• Flexible storage options including a 2.5″ bay (up to 15mm), dual M.2 slots with PCIe Gen4, and RAID 0/1 for performance and data redundancy.
• Efficient 15W Celeron 7305 processor with Iris Xe graphics provides strong multitasking and AI acceleration in a low-power, quiet-cooling chassis.

Full Specifications

Practical Considerations

• As a barebone system, memory, storage, and OS must be added separately—plan for compatible DDR4 SODIMMs and M.2 SSDs for optimal performance.
• Excellent for 24/7 operation thanks to robust cooling, but ensure adequate ventilation in enclosed installations to maintain temperatures below 50°C.
• Triple-display capability works best with modern monitors; confirm cable compatibility for the USB-C DP output.

Frequently Asked Questions

• Q: What processor does the NC40U use and is it suitable for multitasking? It features the efficient 15W Intel Celeron 7305 with hybrid architecture and Iris Xe graphics, handling everyday multitasking, light content creation, and AI workloads well while keeping power and heat low.
• Q: Can it support three monitors at 4K resolution? Yes, via HDMI 2.0b, DisplayPort 1.4a, and USB-C (DP Alt Mode), supporting up to 4096×2160@60Hz on three independent displays.
• Q: Does it include built-in Wi-Fi or Bluetooth? No, but it has an M.2 2230 E-key slot for easy addition of a compatible Wi-Fi 6/6E or Bluetooth module.
• Q: Is RAID supported for storage? Yes, it supports both SATA RAID 0/1 and NVMe RAID 0/1 for improved performance or data redundancy.
• Q: How does it compare to similar models? The NC40U offers a smaller 0.85L footprint than many competitors, unique 2.5″ bay support alongside dual M.2, and strong triple-display options in the Alder Lake-U series at a competitive price point.
• Q: What is the warranty and local support? Shuttle typically offers a 2-3 year warranty (confirm with retailer); Australian support is available through authorised resellers or Shuttle’s global service network—check local distributors for on-site options.
