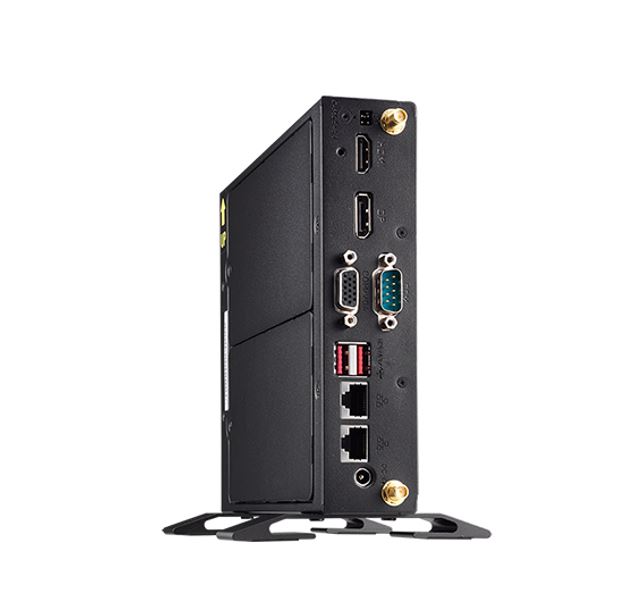

Shuttle DS20U3 Slim Mini PC 1L Barebone- Intel Core i3-10110U, Fan-less, 2x LAN, RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W adapter

The DS20U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one tradi-tional D-Sub/VGA connector. The built-in Intel “Comet-Lake-U” processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5″ drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5″ bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Intel Celeron 5205U (1,9 GHz, 2 cores, 2 threads, 2 MB cache)
Intel UHD Graphics
Up to 64 GB of DDR4 memory
1× NVMe, 1× SATA 2.5″, card reader
1× HDMI 2.0b, 1× DisplayPort 1.2, 1× VGA
Two M.2 slots (1× M.2-2280, 1× M.2-2230)
2× Gigabit Ethernet, WLAN-ready, 4G-ready
4× USB 3.2 Gen 1 (5 Gbit), 4× USB 2.0, 1× COM
Remote power-on connector, always-on jumper
Wall/VESA mount included
Optional DIN-Rail/19” mount

Who It’s For

Ideal for businesses and professionals needing a compact, silent, and reliable computing solution in industrial or commercial settings, such as digital signage, point-of-sale (POS) systems, kiosks, thin clients, or office multimedia setups. Its fanless design and 24/7 operation approval make it perfect for noise-sensitive environments like retail displays, control rooms, or embedded installations where maintenance-free performance is essential.

Real-World Use Cases

• Deploy as a digital signage player behind a large monitor in retail stores, leveraging dual digital video outputs for crisp 4K playback and dual LAN for stable content streaming without fan noise disrupting customers.
• Power a POS terminal or self-service kiosk with its versatile serial ports for connecting peripherals like receipt printers or barcode scanners, plus VESA mounting for space-saving integration into counters.
• Serve as a thin client or industrial control PC in manufacturing or warehouse environments, benefiting from dual Gigabit Ethernet for network redundancy and reliable 24/7 operation in dusty or temperature-variable spaces.
• Function as a compact multimedia or office PC with SD card reader for quick media access and optional WLAN/LTE expansion for flexible connectivity in temporary setups or mobile applications.

Key Advantages

• Fanless passive cooling ensures completely silent operation and virtually maintenance-free reliability, ideal for continuous 24/7 use in sensitive environments while keeping power consumption low at around 6W idle.
• Exceptional connectivity with dual Gigabit LAN, configurable RS232/RS422/RS485 serial port, three video outputs (HDMI 2.0, DP 1.2, VGA), and multiple USB ports supports a wide range of peripherals and network configurations without additional hardware.
• Compact 1.3L chassis with included VESA mount and optional DIN-rail/19″ rack kits enables flexible installation behind monitors, on walls, or in industrial enclosures, saving valuable space.
• Supports up to 64GB DDR4 RAM, NVMe SSD, SATA 2.5″ drive, and M.2 expansion options (including WLAN or LTE), providing ample performance and storage scalability for demanding professional workloads.

Full Specifications

Practical Considerations

• Ensure adequate airflow around the chassis for optimal passive cooling, especially in enclosed spaces; horizontal mounting without feet limits max temperature to 35°C.
• Prefer SSDs over HDDs in the 2.5″ bay for higher reliability and quieter operation, particularly in 24/7 or elevated-temperature environments.
• The COM port configuration (RS232/422/485) and voltage settings are BIOS-adjustable; an optional adapter (PCP11) can add a second COM port but disables VGA output.

Frequently Asked Questions

• Q: Is the Shuttle DS20U3 suitable for continuous 24/7 operation? Yes, it is explicitly approved for nonstop use with passive cooling and requirements for clear ventilation and compatible storage; ideal for signage or kiosk deployments.
• Q: What storage options does it support? One M.2-2280 NVMe or SATA SSD, one 2.5″ SATA drive (up to 12.5mm), and an integrated SD card reader for convenient media handling.
• Q: Can I add wireless connectivity? Yes, it has pre-installed antenna cables for an optional M.2-2230 WLAN/BT module or LTE/4G kit (WWN03) in the 2.5″ bay (which then requires using the M.2 SSD instead).
• Q: How many displays can it drive simultaneously? Up to three independent displays via HDMI 2.0a (4K@60Hz), DisplayPort 1.2 (4K@60Hz), and VGA.
• Q: How does it compare to similar models? Compared to the base DS20U (Celeron), the DS20U3 offers a stronger i3 processor and USB 3.2 Gen 2 support; higher variants like DS20U5/U7 provide more cores for heavier multitasking while sharing the same fanless chassis and connectivity.
• Q: What is the warranty and local support? Standard manufacturer warranty applies (typically 2-3 years); in Australia, available through local resellers like those listing the product, with support via Shuttle’s global channels or regional partners for RMA and service.
