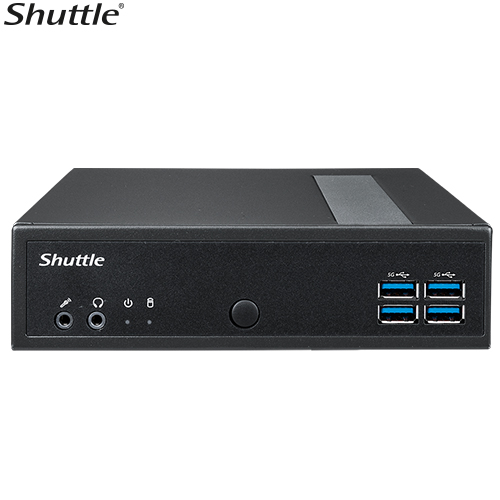

Shuttle DL40N XPC fanless Mini PC 1.3L Barebone – Intel® Twin Lake processorsN150 (4 Cores), DDR5, 8x USB, 2x 2.65W Adapter

Shuttle DL40N XPC fanless Mini PC 1.3L Barebone – Intel® Twin Lake processorsN150 (4 Cores), DDR5, 8x USB, 2x 2.65W Adapter

FORM FACTOR 1.3L slim form factor
PROCESSOR Intel® Twin lake-N up to 7W CPU
Intel® Processor® N150 (DL40N)
MEMORY Support DDR5 4800Mhz SODIMM memory Max. 16GB
VIDEO OUTPUT (1)HDMI 2.0b + (1)DisplayPort + (1)VGA video outputs
Support triple independent display
Intel generation HD Graphic engine
AUDIO 2 channel High Definition Audio
ETHERNET Intel I226-LM Dual LAN controller
Supports 10Mb/s,100Mb/s,1Gb/s,2.5Gb/s operation
Support wake ON LAN (WOL) feature
STORAGE INTERFACE SATA for HDD/SSD
FRONT PANEL (1) Power button
(1) Power Led
(1) HDD Led
(4) USB 3.2 Gen1 ports
(1) MIC-IN
(1) Audio out
BACK PANEL (2) Intel® 2.5GbE LAN w/LED
(1) Display port
(1) HDMI port
(4) USB 3.2 Gen1 ports
(1) DC in
(1) RS232/RS422/RS485
(1) RS232
(1) VGA
(1) External power on/Clear CMOS header
(2) Antenna Hole
DRIVE BAYS (1) 2.5″ HDD Max.(9.5mm) / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 65W 19V Adapter bundled
Input:100- 240V AC
Output: 19V/3.42A or 12V/5.42A DC
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA screw pack
VESA bracket
65W adapter
Screw pack
Power cord
EXPANSION SLOT (1) M.2 Type M (2280)
(1) M.2 Type E (2230)
OS SUPPORT Windows 11 64 bit O.S
Ubuntu Linux O.S
CERTIFICATION Safety certification : CB , BSMI , cTUVus
EMI certification : FCC , CE , BSMI , RCM , VCCI , UKCA
OPERATING TEMPERATURE 0℃~40℃

Who It’s For

Ideal for IT professionals, system integrators, and businesses needing a reliable, silent fanless mini PC for 24/7 commercial, industrial, or edge computing deployments. Perfect in noise-sensitive environments like offices, retail kiosks, digital signage, or embedded systems where low power consumption and durability matter.

Real-World Use Cases

• Deployed as a compact, always-on digital signage controller in retail stores or public spaces, driving multiple 4K displays without fan noise or maintenance.
• Used in industrial automation or edge computing setups for reliable data collection and processing with dual 2.5G Ethernet and serial ports for legacy equipment integration.
• Serves as a silent thin client or workstation in healthcare or education environments, supporting triple displays and up to 16GB DDR5 for light productivity tasks.
• Ideal for 24/7 surveillance or IoT gateway applications, offering flexible storage options and remote power-on for headless operation in remote locations.

Key Advantages

• Completely fanless design ensures silent, maintenance-free operation and high reliability for continuous 24/7 use in demanding environments.
• Intel N150 Twin Lake processor delivers efficient quad-core performance with low 6W TDP, balancing power savings and capability for embedded workloads.
• Extensive connectivity including dual 2.5GbE LAN, 8x USB 3.2 ports, triple video outputs, and dual COM ports supports diverse industrial and multi-peripheral setups.
• Compact 1.3L chassis with flexible storage (M.2 NVMe + 2.5″ drive) and DDR5 memory support allows easy customization while maintaining a small footprint.

Full Specifications

Practical Considerations

• As a barebone system, memory, storage, and OS must be added separately—verify compatibility with DDR5 SODIMM and NVMe SSDs for optimal performance.
• Excellent thermal design allows passive cooling in enclosed spaces, but ensure adequate ventilation around the unit for maximum longevity in high-ambient temperatures.
• Dual LAN and COM ports make it particularly valuable for legacy industrial equipment integration; test serial configurations before full deployment.

Frequently Asked Questions

• Q: What processor options are available in the DL40N series? The DL40N model uses the Intel N150 (4 cores); variants DL40N2 and DL40N3 support N250 and Core i3-N350 respectively for higher performance needs.
• Q: Does it support triple 4K displays? Yes, the HDMI 2.0b, DisplayPort 1.4, and VGA outputs enable triple display configurations, with 4K support on digital outputs.
• Q: Is it suitable for continuous 24/7 operation? Absolutely—the fanless design and industrial-grade components are optimized for round-the-clock reliability in commercial settings.
• Q: Can I add wireless connectivity? Yes, optional M.2 modules for Wi-Fi and 4G LTE are supported, expanding its use in mobile or remote deployments.
• Q: How does it compare to similar models? Compared to the predecessor DL30N, the DL40N offers newer Twin Lake processors, DDR5 memory, faster dual 2.5G LAN, and more USB ports in the same compact form factor.
• Q: What is the warranty and local support? Shuttle typically offers a 2-3 year warranty on XPC systems; check with Australian resellers or Shuttle’s regional partners for local support and RMA options.
