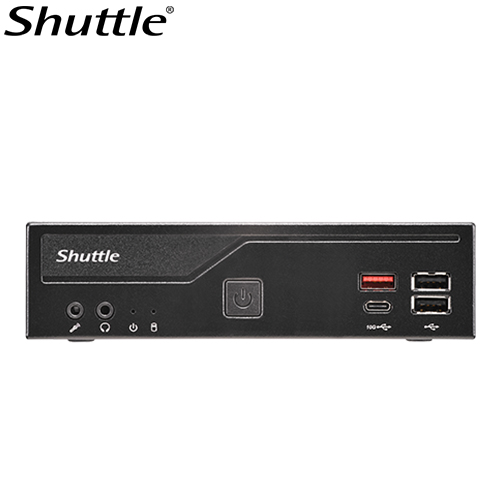

Shuttle DH810 Slim Mini PC 1.3L chassis – Intel® Core™ Ultra 200 serie ,2 x DDR5 SODIMM slots,48GB, 2xLAN (1G 2.5G), 2xRS232, HDMI, 2xDP, 120W, Vesa

The Shuttle DH810 is a 1.3L robust PC that harnesses the power of Intel® Core™ Ultra LGA1851 processors. With support of up to 96GB of DDR5-5600MHz RAM in dual-channel mode and integrated Intel® Graphics, DH810 ensures seamless multitasking and rapid data processing, making it ideal for commercial tasks and demanding AI workloads. The DH810 supports up to 8K resolution via HDMI, along with triple independent 4K display, delivering a stunning visual experience for Pro AV applications, including digital signage and entertainment.

● Core configuration: Up to 24 cores (8 Performance-cores and 16 Efficient-cores)
● Enhanced Graphics Performance: The integrated Intel® Graphics significantly enhance DH810’s suitability for commercial applications.
● Maximum capacity of up to 96GB (48GB per slot)
● Fast data processing capabilities at 1.1V, improving power efficiency
● 1 x M.2 2280, M key slot for PCIe Gen 4×4 or SATA 6Gb
● 1 x M.2 2230, E key slot for PCIe Gen 3×1, USB2.0, Intel CNVi module or Wlan-M module
● BIOS and Utility Features:
Wake on LAN, Power-On After Power Failure, RTC Power-on, Watch Dog, and Auto Power on
● Reliable Performance:
Shuttle’s exclusive heat pipe cooling technology ensures 24/7 stable operation in environments ranging from 0 to 50°C
● Flexible Mounting Methods:
Supports VESA mounting standards of 75×75 and 100×100, allowing easy installation on walls or behind displays, perfect for space-constrained environment
● Operation System Support:
Windows 11 and Linux

FORM FACTOR 1.3L chassis
PROCESSOR Intel® Core™ Ultra 200 series LGA1851 processors, TDP up to 65W.
CHIPSET Intel H810 Express chipset
MEMORY 2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB)
DDR5 5600 MHz
VIDEO OUTPUT (1) HDMI 2.1 (TMDS)
(2) DP (Include 1 form USB 4.0 port)
Triple video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek ALC 888S High Definition Audio
ETHERNET (1) Intel 2.5GbE LAN
(1) Intel 1GbE LAN
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
STORAGE INTERFACE SATA 6.0Gb/s interface
NVMe interface
Support SATA RAID 0,1
ONBOARD CONNECTORS (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1×4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch
FRONT PANEL (2) USB 3.2 Gen2 ports (Include 1 Type-C)
(2) USB 2.0
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL (2) RJ45 LAN port w/LED (2.5G
(1) HDMI port
(1) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) USB 4.0 (20G, Type-C, with DP)
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(1) Kensington lock
DRIVE BAYS (1) 2.5″ HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 120W Power Adapter
Input:100- 240V AC
19V 6.32A
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT Windows 11 64 bit O.S
Linux
REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
NET WEIGHT NW :1.32 (kg)
OPERATING TEMPERATURE 0℃~50℃

Who It’s For

IT professionals, system integrators, and businesses seeking a compact, reliable mini PC for industrial, commercial, or digital signage deployments. Ideal for environments requiring robust connectivity, multi-display support, and 24/7 operation in space-constrained settings like offices, retail, healthcare, or light industrial use.

Real-World Use Cases

• Digital signage and Pro AV installations displaying 8K content across triple independent screens in retail or entertainment venues.
• AI-accelerated workloads such as data analysis, edge computing, or multimedia processing in commercial offices with demanding multitasking needs.
• POS/POI systems or kiosk deployments leveraging dual LAN, multiple COM ports, and reliable 24/7 performance in healthcare or industrial settings.
• Compact workstation or light gaming/HTPC setups behind monitors via VESA mounting in space-limited home or small business environments.

Key Advantages

• Delivers desktop-class Intel Core Ultra 200 series performance with integrated AI acceleration in a slim 1.3L chassis for superior multitasking and efficiency.
• Supports triple 4K (or single 8K) displays plus extensive I/O including dual LAN and dual RS232 for versatile professional connectivity.
• Ensures uninterrupted 24/7 reliability with advanced cooling, wide temperature tolerance (0–50°C), and features like Wake-on-LAN and Watchdog.
• Offers flexible expansion with multiple M.2 slots, 2.5″ bay, and VESA mounting for easy integration into varied commercial or space-constrained installations.

Full Specifications

Practical Considerations

• As a barebone system, users must select and install a compatible 65W (or lower) Intel Core Ultra 200 series CPU, DDR5 SODIMMs, and storage drives for full functionality.
• Excellent for multi-monitor setups but verify specific display resolutions and cabling (HDMI for 8K, DP/USB-C for 4K) match application needs.
• Ensure adequate ventilation in enclosed installations to maintain the 0–50°C operating range during continuous 24/7 use.

Frequently Asked Questions

• Q: What processors does the DH810 support? It supports Intel Core Ultra 200 series (Arrow Lake-S) desktop processors in LGA1851 socket with a maximum TDP of 65W for optimal thermal performance in the compact chassis.
• Q: Can it handle multiple displays? Yes, it supports triple independent displays via HDMI 2.1 (up to 8K) and dual DisplayPort outputs, making it suitable for digital signage or multi-monitor workstations.
• Q: Is it suitable for 24/7 operation? Absolutely—the robust heat pipe cooling, wide temperature tolerance, and reliability features like Watchdog and Power-On After Power Failure are designed for continuous commercial use.
• Q: What storage options are available? It includes one M.2 2280 slot (PCIe 4.0 x4 or SATA), one M.2 2230 E-key slot, and a 2.5-inch SATA bay for flexible SSD/HDD configurations.
• Q: How does it compare to similar models? The DH810 stands out with its LGA1851 socket for upgradable desktop CPUs, dual LAN + dual COM ports, and 8K HDMI support compared to many soldered-CPU mini PCs, while remaining more compact than full desktop systems; it is similar to other Shuttle XPC Slim models but optimized for Arrow Lake AI performance.
• Q: What is the warranty and local support? Shuttle typically offers a standard 2–3 year warranty on barebones (confirm with reseller); Australian support is available through authorized local distributors and Shuttle’s global service network for repairs and technical assistance.
