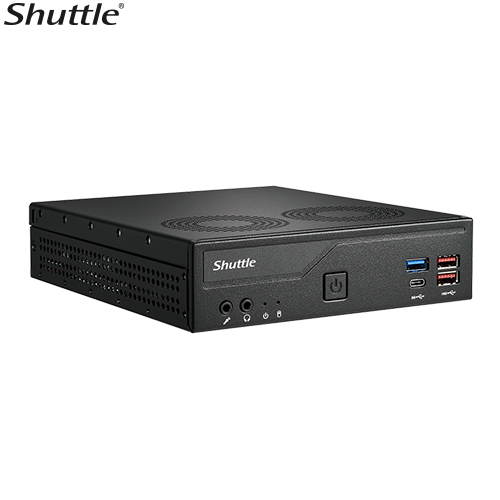

Shuttle DH770 Slim Mini PC, Intel ® 14th/13th/12th Gen LGA1700 socket, 1L, H770, 2x DDR5, 2x 2.5G LAN, 2x COM, 4x USB 3.2 Gen 1, 4x USB 3.2 Gen 2, 2x

The Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel® 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W.
Thanks to Intel® UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries.

FORM FACTOR 1.3L chassis
PROCESSOR Support Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W
CHIPSET Intel H770 Express chipset
MEMORY 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB)
DDR5 5600 MHz
VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek ALC 888S High Definition Audio
ETHERNET (2)Intel 2.5GbE LAN
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
STORAGE INTERFACE SATA 6.0Gb/s interface
NVMe interface
Support SATA RAID 0,1
ONBOARD CONNECTORS (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1×4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch
FRONT PANEL (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL (2) RJ45 LAN port w/LED
(2) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS (1) 2.5″ HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
Dimension drawing
POWER 120W Power Adapter
Input:100- 240V AC
19V 6.32A
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT Windows 11 64 bit O.S
Linux
REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
OPERATING TEMPERATURE 0℃~50℃

Who It’s For

Ideal for IT professionals, system integrators, and businesses needing a compact, reliable barebone mini PC for industrial automation, digital signage, NVR surveillance, edge AIoT deployments, or multi-display workstations in offices and retail environments.

Real-World Use Cases

• Deploy as a space-saving digital signage controller driving four 4K displays in retail or corporate lobbies for dynamic content and video walls.
• Build an industrial automation station connecting legacy serial devices like barcode scanners and printers via dual COM ports in manufacturing or logistics.
• Configure a compact NVR or surveillance hub with dual 2.5GbE LAN for high-bandwidth camera feeds and RAID storage redundancy.
• Create a multi-tasking office or kiosk PC supporting up to 64GB DDR5 and 14th Gen Intel processors for AI-enhanced applications and 24/7 operation.

Key Advantages

• Supports the latest 14th Gen Intel Core processors with hybrid architecture for superior multitasking and AI workloads in a tiny 1.3L chassis.
• Quad-display output (2x HDMI 2.0 + 2x DP 1.4) enables expansive visual setups like 2×2 video walls without additional hardware.
• Dual 2.5GbE LAN plus flexible COM ports deliver enterprise-grade networking and peripheral connectivity for demanding professional use.
• Advanced DDR5-5600 memory, M.2 NVMe/SATA expansion, and SATA RAID support provide fast storage and future-proof performance.

Full Specifications

Practical Considerations

• This is a barebone system—CPU, RAM, storage, and optional Wi-Fi module must be purchased and installed separately.
• Ensure adequate ventilation in enclosed spaces; the efficient cooling supports reliable 24/7 operation up to 50°C ambient.
• COM port voltage settings (0/5/12V) are adjustable via jumpers—consult the quick guide for peripheral compatibility.

Frequently Asked Questions

• Q: What processors does the DH770 support? It accommodates Intel 12th, 13th, and 14th generation LGA1700 CPUs (Core, Pentium, Celeron) with a maximum 65W TDP for balanced performance and efficiency.
• Q: Can it drive four displays simultaneously? Yes, with two HDMI 2.0 and two DisplayPort 1.4 ports, it supports quad independent 4K displays ideal for video walls or multi-monitor productivity setups.
• Q: How much RAM and storage can it handle? Dual DDR5-5600 SODIMMs up to 64GB total, plus a 2.5″ SATA bay and M.2 2280 NVMe slot with RAID options for fast, expandable storage.
• Q: Is it suitable for 24/7 industrial use? Absolutely—featuring Shuttle’s heat-pipe cooling, wide temperature tolerance (0–50°C), and features like auto power-on and Watchdog timer for reliable continuous operation.
• Q: How does it compare to similar models? Compared to the H610-based DH610, the DH770 offers a more advanced chipset, native DDR5 support, dual 2.5GbE LAN, configurable COM ports, and quad-display capability in a similar slim form factor.
• Q: What is the warranty and local support? Shuttle typically offers a standard 2–3 year warranty on barebones; check with authorized Australian resellers for local support, RMA processes, and extended options as availability varies by region.
