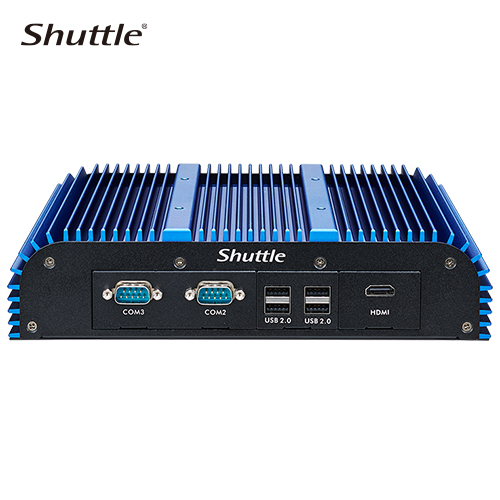

Shuttle BPCAL03-I5U Core i5-1235U, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x

Shuttle BPCAL03-I5U Core i5-1235U, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x

Barebone
Core i5-1235U, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x
USB, 2x HDMI (Max 4 display outputs), Aluminum
chassis, fanless, -20~60°C, 150W, Supports Intel® vPro™
and AMT

Who It’s For

Ideal for industrial automation engineers, system integrators, and IT professionals deploying reliable computing in factories, kiosks, digital signage, or edge IoT environments. This fanless Shuttle BPCAL03-I5U excels in harsh conditions requiring wide-temperature operation, multiple serial ports for legacy equipment, and robust connectivity.

Real-World Use Cases

• Factory floor process control and machine monitoring, where the wide -20°C to 60°C operating range and fanless design ensure uninterrupted performance amid dust, vibration, and temperature swings.
• Interactive kiosks and self-service terminals in retail or public spaces, leveraging multiple COM ports for peripherals like scanners, printers, and payment devices alongside dual HDMI outputs for engaging displays.
• Digital signage networks or surveillance systems requiring 24/7 reliability, dual 2.5GbE LAN for high-bandwidth data transfer, and support for up to four independent displays.
• Edge computing for industrial IoT data collection and analysis, powered by the efficient Intel Core i5-1235U with Iris Xe graphics for real-time inference without active cooling.

Key Advantages

• Fanless aluminum chassis delivers silent, maintenance-free operation with superior dust resistance and long-term reliability in demanding industrial settings.
• Wide temperature tolerance (-20°C to 60°C) combined with 150W power delivery supports deployment in outdoor enclosures or unconditioned spaces where standard PCs would fail.
• Flexible I/O with three COM ports (including RS-232/422/485), eight USB ports, and dual 2.5GbE LAN enables seamless integration with legacy industrial equipment and modern networks.
• Compact, modular design with multiple mounting options (VESA, DIN rail, ear mounts) and up to 64GB DDR5 memory allows easy customization and space-efficient installation.

Full Specifications

Practical Considerations

• Confirm exact processor and memory configuration at purchase, as the BPCAL03 series offers multiple CPU options; the i5-1235U provides strong balance of performance and efficiency.
• Plan for optional wide-range DC input board if operating from variable industrial power sources; standard 150W adapter is included for most setups.
• Utilize the modular I/O and mounting kits for custom installations—verify DIN rail or VESA compatibility with your enclosure or panel before deployment.

Frequently Asked Questions

• Q: Is the Shuttle BPCAL03-I5U truly fanless? Yes, the aluminum chassis design eliminates fans for silent, dust-resistant operation ideal for industrial and public environments.
• Q: What operating systems are supported? Windows 10/11 IoT Enterprise 64-bit and Linux 64-bit are officially supported; check Shuttle’s support site for the latest drivers and BIOS updates.
• Q: Can it handle multiple displays and legacy serial devices simultaneously? Absolutely—the dual HDMI ports support up to four independent displays, while the three COM ports (with RS-485/422 options) connect directly to industrial equipment like PLCs or sensors.
• Q: How rugged is the build for outdoor or extreme environments? The BPCAL03 model is rated for -20°C to 60°C operation with a rugged aluminum/steel chassis, making it suitable for many harsh or semi-outdoor installations when properly enclosed.
• Q: How does it compare to similar models? Compared to standard NUC-style mini PCs, the BPCAL03 offers superior wide-temp tolerance, more COM ports, and industrial certifications; versus older Shuttle box PCs, it benefits from faster DDR5 memory, 2.5GbE LAN, and 12th-gen Intel efficiency.
• Q: What is the warranty and local support? Shuttle typically offers a standard 2–3 year warranty (confirm with reseller); Australian customers can access support via local distributors or global.shuttle.com for RMA and technical assistance—check your purchase documentation for region-specific details.
