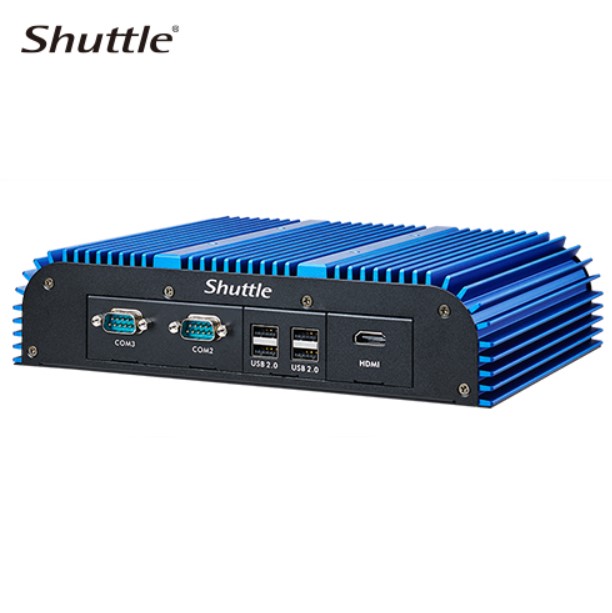

Shuttle BPCAL02 Box PC, Intel i5-1235U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount

Shuttle BPCAL02 Box PC, Intel i5-1235U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount

Shuttle’s BPCAL02 and BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads. These computers support dual-channel DDR5-4800 memory, enhance caching, and ensure data security. Powered by i5/i7 processors and Intel® Iris Xe graphics, they accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more. Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments. Additionally, the BPCAL03 is capable of operating in a wide temperature range (-20°C to +60°C).
Memory 2 x 262 pin SO-DIMM up to 64GB
Dual Channel DDR5 4800 MHz
BIOS AMI UEFI 64 Mbit
Display Interface 2 x HDMI 2.0b: 4096 x 2160@60Hz
Display output max: 4 independent or clone
Audio Codec Realtek ALC888s-VD 2-channel
Ethernet 2 x Intel® 2.5G LAN
WLAN Intel WiFI Module (802.11 a/b/g/n/ac) BT 5.0 (Option), Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option), External antenna (Dipole) x2 (Option)
LAN 2 x RJ-45 (10/100/1000Mbps/2.5GbE)
Serial Ports 1 x RS-232 (DB-9), 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) 12V (with specific optional board)
USB 4 x USB3.2 Gen 2 (Type A), 4 x USB2.0
Type 1. 19V (without wide range board), 2. With wide range board, MB support 9-36V DC-in
Adapter BPCAL02: 19V/4.74A 90W external adapter,
OS Support Windows 11 Embedded 64bit, Linux 64bit
Operating Temperature BPCAL02: 0 ~ 40°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 20% – 80% RH (non-condensing)
EMC CE, FCC, VCCI, BSMI, RCM
Safety cTUVus, CB, CEC, BSMI

Who It’s For

Ideal for system integrators, industrial automation engineers, and IT professionals needing a compact, reliable embedded Box PC for edge computing, IoT gateways, and digital signage in retail, manufacturing, transportation, and kiosk environments. It suits 24/7 operation where dual high-speed networking, multiple serial ports, and flexible mounting are essential.

Real-World Use Cases

• Deploy as an industrial IoT edge device in factories for real-time process control, data collection from sensors via multiple COM ports, and local AI inference using the powerful Intel Core i5-1235U and Iris Xe graphics.
• Power digital signage or interactive kiosks in retail or public spaces, leveraging dual HDMI outputs for 4K displays, VESA mounting for easy installation, and dual 2.5GbE LAN for stable network connectivity.
• Serve as a reliable automation controller in transportation or logistics hubs, handling image recognition, vehicle tracking, and secure data transmission with its robust I/O and optional wide-temperature variants.
• Act as a compact server or gateway in smart building systems for video surveillance, access control, and analytics, benefiting from fanless design (per reseller specs), ample USB ports, and support for Windows IoT or Linux.

Key Advantages

• Delivers strong edge computing performance with 12th Gen Intel Core i5-1235U processor and Iris Xe graphics for AI workloads, data analysis, and multitasking without needing a bulky desktop.
• Ensures reliable high-speed connectivity via dual Intel 2.5G LAN ports, ideal for bandwidth-intensive applications like video streaming or industrial networking.
• Offers exceptional I/O flexibility with 3 configurable serial ports, 8 USB ports (including 4x USB 3.2 Gen 2), and dual HDMI 2.0b outputs supporting up to 4 displays.
• Features compact dimensions (245 x 57 x 169 mm), multiple mounting options including VESA, and a 90W external adapter for straightforward integration in space-constrained or industrial settings.

Full Specifications

Practical Considerations

• Confirm exact processor and memory configuration at purchase, as the base model ships with i3 but i5-1235U is a common upgrade option for this SKU.
• Plan for storage expansion—use the M.2 slot for fast NVMe boot drives and the SATA bay for additional capacity in data-heavy applications.
• Verify power requirements; the standard 90W adapter suits most indoor setups, but opt for the wide-range DC board for industrial environments with variable voltage.

Frequently Asked Questions

• Q: Is the BPCAL02 fanless? Yes, reseller documentation and product positioning confirm a fanless design for silent, reliable operation in industrial and public environments.
• Q: Can it support multiple displays? Yes, dual HDMI 2.0b ports enable up to four independent or cloned displays at 4K@60Hz, making it suitable for multi-monitor kiosks or control panels.
• Q: What storage and expansion options are available? It includes one M.2 2280 slot (PCIe NVMe/SATA) and one 2.5″ SATA bay; optional Wi-Fi/Bluetooth modules and external antennas are available for wireless needs.
• Q: Is it suitable for 24/7 operation? Yes, designed for continuous use in industrial IoT with watchdog timer, robust build, and wide OS support including Windows IoT Enterprise.
• Q: How does it compare to similar models? Compared to older Shuttle Box PCs, the BPCAL02 offers newer 12th Gen Alder Lake CPU, faster DDR5 memory, dual 2.5G LAN, and more USB 3.2 ports; versus competitors like some Advantech or AAEON models, it provides better value in compact form with strong I/O flexibility at a competitive price.
• Q: What is the warranty and local support? Shuttle typically offers a 2-3 year warranty (confirm with reseller); in Australia, check authorized sellers like Virtue IT or JW Computers for local support, RMA processes, and extended options.
