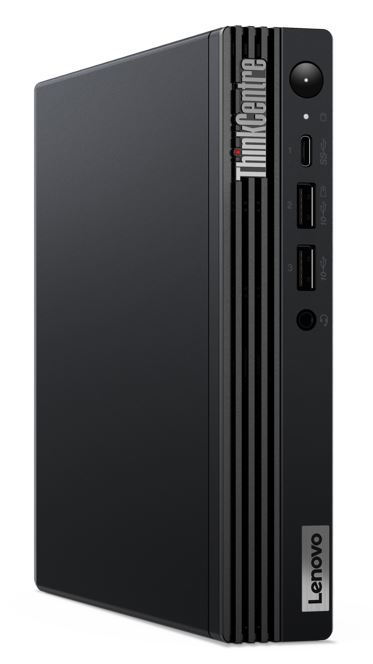

LENOVO ThinkCentre M70q G5 Tiny Desktop PC Intel i5-14400T 16GB DDR5 256GB SSD Windows 11 Pro 3yrs Onsite UHD Graphics LAN Keyboard Mouse

LENOVO ThinkCentre M70q G5 Tiny Desktop PC i5-14400T 16GB DDR5 256GB SSD Windows 11 Pro 3yrs Onsite Wty UHD Graphics WiFi6 Keyboard Mouse

Technical Specification

Form Factor Tiny (1L)

Processor Intel® Core™ i5-14400T, 10C (6P + 4E) / 16T, P-core 1.5 / 4.5GHz, E-core 1.1 / 3.2GHz, 20MB

Memory 2x 8GB SO-DIMM DDR5-4800

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Storage 256GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal

Storage Support Dual SSD mode: up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB

Expansion Slots Three M.2 slots (one for WLAN, two for SSD)

Graphics Integrated Intel® UHD Graphics 730

Operating System Windows® 11 Pro

Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with [email protected] charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)

Rear Ports
1x USB-A (Hi-Speed USB / USB 2.0)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)

Keyboard USB Traditional Keyboard, Black, English

Mouse USB Calliope Mouse, Black

WLAN + Bluetooth Intel® Wi-Fi® 6 AX201, 802.11ax 2×2 + BT5.2

Ethernet Integrated 100/1000M

Chipset Intel® Q670 Chipset

Dimensions (WxDxH) 179 x 182.9 x 36.5 mm

Weight 1.25 kg

Base Warranty 3-year, Onsite

Who It’s For

Ideal for small business offices, home professionals, and IT-managed environments needing a compact, reliable desktop for productivity, light content creation, and secure daily computing. Its tiny 1L form factor suits space-constrained desks, reception areas, or digital signage setups where performance and quiet operation are essential.

Real-World Use Cases

• Office productivity hub for document editing, email, video calls, and multi-tab browsing with efficient multitasking powered by the 10-core i5 processor and DDR5 memory.
• Secure point-of-sale or reception terminal in retail or healthcare settings, leveraging Windows 11 Pro, TPM 2.0, and 3-year onsite warranty for reliable daily use.
• Compact workstation for remote workers or hybrid offices, supporting up to 4 displays via HDMI, DP, and optional ports for spreadsheets, presentations, and light design work.
• Digital signage or kiosk controller in public spaces, benefiting from the silent tiny chassis, Gigabit LAN, and optional Wi-Fi 6E for always-on operation.

Key Advantages

• Ultra-compact 1L tiny design saves valuable desk space while delivering powerful 14th-gen Intel Core i5 performance for smooth everyday tasks.
• Energy-efficient i5-14400T processor with integrated UHD Graphics 730 provides strong multitasking and basic graphics without high power draw or noise.
• Future-ready DDR5 memory, fast NVMe SSD storage, and Windows 11 Pro ensure responsive performance and enhanced security features out of the box.
• Includes wired keyboard and mouse plus comprehensive 3-year onsite warranty with LAN connectivity for plug-and-play deployment in professional environments.

Full Specifications

Practical Considerations

• Verify power adapter wattage if adding optional ports or external devices; 135W may be needed for certain configurations.
• The tiny chassis excels in VESA-mounted or under-desk setups but has limited internal expansion—plan for external storage or cloud solutions if needed beyond dual SSDs.
• Wi-Fi and optional Ethernet upgrades are available at purchase; confirm regional regulatory compliance for wireless features in Australia.

Frequently Asked Questions

• Q: What is the maximum expandable memory and storage? Up to 64GB DDR5 across two SODIMM slots and dual M.2 2280 NVMe SSDs (up to 2TB each) with RAID support for performance and redundancy.
• Q: Does it support multiple monitors? Yes, up to four independent displays via onboard HDMI 2.1, DP 1.4a, and optional punch-out ports (HDMI, DP, or VGA).
• Q: Is it suitable for light gaming or video editing? The UHD 730 graphics and efficient 10-core CPU handle casual 1080p gaming, basic photo/video editing, and multitasking well, but it’s optimized for productivity rather than heavy creative workloads.
• Q: How quiet is the system during operation? The tiny form factor and low-power T-series processor keep fan noise minimal, making it ideal for quiet office or shared workspaces.
• Q: How does it compare to similar models? Compared to prior M70q Gen 4 or non-Tiny ThinkCentres, the Gen 5 offers newer 14th-gen Intel processors, DDR5 memory, faster USB ports, and better multi-display support in the same compact size; it outperforms older i5 models in efficiency and features while remaining more affordable than i7 variants.
• Q: What is the warranty and local support? Comes with 3 years onsite warranty; in Australia, Lenovo provides local support through authorized service partners with next-business-day response options depending on the service level purchased.
