ASUS AMD B850M AYW GAMING WIFI, AM5, 2DIMM, 128GB DDR5, 8200+MT/s, PCIe5.0 x16, x2 M.2, WiFi6, 2.5GbE, USB 10Gbps, HDMI2.1

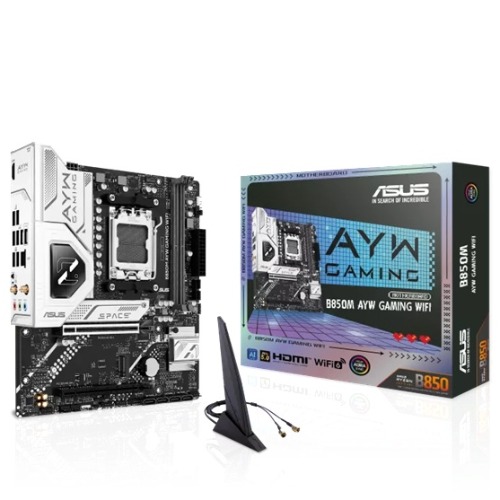

ASUS AMD B850M AYW GAMING WIFI

ASUS B850 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

SPECIFICATION
Model
B850M AYW GAMING WIFI

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 8000 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset
AMD B850 Chipset

Memory
2 x DIMM slots, max. 128GB, DDR5 Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen™ 9000 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported

Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless Bluetooth
Wi-Fi 6
1×1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
micro-ATX Form Factor
9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
