Name: Ubiquiti U7 Outdoor, 4 Spatial Streams, 465 m² Coverage, 200+ Devices, PoE+ Power, 2.5 GbE Uplink, Versatile Wall Pole Mounting
SKU: NHU-U7-OUTDOOR
Availability: InStock

Ubiquiti U7 Outdoor, 4 Spatial Streams, 465 m² Coverage, 200+ Devices, PoE+ Power, 2.5 GbE Uplink, Versatile Wall Pole Mounting

$408.17 inc GST

Manufacturer: Ubiquiti

Stock: BRS:20+ ADL:20+ SYD:20+ MEL:30(wh:32) PER:20+

20 in stock

SKU: NHU-U7-OUTDOOR Categories: Network - UniFi, WiFi

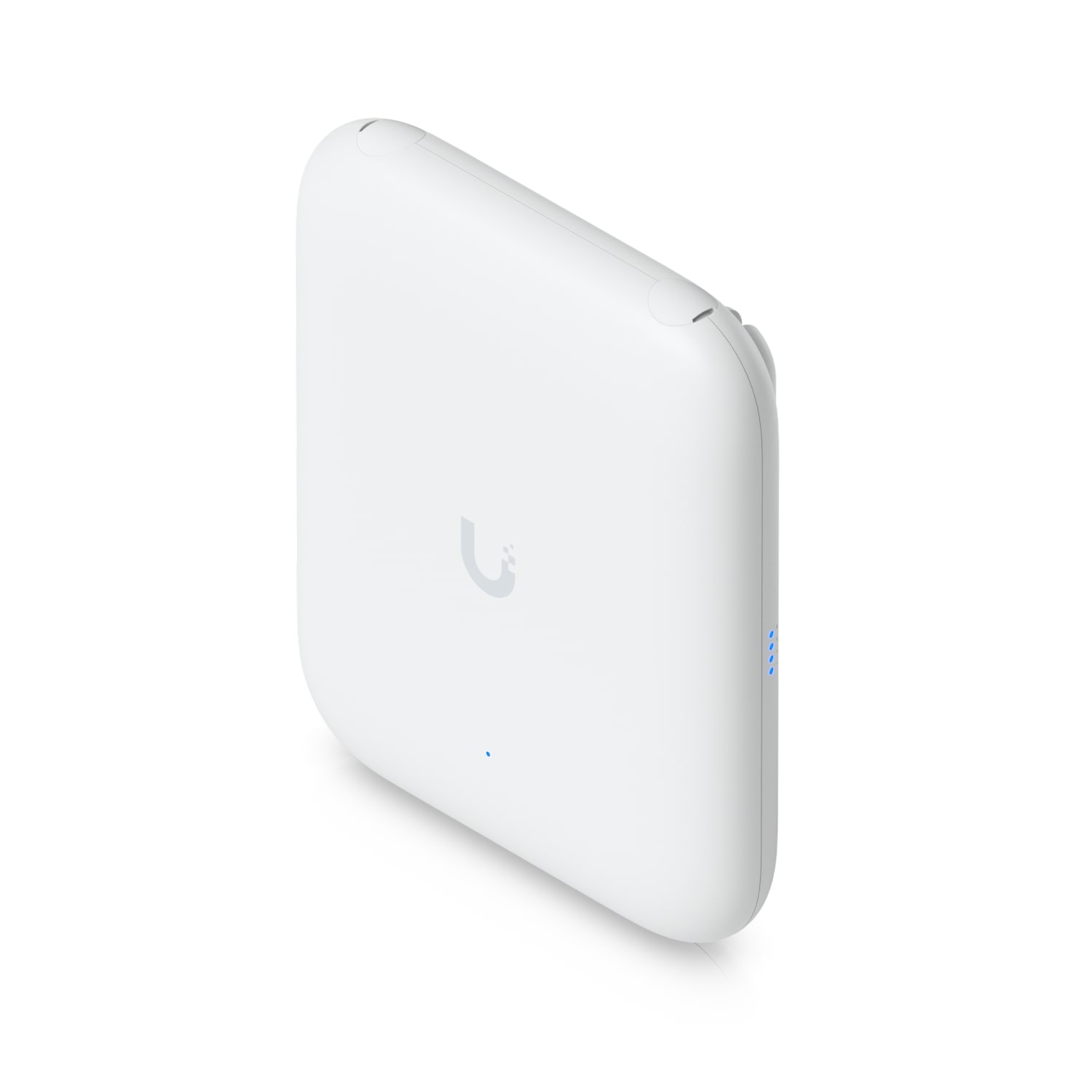

Ubiquiti U7 Outdoor

SKU: U7-Outdoor

Tech Specs: Click Here
Installation Guide: Click Here

Description: All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.

Features:
•WiFi 7
•4 spatial streams
•465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
•Software-adjustable antenna beamwidth for balanced coverage with the included omni antennas
•200+ connected devices
•Powered using PoE+
•2.5 GbE uplink

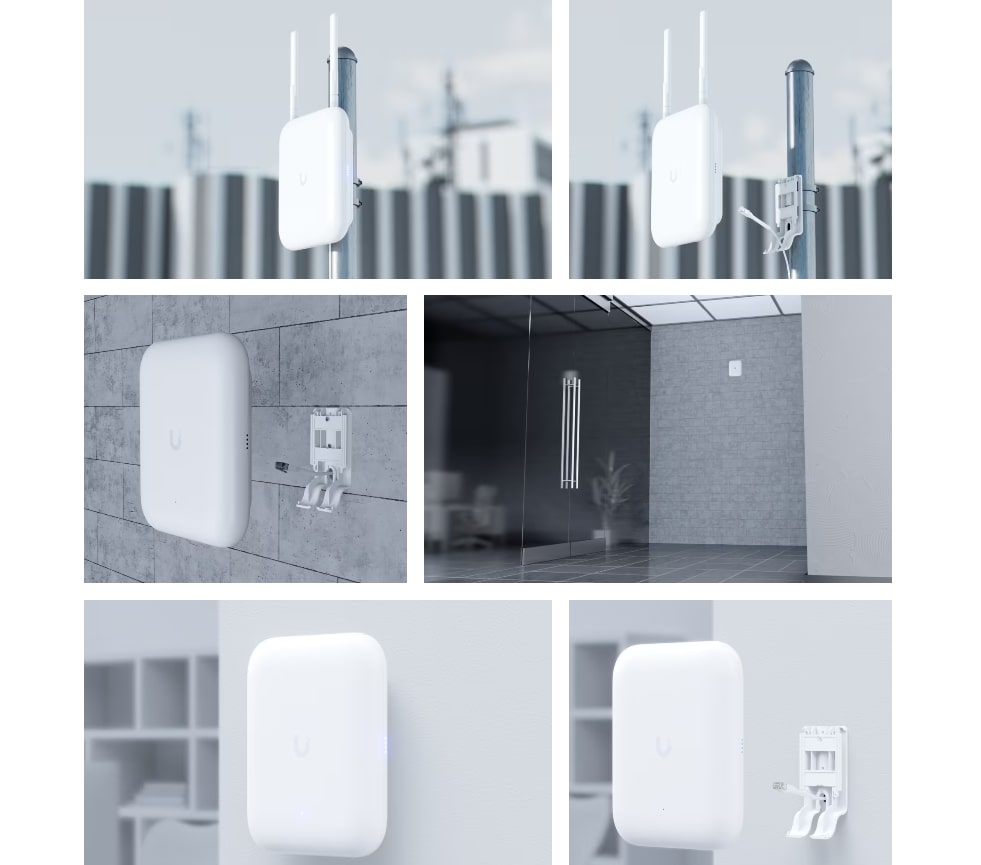

•Versatile wall and pole mounting
•Weatherproof (outdoor exposed)

Why Choose This?

The Ubiquiti U7 Outdoor is a high-performance WiFi 7 access point engineered for demanding outdoor environments, delivering blazing-fast speeds up to 4.3 Gbps on 5 GHz and coverage across 465 m² (5,000 ft²) for 250+ devices simultaneously. Its weatherproof IPX6-rated design, powered by PoE+ and featuring a 2.5 GbE uplink, ensures reliable connectivity in harsh conditions with versatile wall or pole mounting options. Choose it for superior all-weather performance, advanced features like MLO and fast roaming, and seamless scalability in UniFi networks.

Key Features

WiFi 7 with 4 spatial streams – Delivers multi-gigabit speeds and enhanced capacity for high-density outdoor deployments.
465 m² (5,000 ft²) coverage – Integrated directional super antenna provides long-range, focused WiFi for large areas.
250+ device capacity – Handles heavy client loads with MU-MIMO, band steering, and advanced radio management.
PoE+ powered, 2.5 GbE uplink – Simplifies installation with single-cable power and high-speed backhaul.
IPX6 weatherproof, versatile mounting – Ensures durability in extreme weather and easy wall/pole installation.

Full Specifications

Category	Details
WiFi Standard	WiFi 7 (802.11be)
Spatial Streams	4
MIMO Configuration	5 GHz: 2 x 2 (DL/UL MU-MIMO); 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate	5 GHz: 4.3 Gbps (BW240); 2.4 GHz: 688 Mbps (BW40)
Antenna Gain (5 GHz)	Directional internal: 12.5 dBi (45° x 45°); External omni: 4 dBi (360° x 30°)
Antenna Gain (2.4 GHz)	Directional internal: 8 dBi (90° x 90°); External omni: 3 dBi (360° x 30°)
Max. TX Power	5 GHz: 26 dBm; 2.4 GHz: 23 dBm
Coverage Area	465 m² (5,000 ft²)
Max. Client Count	250+
Networking Interface	(1) 1/2.5 GbE RJ45 port
Power Method	PoE+ (Max. consumption: 19W; 42.5–57V DC)

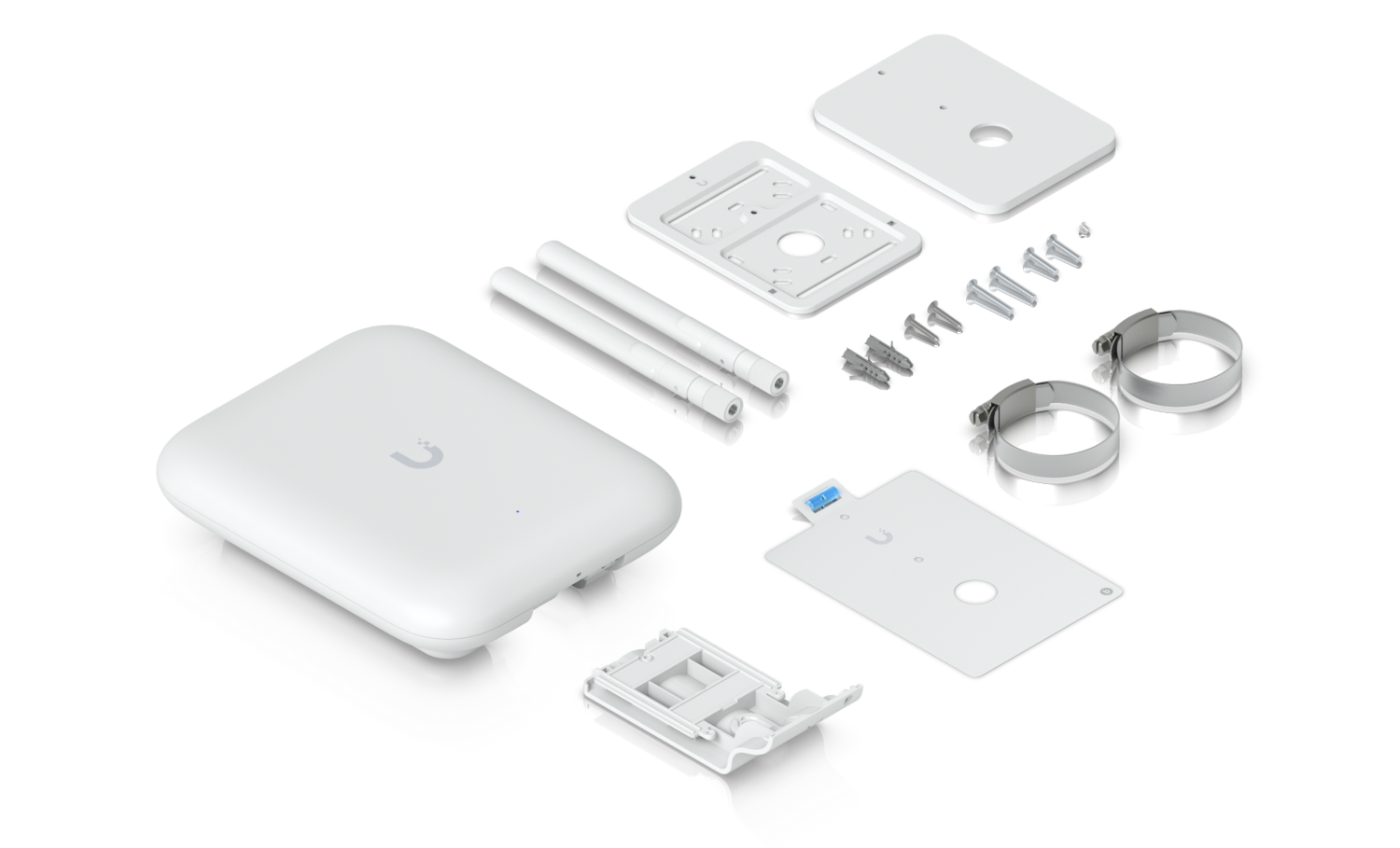

Mounting Options	Wall, pole (1–2.36″ / 25–60 mm diameter; mounts included)

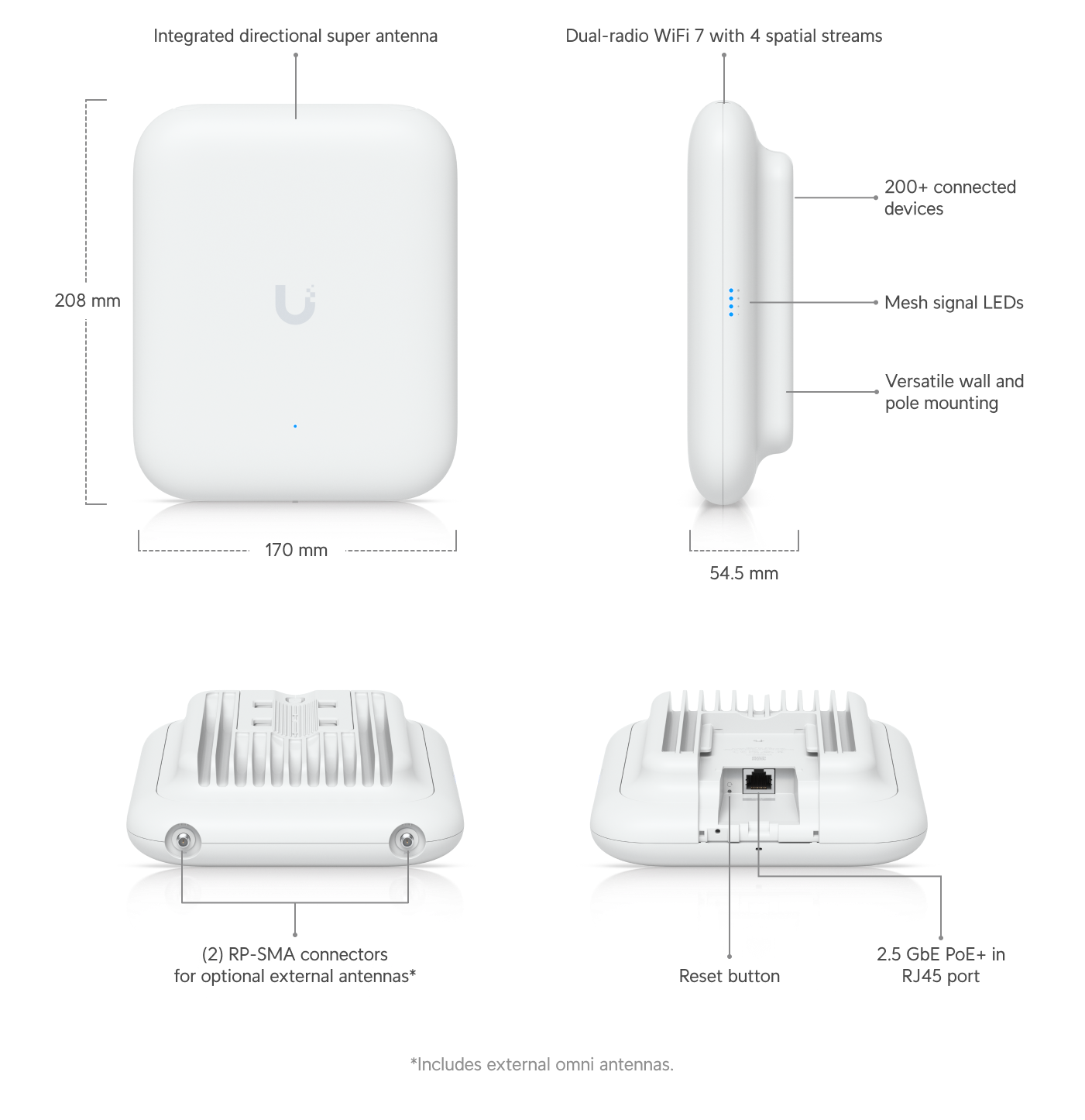

Dimensions	170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1″)
Weight	1.2 kg (2.6 lb)
Weatherproofing	IPX6
Operating Temperature	-30 to 60°C (-22 to 140°F)
Operating Humidity	5 to 95% noncondensing
Wind Loading	74.6 N at 200 km/h (16.8 lbf at 125 mph)
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

Q: Does the U7 Outdoor support 6 GHz? No, it operates on 2.4 GHz and 5 GHz bands only, unlike the U7 Pro Outdoor model.
Q: What power supply is required? PoE+ (802.3at) with max 19W consumption; supports 42.5–57V DC over the 2.5 GbE port. PoE injector not included.
Q: Can it be used for mesh networking? Yes, it supports wireless meshing for flexible outdoor deployments without Ethernet backhaul.
Q: Is the antenna switchable between directional and omni? Yes, it includes internal directional antenna and external RP-SMA connectors for included omni antennas.
Q: What UniFi Network version is needed? Requires recent UniFi Network application versions supporting WiFi 7 devices for full management.

Weight	1.78 kg
Dimensions	274 × 230 × 114 mm
Product Create Date	31/05/2024

Web Link	Visit Manufacturer Page →
Manufacturer	Ubiquiti
Warranty	12
Manufacturer SKU	U7-Outdoor
Opt Accessory	NHU-ETH-SP-G2, NHU-UICARE-U7-OUTDOOR-D
