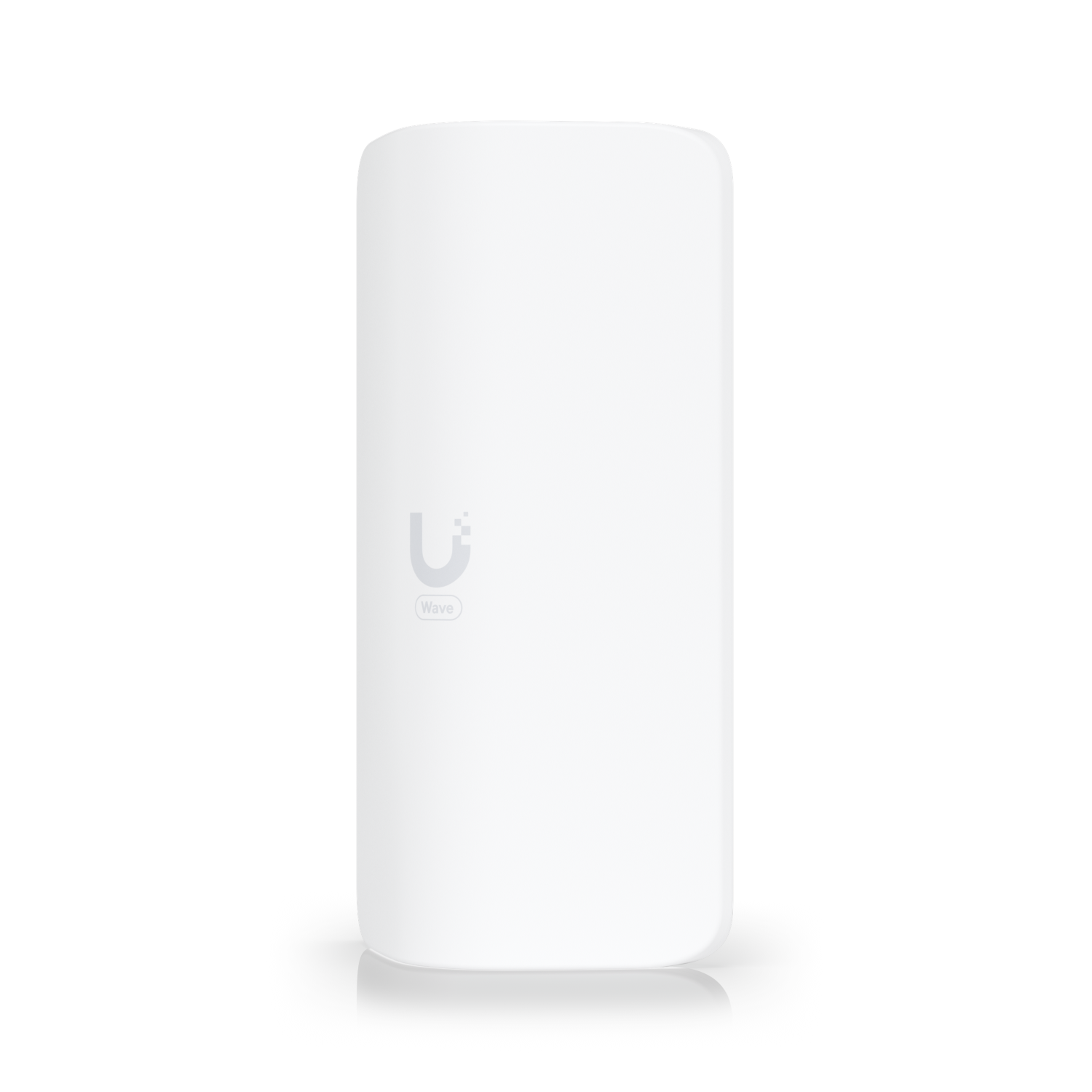

Ubiquiti Wave AP Micro. Wide-coverage 60 GHz PtMP Access Point Powered by Wave Technology

Ubiquiti Wave AP Micro. Wide-coverage 60 GHz PtMP Access Point Powered by Wave Technology,

$1,001.98 inc GST

Manufacturer: Ubiquiti

Availability: BRS:0 ADL:0 SYD:0 MEL:2 WA:0

2 in stock

Compare
SKU: NHU-WAVE-AP-MICRO Categories: ,

UbiquitiWave AP Micro

SKU: Wave-AP-Micro

Description: UbiquitiWide-coverage 60 GHz PtMP access point powered by Wave Technology.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
• Max. throughput: 5 Gbps (2.5 Gbps duplex)
• 90° sector coverage
• 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
• (1) 2.5 GbE WAN port
• 15 client capacity:
— Wave Pro (6 km link range)
— Wave Long-Range (6 km link range)
— Wave Nano (4 km link range)
— Wave Pico (0.9 km link range)
• Integrated GPS Bluetooth





Why Choose This?

The Ubiquiti Wave AP Micro is a compact, wide-coverage 60 GHz PtMP access point powered by proprietary Wave Technology, delivering up to 5 Gbps total throughput (2.5 Gbps duplex) with 90° sector coverage for efficient multi-client deployments. It supports up to 31 clients and link ranges up to 6 km with compatible Wave stations, ensuring high-speed, reliable connectivity in demanding outdoor environments. A weather-resilient 5 GHz backup radio provides seamless failover, making it ideal for ISPs and enterprises needing robust PtMP wireless solutions.

Key Features

  • 60 GHz main radio with 5 Gbps throughput – Enables ultra-high-speed PtMP connections for multiple clients over wide areas.
  • 90° sector coverage and 20 dBi antenna gain – Provides broad signal distribution, reducing the need for multiple APs.
  • 5 GHz WiFi 6 backup radio (800+ Mbps) – Ensures reliable operation during rain fade with automatic failover.
  • Integrated GPS and Bluetooth management – Simplifies precise installation, synchronization, and setup via UISP Mobile app.
  • Rugged IPX6 weatherproof design – Withstands harsh conditions from -40°C to 60°C for long-term outdoor reliability.

Full Specifications

Category Details

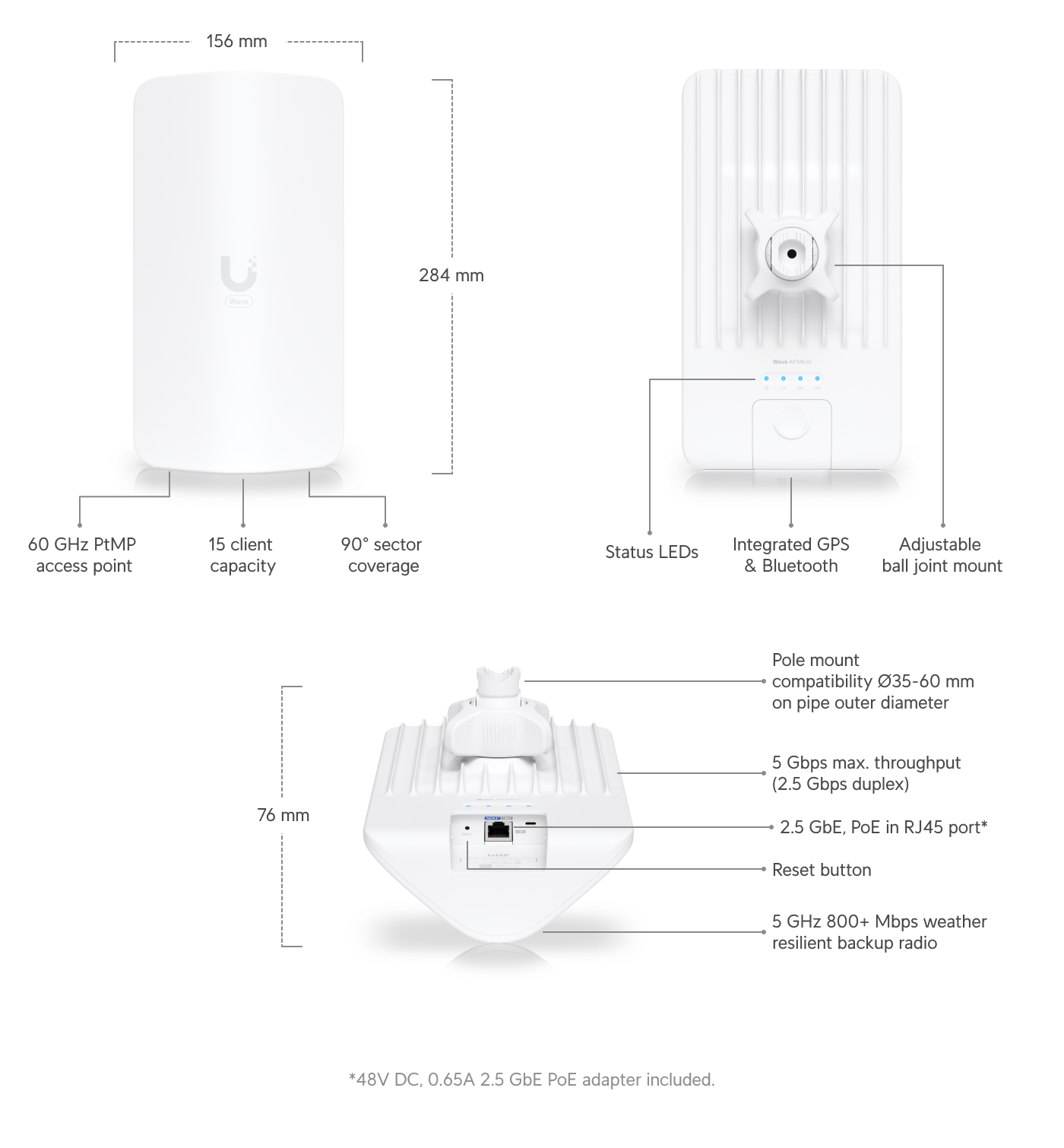

Dimensions 284 x 156 x 76 mm (11.2 x 6.1 x 3″)
Weight 1.3 kg (2.87 lb)
Enclosure Materials Aluminum alloy, UV stabilized polycarbonate
Mount Material Stainless steel, UV stabilized polycarbonate
Pole Mount Diameter 35 to 60 mm (1.4 to 2.4″)
Wind Loading 87 N at 200 km/h (20 lbf at 125 mph)
Weatherproofing IPX6
Processor Quad-core ARM Cortex-A53 at 1.4 GHz
Memory DDR3L 512 MB
Networking Interface (1) 2.5 GbE RJ45 port (100/1000/2500)
Max Power Consumption 24W
Power Method 48V DC passive PoE (4-pairs or 2-pairs); 24V DC passive PoE (4-pairs)
Power Supply 48V DC, 0.65A, 2.5 GbE PoE adapter (included)
GPS Yes
Operating Temperature -40 to 60°C (-40 to 140°F)
Operating Humidity 5 to 95% non-condensing
Certifications FCC, IC, CE
OS airOS®
Operating Mode PtMP Access Point
Total Throughput 5 Gbps (2.5 Gbps duplex)
Supported Clients Up to 31 (with firmware 3.4.0+)
Max Range (to Wave Pro/Long-Range) Up to 6 km (3.7 mi)
Max Range (to Wave Nano) Up to 4 km (2.5 mi)
Max Range (to Wave Pico) Up to 0.9 km (0.6 mi)
60 GHz Frequency 57 to 71 GHz (region dependent)
60 GHz Antenna Gain 20 dBi
60 GHz Beamwidth (Azimuth) 90° (3 dB)
Backup Radio (5 GHz) 802.11ax (WiFi 6), up to 800+ Mbps, 13.5 dBi gain

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

  • Q: What is Wave Technology? Proprietary Ubiquiti technology engineered to maximize speed and performance across long distances in 60 GHz PtMP networks.
  • Q: How many clients can the Wave AP Micro support? Up to 31 concurrent clients with firmware version 3.4.0 or later.
  • Q: What are the maximum link ranges? Up to 6 km to Wave Pro or Long-Range, 4 km to Wave Nano, and 0.9 km to Wave Pico.
  • Q: Does it support compatible stations? Only Ubiquiti Wave 60 GHz radios like Wave Pro, Long-Range, Nano, and Pico; not third-party devices.
  • Q: What is the role of the 5 GHz backup radio? Provides weather-resilient failover connectivity at 800+ Mbps using WiFi 6 when 60 GHz is affected by rain fade.
Weight 2.32 kg
Dimensions 338 × 198 × 174 mm
Product Create Date

15/08/2023
Web LinkVisit Manufacturer Page →
ManufacturerUbiquiti
Warranty12
Manufacturer SKUWave-AP-Micro
Opt AccessoryNHU-WAVE-AP-MICMOUNT
