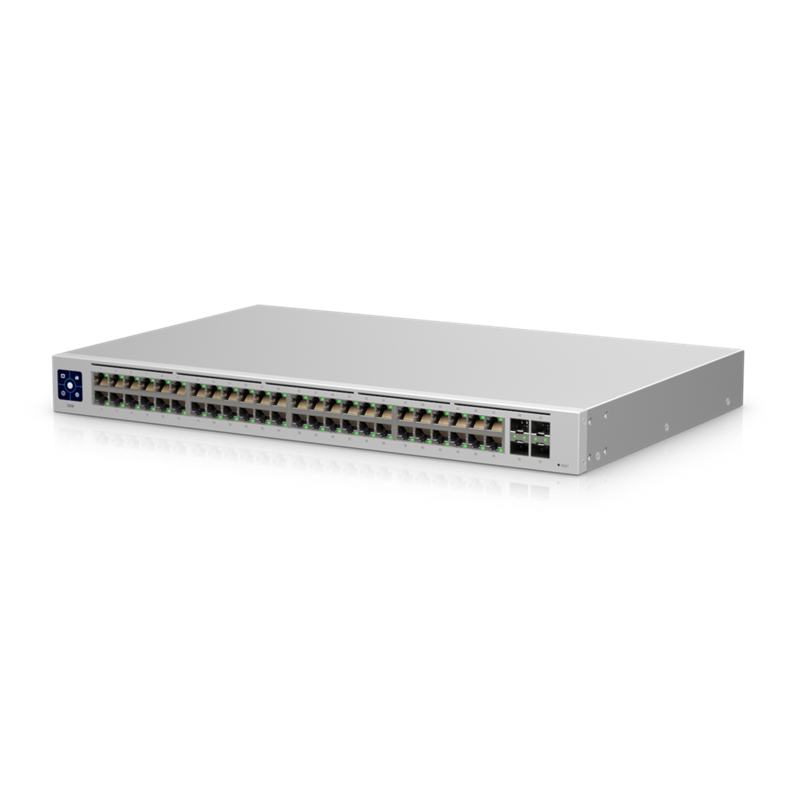

Ubiquiti UniFi USW-48, 48-port Managed Gigabit Layer2 Switch – 48x Gigabit Ethernet Ports 4x SFP Port Touch Display,

Ubiquiti Standard 48

SKU:USW-48

Description: The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features:
•(48) GbE ports
•(4) 1G SFP ports
•Fanless, silent cooling
•1.3″ touchscreen display, supports UniFi Network AR
•Managed by UniFi Network Controller (5.13.10 or later)

Tech Specs: Click Here
Installation Guide: Click Here

Why Choose This?

The Ubiquiti UniFi USW-48 is a fully managed Layer 2 Gigabit switch designed for expanding network capacity in offices, SMBs, and enterprises, delivering reliable 1 Gbps connectivity to 48 devices. Its fanless design ensures silent operation, while the integrated 1.3″ touchscreen LCM provides instant status monitoring and quick troubleshooting without needing additional software. Paired with UniFi Network management, it offers advanced Layer 2 features like VLANs, IGMP snooping, and port aggregation for optimized performance and scalability.

Key Features

• 48 x 1 GbE RJ45 ports – Connect numerous devices at full Gigabit speeds for high-density networking.
• 4 x 1G SFP ports – Enable fiber uplinks for reliable, high-speed backbone connections to switches or routers.
• 1.3″ touchscreen LCM display – Allows standalone configuration, monitoring, and troubleshooting on the device itself.
• Fanless cooling system – Operates silently, ideal for noise-sensitive environments like offices.
• UniFi Network management – Centralized control with advanced Layer 2 features including VLANs, LACP, and STP for robust network security and efficiency.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Is the USW-48 fanless? Yes, it features a silent, fanless cooling system, making it suitable for quiet environments like offices.
• Q: Does it support PoE? No, the USW-48 does not provide Power over Ethernet; for PoE, consider the USW-48-POE model.
• Q: What management software is required? It is managed via the UniFi Network application (version 7.2.94 or later), with local control through the 1.3″ touchscreen LCM.
• Q: Are the SFP ports compatible with 10G? No, the 4 SFP ports support 1 Gbps only; for 10G uplinks, look at Pro series models like USW-Pro-48.
• Q: What Layer 2 features does it support? It includes LACP, STP/RSTP, IGMP Snooping, 802.1X, port isolation, rate limiting, and up to 1,000 VLANs.
