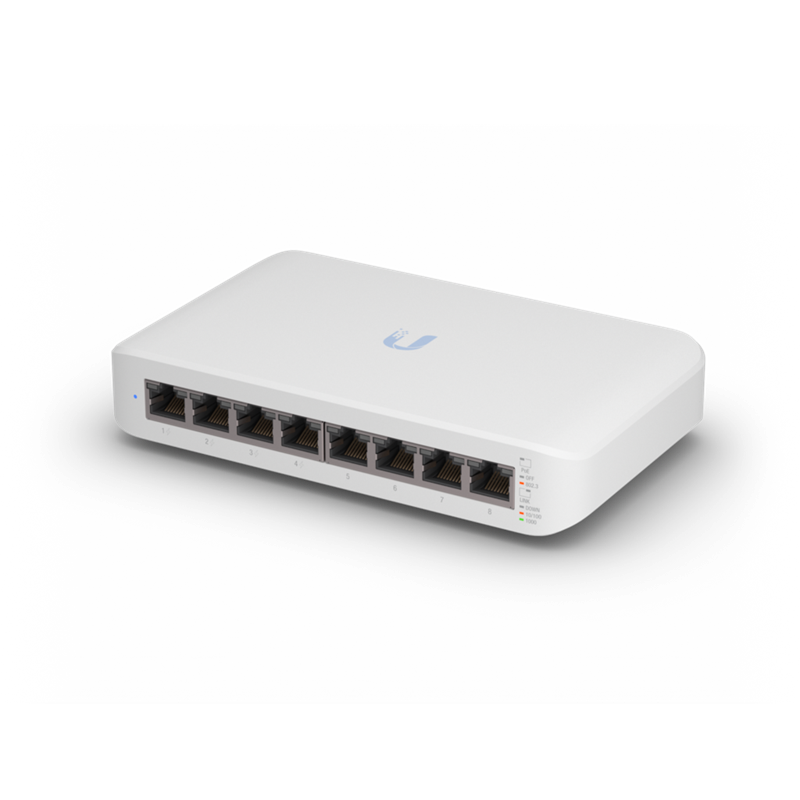

Ubiquiti UniFi Switch USW-Lite-8-POE, 4x PoE Output Ports, 52W PoE Supply, Fanless, Wall Mount Kit Included,

$232.05 inc GST

Manufacturer: Ubiquiti

Stock: BRS:20+ ADL:20+ SYD:20+ MEL:100+ PER:20+

20 in stock

SKU: NHU-USW-LITE-8-POE Categories: ,

Ubiquiti Lite 8 PoE

SKU: USW-Lite-8-POE

Description:An 8-port, Layer 2 PoE switch supporting silent fanless cooling.

Tech Specs: Click Here
Installation Guide: Click Here

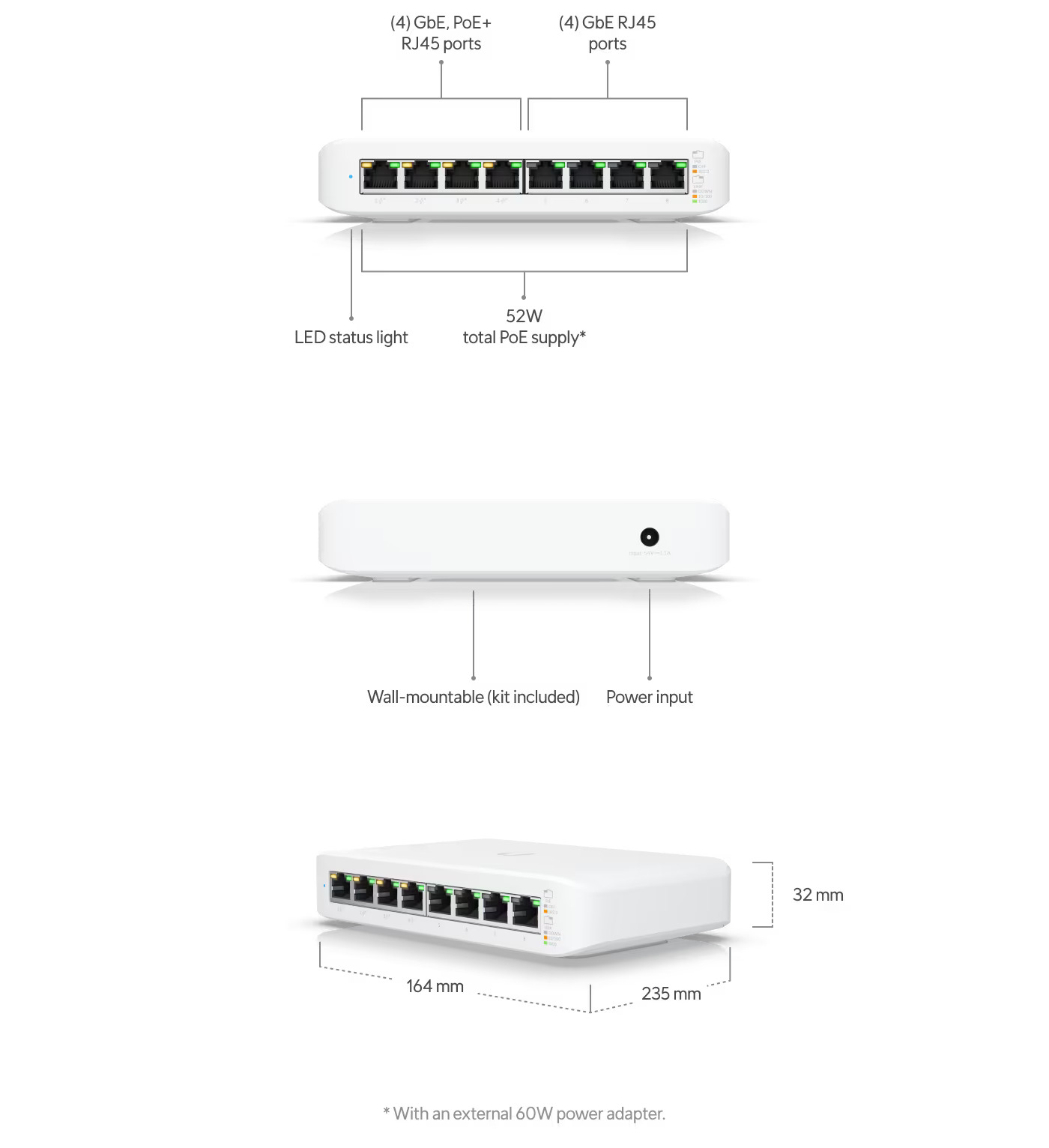

Features:
•(4) GbE PoE+, (4) GbE ports
•52W total PoE availability*
•Wall mountable
•Wall mountable







Why Choose This?

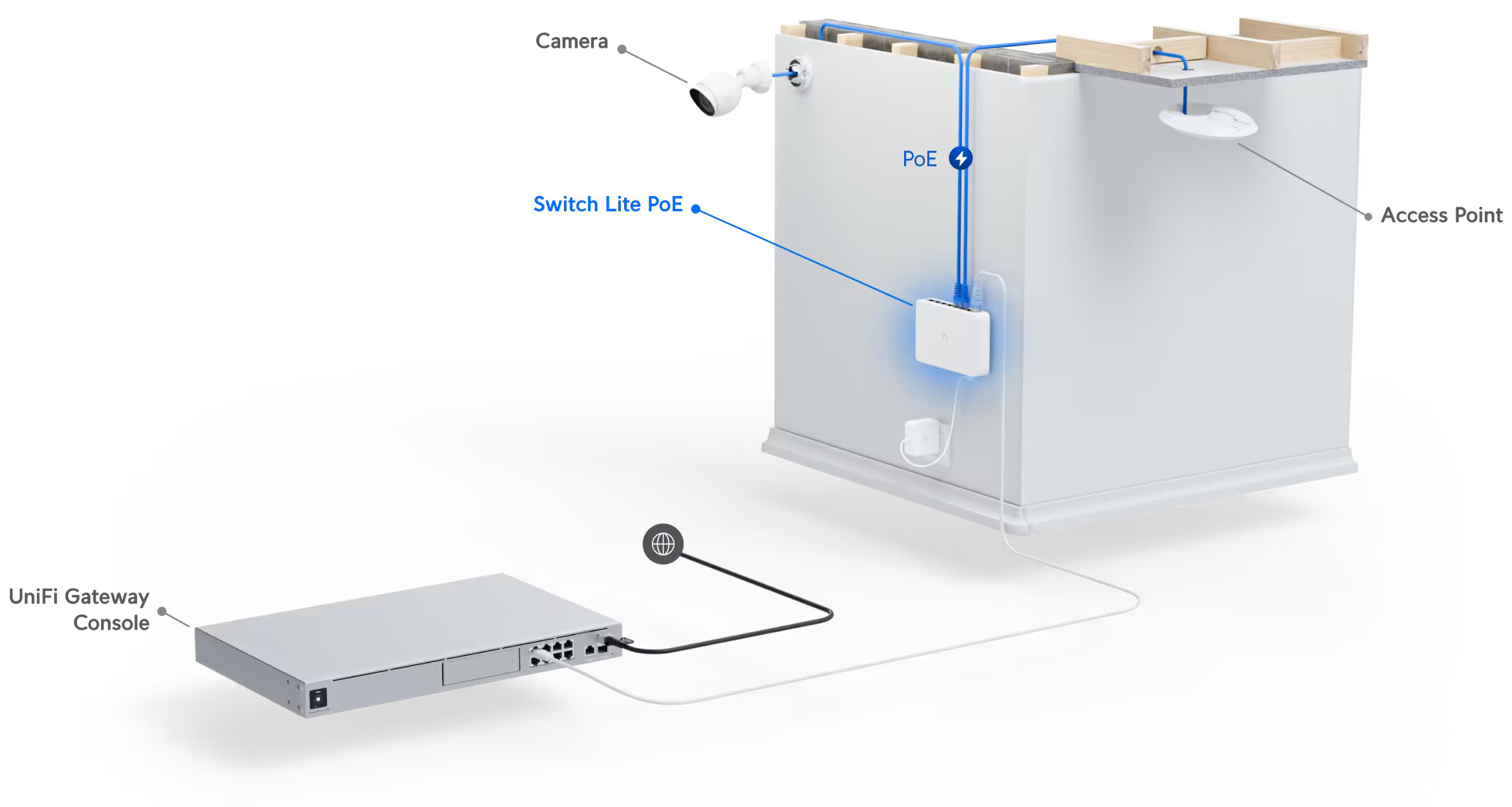

The Ubiquiti UniFi Switch USW-Lite-8-PoE is a compact, fully managed Layer 2 switch perfect for small networks, delivering eight Gigabit Ethernet ports with four PoE+ outputs up to 52W total budget to power devices like access points and cameras without extra injectors. Its fanless design ensures silent operation, while the included wall mount kit allows flexible desktop or wall installation. Seamlessly managed via the UniFi Network app, it offers robust features like VLAN support and IGMP snooping for reliable performance.

Key Features

  • 8 Gigabit Ethernet ports (4 PoE+) – Powers and connects multiple devices efficiently with up to 30W per PoE port.
  • 52W total PoE budget – Eliminates need for separate power supplies, simplifying deployments.
  • Fanless cooling – Operates silently, ideal for noise-sensitive environments like homes or offices.
  • UniFi Network management – Centralized control, monitoring, and firmware updates via web or mobile app.

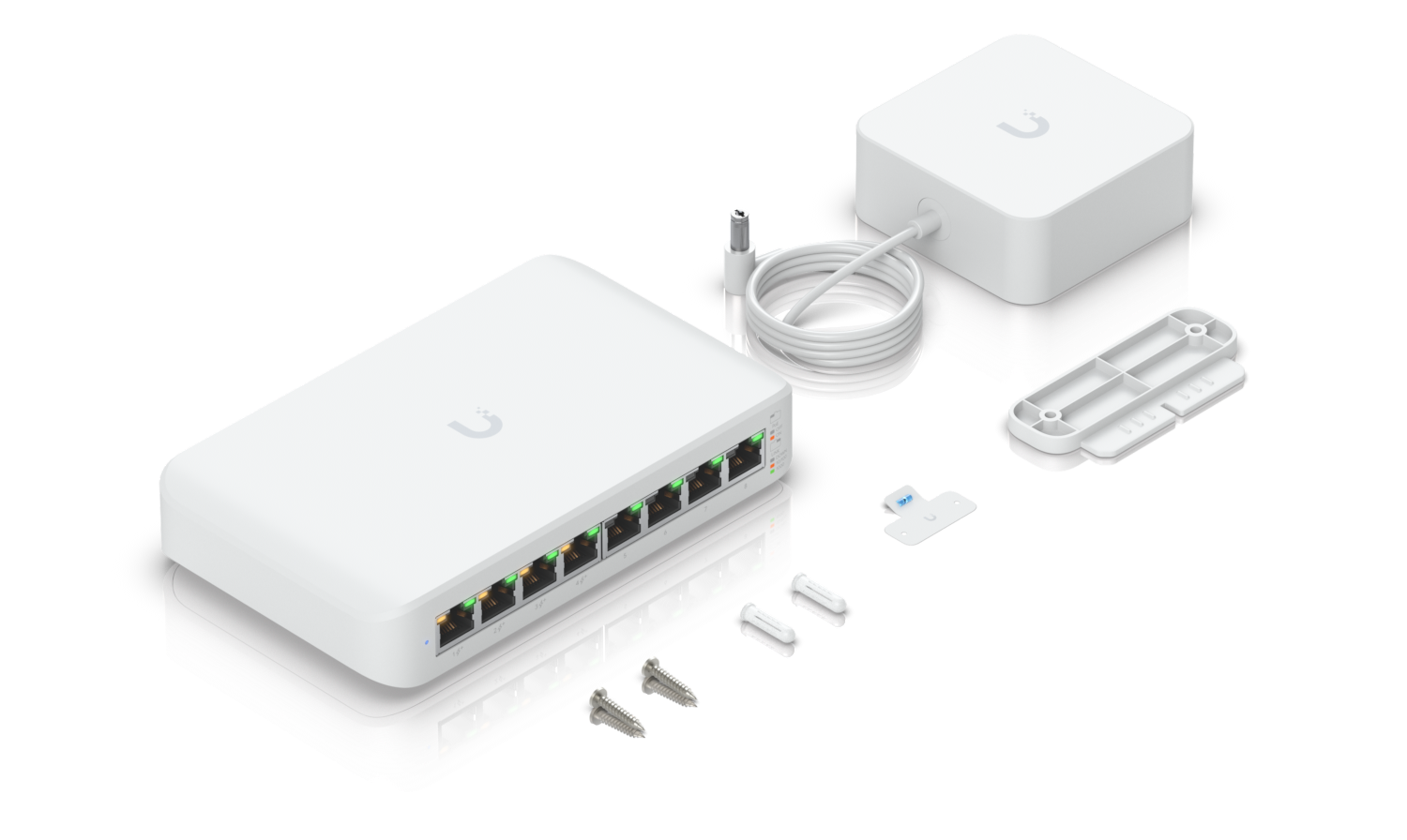

  • Wall/desk mountable – Versatile installation with included kit for space-saving setups.

Full Specifications

Category Details
Model USW-Lite-8-PoE
Dimensions 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25″)
Weight 295 g (10.4 oz)
Form Factor Compact desktop, wall mount (kit included)
Enclosure Material Polycarbonate
Networking Interfaces 8 x 1 GbE RJ45 ports (4 PoE+), 10/100/1000 Mbps
PoE Interfaces 4 x PoE+ (IEEE 802.3af/at, Pins 1,2+; 3,6-)
Max PoE Wattage per Port 30W (PoE+)
Total PoE Budget 52W
Switching Capacity 16 Gbps
Total Non-Blocking Throughput 8 Gbps
Forwarding Rate 12 Mpps
MAC Address Table Size 8,000
Supported VLANs 1,000
Max Power Consumption 8W (excluding PoE), 60W (including PoE)
Power Supply External AC/DC adapter, 60W (54V DC, 1.1A included)
Supported Voltage Range 50-57V DC
Cooling Fanless
Operating Temperature -15 to 40°C (5 to 104°F)
Operating Humidity 10-90% noncondensing
Certifications CE, FCC, IC
Management UniFi Network app (v7.2.94+), Ethernet in-band

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

  • Q: Is the USW-Lite-8-PoE fanless? Yes, it features silent fanless cooling, making it suitable for quiet environments.
  • Q: What is the total PoE power budget? 52W total across 4 PoE+ ports, with up to 30W per port.
  • Q: Does it include a power adapter? Yes, an external 60W AC/DC adapter (54V DC, 1.1A) is included.
  • Q: Can it be wall-mounted? Yes, a wall mount kit is included for flexible installation.
  • Q: What UniFi software version is required? UniFi Network version 7.2.94 or later for management.
Weight 0.75 kg
Dimensions 190 × 100 × 130 mm
Product Create Date

20/10/2020

Web LinkVisit Manufacturer Page →
ManufacturerUbiquiti
Warranty12
Manufacturer SKUUSW-Lite-8-POE
Opt AccessoryNHU-UC-C6-CMP, NHU-UACC-LRE, NHU-UC-PATCH-RJ45-50, NHU-UC-RJ45-BK-50, NHU-UC-RJ45-BL-50, NHU-PRO-XG-AGGREGATION, RCRKST-RS-RB-01
