Ubiquiti UniFi Switch Lite 16 PoE, Layer 2, 16x GbE RJ45 Ports, 8x 802.3at PoE+ Ports, 45W PoE, Silent Operation, Wallmount Kit Include,

$412.93 inc GST

Manufacturer: Ubiquiti

Stock: BRS:20+ ADL:20+ SYD:20+ MEL:99(wh:101) PER:20+

20 in stock

SKU: NHU-USW-LITE-16-POE Categories: ,

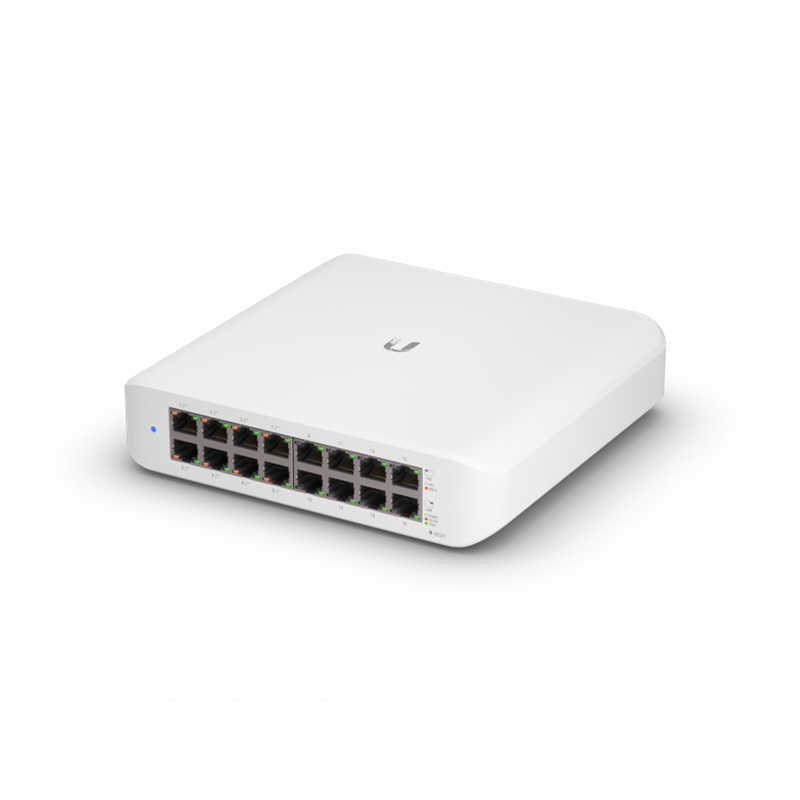

Ubiquiti Lite 16 PoE

SKU:USW-Lite-16-POE

Description: A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•(8) GbE PoE+, (8) GbE ports
•45W total PoE availability
•Wall mountable







Why Choose This?

The Ubiquiti UniFi Switch Lite 16 PoE (USW-Lite-16-POE) is a compact, fully managed Layer 2 switch perfect for small to medium networks, delivering reliable Gigabit connectivity and PoE+ power to devices like access points and cameras. Its fanless design ensures silent operation, making it ideal for offices or homes, while the included wall-mount kit offers flexible deployment options. With easy management via the UniFi Network app, it simplifies network expansion without complexity or noise.

Key Features

  • 16 GbE RJ45 ports (8 PoE+) – Powers and connects multiple devices like APs and cameras over a single cable.
  • 45W total PoE budget – Efficiently supplies up to 30W per PoE+ port for reliable device operation.
  • Fanless, silent cooling – Operates quietly without fans, perfect for noise-sensitive environments.

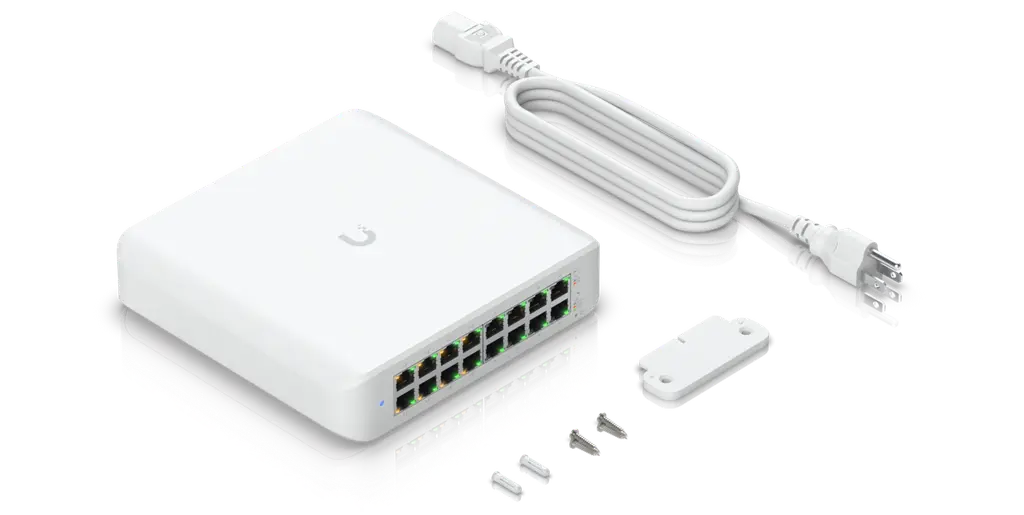

  • Wall-mountable design – Includes kit for easy, space-saving installation on walls or desks.
  • UniFi Network management – Intuitive app-based configuration, monitoring, and Layer 2 features like VLANs and IGMP snooping.

Full Specifications

Category Details
Model USW-Lite-16-POE
Form Factor Desktop, wall-mountable (kit included)
Dimensions 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72″)
Weight 1.2 kg (2.6 lb)
Total Non-Blocking Throughput 16 Gbps
Switching Capacity 32 Gbps
Forwarding Rate 24 Mpps
Networking Interfaces (16) 10/100/1000 Mbps GbE RJ45 ports (8 with PoE/PoE+)
PoE Interfaces (8) 802.3at PoE+ (Pins 1,2+; 3,6-)
Total PoE Budget 45W
Max PoE+ per Port 30W
Max Power Consumption 15W (excluding PoE output)
Power Supply Internal 60W AC/DC
Power Method 100-240V AC, 50/60 Hz
Management Ethernet in-band; UniFi Network app v7.2.94+
Layer 2 Features IGMP Snooping, STP/RSTP, LACP, Port Isolation, Storm Control, VLANs (up to 1,000), MAC Table (8K)
Operating Temperature -15 to 40°C (5 to 104°F)
Operating Humidity 10-90% non-condensing
Certifications CE, FCC, IC
Enclosure Material Polycarbonate

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

  • Q: How many PoE ports does it have and what’s the budget? 8 x 802.3at PoE+ ports with a total 45W budget, up to 30W per port.
  • Q: Is the switch fanless? Yes, it features fanless cooling for completely silent operation.
  • Q: What management software is required? UniFi Network application version 7.2.94 or later, with web and mobile app support.
  • Q: Can it be wall-mounted? Yes, includes a wall-mount kit for flexible installation.
  • Q: What is the switching capacity? 32 Gbps switching capacity with 16 Gbps non-blocking throughput.
Weight 1.2 kg
Dimensions 191.7 × 185 × 43.7 mm
Product Create Date

24/09/2020

Web LinkVisit Manufacturer Page →
ManufacturerUbiquiti
Warranty12
Manufacturer SKUUSW-Lite-16-POE
Opt AccessoryNHU-INS-3AF-I-G, NHU-INS-3AF-O-G, NHU-UC-C6-CMP, NHU-UACC-LRE, NHU-UC-PATCH-RJ45-50, NHU-UC-RJ45-BK-50, NHU-UC-RJ45-BL-50, NHU-PRO-XG-AGGREGATION, NHU-UICARE-LITE-16-POE-D
