Ubiquiti UniFi Network, 24-Port, POE 400W, (8) 2.5GbEPoE++, (16) GbE Ports – (8) PoE+, (8) PoE++, (2)10G SFP+, Layer3, Rack Mount,

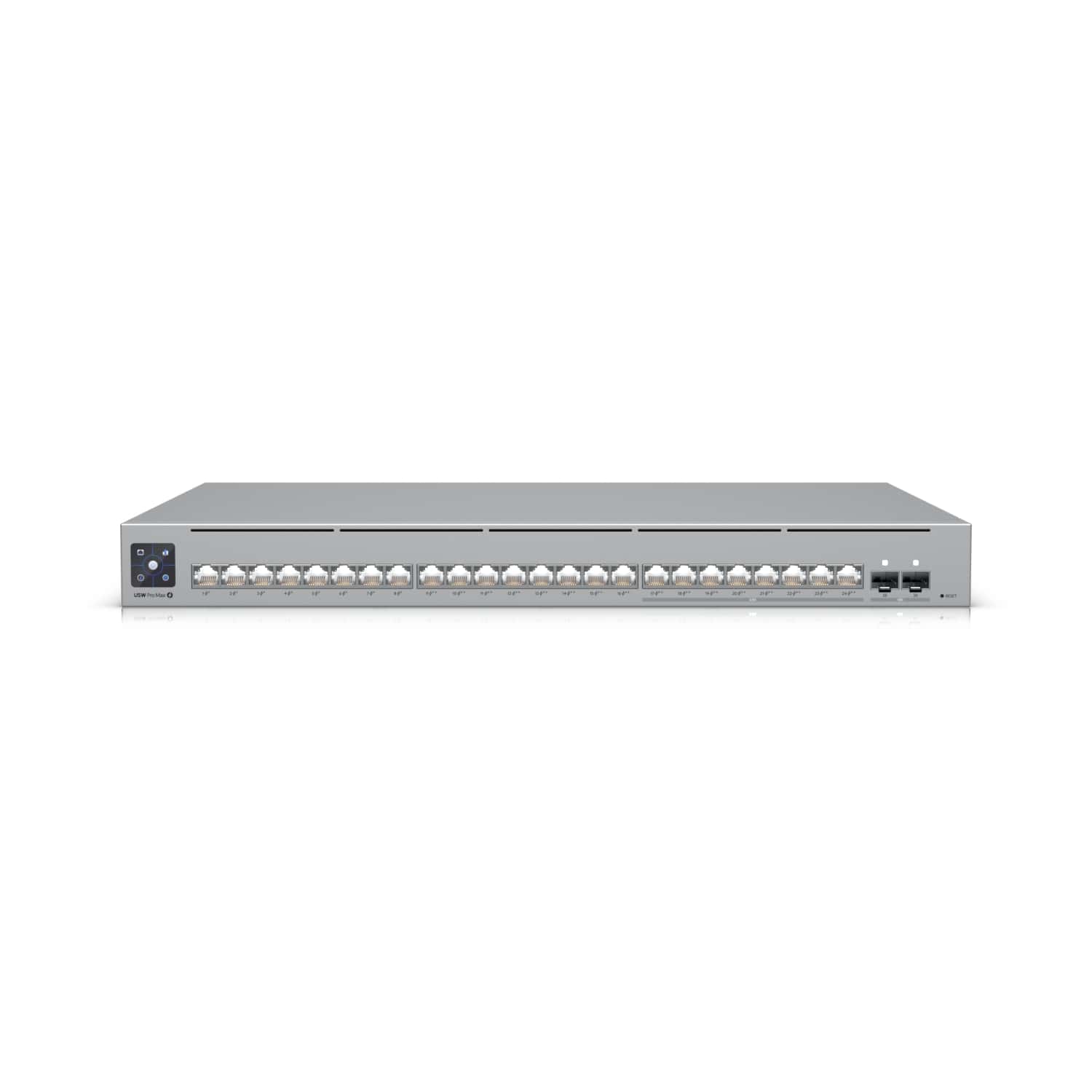

Ubiquiti Professional Max 24 PoE

SKU: USW-Pro-Max-24-PoE

Description: A 24-port, Layer 3 Etherlighting switch capable of high-power PoE++ output.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•Etherlighting ports that illuminate to indicate port location, speed/link, and VLAN*
•(8) 2.5 GbE PoE++ ports
•(16) GbE ports including (8) PoE+ and (8) PoE++
•(2) 10G SFP+ ports
•DC power backup ready
•400W total PoE availability

Why Choose This?

The Ubiquiti UniFi Switch Pro Max 24 PoE (USW-Pro-Max-24-PoE) is a fully managed Layer 3 rack-mount switch designed for high-performance networks, delivering 400W PoE++ power across 24 ports to effortlessly support power-hungry devices like WiFi 7 access points and IP cameras. Its Etherlighting™ ports provide visual status indicators for port speed, link activity, and VLANs, simplifying troubleshooting in enterprise environments. With 112 Gbps switching capacity, 2.5 GbE and 10G SFP+ uplinks, and advanced Layer 3 routing, it ensures scalable, reliable connectivity for demanding deployments.

Key Features

• 24 PoE ports (8x 2.5 GbE PoE++, 16x GbE with 8 PoE+ and 8 PoE++) – Powers diverse devices up to 64W per port with 400W total budget for simplified cabling.
• Etherlighting™ RJ45 and SFP+ ports – Illuminates to show port location, speed/link activity, and VLAN for quick visual diagnostics.
• Layer 3 switching with inter-VLAN routing and static routes – Enables efficient traffic segmentation and routing without additional hardware.
• 112 Gbps switching capacity and 56 Gbps non-blocking throughput – Handles high-bandwidth demands in enterprise and Pro AV setups.
• UniFi Network management with 1.3″ touchscreen LCM – Centralized control via UniFi app (v8.0.24+) plus local display for standalone setup.

Full Specifications

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

• Q: What UniFi Network version is required? UniFi Network Version 8.0.24 and later for full management and features.
• Q: Does it support Layer 3 routing? Yes, includes DHCP Server/Relay, inter-VLAN routing, and static routing for local networks.
• Q: What is the maximum PoE per port? Up to 64W PoE++ on supported ports (16 PoE++ total), with 400W budget across all PoE ports.
• Q: Is DC power redundancy available? Yes, supports USP RPS DC input for power backup alongside AC input.
• Q: What are Etherlighting ports? Illuminated RJ45 and SFP+ ports indicating location, speed/link, and VLAN status for easy identification.
