Ubiquiti UniFi Express 7, Mesh-scalable, Super-compact 10G Cloud Gateway, Integrated WiFi 7 With 6 GHz support, 140 m² Coverage
$429.59 inc GST
Manufacturer: Ubiquiti
Availability: BRS:409 ADL:39 SYD:1593 MEL:291 WA:46
2378 in stock

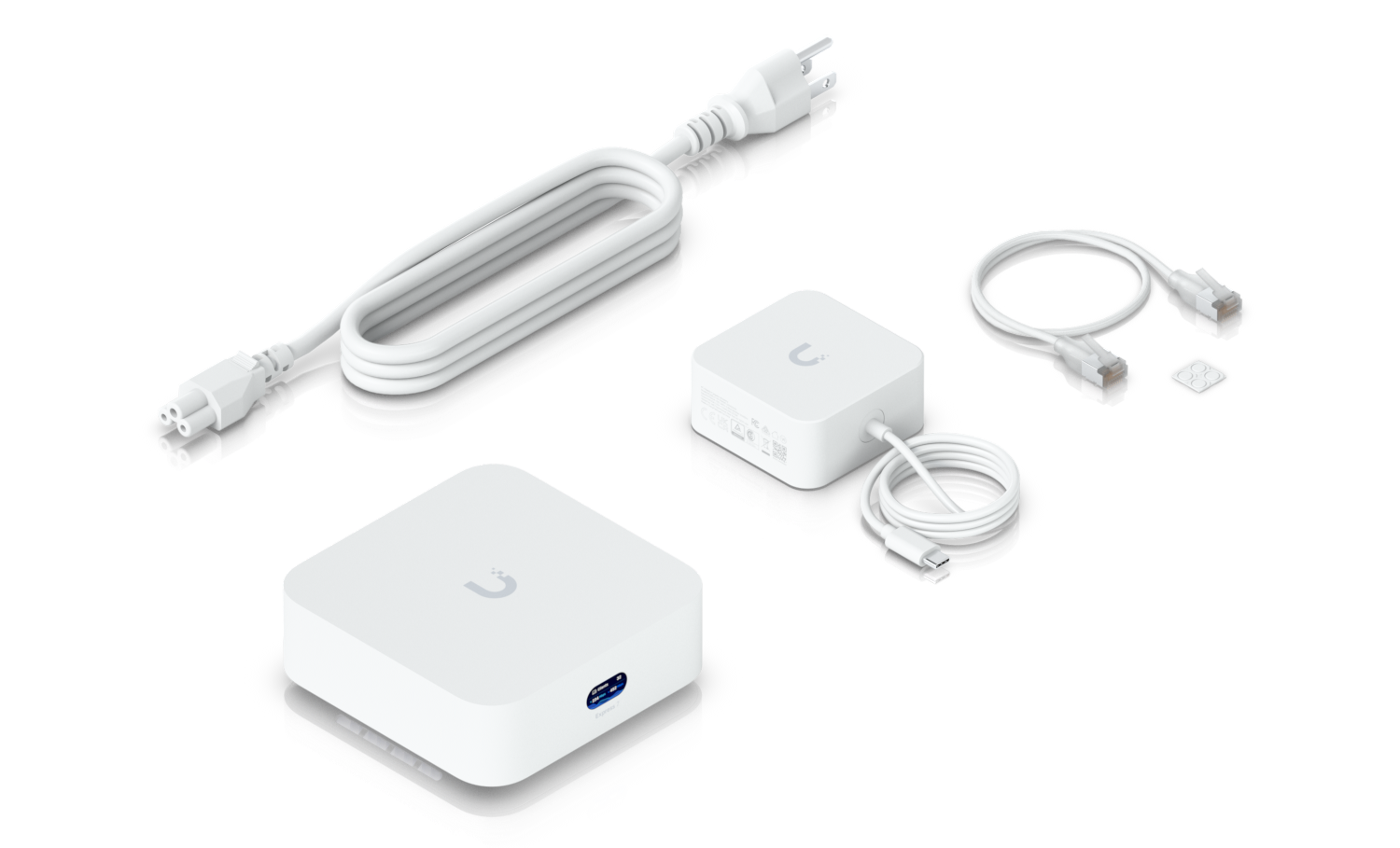

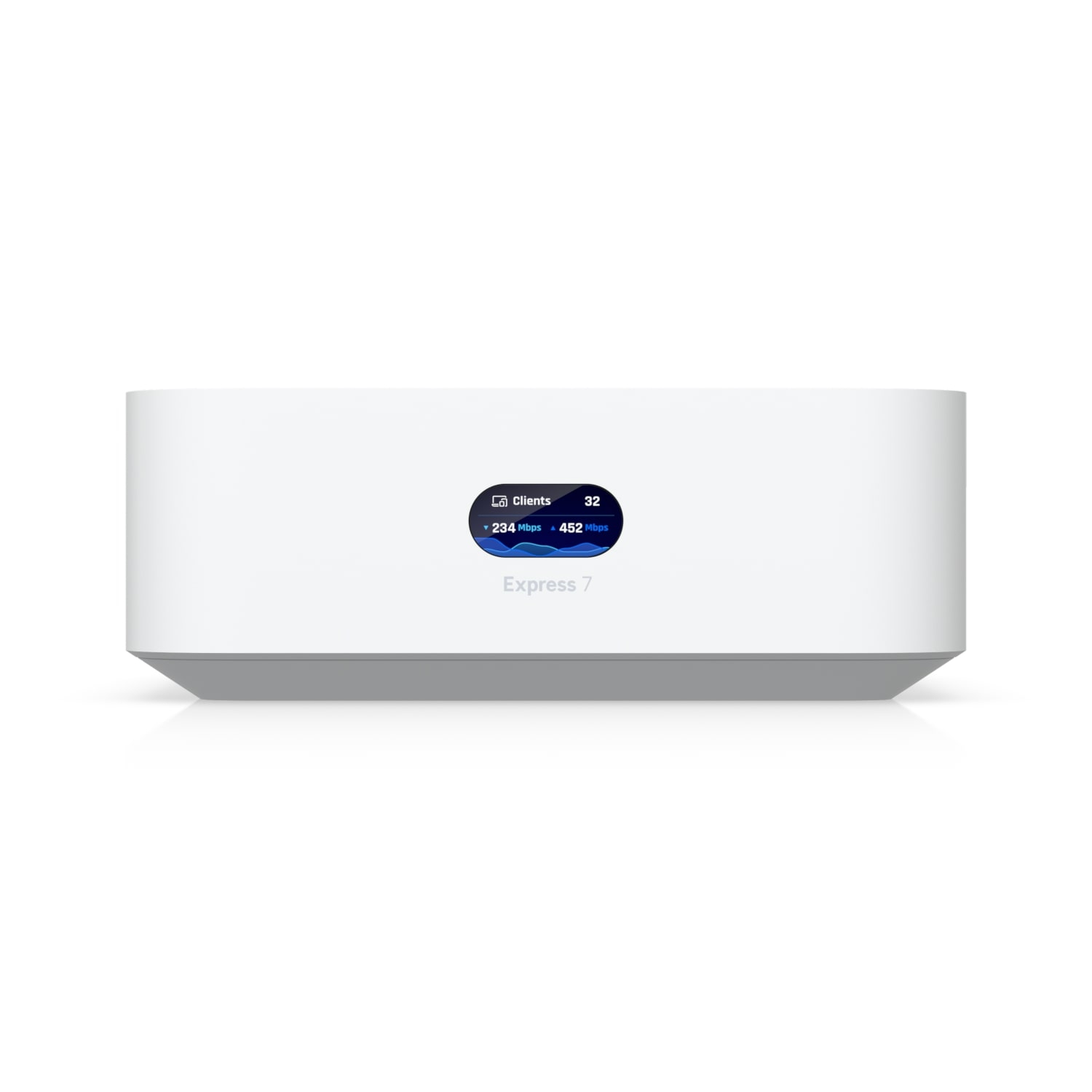

Ubiquiti UniFi Express 7
SKU: UX7
Tech Specs: Click Here
Installation Guide: Click Here
Description:
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
Features:

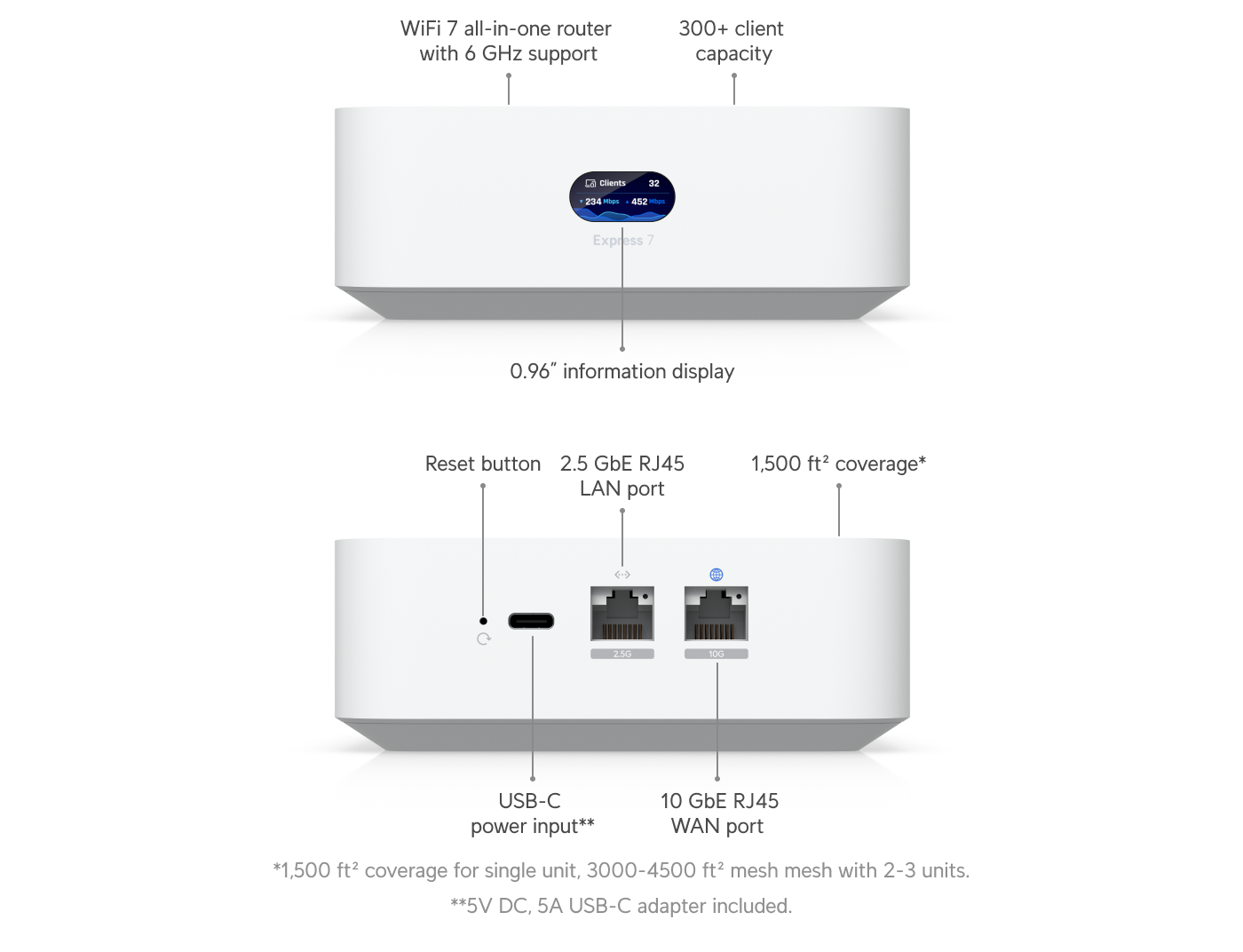

•Integrated 6-stream WiFi 7 with 6 GHz support
•Optionally adopted as wired or meshed Layer 2 UniFi AP to extend coverage
•140 m² (1,500 ft²) coverage
•Manages 30+ UniFi devices and 300+ clients
•(1) 10 GbE RJ45 WAN port
•(1) 2.5 GbE RJ45 LAN port to extend network
Why Choose This?
The Ubiquiti UniFi Express 7 (UX7) is a mesh-scalable, super-compact 10G cloud gateway that delivers integrated WiFi 7 with 6 GHz support, covering up to 140 m² for seamless connectivity in homes or small offices. It manages 30+ UniFi devices and 300+ simultaneous users with 2.3 Gbps IDS/IPS throughput, ensuring robust security and performance. Perfect for users seeking a plug-and-play solution that doubles as a standalone router or mesh extender.
Key Features
- 6-Stream Tri-Radio WiFi 7 – Delivers blazing-fast speeds up to 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz with 2×2 MU-MIMO for multi-device efficiency.
- Integrated 10G Connectivity – 10 GbE WAN and 2.5 GbE LAN ports support multi-gigabit internet and wired devices without bottlenecks.

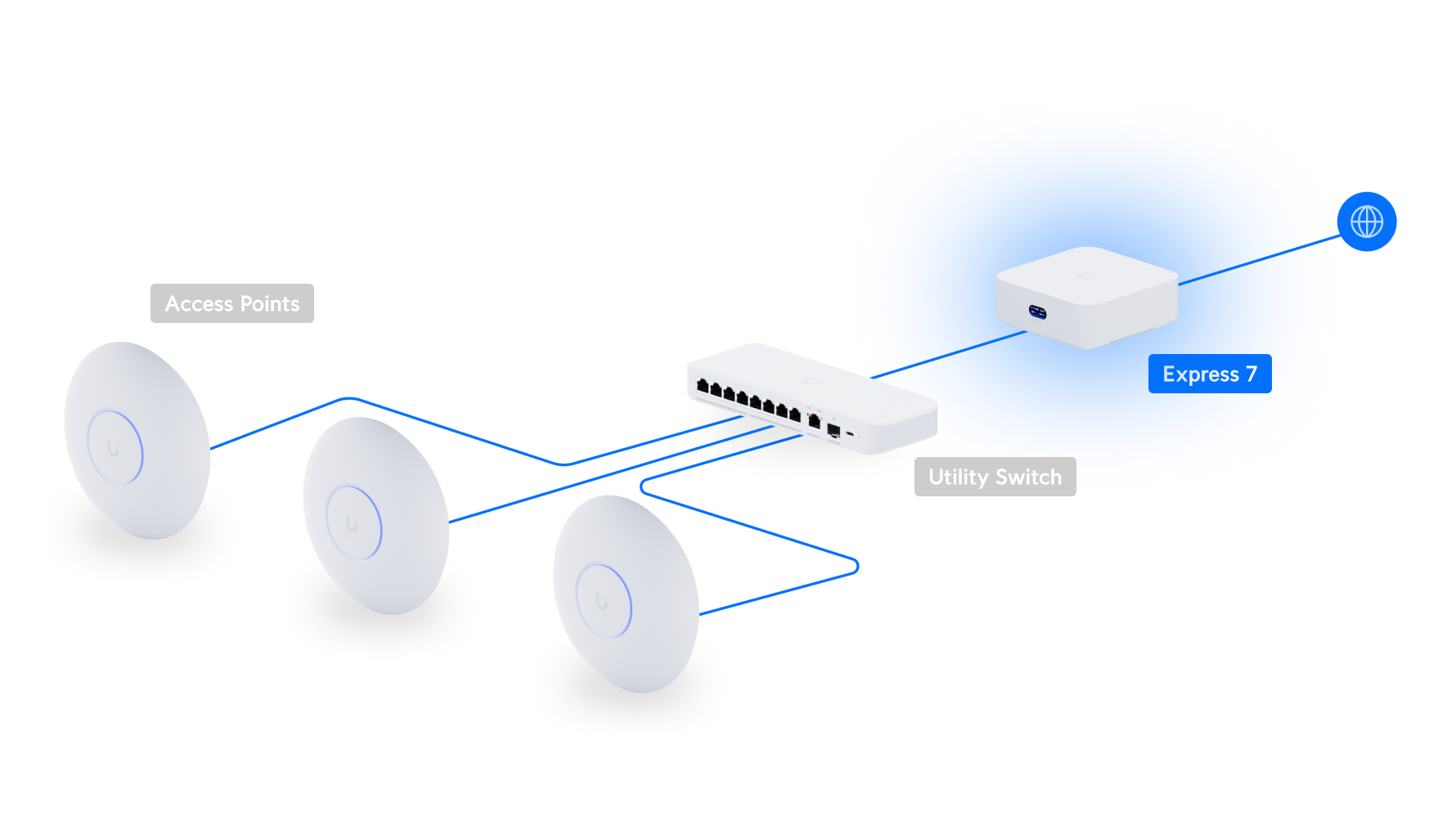

- Mesh-Scalable Design – Deploy as a gateway, wired/mesh AP, or extender to effortlessly expand coverage in larger spaces.
- Advanced Security Suite – 2.3 Gbps IDS/IPS throughput, stateful firewall, DPI, ad blocking, and 20,000+ signatures protect your network comprehensively.

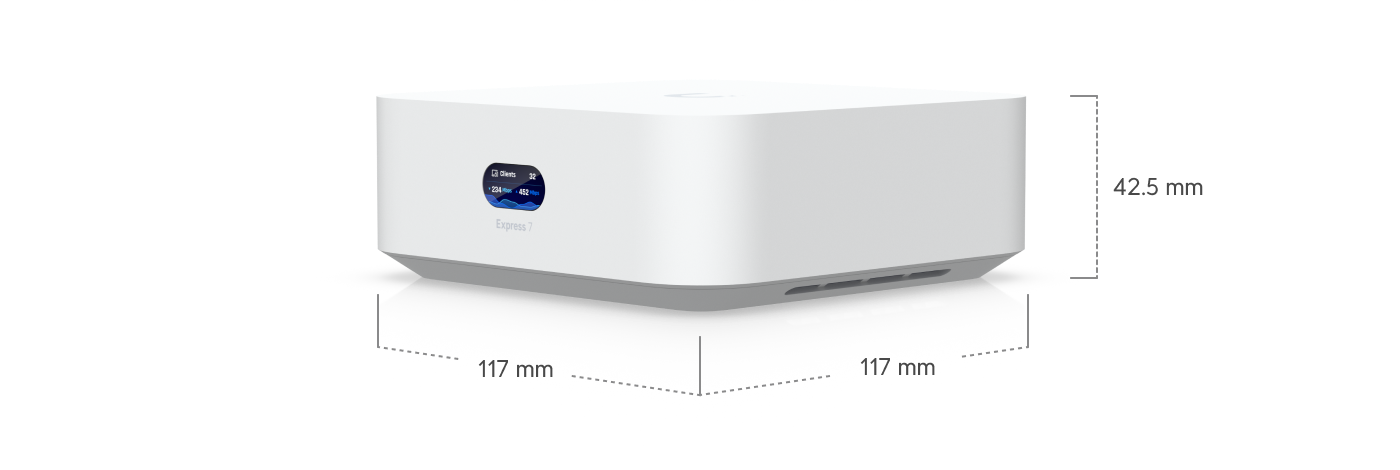

- Compact and Fanless – Ultra-small 117 x 117 x 42.5 mm form factor with low 22W power draw runs silently and fits anywhere.
Full Specifications
| Category | Details |
|---|---|
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67″) |
| Weight | 422 g (14.9 oz) |
| Form Factor | Compact desktop |
| Coverage Area | 140–160 m² (1,500–1,750 ft²) |
| Managed UniFi Devices | 30+ |
| Simultaneous Users | 300+ |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory | 3 GB |
| WAN Port | 1 x 10 GbE RJ45 (10G/5G/2.5G/1G) |
| LAN Port | 1 x 2.5 GbE RJ45 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 7) |
| WiFi Throughput | 6 GHz: 5.7 Gbps, 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps |
| MIMO | 2 x 2 (DL/UL MU-MIMO) on all bands |
| Antenna Gain | 6 GHz: 6 dBi, 5 GHz: 7 dBi, 2.4 GHz: 4 dBi |
| Max TX Power | 6 GHz: 24 dBm, 5 GHz: 26 dBm, 2.4 GHz: 23 dBm |
| Wireless Security | WPA/WPA2/WPA3, PPSK |
| Max BSSIDs | 4 per radio (Gateway/AP mode) |
| Power Method | USB Type-C (5V DC / 5A) |
| Max Power Consumption | 22W |
| UniFi App | Network |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the coverage area of the UniFi Express 7? It provides 140–160 m² (1,500–1,750 ft²) coverage, ideal for apartments or small homes, and supports mesh extension for larger areas.
- Q: Can it manage other UniFi devices? Yes, it manages 30+ UniFi devices and supports 300+ simultaneous clients via the UniFi Network application.
- Q: Does it support WiFi 7 with 6 GHz? Yes, featuring tri-band WiFi 7 (BE11000 class) with up to 5.7 Gbps on 6 GHz, including 2×2 MU-MIMO.
- Q: What ports does it have? One 10 GbE RJ45 WAN port and one 2.5 GbE RJ45 LAN port for high-speed wired connections.
- Q: Is it suitable for mesh networking? Absolutely, it deploys as a standalone gateway, wired AP, or wireless mesh point to extend existing UniFi networks.
| Weight | 1.08 kg |
|---|---|
| Dimensions | 210 × 186 × 72 mm |
| Product Create Date | 27/02/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UX7 |
| Opt Accessory | NHU-UICARE-UX7-D, NHU-UI-CYBERSECURE-1Y-D |
