Name: Ubiquiti UniFi Building-to-Building Bridge - 60GHz 1.7Gbps Link - Complete PtP Link, Built-in LED alignment indicators, Sold as 2 Pack
SKU: NHU-UBB
Availability: OutOfStock

Ubiquiti UniFi Building-to-Building Bridge – 60GHz 1.7Gbps Link – Complete PtP Link, Built-in LED alignment indicators, Sold as 2 Pack

$1,011.50 inc GST

Some stock is onhand in the back of a warehouse somewhere.
Please email [email protected] to confirm.

Manufacturer: Ubiquiti

Stock: BRS:CALL ADL:CALL SYD:CALL MEL:CALL(wh:4) PER:CALL

Out of stock

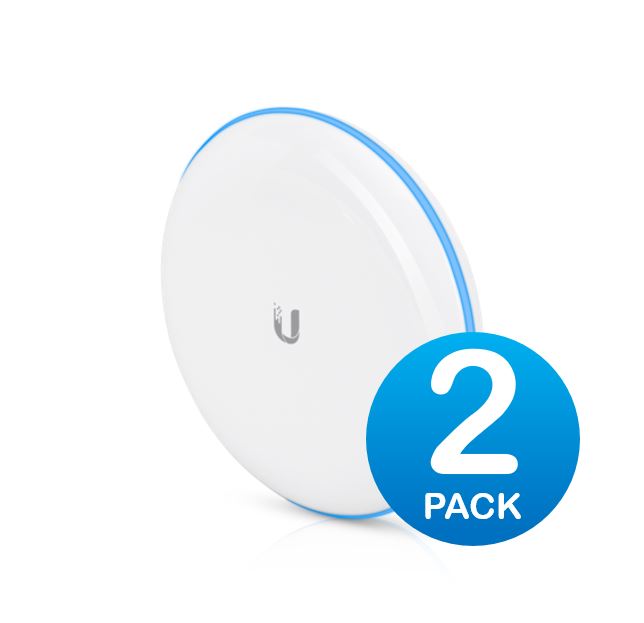

Ubiquiti Building Bridge (2 Pack)

SKU:UBB

Tech Specs: Click Here

Features:
•A 60 GHz wireless point-to-point bridge.
•500 m (1,640 ft) maximum range
•60 GHz 5 GHz dual-radio redundancy
•Includes PoE power adapters
•Built-in LED alignment indicators
•Sold as 2 Pack
Note. Cannot be set up standalone and requires a UniFi gateway or self-hosted Network server.

Why Choose This?

The Ubiquiti UniFi Building-to-Building Bridge (UBB) delivers a pre-paired, plug-and-play 60 GHz PtP wireless link up to 1.7 Gbps bi-directional, perfect for high-throughput connectivity between buildings up to 500 m away without trenching fiber. Its dual-radio design with 5 GHz backup ensures reliable performance even in rain or obstructions, while built-in LED alignment indicators and included PoE adapters simplify outdoor deployment. Sold as a complete 2-pack, it integrates seamlessly with UniFi Network management for effortless setup and monitoring.

Key Features

60 GHz primary radio (802.11ad) – Provides ultra-low interference, high-capacity throughput up to 1.7+ Gbps for gigabit+ wireless bridging.
5 GHz backup radio (802.11ac) – Automatic failover ensures link reliability during rain, fog, or line-of-sight obstructions.

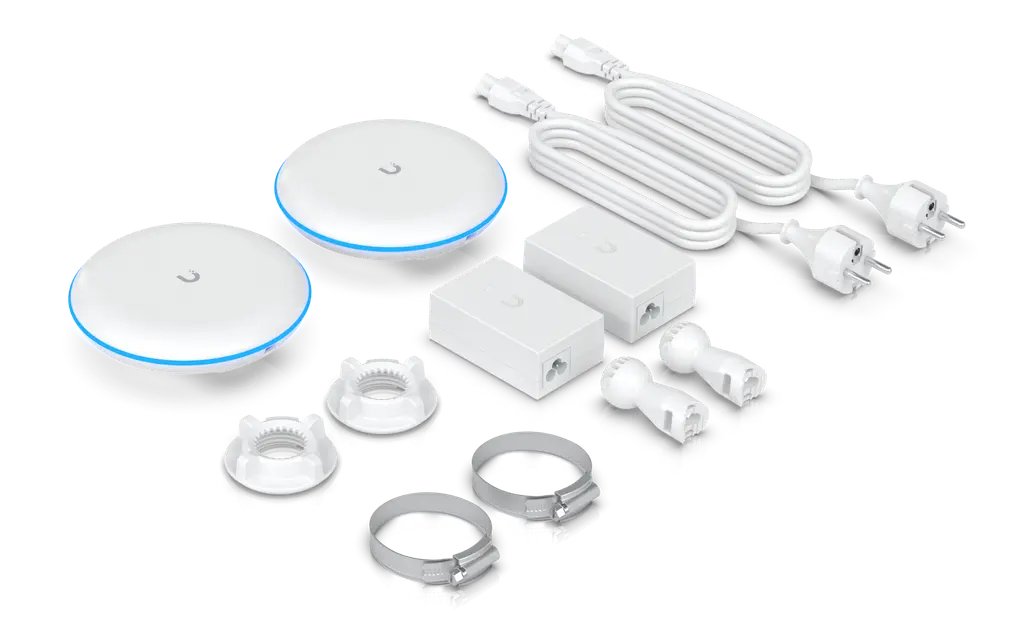

Pre-paired 2-pack with PoE adapters – Enables quick, out-of-box PtP setup and easy powering without additional injectors.
Built-in LED alignment indicators – Simplifies precise aiming with visual feedback for optimal signal strength.
Weatherproof IPX6 design – Withstands harsh outdoor conditions, wind up to 200 km/h, and temperatures from -40 to 70°C.

Full Specifications

Category	Details
Dimensions	⌀140 x 90 mm (⌀5.5 x 3.5″)
Weight	376 g (13.3 oz)
Enclosure Material	UV-resistant polycarbonate
Mounting	Pole-mount (kit included), Wall-mount (kit optional)
Networking Interface	(1) GbE RJ45 port
Management	Ethernet, Bluetooth
Power Method	PoE 802.3af, Passive PoE (48V)
Power Supply	Gigabit PoE adapter (included)
Max. Power Consumption	11W
LED	System R/G/B
Coverage Area	500 m (1,640 ft)
Max. Data Rate (60 GHz)	1.7 Gbps
Max. Data Rate (5 GHz)	866.6 Mbps (BW80)
Antenna Gain (60 GHz)	17.2 dBi
Antenna Gain (5 GHz)	10 dBi
Max. TX Power (60 GHz)	19 dBm
Max. TX Power (5 GHz)	25 dBm
Main Radio Frequency (60 GHz)	57–66 GHz
Backup Radio Frequency (5 GHz)	5150–5850 MHz (region-dependent)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5 to 95% non-condensing
Wind Loading	56 N at 200 km/h (12.6 lbf at 125 mph)
Weatherproofing	IPX6
Certifications	CE, FCC, IC, NDAA compliant

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

Q: What is the maximum range of the UBB? Up to 500 m (1,640 ft) with clear line-of-sight on the 60 GHz band.
Q: Does it failover automatically if the 60 GHz link drops? Yes, it automatically switches to the 5 GHz backup radio for redundancy during rain, fog, or obstructions.
Q: Is the UBB sold as a pair? Yes, the standard UBB is a pre-paired 2-pack with two PoE adapters for complete PtP deployment.
Q: How do I align the bridges? Use the built-in LED indicators and ball-joint mount for precise 3-axis aiming; UniFi app provides additional alignment tools.
Q: What management options are available? Managed via UniFi Network application (Console, Hosting, or self-hosted) over Ethernet or Bluetooth.

Weight	1.72 kg
Dimensions	215 × 170 × 165 mm
Product Create Date	04/12/2019

Web Link	Visit Manufacturer Page →
Manufacturer	Ubiquiti
Warranty	12
Manufacturer SKU	UBB
Opt Accessory	NHU-ETH-SP-G2, NHU-LTU-CLAMP
