Name: Ubiquiti UniFi 5G Max Outdoor,Full-Performance 5G (3.4 Gbps)Modem,UniFi Consoles,Cloud Gateways,Outdoor Use,Directional Antennas,Remote/Dual SIM
SKU: NHU-U5G-MAX-OUTDOOR
Availability: OutOfStock

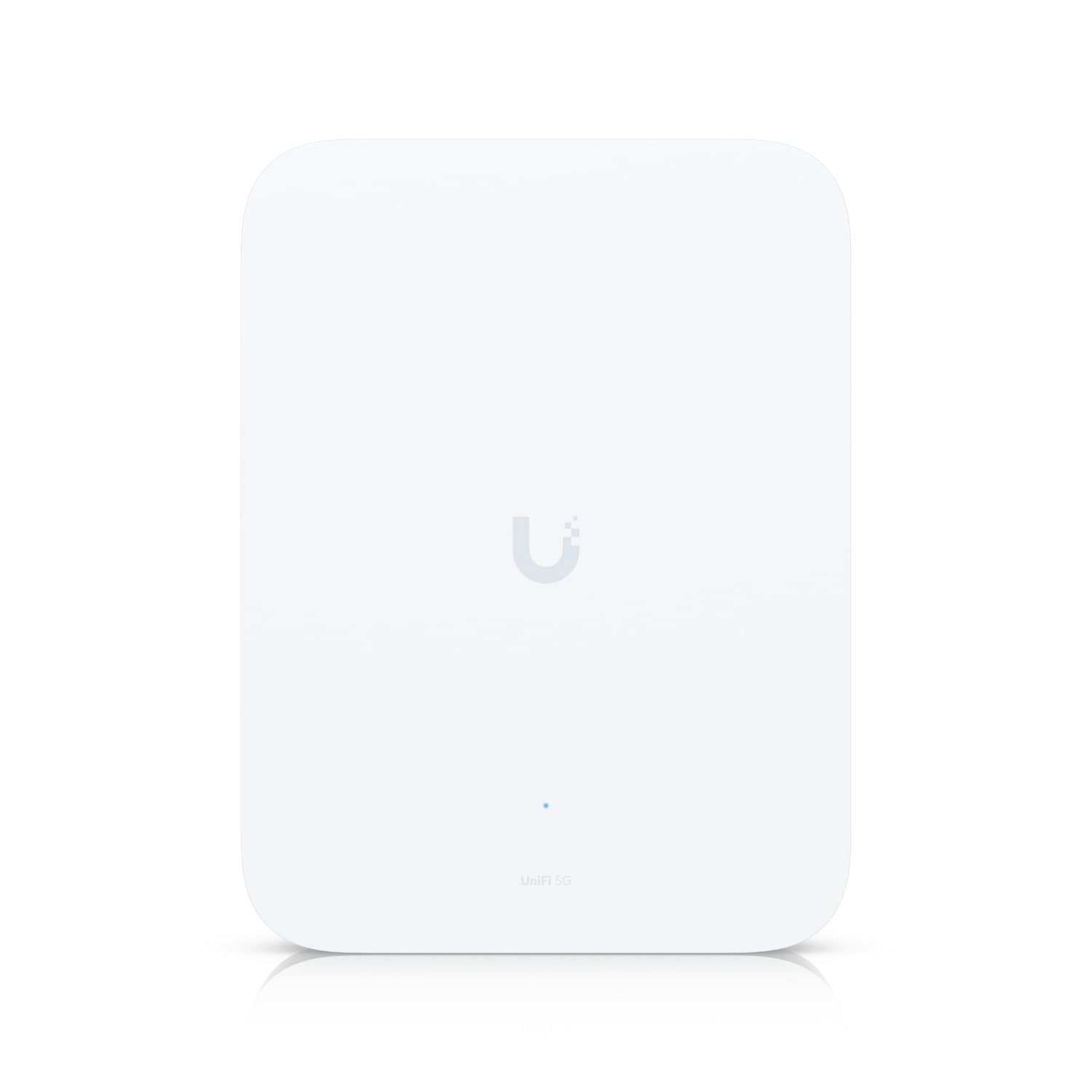

Ubiquiti UniFi 5G Max Outdoor

SKU: U5G-Max-Outdoor

Tech Specs: Click Here
Installation Guide: Click Here

Description:

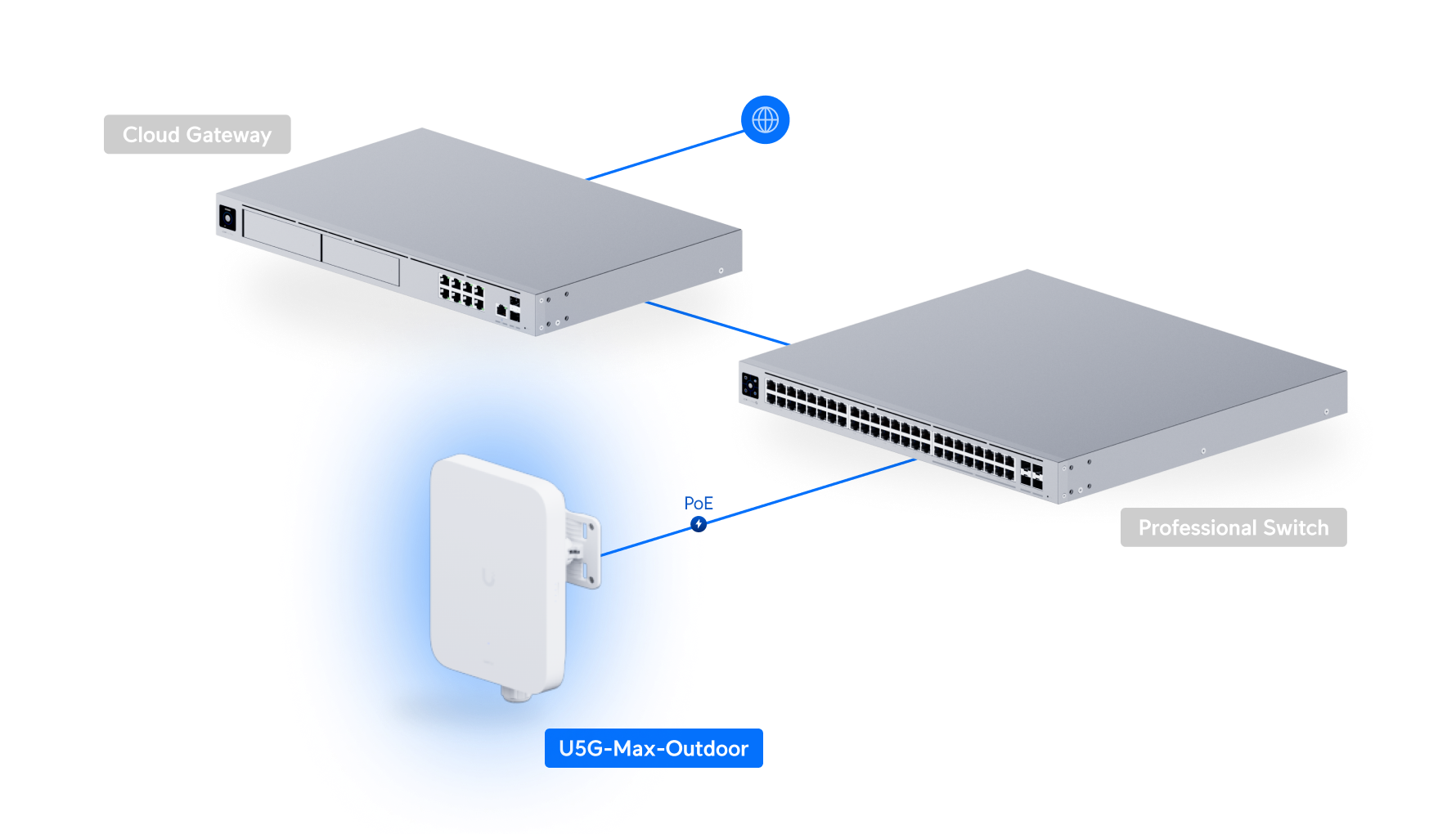

A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, designed for outdoor use with directional antennas, remote SIM, and dual SIM for seamless failover.

Why Choose This?

The Ubiquiti UniFi 5G Max Outdoor is a high-performance 5G modem delivering up to 3.4 Gbps downlink speeds, purpose-built for outdoor UniFi deployments on consoles and Cloud Gateways. Its weatherproof IP67-rated design with directional high-gain antennas ensures reliable connectivity in harsh environments like rooftops or remote sites, while dual SIM support provides seamless failover for uninterrupted service.

Key Features

Full-performance 5G NR modem (3.4 Gbps downlink) – Delivers ultra-fast cellular internet as primary or backup WAN for UniFi networks.
6 embedded antennas with 2 high-gain directional (9 dBi peak) – Optimizes signal reception and range by pointing toward cell towers.
Dual SIM support (Nano SIM + Nano/eSIM, remote SIM future) – Enables automatic failover between carriers for maximum uptime.
IP67 weatherproof enclosure – Withstands extreme outdoor conditions, from -40°C to 65°C and high winds up to 200 km/h.
PoE-powered 2.5 GbE port – Simplifies installation with single-cable power and data connectivity anywhere in the network.

Full Specifications

Category	Details
Model	U5G-Max-Outdoor

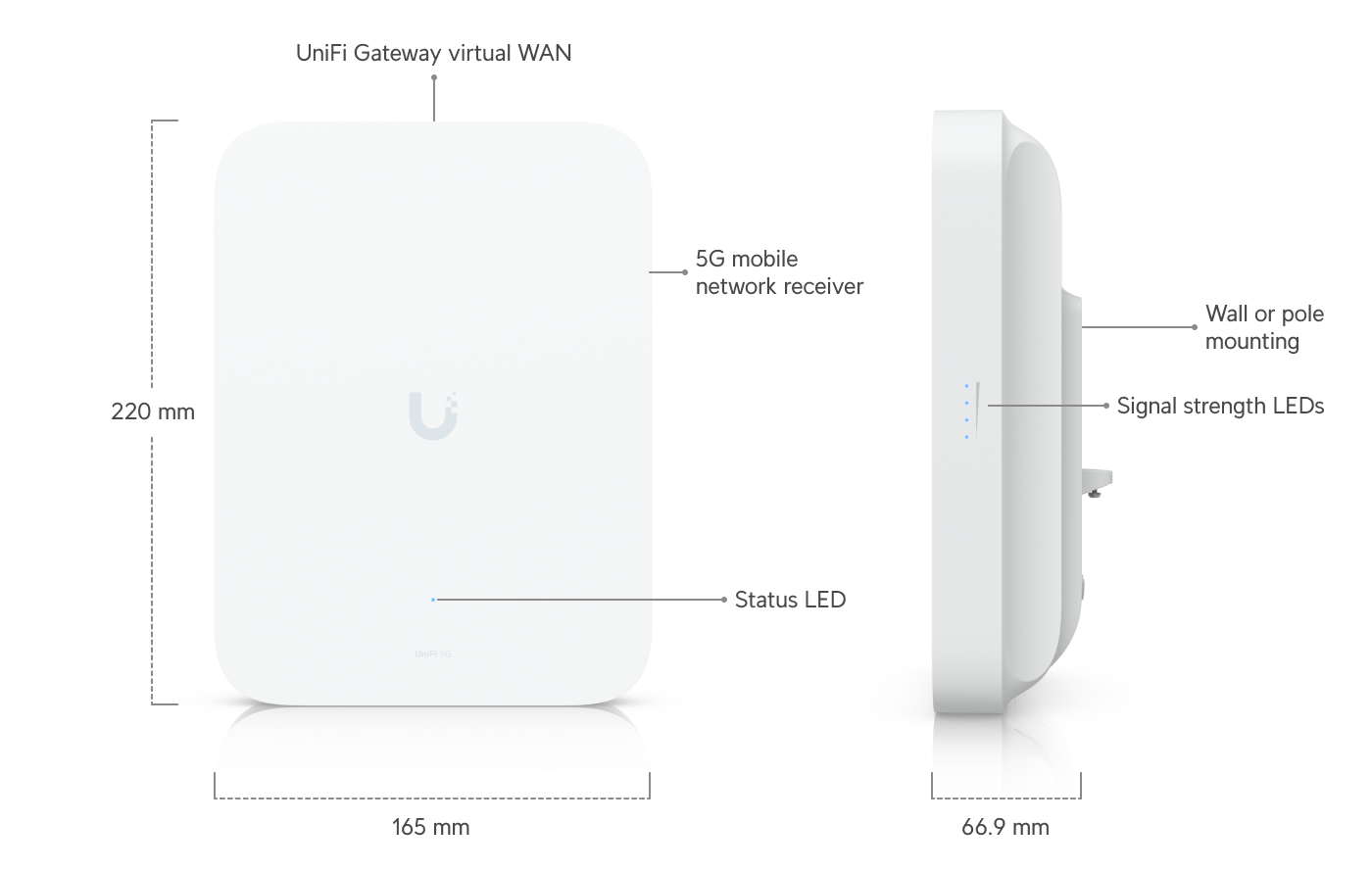

Dimensions (Device)	220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6″)
Dimensions (With Mount)	220 x 165 x 122 mm (8.7 x 6.5 x 4.8″)
Weight (Device)	1.2 kg (2.6 lb)
Weight (Mount)	130 g (4.6 oz)
Enclosure Material	Aluminum-alloy, UV-stabilized polycarbonate
Mount Material	UV-stabilized polycarbonate
Networking Interface	(1) 2.5 GbE RJ45 port, 5G NR and LTE radio
SIM Support	(1) Nano SIM, (1) Nano-SIM or eSIM
Power Method	PoE (1) PoE input
Max Power Consumption	14.5 W
Antennas	6 embedded cellular antennas, including (2) high-gain for downlink: peak 9 dBi, 85°x85°
Weatherproofing	IPX6; IP67 (with cable-gland door kit)
Wind Loading	91N at 200 km/h (20.45 lbf at 125 mph)
Operating Temperature	-40 to 65 °C (-40 to 149 °F)
Operating Humidity	5 to 95% noncondensing
5G NR Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
5G NR Max TX Power	HPUE power class 2: 26 dBm
Peak Data Speed (5G NSA)	Downlink 3.4 Gbps, Uplink 560 Mbps
Peak Data Speed (5G SA)	Downlink 1.8 Gbps, Uplink 650 Mbps

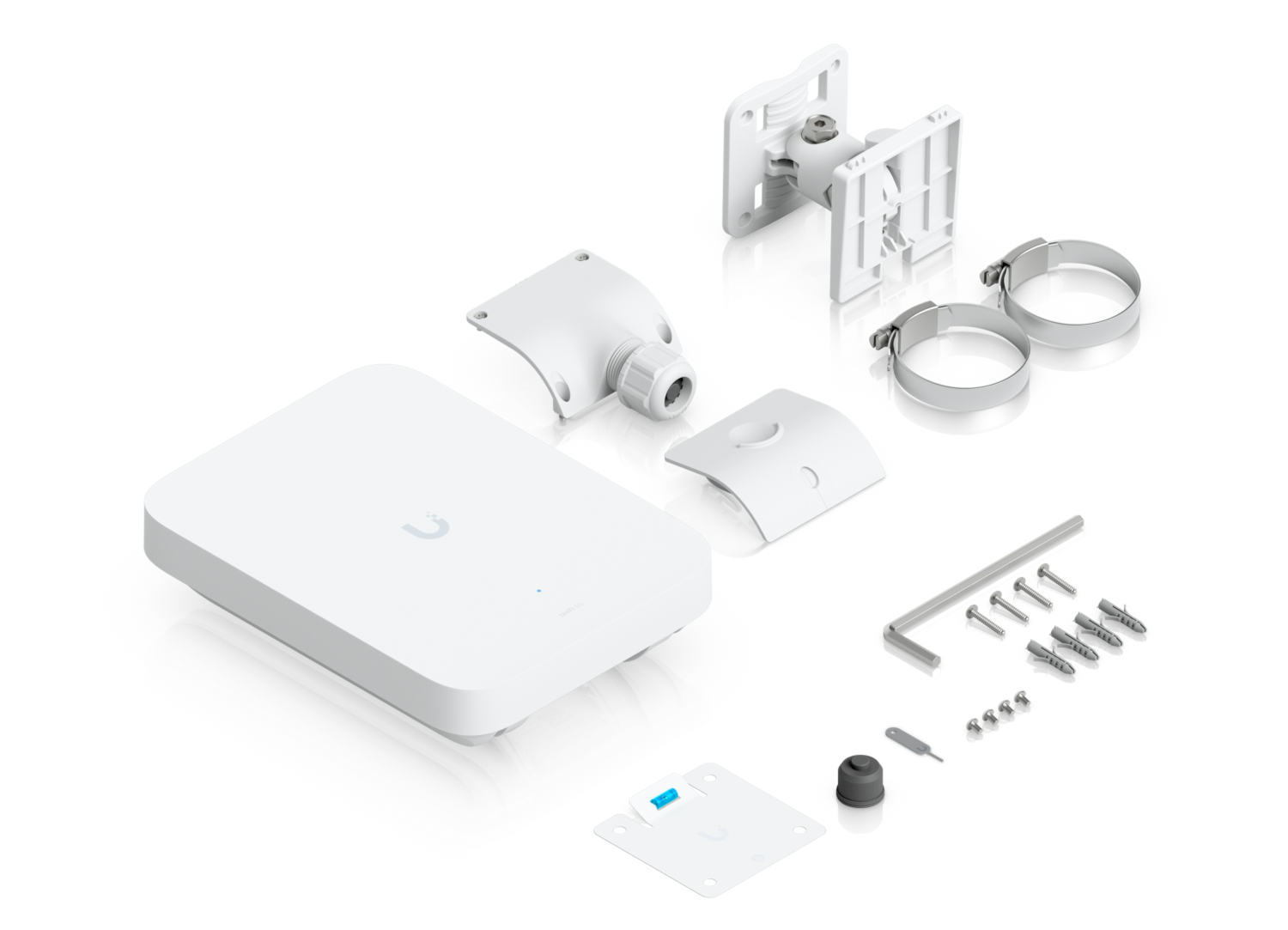

Mounting	Pole mount (1–2.5″ / 25–63.5 mm diameter), wall mount (included)
Certifications	FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile; NDAA Compliant

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

Q: What carriers are certified? Certified for AT&T and T-Mobile; Verizon support coming soon. Requires data-only plans (T-Mobile Home Internet SIMs not supported).
Q: Does it support remote SIM provisioning? Remote SIM support is planned for a future firmware update.
Q: Is it suitable for outdoor use? Yes, IPX6/IP67 weatherproof rating with operation from -40 to 65°C, ideal for rooftops and poles.
Q: How is it powered and connected? Powered via PoE with a single 2.5 GbE RJ45 port for both power and data, auto-adopts into UniFi networks.
Q: What are the maximum speeds? Up to 3.4 Gbps downlink / 560 Mbps uplink (5G NSA); dual SIM enables seamless failover.

Weight	1.35 kg
Dimensions	220 × 165 × 121 mm
Product Create Date	13/01/2026

Web Link	Visit Manufacturer Page →
Manufacturer	Ubiquiti
Warranty	12
Manufacturer SKU	U5G-Max-Outdoor
Opt Accessory	NHU-UICARE-U5G-MAXOUTDOOR
