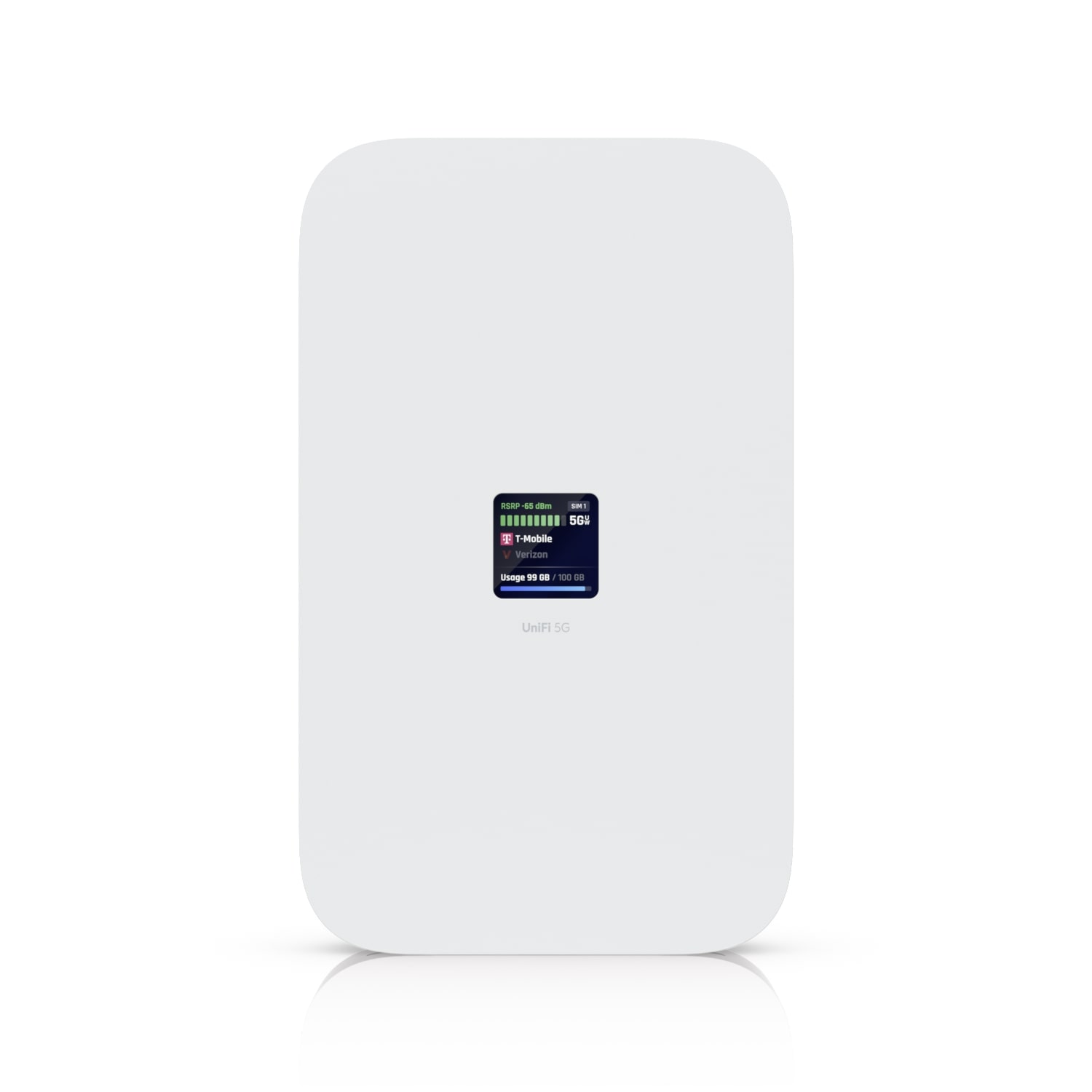

Ubiquiti UniFi 5G Max

SKU: U5G-Max

Tech Specs: Click Here
Installation Guide: Click Here

Description:
A high-performance 5G (3.4 Gbps) modem for any Unifi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.

Why Choose This?

The Ubiquiti UniFi 5G Max (U5G-Max) is a high-performance 5G modem delivering up to 3.4 Gbps downlink speeds, perfect for primary or failover WAN in any UniFi deployment. It instantly adopts via any UniFi PoE port for automatic setup, supports dual SIM/eSIM for seamless redundancy, and integrates effortlessly with UniFi Network (v10.0.162+). Certified for AT&T and T-Mobile, it ensures reliable, carrier-grade connectivity with minimal hassle.

Key Features

High-speed 5G NR (3.4 Gbps downlink NSA) – Delivers blazing-fast internet for demanding UniFi networks as primary or backup WAN.

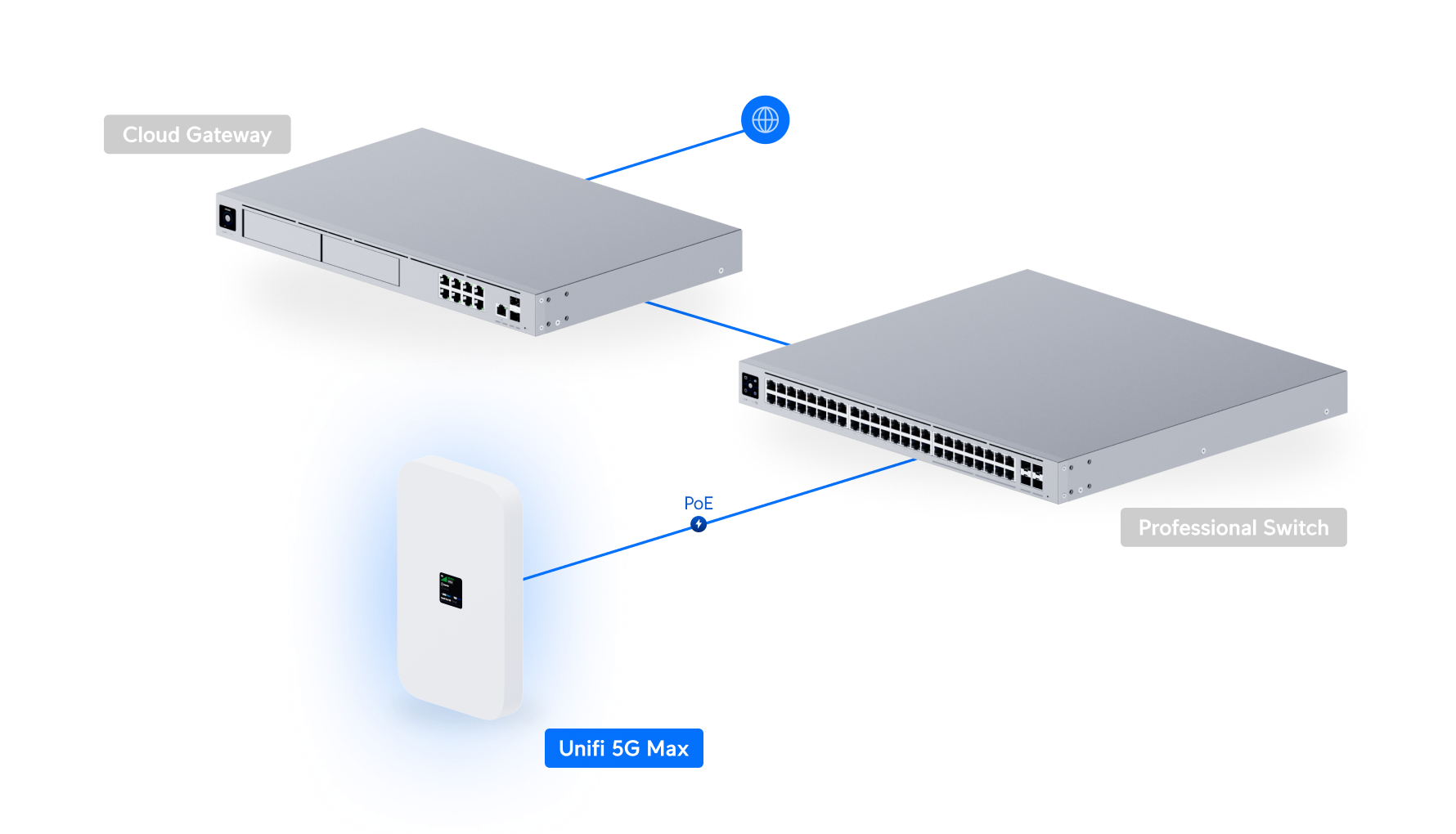

Instant PoE adoption – Plug into any UniFi PoE port for automatic setup and seamless integration without complex configuration.
Dual SIM/eSIM support – Enables failover between two carriers or SIMs for uninterrupted connectivity.
2.5 GbE RJ45 port – Provides high-bandwidth Ethernet output matching 5G performance to your UniFi gateway or switch.
1.3″ touchscreen & multiple mounts – Offers easy status monitoring and flexible desktop, wall, or window installation.

Full Specifications

Category	Details
Model	UniFi 5G Max (U5G-Max)

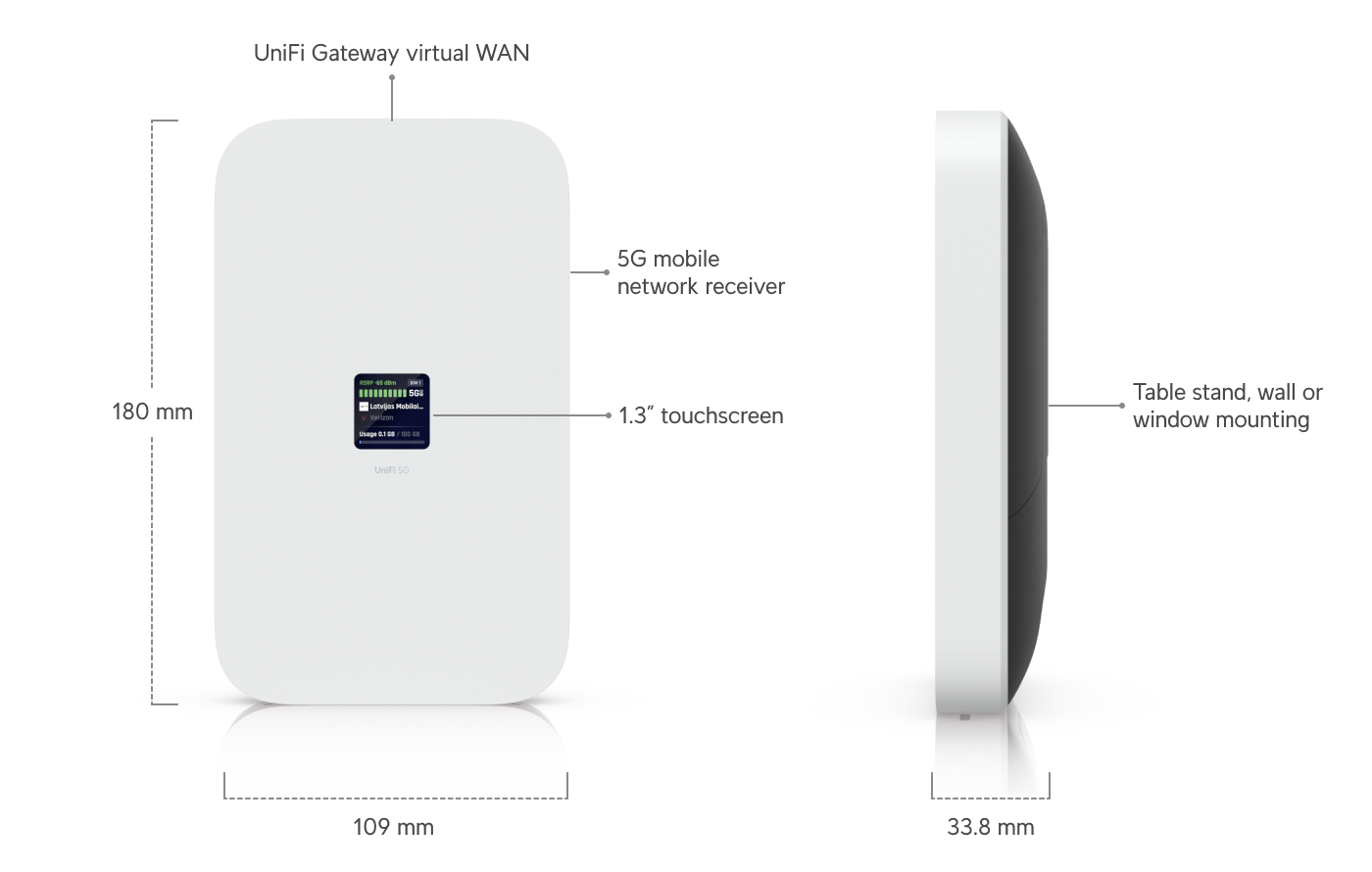

Dimensions	180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3″)
Weight (Device)	410 g (14.5 oz)
Networking Interface	(1) 2.5 GbE RJ45 port, 5G NR and LTE radio
SIM Support	(1) Nano SIM, (1) Nano-SIM or eSIM
PoE Interface	(1) PoE input

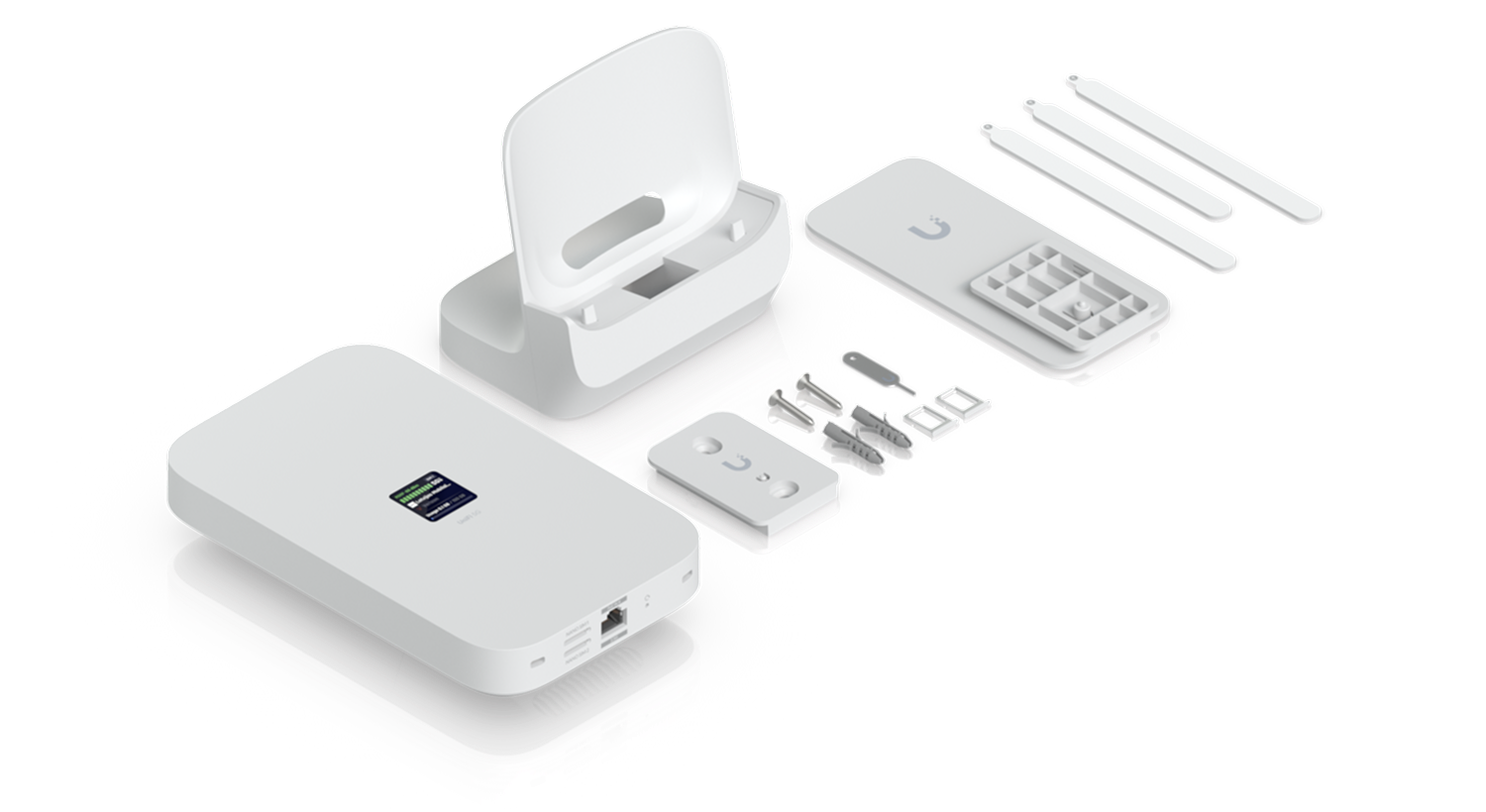

Mounting	Desktop stand, wall mount, window mount (included)
Tamper Resistance	IK04
Enclosure Material	Polycarbonate, aluminum alloy
Power Method	PoE, Max. Consumption: 14.5W
Display	1.3″ touchscreen
Buttons	(1) Factory reset
5G NR Peak Speeds (NSA)	Downlink: 3.4 Gbps, Uplink: 560 Mbps
5G NR Peak Speeds (SA)	Downlink: 1.8 Gbps, Uplink: 650 Mbps
4G LTE Peak Speeds	Downlink: 1.6 Gbps, Uplink: 210 Mbps
5G NR Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Antennas	(4) Embedded cellular antennas
Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	5 to 95% noncondensing
Certifications	NDAA compliant, FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile
Software Requirements	UniFi Network version 10.0.162 and later

Official Resources: Tech Specs | Installation Guide

Frequently Asked Questions

Q: Does it support Verizon? Verizon is not officially supported at this time; direct SIM/eSIM activation is expected in a future update. Some users report success with Verizon data SIMs, but certification is pending.
Q: What SIM types are supported? Dual SIM: one Nano SIM and one Nano SIM or eSIM. Requires data-only plans; T-Mobile Home Internet SIMs not supported.
Q: How do I set it up? Connect to any UniFi PoE port; it auto-adopts in UniFi Network v10.0.162+. Insert SIMs, set APN if needed, and configure as WAN or failover.
Q: What carriers is it certified for? Certified for AT&T and T-Mobile. Wide band support for global use; check local carrier compatibility.
Q: Can it be used as primary WAN? Yes, supports load balancing or primary WAN in UniFi; ideal for failover with seamless switching via dual SIM.

Weight	1.06 kg
Dimensions	218 × 138 × 96 mm
Product Create Date	05/12/2025

Web Link	Visit Manufacturer Page →
Manufacturer	Ubiquiti
Warranty	12
Manufacturer SKU	U5G-Max
Opt Accessory	NHU-UICARE-U5G-MAX-D
